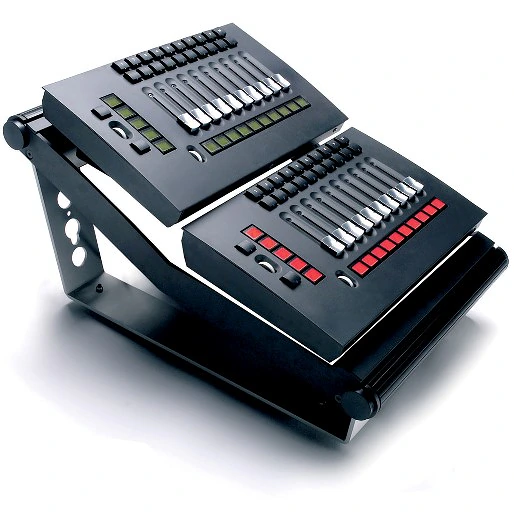

The Maxxyz Wing System extends the Maxxyz’s functionality and gives you the ability to customize and add more direct access to your console.
صور أكبر
الميزات
- Modular design for future expansion
- Full playback capabilities, identical in layout to Maxxyz console
- LCD buttons with customizable text
- Motorized faders
- Easily connects to Maxxyz or Maxxyz PC via USB
- Smart design allows for operation left or right of the main console
- Sturdy and robust construction
مزيد من التفاصيل
Physical
Length: 440 mm
Width: 610 mm
Height: 290 mm
Dimensions are for Wing frame without case:
Control/User Interface
10 x motorized playback faders, each with one dynamically labeled LCD button (to identify/activate playback) and two function-assignable buttons:
20 x conventional buttons:
5 x LCD bank selection keys:
Jog wheel for scrolling bank selection:
2 x five bank up/down 'nudge' keys:
Controls listed are per playback module - one Wing frame can contain two playback modules:
Connections
Maximum number of Playback Modules per Maxxyz Console: 16
Wing I/O: RJ-45
Maxxyz PC: USB
Desk lamp: XLR
Power in/out: 3-pin IEC
Wireless remote:
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Approvals
EU safety: EN 60950
EU EMC: EN 55103-1, EN 55103-2
US safety (pending): ANSI/UL 60950-1
Canadian safety (pending): CSA C22.2 No. 60950-1
Included Items
Included with P/N 90732100 Maxxyz Wing Playback Module::
LED desk lamp: 06220004
USB cable (A/B), 1000 mm: 11840066
1.5 m power cable, 3-pin IEC: 11501012
Power interconnect cable, IEC 3-pin: 11850039
Ethercon patch cable: 11840100
Included with P/N 90732110 Maxxyz Wing Frame::
Maxxyz Wing flightcase: 91535006
Ethercon patch cable: 11840100
Power interconnect cable, IEC 3-pin: 11850039
Two spindles for attachment to Maxxyz or other Wing Frame:
Ordering Information
Maxxyz Wing Playback Module, 90-250 V: 90732100
Maxxyz Wing Frame in Flightcase: 90732110
One "complete” Maxxyz Wing requires 1 x Wing Frame and 2 x Playback Modules:
