Inground 200 (discontinued)

Larger Images

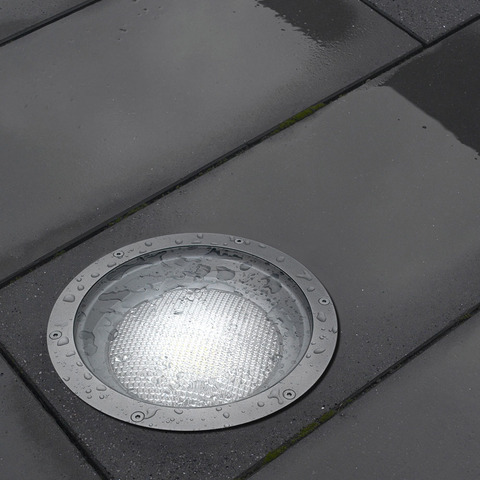

The Inground 200 series offers the benefits of dynamic light and discreet buried installation combined in a simple, easy-to-use system of programmable 150 W luminaires.

Features

  • 150 W metal halide lamp
  • Choice of 2 color systems: Single-color or full spectrum CMY
  • Choice of optical systems: medium, wide, very wide or wallwash
  • 0-100% intensity control
  • High optical performance: uniform distribution of light and color
  • Extensive range of optical accessories
  • DMX, stand-alone, synchronized (master/slave)
  • Weatherproof rating: IP65 and IP67
  • Full drive-over capability
  • Low surface temperature for installation in pedestrian areas

Specifications

PhysicalHeight: 496 mm (19.6 in.)Trim ring outer diameter: 340 mm 13.4 in.)Trim ring thickness: 7 mm (0.28 in.)Housing top flange outer Ø: 310 mm (12.2 in.)Weight: 20 kg (44.1 lbs.)Weight resistance (in installation sleeve with stable groundwork): 5000 kg (11024 lbs)Front glass weight resistance (load from pneumatic tire):5000 kg (11024 lbs.)Installation SleeveInstallation sleeve height: 600 mm (23.7 in.)Installation sleeve tube external Ø: 334 mm (13.4 in.)Installation sleeve base flange external Ø: 416 mm (16.4 in.)
Control and ProgrammingCMY modelsControl options: DMX, stand-alone, synchronized (master/slave)DMX channels: 6Stand-alone trigger options: Internal timerStand-alone memory: 20 scenesDMX address setting: Martin MUM™ application running on Windows PCStand-alone and master/slave programming: Martin MUM™ application running on Windows PCProtocol: USITT DMX512/1990Receiver: RS-485
LampType: 150 W metal halideApproved lamps: Philips CDM SA/T 150 W/942, Philips CDM-T 150 W/830, Osram HCI-T 150 W/WDL, Osram HCI-T 150 W/NDLSocket: G12Control: Automatic and/or remote on/off
ConstructionHousing: AluminumFinish: Black anodizedTrim ring: Stainless steelInstallation sleeve: Acid-resistant stainless steelProtection rating: IP65/67
InstallationOrientation: UplightMinimum distance to combustible materials: 1 m (3.3 ft.)Minimum distance to illuminated surfaces: 0.5 m (1.7 ft.)
ConnectionsPower input: 3 m (9.9 ft.) hard-wired cable tailDMX data in/out (CMY models): 3 m (9.9 ft.) hard-wired cable tail
ElectricalAC power: 210/277 V nominal, 60 Hz; 230 V nominal, 50 Hz
Typical Power and Current208 V, 60 Hz: 183 W, 1.0 A230 V, 50 Hz: 190 W, 1.0 A230 V, 60 Hz: 186 W, 0.9 A250 V, 50 Hz: 191 W, 0.9 AMeasurements made at nominal voltage. Allow for a deviation of +/- 10%.
ThermalMaximum ambient temperature (Ta max.): 35° C (95° F) in direct burial installation, 25° C (77° F) in sleeve installationMax. ambient temperature (Ta max.) can be higher if installation is approved by Martin ArchitecturalMinimum ambient temperature (Ta min.): -20° C (-4° F), power must be maintained below 0° C (32° F)Maximum surface temperature, steady state, Ta=40° C (104° F): 80° C (176° F)Cooling: Internal fan, conduction via installation site fill material
Typical Heat Output (calculated)208 V, 60 Hz: 625 BTU/hr.230 V, 50 Hz: 648 BTU/hr.230 V, 60 Hz: 635 BTU/hr.250 V, 50 Hz: 652 BTU/hr.Allow for a deviation of +/- 10% from typical figures listed above.
ApprovalsEU EMC: EN 55 015, EN 55 103-1, EN 61 547EU safety: EN 60598-2-5Canadian safety: CSA C22.2 No. 250.0-00US safety: UL 1598

Included ItemsPhilips CDM-SA/T 150 W lamp: P/N 97010111Two spare trim ring screws (Torx cap, countersunk): P/N 08110803Silica gel anti-humidity sachet (inside product, must be removed during installation)Silica gel anti-humidity sachet (separate, must be fastened in fixture during installation)DMX termination resistor (CMY models): P/N 04150308
AccessoriesInstallation sleeve, bevelled mount: P/N 91611194Installation sleeve, flush mount: P/N 9161121525 kg rinsed, dried sand for installation: P/N 91611237Anti-glare kit, medium configuration (ring louver): P/N 91611202Anti-glare kit, wallwash configuration: P/N 91611197Anti-skid frontglass (circular etched): P/N 91611238Anti-skid frontglass (design etched): P/N 91611198Beamshaper module: P/N 91611207Rock guard kit, aluminum: P/N 91611209Rock guard kit, brass: P/N 91611208Rock guard kit, stainless steel: P/N 91611199Tamperproof trim ring screw set with key: P/N 91611200Trim ring kit, bevelled, brass: P/N 91611211Trim ring kit, bevelled, aluminum: P/N 91611210Trim ring kit, flush mount, aluminum: P/N 91611213Trim ring kit, flush mount, brass: P/N 91611214Trim ring kit, flush mount, stainless steel: P/N 91611212
Related Items32° Medium beam angle kit: P/N 6240038456° Wide-angle kit: P/N 6232310498° Very wide-angle kit: P/N 62323103104° Wallwash kit (add P/N 23808660 Mirror plate to order): P/N 62323103Mirror plate for wallwash configuration: P/N 23808660Shading plate (light spill limiter), medium configuration:P/N 23812085Shading plate (light spill limiter), wide, very wide and wallwash configurations: P/N 23812083CMY modelsMartin DABS1™ USB interface box incl. cables: P/N 90758090
Spare PartsPhilips CDM-SA/T 150 W lamp: P/N 97010111Front glass: P/N 41700007Front glass seal: P/N 20600441Connections compartment/power compartment seal:P/N 20600450Anti-humidity sachet in sealed aluminum bag: P/N 37220000Ten anti-humidity sachets in sealed aluminum bag (Service Kit): P/N 37220001
