JEM Pro-Fog Fluid, Quick Dissipating

PREMIUM FOG FLUID

Larger Images

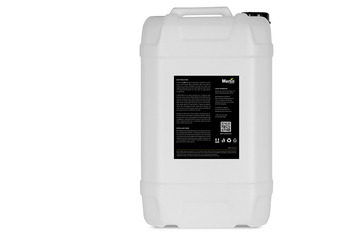

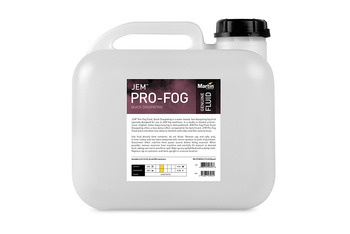

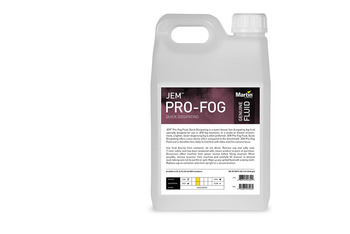

JEM™ Pro-Fog Fluid, Quick Dissipating is a water-based, fast dissipating fog fluid specially designed for use in JEM fog machines. In a studio or theatre environment, a lighter, faster dispersing fog is often preferred. JEM Pro-Fog Fluid, Quick Dissipating offers a less dense effect compared to the benchmark JEM Pro-Fog Fluid and is therefore less likely to interfere with video and film camera focusing.

Available in 2.5, 5, 9.5, 25, and 220 l containers.

  • QUICK DISSIPATION

    When you need a translucent burst of fog for some light scattering diffusion and dramatic flair, but also need it to disperse quickly, accept no substitution—JEM Pro-Fog Fluid, Quick Dissipation. This water-based fog fluid is the choice of professional film, photography and effect designers around the world striking a perfect balance between color, dispersion and density whilst keeping the studio and set clean of residue. When used in combination with a JEM brand fog machine the effect will be simply stunning.

  • MARTIN HERITAGE

    For 30 years, the Martin brand has been the leading choice of professional lighting designers, rental and production houses, and installers across the global architectural, commercial, and entertainment lighting markets. The JEM series, a founding family of products by Martin, is bringing its industry-leading excellence in atmospheric effects to new audiences by manufacturing premium products with a die-hard dedication to quality assurance and our customers.

  • PREMIUM EFFECTS FLUIDS BY MARTIN

    Martin fluids are produced at our state-of-the-art, semi-automated fluid production facility in the United Kingdom. A virtually sterile environment is our guarantee of a pure and precise product that delivers the same effect over and over again. This means that Martin fluid never comes in contact with the environment, or humans, thereby ensuring a 100% bacteria free and sterile fluid. Our production facility is ISO 9001 accredited, an internationally recognized standard of quality in manufacturing standards, documentation and administrative procedures ensuring superior quality and safety of the materials being used in our fluids. Nowhere else in the industry will you find the same attention to detail, safety and environmental consciousness. Martin fluids are also widely available throughout the world ensuring your show will go on.

  • FLUID THAT WE STAND BY

    If you think all fog fluids are the same, think again. JEM Pro-Fog Fluid has been crafted to deliver exceptional results including our benchmark density, dissipation, and pure white colors. Our manufacturing process removes all mineral content from the fluid, ensuring little residue is left behind on your prized equipment and performance surfaces. We also use the highest-grade active ingredients, and microprocessor-controlled heat exchangers to ensure that fog is produced safely for you and your audience.

  • GALLONS VS. LITERS

    Why do we use liters instead of gallons? Because it’s the European way and by selling our fluid in liter containers we can offer 20% more fluid than a standard US gallon. We don’t raise our price because of this, so you are getting that extra 20% gratis. You’re welcome! We offer our fluid in various size containers, best suited for your applications, 2.5 l, 5 l, 9.5 l, 25 l, and even the large 220 l barrels. Pick the size that’s right for your show and your budget.

Features

  • Water-based fluid formula leaves little residue
  • Produced with ultra-pure, de-ionized water
  • Ghost white color
  • Available in various size containers to suit your needs
  • For use in all compatible Martin fog effect generators

Tech Specs

Physical JEM Pro-Fog Fluid, Quick Dissipating, 9.5 l P/N 97120910 Bottle dimensions, 9.5 l: 250 x 245 x 231 mm (9.8 x 9.6 x 9.1 in.) Bottle weight: 9.6 kg (21.2 lb.) Packaged bottle dimensions (L x W x H): 260 x 260 x 250 mm (10.3 x 10.3 x 9.9 in.) Weight of package: 10 kg (22.1 lb.) Packages per pallet: 48 Pallet dimensions (L x W x H): 1200 x 800 x 1350 mm (47.3 x 31.5 x 53.2 in.) Pallet weight: 495 kg (1092 lb.) JEM Pro-Fog Fluid, Quick Dissipating, 2.5 l Bottle - P/N 97120911-00 Case - P/N 97120911 Bottle dimensions, 2.5 l (L x W x H) : 140 x 110 x 216 mm (5.5 x 4.3 x 8.5 in.) Bottle weight: 2.6 kg (5.8 lb.) Pieces per case: 4 Case dimensions (L x W x H) : 280 x 220 x 250 mm (11 x 8.7 x 9.8 in.) Weight of case : 12 kg (27 lb.) Cases per pallet : 48 Pallet dimensions (L x W x H) : 1200 x 800 x 1200 mm (47.3 x 31.5 x 47.3 in.) Weight of pallet quantity: 589 kg (1299 lb.) JEM Pro-Fog Fluid, Quick Dissipating, 5 l Bottle - P/N 97120912-00 Case - P/N 97120912 Bottle dimensions, 5 l: 186 x 132 x 280 mm (7.3 x 5.2 x 11 in.) Bottle weight: 5.1 kg (11.3 lb.) Pieces per case: 4 Case dimensions (L x W x H): 370 x 290 x 300 mm (14.6 x 11.4 x 11.8 in.) Weight of case: 22 kg (49 lb.) Cases per pallet: 30 Pallet dimensions (L x W x H): 1200 x 800 x 1400 mm (47.3 x 31.5 x 47.3 in.) Weight of pallet quantity: 673 kg (1484 lb.) JEM Pro-Fog Fluid, Quick Dissipating, 25 l P/N 97120913 Container dimensions, 25 l (L x W x H): 440 x 270 x 250 mm (17.4 x 10.7 x 9.9 in.) Weight of container: 26 kg (58 lb.) No outer packaging Containers per pallet : 24 Pallet dimensions (L x W x H): 1200 x 800 x 1400 mm (47.3 x 31.5 x 47.3 in.) Weight of pallet quantity: 639 kg (1409 lb.) JEM Pro-Fog Fluid, Quick Dissipating, 220 l P/N 97120914 Container dimensions, 220 l (L x W x H): 600 x 600 x 900 mm (23.7 x 23.7 x 35.5 in.) Weight of container : 230 kg (508 lb.) No outer packaging Containers par pallet : 2 Pallet dimensions (L x W x H): 1200 x 800 x 1100 mm (47.3 x 31.5 x 47.3 in.) Weight of pallet quantity: 475 kg (1048 lb.)
Thermal Minimum operating temperature (Ta min): 5° C (41° F) Maximum ambient temperature (Ta max.): 40° C (104° F)
Storage Upright only Ambient temperature: 10 - 30° C (50 - 86° F) Shelf life maximum, sealed: 5-Year Shelf life, opened: 2-Year reduction once opened from maximum See Safety Data Sheets (SDS) for comprehensive safety and storage information.
Approvals Replaces Pro Smoke Studio (DX mix)

Ordering Information JEM Pro-Fog Fluid, Quick Dissipating, 9.5 l: P/N 97120910 JEM Pro-Fog Fluid, Quick Dissipating, 2.5 l: P/N 97120911-00* JEM Pro-Fog Fluid, Quick Dissipating, 4x 2.5 l: P/N 97120911 JEM Pro-Fog Fluid, Quick Dissipating, 5 l: P/N 97120912-00* JEM Pro-Fog Fluid, Quick Dissipating, 4x 5 l: P/N 97120912 JEM Pro-Fog Fluid, Quick Dissipating, 25 l: P/N 97120913 JEM Pro-Fog Fluid, Quick Dissipating, 220 l: P/N 97120914** *Minimum order quantity 4-pieces; use P/N for 4x case **Made to order, 4-8 week lead-time

Downloads

Filename Version Language Size Uploaded
Compliances
SIKKERHEDSDATABLAD, MARTIN EFFEKT VÆSKER da  224 KB Apr 28, 2016
SAFETY DATA SHEET, MARTIN EFFECT FLUIDS au  223 KB Aug 15, 2018
VEILIGHEIDSINFORMATIEBLAD (VIB) MARTIN‐EFFECTVLOEISTOFFEN nl  230 KB Jul 18, 2018
SIKKERHETSDATABLAD, MARTIN EFFEKTVÆSKER no  224 KB Aug 18, 2016
Ficha de Dados de Segurança, MARTIN FLUIDOS PARA EFEITOS pt  226 KB Apr 28, 2016
SCHEDA DI DATI DI SICUREZZA, Fluidi per effetti Martin it  224 KB Apr 28, 2016
FICHE DE DONNÉES DE SÉCURITÉ, LIQUIDES A EFFET MARTIN fr  230 KB Apr 28, 2016
FICHA DE SEGURIDAD LÍQUIDOS PARA EFECTOS DE MARTIN es  233 KB Apr 28, 2016
SAFETY DATA SHEET, MARTIN EFFECT FLUIDS en  222 KB Apr 28, 2016
SICHERHEITSDATENBLATT, MARTIN‐EFFEKTFLUIDE de  228 KB Apr 28, 2016
Information Documents
Martin Atmospheric Effect Fluid Matrix en    Apr 11, 2018
Particle Size, Fluid Density and Refractive Index Values en    Apr 17, 2018
Martin Effect Fluid Guidelines en    Apr 17, 2018
Effect Fluids Cross References en  92.3 KB Aug 29, 2018
