JEM ZR44 Hi Mass (discontinued)

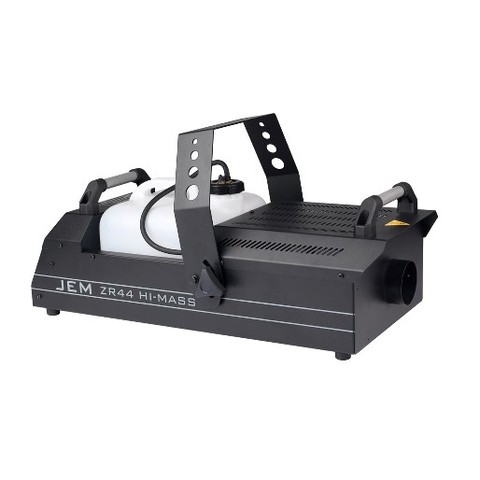

JEM ZR44 Hi Mass
Larger Images

The Jem ZR44 Hi-Mass™ is a reliable and highly efficient fogger capable of precise fog delivery from subtle to massive. Ideal for a variety of settings from small venues to huge stadiums and arenas, it features advanced technology for top-quality performance, as well as advances in digital functionality such as RDM compatibility.

Features

  • 3 & 5 pin DMX interface
  • Prepared for multifunctional digital remote
  • RDM capable
  • Floor standing or truss mounting
  • Neutrik PowerCon connector
  • 1200 m³/min fog output
  • Continuous output
  • Tough and solid design
  • 1800 W heat exchanger
  • 7.5 min heat-up time
  • Indirect Fluid Sensing System
  • Proprietary Pro Steam Simulation fluid solution
  • Different fluid options for different applications
  • Leaves no oil residue on light fixtures
  • Soft Start technology

Specifications

Physical Length: 687 mm (27.1 in.) Length with optional drip tray: 752 mm (30.0 in.) Width: 379 mm (15.0 in.) Height: 248 mm (9.8 in.) Height with hanging bracket: 353 mm (13.9 in.) Weight, dry: 19.0 kg (41.9 lbs.) Weight, filled: 28.5 kg (62.9 lb.)
Performance Coverage volume: 1200 m3 (42,378 ft3) per minute Fluid consumption (maximum): 120 ml/minute Continuous effect output Ready time: 10 minutes
Control and Programming Control options: Integrated analog remote control, DMX, optional digital remote control, master/client link mode Control parameters: Continuous or timer-controlled variable output Fog: Variable output control, 0-100% DMX channels: 1 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 RDM
Construction Color: Black, silver Housing: Steel and aluminum Fluid reservoir: 9.5 liter drop-in Hanging bracket: Integrated yoke with safety attachment point Heat exchanger: 1800 W, thermally protected Fluid pump: Oscillating piston, high pressure Fluid management: Fluid out sensing, sealed for transportation External fluid control: Fluid sensing Drip tray: Optional, bolt-on tray with reusable collection sponge
Installation Mounting: Standing or hanging Orientation: Up to +/- 45° from horizontal Clearance around machine: 100 mm (4 in.)
Connections AC power: Neutrik PowerCon DMX, link mode in/out: 3- and 5-pin locking XLR Remote control: 3-pin locking XLR Firmware: AVR socket
Electrical EU Model AC power: 220-240 V, 50/60 Hz Main fuse: 10 AT (slow blow), 250 V Typical power and current: 1890 W, 8.3 A* US Model AC power: 100-130 V, 50/60 Hz Main fuse: 20 AT (slow blow), 125 V Typical power and current: 1890 W, 14.6 A* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Thermal Exterior surface temperature, steady state: 50° C (122° F) Maximum ambient temperature (Ta max.): 40° C (104° F) Max. nozzle temperature: 200° C (392° F) Minimum ambient temperature (Ta min.): 5° C (41° F)
Approvals EU model EU safety: EN 60 335-1+A15, EN 62233 EU EMC: EN 61000-6-3:3 EU immunity: EN 61000-6-1 Australia/NZ (pending): RCM US model US safety: UL 998 Canada safety: CSA C22.2 No.104.01
CE ETL C US Intertek
Included Items Analog remote control: P/N 92765038 Fluid reservoir 9.5 l: P/N 34300528 Power input cable, EU, Neutrik powerCON, stripped ends, 2.5 m (8.2 ft.): P/N 11501041 Power input cable, US, Neutrik powerCON, molded NEMA 5-15P, 2.5 m (8.2 ft.): P/N 11501042
Accessories JEM™ ZR44 Digital Remote Control: P/N 92765037 JEM™ ZR44 Ducting Kit with 5 m (16.4 ft.) ducting: P/N 92625005 JEM™ ZR44 Drip Tray: P/N 92620011 Approved Fluids JEM™ Pro Smoke Studio JEM™ Pro Smoke Super JEM™ Pro Smoke High Density JEM™ I-Fog Fluid JEM™ Pro Steam Simulation Fluid™ JEM™ Pro Clean Supreme Various sizes available - contact your dealer or see 'Fluids' product pages for details Installation hardware G-clamp (vertical hanging suspension only): P/N 91602003 Half-coupler clamp: P/N 91602005 Quick trigger clamp (vertical hanging suspension only): P/N 91602007 Service Tools Epsilon 5 AVR Programmer: P/N 50502004 Temperature Calibration Box: P/N 92620005
Ordering Information JEM™ ZR44 Hi-Mass, US: P/N 92215310 JEM™ ZR44 Hi-Mass, EU: P/N 92215300

Downloads

  Version Language Size Uploaded
Manuals
file type icon JEM ZR44 Hi-Mass User Manual
en version D, updated: May 11
D  en  833 KB May 11
file type icon JEM ZR44 Manuel d´utilisation
fr version C, updated: May 11
C  fr  228 KB May 11
file type icon JEM ZR44 Bedienungsanleitung
de version C, updated: Jul 07
C  de  511 KB Jul 07
Illustrations
file type icon JEM ZR44 - General Dimensions - PDF
en version A, updated: May 11
A  en  63.1 KB May 11
file type icon JEM ZR44 - General Dimensions - DXF
en version A, updated: May 11
A  en  1.76 MB May 11
Compliances
file type icon CE Compliance ZR44 Hi-Mass
en version A, updated: May 11
A  en  69.8 KB May 11
file type icon SICHERHEITSDATENBLATT, MARTIN‐EFFEKTFLUIDE
de version M, updated: Oct 20
M  de  306 KB Oct 20
Parts
Epsilon 5 AVR Programmer
en version A, updated: May 22
A   en    May 22
file type icon Martin Heat Exchange Part Numbers
en version B, updated: Oct 22
B  en  116 KB Oct 22
Service Procedures
Temperature calibration methods
en version A, updated: May 22
A   en    May 22
Service Notes
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
version 4, updated: Oct 22
4    743 KB Oct 22
