MAC 2000 Wash
Larger Images

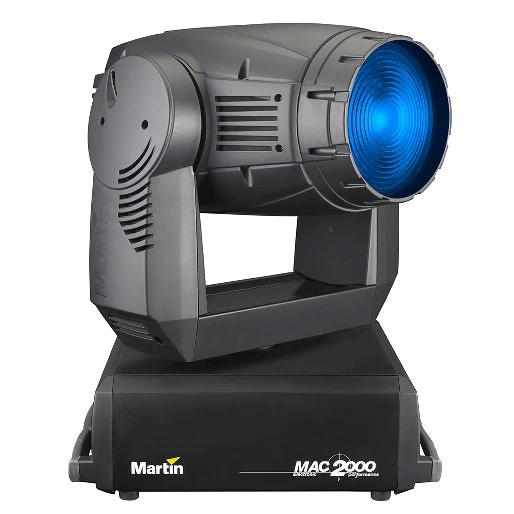

The MAC 2000 Wash is the industry´s wash light of choice. It is exceptionally powerful with a clean, even, soft-edged beam, a motorized zoom and rich CMY color mixing supplemented with two color wheels.

Features

  • 1200 W short arc discharge lamp
  • CMY color mixing system
  • 2 x 4 position color wheels plus open
  • Variable CTC
  • Strobe effect up to 10 Hz, pulse effects, instant open and blackout
  • Motorized zoom
  • Lens Options: PC, Fresnel and super-wide (all included) and micro-Fresnel
  • Mechanical dimming
  • 12.5-95° beam angle
  • Pan and tilt range of 540°/267°
  • Modular design for easy maintenance and servicing
  • Electronic ballast with hot lamp restrike and flicker free light
  • Variable fan control for quieter operation

Specifications

Physical Length: 408 mm Width: 490 mm Height: 750 mm, head straight up Weight: 34 kg
Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color correction: 0 - 178 mireds, continuously variable Color wheel: 2 wheels, each with 4 interchangeable filters + open position Mechanical dimmer: 0 - 100% Shutter: Strobe effect up to 10 Hz, pulse effects, instant open and blackout Zoom: Motorized Hyper mode: Narrow beam with diffuser removed Pan: 540° Tilt: 267°
Control and Programming DMX channels: 19/21 Setting and addressing: Control panel with LED display 16-bit control: Pan & tilt Movement control options: Tracking and vector Protocol: USITT DMX512/1990 Receiver: Opto-isolated RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 1200 W short-arc discharge Fitted as standard: Philips MSR 1200 SA/DE Gold Color temperature: 6000 K CRI (Color rendering index): >85 Average lifetime: 750 hours Hot restrike: Yes Socket: Double-ended SFc 10-4 with key Ballast: Electronic Approved alternative lamp(s): Osram HTI 1200 D7/60 SharXS
Optics Beam angle: PC lens 12.5° - 37°, Fresnel lens 13° - 40°, multi-array super-wide lens 80° - 95°, 1/10 peak angles, with 50 mm (2.0 in.) aperture
Construction Color(s): Black Housing: UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Installation Mounting points: 4 pairs of 1/4-turn locks, 45° orientation possible Orientation: Any
Connections AC power input: 3 m integral cable without power plug DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 100-120/208-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 15 AT (x 2, for use with 208-240 V power) Main fuse: 20 AT (x 2, for use with 100-120 V power)
Typical Power and Current 100 V, 60 Hz: 1580 W, 19.8 A, PF 0.815 120 V, 60 Hz: 1520 W, 17.7 A 208 V, 60 Hz: 1450 W, 10.2 A 220 V, 50 Hz: 1445 W, 9.1 A, PF 0.699 230 V, 60 Hz: 1460 W, 9.4 A 250 V, 50 Hz: 1450 W, 8.8 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 140° C Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 5120 BTU/hr.
Approvals EU safety: EN 60598-2-17 EU EMC: EN 55 015, EN 55 103-1, EN 61 547 US safety: UL 1573 Canadian safety: CAN/CSA E60598-1, CAN/CSA E598-2-17
Included Items Philips MSR 1200 SA/DE Gold lamp (installed): 97010310 Front module with Fresnel lens (installed): 55203003 Front module with PC lens: 55203006 Front module with super wide-angle lens: 55203012 30 mm aperture ring: 23807480 40 mm aperture ring: 23807460 45 mm aperture ring: 23807470 Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001 User manual: 35000114
Accessories MAC 2000 Wash XB Upgrade Kit: 91310980 MAC 2000 Wash + XB Beam Kit: 91610103 MAC 2000 Wash Dimmer Wheel: 62324018 Micro-Fresnel lens (very narrow beam angle): 91610092 T-shaped omega bracket with quarter-turn fasteners: 91602008 G-clamp: 91602003 Half-coupler clamp: 91602005 Quick trigger clamp: 91602007 Super Truss 20.5" mounting plate with half-couplers: 91602014 Swing-wing truss mounting plate with half-couplers: 91602010 Double flightcase (SIP) for MAC 2000 Series: 91510170
Spare Parts Philips MSR 1200 SA/DE Gold lamp: 97010310 15 AT main fuse: 05020039 20 AT main fuse: 05020040
Ordering Information MAC 2000 Wash in single flightcase: 90203010 MAC 2000 Wash in cardboard box: 90203015 P/N 90203000 (MAC 2000 Wash in 2-unit flightcase) is replaced by P/N 90204000 (MAC 2000 Wash XB in 2-unit flightcase):
