THRILL Vertical Fogger (discontinued)

Larger Images

THRILL Vertical Fogger is an atmospheric fog machine that features built-in LED lights capable of producing high velocity 7 m (25 ft.) high plumes of colored fog that simulate pyrotechnical effects, CO² style jets, or “cryo” white dense cloud effects.

Fire this machine up and your party, show, event or business presentation is bound to draw attention. Get maximum attention when you instantly fill the room with a hefty blast of fog, light and simulated jet noise.  With 21 bright R/G/B LEDs, the THRILL Vertical Fogger offers virtually limitless color mixing. Beyond just lights and fog, the nozzle is designed to produce a boisterous noise simulating a natural fissure in the earth—creating an astonishingly real “volcanic” effect. And you can link multiple units for even bigger impact. Control is simplified with the included 4-channel wireless remote control or via DMX for more advanced users.

THRILL Vertical Fogger adds a dramatic flair to any band performance or DJ/club setup, and makes an unforgettable impression during product presentations, sports team entrances or other ceremonies.

  • Portable, lightweight and easy to control
  • Reach new heights with 7 m (25 ft.) fog blast height
  • Dynamic effects include color mixing, strobe, dimmer and fog
  • WORKS RIGHT OUT OF THE BOX

    With easy-to-use presets and an included wireless remote, THRILL Vertical Fogger is a perfect fit for musicians, DJs and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment.

  • PORTABLE AND LIGHTWEIGHT DESIGN

    THRILL Vertical Fogger features a portable and lightweight design makes it ideal for on-the-go entertainers and small venues working with limited stage footprints. It’s also perfect for rental companies who want to supply fog and lighting solutions for smaller setups that do not have the budget for professional lighting operators.

  • EFFECTS AT ANY ANGLE

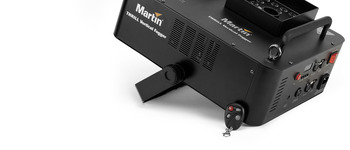

    The THRILL Vertical Fogger includes a mounting bracket allowing the machine to be set up at any angle. The fixture can even be mounted upside-down and affixed to a truss or ceiling simply by inverting the fluid reservoir.

  • SIMPLICITY TO CONTROL

    The THRILL Vertical Fogger is easy to control whether used as a standalone machine or as part of a complex DMX control system. The THRILL Vertical Fogger can be easily manipulated via any standard DMX controller such as a Martin M-Touch and free M-PC control software. The included wireless four-channel remote control makes effect triggering simple and easy by anyone within a 30 m (100 ft.) range. The four channels are user-defined and can be assigned any of the nine pre-programmed color options with fog. A simple push-button on/off control directly on the unit makes things even easier.

  • USES PREMIUM EFFECTS FLUIDS BY MARTIN

    Martin fluids are produced at our state of the art, semi-automated fluid production facility in the United Kingdom. A virtually sterile environment is our guarantee of a pure and precise product that delivers the same effect over and over again. This means that Martin fluid never comes in contact with the environment, or humans, thereby ensuring a 100% bacteria free and sterile fluid. Our production facility is ISO 9001 accredited, an internationally recognized standard of quality in manufacturing standards, documentation and administrative procedures ensuring superior quality and safety of the materials being used in our fluids. Nowhere else in the industry will you find the same attention to detail, safety and environmental consciousness.

WORKS RIGHT OUT OF THE BOX

With easy-to-use presets and an included wireless remote, THRILL Vertical Fogger is a perfect fit for musicians, DJs and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment.

PORTABLE AND LIGHTWEIGHT DESIGN

THRILL Vertical Fogger features a portable and lightweight design makes it ideal for on-the-go entertainers and small venues working with limited stage footprints. It’s also perfect for rental companies who want to supply fog and lighting solutions for smaller setups that do not have the budget for professional lighting operators.

EFFECTS AT ANY ANGLE

The THRILL Vertical Fogger includes a mounting bracket allowing the machine to be set up at any angle. The fixture can even be mounted upside-down and affixed to a truss or ceiling simply by inverting the fluid reservoir.

SIMPLICITY TO CONTROL

The THRILL Vertical Fogger is easy to control whether used as a standalone machine or as part of a complex DMX control system. The THRILL Vertical Fogger can be easily manipulated via any standard DMX controller such as a Martin M-Touch and free M-PC control software. The included wireless four-channel remote control makes effect triggering simple and easy by anyone within a 30 m (100 ft.) range. The four channels are user-defined and can be assigned any of the nine pre-programmed color options with fog. A simple push-button on/off control directly on the unit makes things even easier.

USES PREMIUM EFFECTS FLUIDS BY MARTIN

Martin fluids are produced at our state of the art, semi-automated fluid production facility in the United Kingdom. A virtually sterile environment is our guarantee of a pure and precise product that delivers the same effect over and over again. This means that Martin fluid never comes in contact with the environment, or humans, thereby ensuring a 100% bacteria free and sterile fluid. Our production facility is ISO 9001 accredited, an internationally recognized standard of quality in manufacturing standards, documentation and administrative procedures ensuring superior quality and safety of the materials being used in our fluids. Nowhere else in the industry will you find the same attention to detail, safety and environmental consciousness.

Videos

Martin THRILL Vertical Fogger – fog and light effects generator



Features

  • Fog effects at most any angle including upside-down
  • 1,400 W heat exchanger produces 480 m³ (17,000 ft³) per min. fog output
  • Rapid 8-minute ready time
  • 2.5 l fluid reservoir for less frequent fill-ups
  • Create ambience with 21 x 3 W single LEDs (7 each R, G, B)
  • 36 vibrant pre-programmed colors
  • Wireless 4-channel remote control included for fast and easy operation
  • DMX operable for individualized control and design
  • Included adjustable bracket for mounting
  • Common IEC mains inlet – mains cable included by region

Specifications

  • Physical Length: 455 mm (17.9 in.) Width: 311 mm (12.5 in.) Height: 199 mm (7.8 in.) Height with hanging bracket: 351 mm (13.8 in.) Weight, dry: 9.5 kg (20.9 lb.) Weight, filled: 12 kg (26.5 lb.) Performance Coverage volume: 480 m3 (17,000 ft3) per minute Maximum fluid consumption: 60 ml per minute Maximum operating time at full output: 30 seconds Ready time: 8 minutes Dynamic Effects Electronic dimming: 0 - 100% Strobe and pulse effects: Variable speed and action, random strobe Color mixing: RGB Color selection: 36 color presets Electronic shutter effect: Instant open and blackout Fog : On/Off Control and Programming Control options: DMX, 4-channel wireless remote control, pushbutton on/off Control parameters with wireless remote: On/off operation Control parameters with DMX: Full-featured User interface: Control panel with LED display DMX channels: 7 DMX compliance: ANSI E1.11 - USITT DMX512-A Optics Light source: 21 x 3 W LEDs (7 each R, G, B) Minimum LED lifetime: 30,000 hours (to >70% luminous output)* *Figure obtained under manufacturer's test conditions Construction Housing: Steel Color: Black Heat exchanger: 1400 W, thermally protected Fluid pump: Oscillating piston, high pressure Fluid management: Fluid out sensing, sight glass Fluid reservoir: 2.5 liter, removable Hanging bracket: Integrated adjustable yoke Safety attachment points: 2-threaded inserts, front/side (M8 eye-bolt included) Wireless remote control unit (included): 4-channel, 30 m (100 ft.) range Installation Mounting: Standing or hanging Mounting points: Bracket for single/double rigging clamp, M12 or ½” Orientation: Up to +/- 45° from horizontal Clearance around machine: 600 mm (24 in.)
  • Connections AC Power: IEC male inlet, C14 DMX : 3- and 5-pin locking XLR Wireless remote receiver: DIN 41524, 5-pin, 45°, 180° inlet Electrical EU Model:

    AC power: 220-240 V nominal, 50/60 Hz
    Main fuse: F 8 AL, 250 V
    Typical power and current at 220 V: 1280 W, 5.8 A*
    Typical power and current at 240 V: 1520 W, 6.3 A*

    US Model:

    AC power: 100-120 V nominal, 50/60 Hz
    Main fuse: F 15 AL, 250 V
    Typical power and current at 100 V: 980 W, 9.8 A*
    Typical power and current at 120 V: 1400 W, 11.6 A*

    *Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Thermal Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Exterior surface temperature, steady state: 50° C (122° F) Maximum nozzle temperature: 300° C (572° F) Approvals EU RED: EN 60335, EN 60598-2-17, EN 62471, EN 62479, EN 62493, EN 300220-1, EN 300220-2, EN301489-1, EN 301489-3 US EMC: CFR Title 47, Part 15, Class B Canadian EMC: ICES-003,Class B Australia/NZ: RCM (pending) Included Items

    Fluid reservoir, 2.5 l
    Hanging bracket and hardware
    M8 x 15 mm safety eye-bolt
    Power cable, EU, 10 A, IEC C13 female, molded Schuko plug, 1.2 m (4 ft.)
    Power cable, US, 10 A, IEC C13 female, molded NEMA 5-15P, 1.2 m (4 ft.)
    Wireless transmitter, 4-channel: P/N 50480853
    Wireless receiver, black, Vertical Fogger
    Battery for wireless transmitter, 12 V, A23

    Accessories Approved fluids*:

    RUSH® Fog Fluid
    JEM® Pro Clean Supreme
    *Various sizes available - contact your dealer or see 'Fluids' product pages for details

    Installation hardware:

    Half-coupler clamp: P/N 91602005
    Safety cable, SWL 60 kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006

    Ordering Information THRILL Vertical Fogger, EU model: P/N 92215402 THRILL Vertical Fogger, US model: P/N 92215403

Downloads

  Version Language Size Uploaded
Specifications
THRILL Vertical Fogger Spec Sheet-English   en  1.21 MB Jul 09, 2018
Manuals
THRILL Vertical Fogger - Sicherheits- und Installationsleitfaden de  1.14 MB Jun 04, 2018
THRILL Vertical Fogger - Safety and Installation Guide en  1.11 MB Jun 04, 2018
THRILL Vertical Fogger - Guía de instalación y seguridad es  1.07 MB Jun 04, 2018
Machine à fumée THRILL Vertical Fogger - Guide d’installation et de sécurité fr  1.22 MB Jun 04, 2018
Nebulizzatore verticale THRILL - Manuale sulla sicurezza e di installazione it  1.15 MB Jun 04, 2018
THRILL Vertical Fogger - Benutzerhandbuch de  714 KB Jun 04, 2018
THRILL Vertical Fogger - User Guide en  669 KB Jun 04, 2018
THRILL Vertical Fogger - Guía de usuario es  797 KB Jun 04, 2018
Machine à fumée THRILL Vertical Fogger - Guide de l’utilisateur fr  950 KB Jun 04, 2018
Nebulizzatore verticale THRILL - Manuale dell’utente it  797 KB Jun 04, 2018
3D Symbols
Vectorworks Symbols 2.5  en  110 MB May 11, 2018
Compliances
THRILL Vertical Fogger - EC Declaration of Conformity en  209 KB May 18, 2018
Service Notes
THRILL Vertical Fogger - Remote Battery Tab Removal en  45.6 KB May 18, 2018
Martin Atmospheric Effect Fluid Matrix en    Jun 19, 2018
Martin Effect Fluid Guidelines en    Jun 07, 2018
