ERA 500 Hybrid IP

370W Hybrid Outdoor IP65-rated Beam, Spot and Wash Fixture

Larger Images

The Martin ERA 500 Hybrid IP is a super versatile, high performance, full featured, outdoor IP65-rated moving head work horse fixture that combines a beam, spot, and wash in a single fixture. It features high output, 1:20 zoom range, CMY color mixing, overlaying prism effects, and a compact design.


With durable engineering and serviceability, it is an ideal fixture to support the rigors of today’s rental market. It’s outdoor-rating makes it perfect for just about any outdoor weather conditions, even music festivals where it can be sitting outside temporarily for extended periods of time.

The ERA 500 Hybrid IP is ideal for supporting any size production such as concerts, tours, festivals and corporate events.

  • SUPERIOR LAMP TECHNOLOGY

    The ERA 500 Hybrid IP features an efficient optical system that pushes 22,000 lumens from a 370W short arc lamp with an extended lamp life of 6,000 hours. The high output, value-driven design supports users who require a true “Beam” Hybrid for outdoor use but without the cost and inconvenience of short term lamp replacement.

  • FULLY OUTDOOR RATED

    The ERA 500 Hybrid IP’s IP65 ingress protection rating allows the user to install the fixture outdoors for temporary installations and events where inclement weather can cause problems with rigging and operation of standard indoor fixtures. The fixture further holds a C3-M corrosion rating and an IK07 vandalism rating, for high durability and peace of mind.

  • GREAT COLOR PALETTE

    The CMY color mixing offers subtle pastels to vibrant colors, as well fast transitions and smooth fades. The color wheel produces nice color splits, fast color bumps and extends overall color gamut and brightness.  The color wheel also features CTO, ½ CTO and ¼ CTO correction filters for tungsten emulation.

  • ARRAY OF MID-AIR EFFECTS

    The ERA 500 Hybrid IP features two prisms with the ability to overlay one over another. This allows for a huge array of mid-air effects from the industry standard multi-faceted circular look to the popular linear look, overlaying both linear and circular can create even more dynamic looks on camera or on stage.

  • EXTENSIVE ZOOM RANGE

    The ERA 500 Hybrid IP features a great 1:20 zoom range functional in Beam, Spot and Wash mode, allowing for a true all-in-one fixture to be used in a great variety of indoor and outdoor events and shows

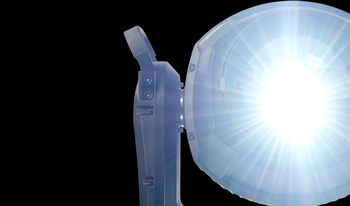

SUPERIOR LAMP TECHNOLOGY

The ERA 500 Hybrid IP features an efficient optical system that pushes 22,000 lumens from a 370W short arc lamp with an extended lamp life of 6,000 hours. The high output, value-driven design supports users who require a true “Beam” Hybrid for outdoor use but without the cost and inconvenience of short term lamp replacement.

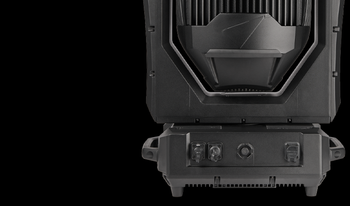

FULLY OUTDOOR RATED

The ERA 500 Hybrid IP’s IP65 ingress protection rating allows the user to install the fixture outdoors for temporary installations and events where inclement weather can cause problems with rigging and operation of standard indoor fixtures. The fixture further holds a C3-M corrosion rating and an IK07 vandalism rating, for high durability and peace of mind.

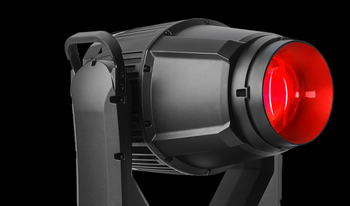

GREAT COLOR PALETTE

The CMY color mixing offers subtle pastels to vibrant colors, as well fast transitions and smooth fades. The color wheel produces nice color splits, fast color bumps and extends overall color gamut and brightness.  The color wheel also features CTO, ½ CTO and ¼ CTO correction filters for tungsten emulation.

ARRAY OF MID-AIR EFFECTS

The ERA 500 Hybrid IP features two prisms with the ability to overlay one over another. This allows for a huge array of mid-air effects from the industry standard multi-faceted circular look to the popular linear look, overlaying both linear and circular can create even more dynamic looks on camera or on stage.

EXTENSIVE ZOOM RANGE

The ERA 500 Hybrid IP features a great 1:20 zoom range functional in Beam, Spot and Wash mode, allowing for a true all-in-one fixture to be used in a great variety of indoor and outdoor events and shows

Videos

Martin ERA 500 Hybrid IP



Features

  • IP65 Outdoor Rated Hybrid Moving Head
  • Bright short-arc 370W lamp with 6000 Hour Lamp Life
  • Full CMY Color Mixing System
  • Color Wheel including CTO, ½ CTO, ¼ CTO
  • Rotating and indexing gobo wheel with 9 gobos plus open
  • Static gobo wheel with 15 gobos plus open
  • 2 Rotating/Indexing prisms with overlaying effect
  • Extensive 1:20 Zoom with Beam, Spot and Wash modes
  • Motorized Focus
  • Outdoor rated PowerCON and DMX connection

Specifications

  • Physical Length: 492 mm (19.4in.) Width: 360 mm (14.2in.) Height: 774 mm (30.5in) Weight: 46 kg (101.4lbs)
    Dynamic Effects Mechanical shutter effect: Strobe effect, pulse effects, instant open and blackout Mechanical dimming: 0 - 100%, four dimming curve options Color mixing: CMY, independently variable 0-100% Color wheel: 9 color filters plus open Rotating gobo wheel: 9 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 15 gobos plus open, wheel indexing, rotation and shake Zoom: Motorized Focus: Motorized Prism: 2 rotating/indexing prisms (overlaying) Frost filter: Wash effect Beam smoother: Flat field projection for spot mode Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed
    Control and Programming Control options: DMX 16-bit control: Dimming, pan and tilt Setting and addressing: Control panel with backlit LCD display and via RDM DMX channels: 24 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485
    Optics Front lens diameter: 143 mm Light source: 370W Philips MSD Platinum 18 R LL Zoom range - Beam: 2° - 40° Maximum lifetime: 6000hrs
    Photometric Data Light engine luminous output: 22000 lumens CRI (Color Rendering Index) : >70 CCT: 6500 Kelvin
    Construction Housing: Diecast aluminium alloy, High-impact flame-retardant thermoplastic Color: Black Effective Projected Area (EPA): 0.1 m² Ingress protection: IP 65 Impact resistance: IK07 Corrosion resistance: C3 medium (ISO 12944) RoHS compliant
    Gobos Gobo diameter: 15.8 mm +0/- 0.2 mm (0.62 in. +0/- 0.008 in.) Maximum image diameter: 10.0 mm (0.39in.) Gobo thickness, maximum: 1.1mm borosilicate glass
    Installation Mounting points: Two quarter-turn brackets for rigging clamps Orientation: Any
  • Connections AC Power in: Neutrik powerCON TRUE1 (IP65) DMX data in/out: 5-pin locking XLR (IP65)
    Electrical AC power: 100-240V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Fuse: T 10A
    Typical Power and Current 120 V, 60 Hz: 4.7A, 564W, PF 0.99 230 V, 50 Hz: 2.419A, 548W, PF 0.98 Measurements made at nominal voltage. Allow for a deviation of +/- 10%. PF = power factor.
    Thermal Cooling: Forced air (temperature regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): -20° C Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F) Total heat dissipation (calculated, +/- 10%): 1930 BTU/hr *Power must be maintained below 0° C (32° F)
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM Global CB Certification/IECEE: EC 60598-2-17 (IEC 60598-1)
    Included Items 2 x Omega brackets for rigging clamp attachment
    Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader)
    Ordering Information Martin ERA 500 Hybrid IP in cardboard box: P/N 9025122033 Flightcase, two unit for ERA 500 Hybrid IP: P/N 901512203
