JEM Low-Fog Fluid

PREMIUM LOW-FOG FLUID

2 jemlowfogfluid 5l vert medium
Larger Images

JEM™ Low-Fog Fluid is the industry standard water-based low-fog formula specially designed for use in the JEM Glaciator. This benchmark fluid is the automatic choice of most users and is the most specified low-fog fluid on the market. JEM Low-Fog Fluid produces a dense, pure-white ground-hugging effect which will disperse and evaporate before any visible rising and heat exchanging; which is ideal for dramatic scenes involving moving stage activity such as dance. JEM Low-Fog Fluid combines a typical density and hang time for the precision of performance based art in clubs, theatres and touring applications in addition to fixed installations and special effects design.

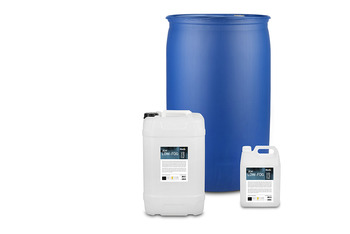

Available in 5, 25, and 220 l containers.

  • LOW-FOG EFFECTS, DEMYSTIFIED

    Want to know the secret of low-fog effects seen on Hollywood films, Broadway and West End shows, and every production in-between? The answer is JEM Low-Fog products. A simple solution to dangerous CO², N7, or dry ice. Our JEM Low-Fog Glaciator when used in combination with any of our three low-fog effects fluids produces the industry standard low-fog effect. This breath-taking low-fog creeps across the most storied stages in the world becoming a character of its own providing billowy white mesmerizing clouds at actors’ and dancers’ feet. Our effects engineers have worked hand-in hand with leading effect artists, directors and producers to craft the ideal range of fluids to create these stunning effects.

  • MARTIN HERITAGE

    For 30 years, the Martin brand has been the leading choice of professional lighting designers, rental and production houses, and installers across the global architectural, commercial, and entertainment lighting markets. The JEM series, a founding family of products by Martin, is bringing its industry-leading excellence in atmospheric effects to new audiences by manufacturing premium products with a die-hard dedication to quality assurance and our customers.

  • PREMIUM EFFECTS FLUIDS BY MARTIN

    Martin fluids are produced at our state-of-the-art, semi-automated fluid production facility in the United Kingdom. A virtually sterile environment is our guarantee of a pure and precise product that delivers the same effect over and over again. This means that Martin fluid never comes in contact with the environment, or humans, thereby ensuring a 100% bacteria free and sterile fluid. Our production facility is ISO 9001 accredited, an internationally recognized standard of quality in manufacturing standards, documentation and administrative procedures ensuring superior quality and safety of the materials being used in our fluids. Nowhere else in the industry will you find the same attention to detail, safety and environmental consciousness. Martin fluids are also widely available throughout the world ensuring your show will go on.

  • FLUID THAT WE STAND BY

    If you think all low-fog fluids are the same, think again. JEM Low-Fog Fluid has been crafted to deliver exceptional results including our benchmark density, dissipation, and pure white colors. Our manufacturing process removes all mineral content from the fluid ensuring little residue is left behind on your prized equipment and performance surfaces. We also use the highest-grade active ingredients, and microprocessor-controlled heat exchangers to ensure that low-fog is produced safely for you and your audience.

  • GALLONS VS. LITERS

    Why do we use liters instead of gallons? Because it’s the European way and by selling our fluid in liter containers we can offer 20% more fluid than a standard US gallon. We don’t raise our price because of this, so you are getting that extra 20% gratis. You’re welcome! We offer our fluid in various size containers, best suited for your applications, 5 l, 25 l, and even the large 220 l barrels. Pick the size that’s right for your show and your budget.

  • TRUSTED BY BROADWAY

    Martin JEM Low-Fog Fluid has been tested to comply with the Calibration Factors that have been developed and approved by the Actors’ Equity Association and the Broadway League for use in measuring theatrical low-fog. Martin low-fog machines are low-fog fluid are entrusted to perform night after night, effectively and safely. Put your trust in Martin brand effect products.

Features

  • Industry standard water-based low-fog effect fluid
  • Water-based fluid formula leaves little residue
  • Produced with ultra-pure, de-ionized water
  • White color
  • Available in various size containers to suit your needs
  • For use in all compatible Martin low-fog effect generators

Tech Specs

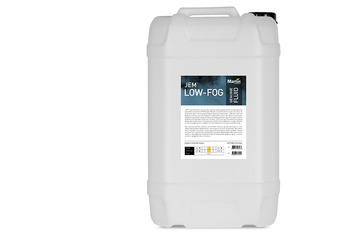

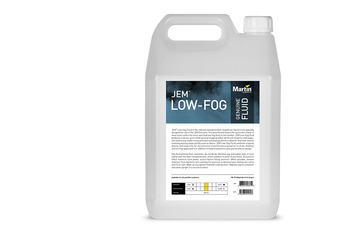

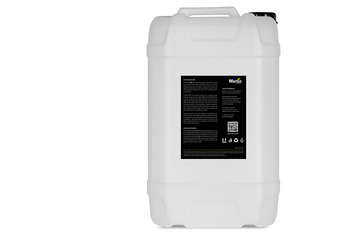

Physical JEM Low-Fog Fluid, 5 l Bottle - P/N 97120842-00 Case - P/N 97120842-00 Bottle dimensions, 5 l: 186 x 132 x 280 mm (7.3 x 5.2 x 11 in.) Bottle weight: 5.1 kg (11.3 lb.) Pieces per case: 4 Case dimensions (L x W x H): 370 x 290 x 300 mm (14.6 x 11.4 x 11.8 in.) Weight of case: 22 kg (49 lb.) Cases per pallet: 30 Pallet dimensions (L x W x H): 1200 x 800 x 1400 mm (47.3 x 31.5 x 47.3 in.) Weight of pallet quantity: 673 kg (1484 lb.) JEM Low-Fog Fluid, 25 l P/N 97120843 Container dimensions, 25 l (L x W x H): 440 x 270 x 250 mm (17.4 x 10.7 x 9.9 in.) Weight of container: 26 kg (58 lb.) No outer packaging Containers per pallet : 24 Pallet dimensions (L x W x H): 1200 x 800 x 1400 mm (47.3 x 31.5 x 47.3 in.) Weight of pallet quantity: 639 kg (1409 lb.) JEM Low-Fog Fluid, 220 l P/N 97120844 Container dimensions, 220 l (L x W x H): 600 x 600 x 900 mm (23.7 x 23.7 x 35.5 in.) Weight of container : 230 kg (508 lb.) No outer packaging Containers par pallet: 2 Pallet dimensions (L x W x H): 1200 x 800 x 1100 mm (47.3 x 31.5 x 47.3 in.) Weight of pallet quantity: 475 kg (1048 lb.)
Thermal Minimum operating temperature (Ta min): 5° C (41° F) Maximum ambient temperature (Ta max.): 35° C (95° F)
Storage Upright only Ambient temperature: 10 - 30° C (50 - 86° F) Shelf life maximum, sealed: 5-Year Shelf life, opened: 2-Year reduction once opened from maximum See Safety Data Sheets (SDS) for comprehensive safety and storage information.
Approvals Replaces Heavy Fog Fluid, B2 “Calibration factors have been developed and approved by the Actors’ Equity Association and the Broadway League for use in measuring theatrical fog with the JEM Glaciator and JEM Low-Fog Fluid.”

Ordering Information JEM Low-Fog Fluid, 5 l: P/N 97120842-00* JEM Low-Fog Fluid, 4x 5 l: P/N 97120842 JEM Low-Fog Fluid, 25 l: P/N 97120843 JEM Low-Fog Fluid, 220 l: P/N 97120844 *Minimum order quantity 4-pieces; use P/N for 4x case

Downloads

Filename Version Language Size Uploaded
Information Documents
Download 17 Effect Fluids Cross References en  93.1 KB Apr 17, 2018
Martin Effect Fluid Guidelines en    Apr 17, 2018
Martin Atmospheric Effect Fluid Matrix en    Apr 11, 2018
Particle Size, Fluid Density and Refractive Index Values en    Apr 17, 2018
Compliances
Pdf 17 Veiligheidsinformatieblad Martin Smoke & Haze Fluid nl  230 KB Jul 18, 2018
Download 17 Sikkerhetsdatablad Martin Smoke & Haze Fluid no  224 KB Aug 18, 2016
Download 17 Ficha de Dados de Segurança Martin Smoke & Haze Fluid pt  226 KB Apr 28, 2016
Download 17 Scheda Di Dati Di Sicurezza Fluido Martin Smoke & Haze it  224 KB Apr 28, 2016
Download 17 Fiche De Données De Sécurité Liquide Martin Smoke & Haze fr  230 KB Apr 28, 2016
Download 17 Ficha De Seguridad Martin Smoke & Haze Fluid es  233 KB Apr 28, 2016
Download 17 SDS Martin Smoke & Haze Fluids en  222 KB Apr 28, 2016
Download 17 Sicherheitsdatenblatt Martin Smoke & Haze Fluid de  228 KB Apr 28, 2016
Download 17 Sikkerhedsdatablad Martin Smoke & Haze Røgvæske da  224 KB Apr 28, 2016
Pdf 17 SDS - Martin Effect Fluids au  223 KB Aug 15, 2018
