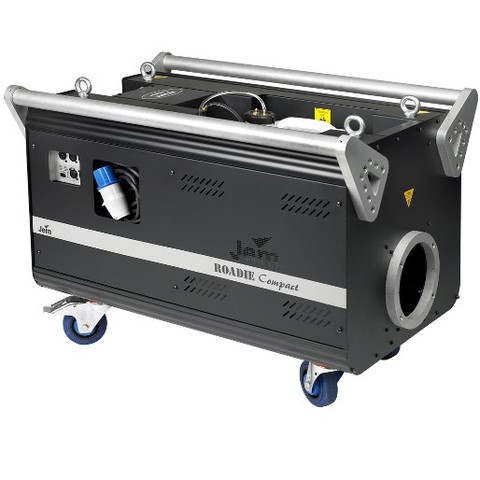

JEM Roadie Compact (discontinued)

Larger Images

Martin's industry-standard Jem Roadie X-Stream is now available in a high-output, compact version.

Features

  • Onboard DMX, 3 & 5 pin
  • Pre-programmed stand-alone macros
  • On-board control panel
  • Optional multifunctional remote control
  • For vertical or horizontal effect projection
  • Output and density level control
  • Continuous output
  • 2500 m³/min fog output
  • Integrated high velocity fan
  • 2 x 1500 W heat exchanger
  • 9 min heat-up time
  • 9.5 liter fluid capacity
  • Different fluid options for different applications
  • Low fluid sensing

Specifications

Physical Length: 800 mm (31.5 in.) Width: 500 mm (19.7 in.) Height: 600 mm (23.7 in.) Dry weight: 80.0 kg (176.4 lbs.)
Performance Max. fog output (approx.): 2500 m3 per minute Max. operating time at full output (approx.): 90 minutes Operating time: Continuous, automatic level adjustment Warm-up time (approx.): 9 minutes
Control and Programming Control options: Onboard control panel, DMX Compatible remote controls: For limited control DMX channels: 2 (output and fan) Protocol: USITT DMX512/1990
Construction Housing: Steel & aluminum Heat exchanger: 2 x 1500 W, direct thermal protection
Fluid System Fluid pump: Oscillating piston, high pressure X2 Onboard fluid capacity: 9.5 l Fluid consumption at peak output: 220 ml per minute
Installation Orientation: Floor mount (Horizontal or vertical) or flying kit
Connections Remote control: 3-pin locking XLR DMX data: 3-pin and 5-pin XLR sockets Power cable entry: Hard-wired
Electrical AC power: 208 V 60 Hz / 220 - 240 V 50 Hz Main fuse (208-240 V power): Onboard 16 A Breaker
Typical Power and Current 208 V, 60 Hz: 2450 W, 12.7 A 220 V, 50 Hz: 2745 W, 12.5 A 230 V, 50 Hz: 3000 W, 13.04 A 240 V, 50 Hz: 3267 W, 13.6 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Exterior surface temperature, steady state: 50° C Max. nozzle temperature: 200° C
Approvals EU safety: EN 50 081-1, EN 50 082-1 EU safety: EN 60 335-1 (1995)
CE
Included Items User manual: P/N 35010027 Container 9.5 l: P/N 34300528 Hard wired mains cable 2 m: Pre-Installed Flying kit: Pre-Installed
Accessories Pro Smoke Studio (DX Mix) fluid Pro Smoke Super (ZR Mix) fluid Pro Smoke High Density (SP Mix) fluid Pro Steam Simulation (AA) fluid Pro Haze (Haze mix) fluid Regular DJ (DJ mix) fluid I-fog fluid Roadie Compact remote control unit: P/N 92765031 Ducting Kit: P/N 92625010
Ordering Information Jem Roadie Compact: P/N 92230500
