Jem ZR12 AL (discontinued)

Larger Images

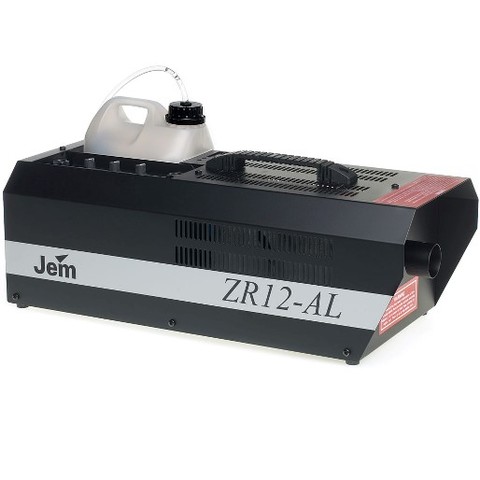

The ZR12 AL is a mid-sized, portable fog machine with enhanced output to provide a continuous flow of dry, dense fog.


  • 1000W heat exchanger
  • 2.5 liter fluid container
  • 200m³/min smoke output
  • 7 min heat up time
  • Analogue link
  • Multifunctional remote control
  • Output level control
  • Run and delay time control

Tech Specs

Physical Length: 500 mm Width: 225 mm Height: 165 mm Dry weight: 11 kg
Performance Max. fog output (approx.): 500 m3 per minute Max. operating time at full output (approx.): 80 minutes Operating time: Continuous, automatic level adjustment Warm-up time (approx.): 7 minutes
Control and Programming Control options: Remote control (supplied), DMX with optional DMX interface module Remote control features: Instant or timer-controlled variable output Delay 2-144 seconds, run time 2-144 seconds:
Construction Housing: Steel & aluminum Heat exchanger: 1000 W, direct thermal protection
Fluid System Fluid pump: Oscillating piston, high pressure Onboard fluid capacity: 2.5 l Fluid consumption at peak output: 75 ml per minute
Installation Orientation: Floor
Connections Remote control: 5-pin DIN 0-10 V analog: 5-pin DIN Power cable entry: Hard-wired
Electrical AC power (EU models): 220-240 V nominal, 50 Hz AC power (US models): 110-120 V nominal, 60 Hz Main fuse (220-240 V power): 5 AT (slow blow) Main fuse (110-120 V power): 10 AT (slow blow)
Typical Power and Current US model: 110 V, 60 Hz: 1070 W, 9.72 A 115 V, 60 Hz: 1169 W, 10.16 A 120 V, 60 Hz: 1273 W, 10.61 A EU model: 220 V, 50 Hz: 899 W, 4.08 A 230 V, 50 Hz: 982 W, 4.27 A 240 V, 50 Hz: 1070 W, 4.45 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Exterior surface temperature, steady state: 50° C Max. nozzle temperature: 200° C
Approvals EU safety: EN 50 081-1, EN 50 082-1 EU safety: EN 60 335-1 (1995)
Included Items User manual: 35010004 Hard wired mains cable 2 m: Pre-Installed Analogue remote control c/w 5 m cable: xxxx Container 2.5 l: 34300521
Accessories Pro Smoke Studio (DX Mix) fluid: Pro Smoke Super (ZR Mix) fluid: Pro Smoke Super (Fragranced) fluid: Pro Smoke High Density (SP Mix) fluid: I-fog fluid: Ducting Kit incl. adapter and 5 m of 4-inch (104mm) ducting: 92625004
Ordering Information JEM ZR12 AL, 110 V: 92215101 JEM ZR12 AL, 240 V: 92215100
