Brightness control
Gamma correction and control
Color temperature control
Calibration processing
Synchronization

VC-Dot 1 RGB 100 mm pitch, 100 pcs., 2 m lead-in: P/N 90357060
VC-Dot 4 RGB 200 mm pitch, 64 pcs., 2 m lead-in: P/N 90357100
VC-Dot 9 RGB 400 mm pitch, 36 pcs., 2 m lead-in: P/N 90357140
P3-050 System Controller: P/N 90721090
P3-150 System Controller: P/N 90721015
P3-300 System Controller: P/N 90721060
P3 PowerPort 1500: P/N 90721040
P3 PowerPort 1000 IP Rental: P/N 90721070
P3 PowerPort 1000 IP Installation: P/N 90721080

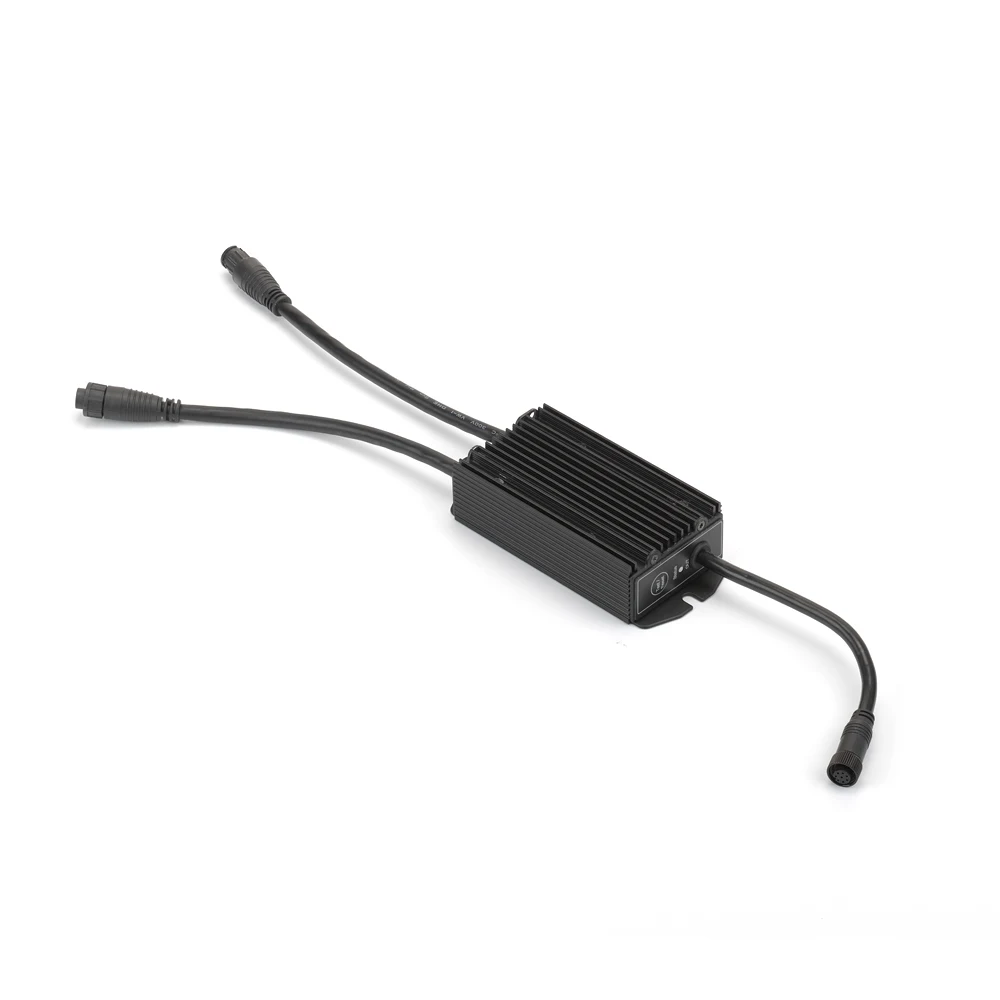

Martin® IP66 PSU 240W external power supply unit: P/N 90760330

Input Cables, M16 Connectors:
Hybrid P3 Input Cable, 4-pin male XLR to female M16, 0.25 m (0.8 ft.): P/N 11840165
DMX and Martin® IP66 PSU 240W / Tripix Power IP66 input cable, 5-pin male XLR plus Martin® IP66 240W PSU connector to female M16: P/N 11840195
DMX and generic 48 VDC PSU input cable, 5-pin male XLR plus two wire tails to female M16: P/N 11840174
Output Cables, M16 Connectors:
Hybrid output cable for P3 systems, male M16 to 4-pin female XLR, 0.25 m (0.8 ft.): P/N 11840166
Hybrid output cable for DMX systems, male M16 to 5-pin female XLR, 0.25 m (0.8 ft.): P/N 11840202
Extension Cables, M16 Connectors:
Hybrid extension cable, M16 to M16, 1 m (3.2 ft.): P/N 11840167
Hybrid extension cable M16 to M16, 2.5 m (8.2 ft.): P/N 11840168
Hybrid extension cable, M16 to M16, 5 m (16.4 ft.): P/N 11840169
Hybrid extension cable, M16 to M16, 10 m (32.8 ft.): P/N 11840170
Hybrid extension cable, M16 to M16, 25 m (82 ft.): P/N 11840164
Loose M16 Connectors:
M16 connector, male: P/N 05343522
M16 connector, female: P/N 05323538

Input Cables, BBD Connectors:
Hybrid P3 input cable, 4-pin male XLR to female BBD, 0.25 m (0.8 ft.): P/N 91616046
DMX and Martin® IP66 PSU 240W / Tripix Power IP66 input cable, 5-pin male XLR plus Martin® IP66 240W PSU connector to female BBD, 0.25 m (0.8 ft.): P/N 91616050
DMX and generic 48 VDC PSU input cable, 5-pin male XLR plus two wire tails to female BBD, 0.25 m (0.8 ft.): P/N 91616048
DMX and hybrid P3 input cable, 5-pin male XLR + 4-pin male XLR to female BBD, 0.25 m (0.8 ft.): P/N 91616049
Output Cables, BBD Connectors:
Hybrid output cable for P3 systems, male BBD to 4-pin female XLR, 0.25 m (0.8 ft.): P/N 91616047
Hybrid output cable for DMX systems, male BBD to 5-pin female XLR, 0.25 m (0.8 ft.): P/N 91616051
Extension Cables, BBD Connectors, Rental Type:
Hybrid extension cable, rental type, BBD to BBD, 1 m (3.2 ft.): P/N 91616041
Hybrid extension cable, rental type, BBD to BBD, 2.5 m (8.2 ft.): P/N 91616024
Hybrid extension cable, rental type, BBD to BBD, 5 m (16.4 ft.): P/N 91616042
Hybrid extension cable, rental type, BBD to BBD, 10 m (32.8 ft.): P/N 91616043
Hybrid extension cable, rental type, BBD to BBD, 25 m (82 ft.): P/N 91616044
Extension Cables, BBD Connectors, Install Type:
Hybrid extension cable, install type, BBD to BBD, 1 m (3.2 ft): P/N 91616055
Hybrid extension cable, install type, BBD to BBD, 2.5 m (8.2 ft): P/N 91616056
Hybrid extension cable, install type, BBD to BBD, 5 m (16.4 ft): P/N 91616057
Hybrid extension cable, install type, BBD to BBD, 10 m (32.8 ft): P/N 91616058
Hybrid extension cable, install type, BBD to BBD, 25 m (82 ft): P/N 91616059
Extension Cables, BBD Connectors, Low Smoke Zero Halogen Type:
Hybrid extension cable, LSZH type, BBD to BBD, 1 m (3.2 ft.): P/N 91616012
Hybrid extension cable, LSZH type, BBD to BBD, 2.5 m (8.2 ft.): P/N 91616013
Hybrid extension cable, LSZH type, BBD to BBD, 5 m (16.4 ft.): P/N 91616014
Hybrid extension cable, LSZH type, BBD to BBD, 10 m (32.8 ft.): P/N 91616015
Hybrid extension cable, LSZH type, BBD to BBD, 25 m (82 ft.): P/N 91616016
Loose BBD Connectors:
BBD connector, male: P/N 91611750
BBD connector, female: P/N 91611751
Set of 10 caps for female BBD connectors: P/N 91616052

M16 to BBD Adapter Cables:
Male M16 to female BBD, 0.25 m (0.8 ft.): P/N 91616053
Male BBD to female M16, 0.25 m (0.8 ft.): P/N 91616054
Bulk Hybrid Cable:
Hybrid cable, rental type, 100 m (328 ft.): P/N 91616045
Hybrid cable, install CMX type, 100 m (328 ft.): P/N 91616060
Hybrid cable, install LSZH type, 100 m (328 ft.): P/N 91616017
Hybrid cables carry both DC power and data over separate conductors.
Rental type cables are suitable for temporary installations, install type cables are suitable for permanent installations.
Installation Hardware:
G-clamp for rigging truss attachment: P/N 91602003
Half-coupler clamp for rigging truss attachment: P/N 91602005
Quick trigger clamp for rigging truss attachment: P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
