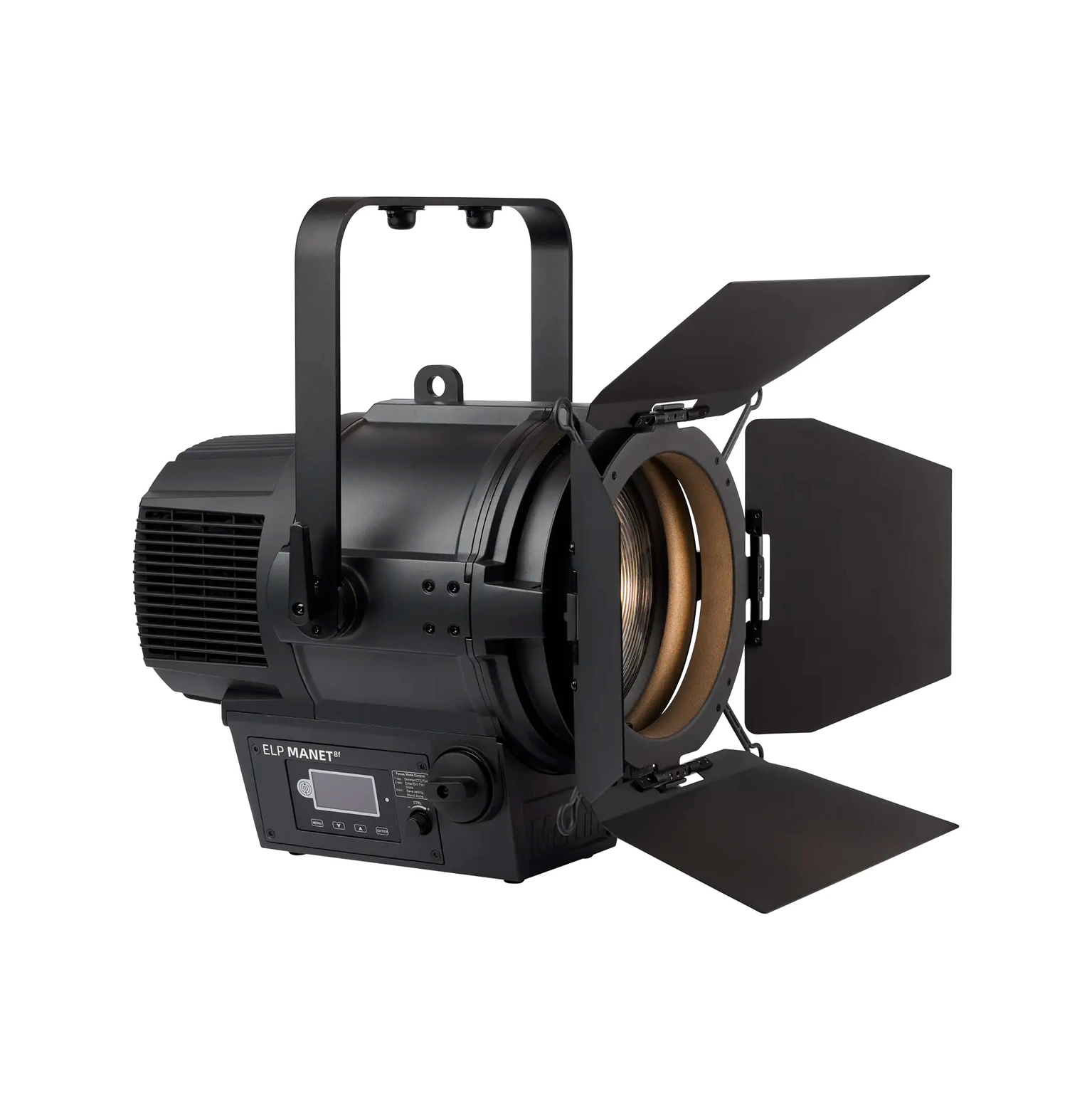

Martin ELP MANET 8f

Immagini più grandi

ELP MANET 8f di Martin Professional ridefinisce l'illuminazione dei dispositivi statici con un controllo del fascio preciso. Ispirato dalla direzione teatrale latina "it remains", rende omaggio al teatro shakespeariano e alla narrazione senza tempo. Combinando un'uscita in stile tungsteno classico con l'efficienza moderna dei LED, presenta un motore di luce a LED a sei colori per una palette ricca e raffinata, con un TM-30 Rf di 95 e un punteggio CRI di 98. Una lente Fresnel da 8 pollici (200 mm) progettata con cura, uno zoom da 9 a 50 gradi e porte barn anti-riflesso, offrono sfumature morbide e prive di artefatti. Con un funzionamento ultra-silenzioso, controlli intuitivi e configurazione wireless tramite l'App Companion di Martin, ELP MANET 8f offre prestazioni, flessibilità e arte senza pari, assicurando che ogni momento resti indimenticabile.

PRECISION COLOR ACCURACY

The innovative six-color light engine featuring red, green, blue, amber, lime, and cyan LEDs, delivers a best-in-class TM-30 Rf of 95 and a CRI score of 98 for consistent, vibrant color from saturated primaries to delicate pastels across the full color-temperature spectrum.
SIGNATURE SOFT-EDGE FRESNEL LENS

A carefully designed 8-inch (200 mm) Fresnel lens produces a uniform wash with a classic soft edge while 13,000 lumens and a 9°-50° zoom range allow this fixture to excel in narrow throws and wide washes.
FULLY LINEAR COLOR-TEMPERATURE CONTROL

Precise adjustment from 1,850 K to 12,500 K in 50 K increments ensures seamless transitions between warm and cool whites as well as fully tracking the black body line via the onboard calibration system
FLEXIBLE INSTALLATION & CONTROL

Smooth and precise manual zoom control via the onboard dual controls coupled with the optional pole operated yoke set allows for quick and easy focusing from stage to studio, intuitive menu and control options, including NFC compatibility with the Martin Companion Mobile app that simplifies setup and operation.

PRECISION COLOR ACCURACY

The innovative six-color light engine featuring red, green, blue, amber, lime, and cyan LEDs, delivers a best-in-class TM-30 Rf of 95 and a CRI score of 98 for consistent, vibrant color from saturated primaries to delicate pastels across the full color-temperature spectrum.

SIGNATURE SOFT-EDGE FRESNEL LENS

A carefully designed 8-inch (200 mm) Fresnel lens produces a uniform wash with a classic soft edge while 13,000 lumens and a 9°-50° zoom range allow this fixture to excel in narrow throws and wide washes.

FULLY LINEAR COLOR-TEMPERATURE CONTROL

Precise adjustment from 1,850 K to 12,500 K in 50 K increments ensures seamless transitions between warm and cool whites as well as fully tracking the black body line via the onboard calibration system

FLEXIBLE INSTALLATION & CONTROL

Smooth and precise manual zoom control via the onboard dual controls coupled with the optional pole operated yoke set allows for quick and easy focusing from stage to studio, intuitive menu and control options, including NFC compatibility with the Martin Companion Mobile app that simplifies setup and operation.

Caratteristiche

13,000+ Lumen Output
6-Color Light Engine with Red, Green, Blue, Amber, Lime, and Cyan LEDs
Fully Linear 1,850–12,500 K Color Temperature Control System
Carefully designed 8-inch (200 mm) Fresnel Lens
Wide Color Gamut
Class-Leading Light Quality
9°–50° Manual Zoom Lens
High-Resolution Low-End Dimming
Anti-Reflective Barn Doors
Flexible Mounting Options
Intuitive Control Interface
Simple RGB Control with Linear CTC and Tint Channels
Ultra Quiet Cooling System
NFC interface, supporting configuration and diagnostics via Companion Mobile App

Specifiche

Physical
Width: 372.3 mm (14.66 in.)
Height (head forward): 499.30 mm (19.66 in.)
Depth: 404.90 mm (15.94 in.)
Weight: 14.0 kg (30.86 lbs.)

Dynamic Effects
Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Dimming options: Choice of four dimming curves
Color Mixing: RGB(ALC), independently variable 0 - 100%
Color Temperature Control: Variable 1,850 – 12,500 K
Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Virtual Color wheel: 48 color presets, continuous rotation & random color
LED Frequency control: Variable LED PWM control

Control and Programming
Control Protocols: DMX and RDM
DMX Modes: Compact, Basic & Direct
DMX Channels: 11, 17 & 17
16-bit Controllable Parameters: Dimming and Color Mixing
Setting and Addressing: Display Menu, NFC or RDM
Local User Interface: Backlit LCD Display with integrated NFC antenna
Quick Focus Manual Control: Rotary Encoder
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
DMX/RDM Transceiver: Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit: 32 fixtures
Firmware Update: via DMX using Martin Companion

Optics
Front Lens Diameter: 200 mm (7.87 in.)
Zoom Range: 1:5.6
Full Zoom Range at Half Peak (Beam Angle): 9° - 50°
Full Zoom Range at Tenth Peak (Field Angle): 17° - 66°
Light Source: 500 W RGBALC COB LED
Max. Total LED Engine Power: 500 W
Minimum LED lifetime: > 20.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions

Photometric Data
Light Engine Luminous Output: 15,500 lumens
Fixture Luminous Output Wide: 13,100 lumens
Fixture Luminous Output Narrow: 5,600 lumens
CCT: Variable 1,850 K – 12,500 K (+/- 200 K)
CRI (Color Rendering Index) high output mode: ≥90
CRI (Color Rendering Index) high quality mode: ≥98
CQS (Color Quality Scale) high output mode: ≥85
CQS (Color Quality Scale) high quality mode: ≥95
TM-30 Rf (IES TM-30-15 Fidelity Index) high output mode: ≥86
TM-30 Rf (IES TM-30-15 Fidelity Index) high quality mode: ≥95
TM-30 Rg (IES TM-30-15 Gamut Index) high output mode: ≥107
TM-30 Rg (IES TM-30-15 Gamut Index) high quality mode: ≥104
TLCI (Television Lighting Consistency Index) high output mode: ≥98
TLCI (Television Lighting Consistency Index) high quality mode: ≥98
LED Refresh Rate: 3,600 Hz with fine adjustment (+/- 2%) (DMX controllable)
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 6500 K white

Construction Color: Matte black Protection rating: IP20 Housing Material: Steel & Aluminum

Installation Mounting points: 1 pair of 1/4-turn points for 106mm (4.17 in.) center-to-center omega bracket, Single M12 / 1/2" hole for rigging clamp, Two guide holes to support industry standard 28mm Spigot accessory Location: Indoor Orientation: Any Minimum distance to combustible materials: 0.2 m (7.87 in.) Minimum distance to illuminated surfaces: 1.0 m (39.37 in.)

Connections AC mains power in/thru: Neutrik PowerCON TRUE1 TOP DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 12.68 A
Typical earth-leakage current: 0.65 mA
Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V / 240 V
Max current draw: 5.3 A @ 100 V / 120 V , 2.2 A @ 208 V / 230 V / 240 V
Typical current draw: 5.26 A @ 100 V , 4.33 A @ 120 V , 2.45 A @ 208 V , 1.92 A @ 230 V , 2.11 A @ 240 V *
Power Consumption
Maximum: 530 W
Typical: 530 W *
Idle: 3.8 W *
Hibernation: TBD W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated high fan speed.
Idle: no output, no effects moving, regulated high fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

Thermal Cooling: Forced air (temperature regulated, low noise, user definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Maximum surface temperature, steady state, at 40° C ambient: 68° C (154.4° F) Total heat dissipation (calculated, +/- 10%): 1808 BTU/hr

Acoustic Data Sound Pressure Level (LpA) @ 1m (default regulated high fan mode, full output): 26.7dB(A) Sound Pressure Level (LpA) @ 1m (regulated medium fan mode, full output): 21.1 dB(A Sound Pressure Level (LpA) @ 1 m (regulated low fan mode, full output): 18.9 dB(A)

Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Packaging: FSC Certified cardboard outer & inner packaging Efficacy (max output): 24.6 lm/W LWR*: 928.6 lm/kg (421 lm/lbs.)
* LWR = Lumen-to-Weight Ratio

Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM United Kingdom: UKCA Thailand: TISI 1955-2551 Korea: KS C 9832, KS C 9835

Included Items
Adjustable Mounting Bracket
4 leaf Anti-Reflective Manual Barn Door System
Color Filter Frame
Multi-Language Safety and Installation Manual

Related Items
Martin Companion Cable (for firmware update over DMX): P/N 91616091
Martin Companion Software (for firmware update over DMX/Ethernet and fixture setup/configuration via NFC): Free download from www.martin.com, app store and play store

Accessories
Yoke
ELP MANET 8f Pole Operated Yoke: P/N MAR-90800021
Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
Power Daisy-Chain Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU
Installation Hardware
Omega Bracket with 1/4 turn fasteners: P/N 91602001
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Half-coupler Clamp: P/N 91602005
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information ELP MANET 8f (with 4 leaf Barn Door and Color Filter Frame in cardboard box): P/N MAR-90800020
