MAC Axiom Hybrid
Fuori produzione

Vera fixture ibrida all-in-one

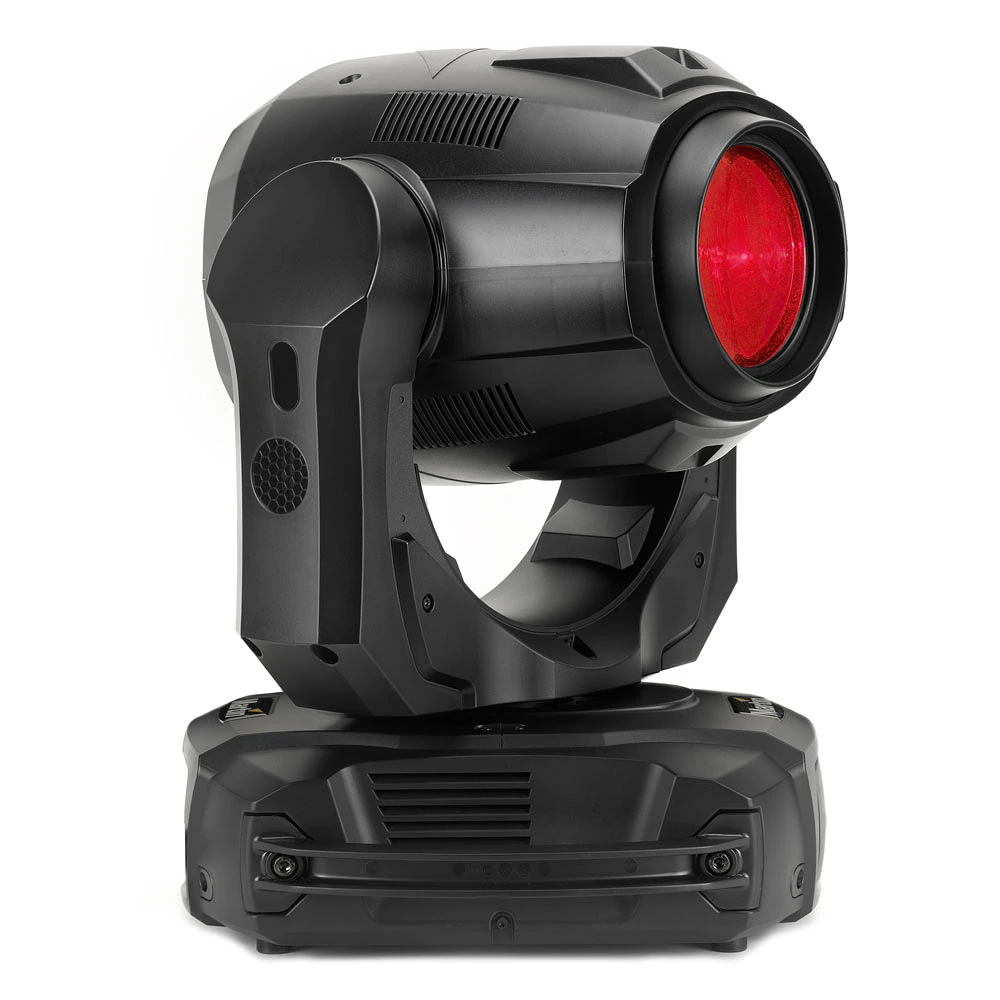

MAC Axiom Hybrid
Immagini più grandi

Il MAC Axiom™ Hybrid è un vero prodotto all-in-one, che combina beam e spot in un'unica unità compatta che offre anche la funzionalità di wash diffuso. Il sistema ottico ad alta precisione offre un contrasto eccezionale, sia in aria che nella proiezione, nonché un campo sorprendentemente piatto, solitamente non riscontrabile con questa tecnologia a lampada ad arco corto. L'implementazione della palette di colori CMY MAC Viper consente ai progettisti di scegliere illimitatamente da tonalità pastello delicate a colori profondi e saturi. Tutto questo in un prodotto dal piccolo ingombro e leggero che offre prestazioni superiori con il miglior rapporto caratteristiche rispetto a dimensioni e peso disponibile sul mercato.

  • Prodotto all-in-one – ricco di effetti
  • Beam stretto e angusto - intensità straordinaria
  • Palette di colori MAC Viper - superior color mixing CMY

Video









Caratteristiche

  • Zoom: 2-44° (continuo, senza modalità Beam/Spot)
  • 16 000 lumen in campo ampio / 14 000 lumen in campo stretto
  • 31 000 000 cd fascio stretto ad alta intensità
  • Peso ridotto: 24,8 kg / 54,7 lbs.
  • Dimensioni molto compatte
  • Miscelazione colore CMYC reale (tavolozza colori MAC Viper)
  • Ruota colore indipendente a 16 posizioni
  • Due ruote gobo (9 rot. e 16 stat.) con proiezione nitidissima e alto contrasto su superfici e in aria
  • Effetti di animazione integrati nella ruota gobo fissa
  • Prismi indipendenti a 3 e 8 facce con esclusivo effetto zoom dinamico brevettato "prism lineator"
  • Beamsmoother (per proiezione a campo piatto)
  • Frost (per effetto wash)
  • Display LCD retroilluminato con flip automatico
  • Connettore di ingresso alimentazione PowerCon TRUE1
  • Connettori DMX XLR a 5 pin
  • Funzionalità RDM
  • Funzionamento 100-240 V, consumo totale 600 W

Specifiche

  • Physical Length: 399 mm (15.8 ins.) base Width: 414 mm (16.3 ins.) across yoke Height:

    616 mm (24.3 ins.) head straight up
    630 mm (24.9 ins.) maximum

     Weight: 24.8 kg (54.7 lbs.)
    Dynamic Effects Color mixing: CMYC (MAC Viper color palette), independently variable 0 - 100% Color wheel: 16 dichroic filters + open, indexing, continuous rotation, random color Rotating gobo wheel: 9 interchangeable rotating gobos + open, gobo indexing, continuous rotation and shake Zoom: 2° - 44° continuous (no Beam or Spot modes) Prism: 3-facet rotating prism with dynamic prism zoom effect (”prism lineator”) Fixed gobo wheel: 16 static gobos + open, gobo animation effect Prism 2: 8-facet rotating prism with dynamic prism zoom effect (”prism lineator”) Frost filter: Wash effect Beam smoother: Flat field projection Mechanical dimmer/shutter: 0 - 100% dimming, strobe effect 2 - 10 Hz, pulse effects, instant open and blackout Pan: 540° Tilt: 260° Position correction system: Absolute position monitoring Focus: 2 m (6.6 ft.) to infinity
    Control and Programming Control platform: DMX and RDM Configuration and addressing: Onboard control panel or via DMX 16-bit control: Focus, pan and tilt Onboard display panel: Backlit LCD with auto-flip DMX channels: 23 Receiver: Isolated RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Windows PC and USB-DMX hardware interface
    Optics Color temperature: 7000 K
    Photometric Data

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Lamp Type: 440 W short-arc discharge CRI (Color rendering index): >80 Average lifetime: 1500 hours Approved lamps: Osram Sirius HRI 440 W
    Service Utilities Fixture identification: User-settable fixture ID number
    Construction Housing: Alloy, steel, UV-resistant fiber-reinforced composite Color: Black Reflector: Glass, cold light Protection rating: IP20
    Installation Mounting points: Four quarter-turn locking points Orientation: Any Minimum distance to combustible materials: 0.2 m (0.7 ft.) Minimum distance to illuminated surfaces: 15 m (49.3 ft.)
  • Connections AC power input: Neutrik PowerCon TRUE1 DMX and RDM data in/out: 5-pin locking XLR
    Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical power consumption: 600 W
    Typical Power and Current 110 V, 60 Hz: 5.5 A, 600 W, PF > 0.9 typical 230 V, 50 Hz: 2.7 A, 600 W, PF > 0.9 typical
    Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz): 2050 BTU/hr Maximum ambient temperature (Ta max.): 40° C (104° F) Maximum surface temperature, steady state, at 40° C ambient: 90° C (194° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 28 lm/w LWR*: 625 lm/kg (283 lm/lb)

    LWR = Lumen-to-Weight Ratio
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55103-1,-2; EN 61000-3-2,-3; EN 61000-4-2, -4, -5; EN 61547 US safety: UL 1573 US EMC: CFR 47 Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM (pending)
    Included Items

    Two mounting brackets with quarter-turn fasteners
    SIP foam flight case inlay
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Flightcase (air) for 2 x MAC Axiom Hybrid:

    P/N 91515037
    Flightcase (wood) for 2 x MAC Axiom Hybrid: P/N 91515042

    Power Input Cables:
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91610174

    Power connectors:
    Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789

    Installation hardware:
    Half-coupler clamp: P/N 91602005
    G-clamp (suspension with yoke vertically downwards only):P/N 91602003
    Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007

    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
