Length:
266 mm (10.5 in.)
Width:
287 mm (11.3 in.)
Height:
329 mm (13.0 in.)
Weight:
5.5 kg (12.1 lbs.)
Color mixing:
RGBW
Color selection:
33 color presets plus full white, 'color wheel' effects
Zoom:
Motorized
Electronic dimming:
0 - 100%
Strobe and pulse effects:
Variable speed and action, random strobe
Electronic shutter effect:
Instant open and blackout
Control options:
DMX, standalone scene
DMX address setting:
Control panel with LCD display
White balance control:
RGB adjustment
DMX channels:
5/9
Standalone programming:
Control panel with LCD display
Protocol:
USITT DMX512/1990
Zoom range:
10° - 60°
Light source:
12 x 10 W RGBW Osram Ostar LEDs
Minimum LED lifetime:
50,000 hours (to >70% luminous output)*
Binning:
Tight color and flux binning
*Figure obtained under manufacturer´s test conditions.
Housing:
Aluminum
Color:
Black
Protection rating:
IP20
Mounting:
Adjustable bracket, surface or truss mount
Location:
Indoor use only
Orientation:
Any
AC power in, thru:
Neutrik PowerCon
DMX data in/out:
5-pin XLR
AC power:
100-240 V nominal, 50/60 Hz
Typical total power consumption:
151 W
Power consumption figures are typical, not maximum. Allow for +/-10% variation.
120 V, 60 Hz:
1.3 A, 151 W, PF 0.993
230 V, 50 Hz:
0.7 A, 148 W, PF 0.961
Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Cooling:
Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.):
40° C (104° F)
Minimum ambient temperature (Ta min.):
0° C (32° F)
Total heat dissipation (calculated, +/- 10%):
520 BTU/hr. (at full intensity, full white)
EU safety:
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC:
EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety:
UL 1573 (pending)
US EMC:
47 CFR Part 15 Class A
Canadian safety:
CSA C22.2 No. 166 (pending)
Canadian EMC:
ICES-003 Class A
Australia/NZ:
C-TICK N4241
Power cable 1.5 m
Mounting bracket
Martin Companion Cable:
P/N 91616091
Martin Companion Software Suite (including firmware uploader):
Free download from www.martin.com
Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794
Cables, 16 A, for connection to power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
Gel Frame for RUSH PAR 2, set of 10:
P/N 46000106
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

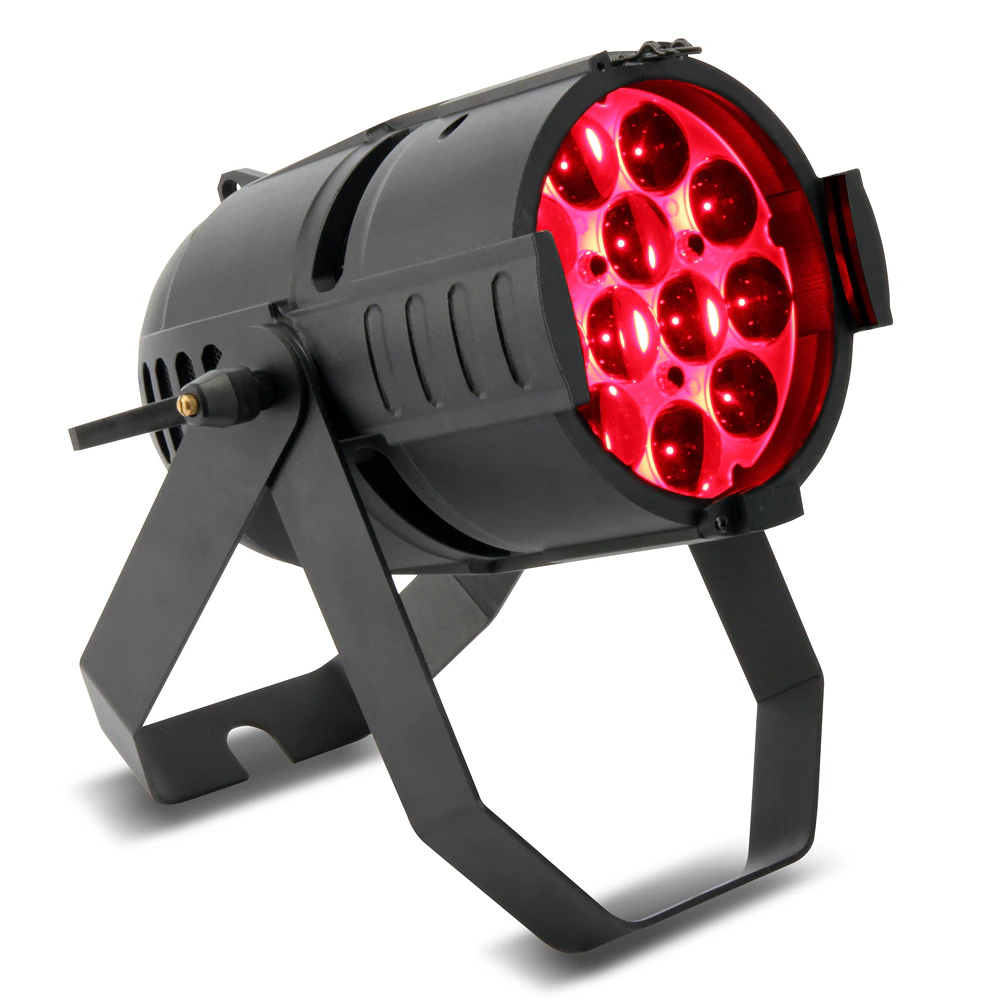

RUSH PAR 2 RGBW Zoom™ in cardboard box:
P/N 90480040
