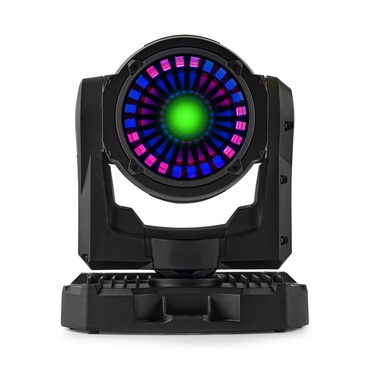

Martin MAC One Beam

拡大画像

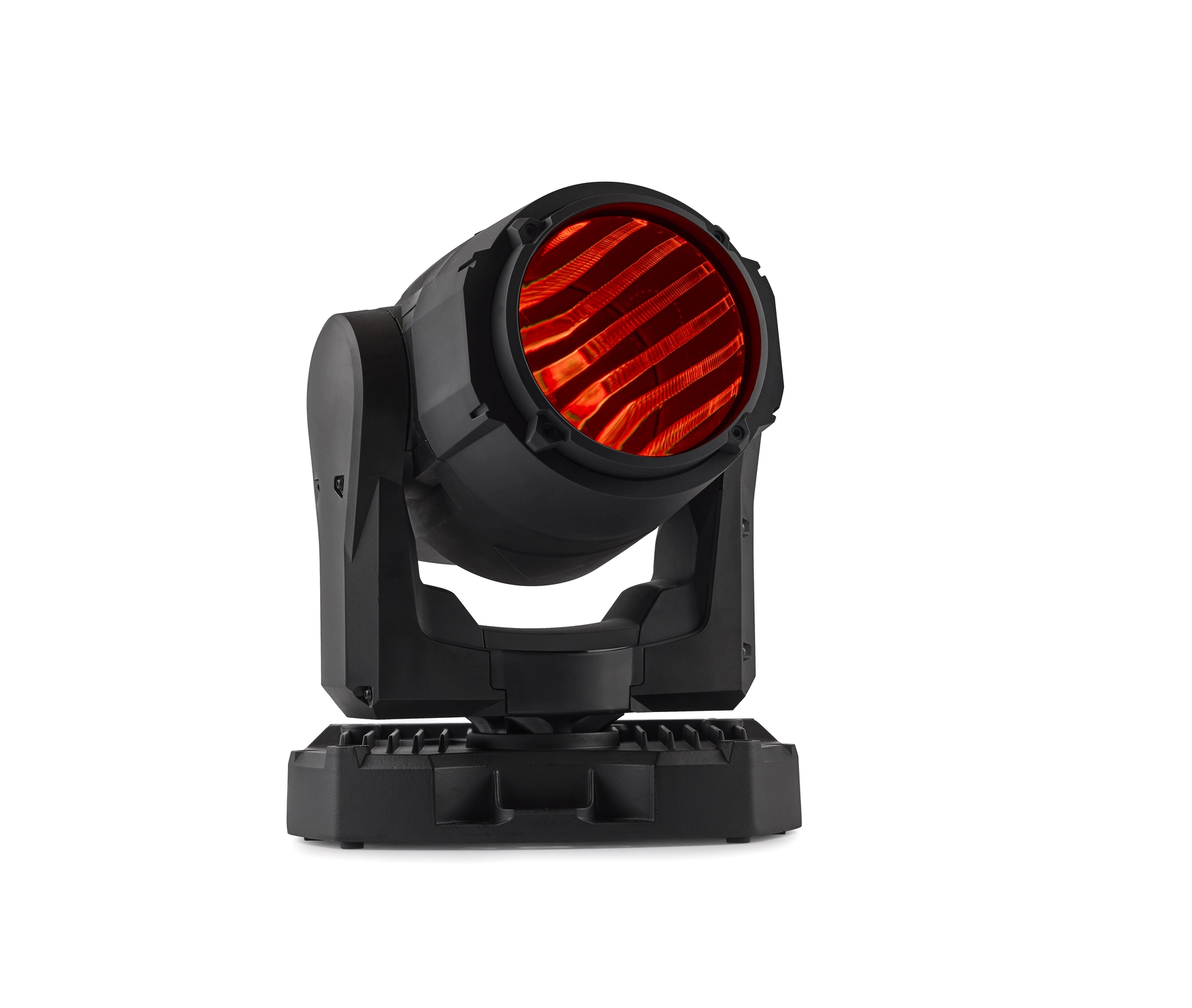

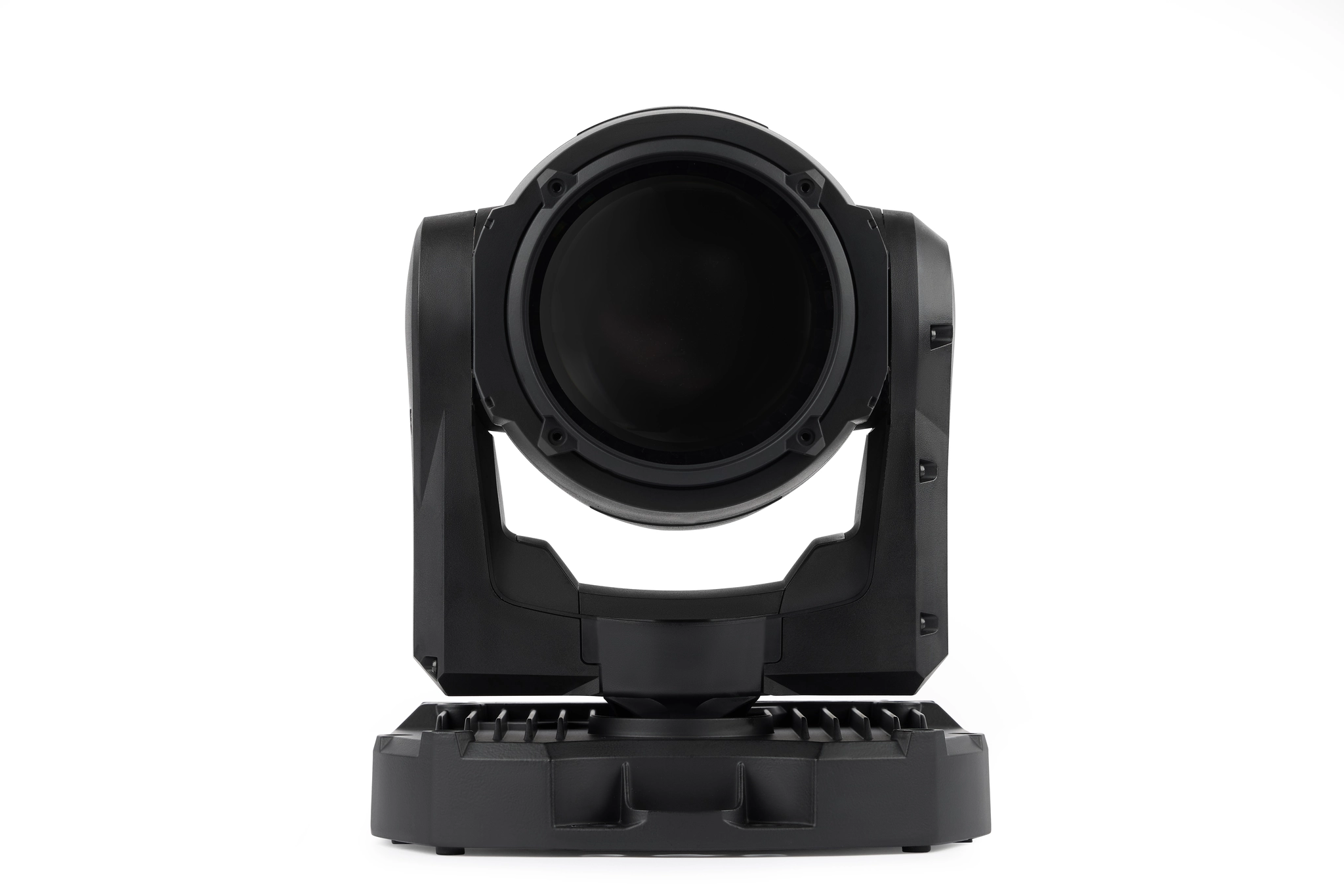

The MAC One Beam from Martin Professional is the newest member of the MAC One family—designed to deliver tight, high-intensity beams and captivating eye-candy effects in a compact, lightweight form. Built for lighting designers and rental professionals, MAC One Beam expands creative possibilities, free from weight, size or budget constraints.

At its core sits an automotive-grade LILI (Laser Illuminated Lighting Instrument) engine, engineered for precision and reliability. This compact light source produces an exceptionally sharp beam with an intensity of 7 million candela—more than enough for bold aerial effects in concert, TV, and event environments. MAC One Beam’s optimized output alleviates growing industry concerns around eye safety, offering a responsible balance of performance and protection.

MAC One Beam excels in three key areas. First, its razor-sharp beam and fast CMY color mixing deliver dynamic, high-contrast effects with snappy responsiveness. Second, its compact footprint and sub-5 kg weight allow dense fixture deployment, unlocking bold looks while reducing transport costs and rigging complexity. Third, a mesmerizing three-dimensional backlight effect—featuring individually controllable light guides behind a bold 120 mm lens—adds visual depth and stage presence, even when the beam is idle.

Designed for versatility, MAC One Beam integrates seamlessly with its sibling, the MAC One wash fixture, using a unified ecosystem of rigging accessories, including the MAC One Fourbar and VDO Grid Mount System. This compatibility empowers designers to mix fixture types freely—combining beam and wash functionality within the same rig, layout, or flightcase—without sacrificing efficiency or cohesion.

Whether building dynamic arrays, linear matrices, or immersive light walls, shared accessories simplify setup and expand design flexibility. With the MAC One Beam and the MAC One wash fixtures working in tandem, designers gain more creative freedom to craft layered, multidimensional looks using compact fixtures that rig fast and scale effortlessly.

From low-ceiling installations to high-impact concert rigs, MAC One Beam empowers designers to think bigger, rig smarter, and elevate every show with compact brilliance and eye-catching flair.

To learn more about the VDO Grid Mount System, click here.

COMPACT FORM + MASSIVE IMPACT

MAC One Beam delivers an intense 7 Mcd beam from a fixture weighing under 5 kg, offering an exceptional output-to-size ratio. Its compact footprint enables dense deployment without compromising punch or precision.
AUTOMOTIVE-GRADE LILI ENGINE + SAFER BEAM PERFORMANCE

Powered by an automotive-grade LILI engine, MAC One Beam produces a razor-sharp, high-contrast beam while alleviating growing industry concerns around eye safety, offering a responsible and unmatched balance of performance and protection.
FAST CMY MIXING + SPLIT COLOR CREATIVITY

The fixture’s rapid CMY color mixing enables smooth transitions and vibrant split-color effects. Designers can achieve dynamic looks with snappy responsiveness and rich tonal control.

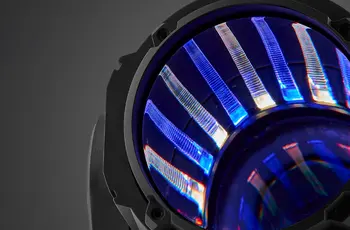

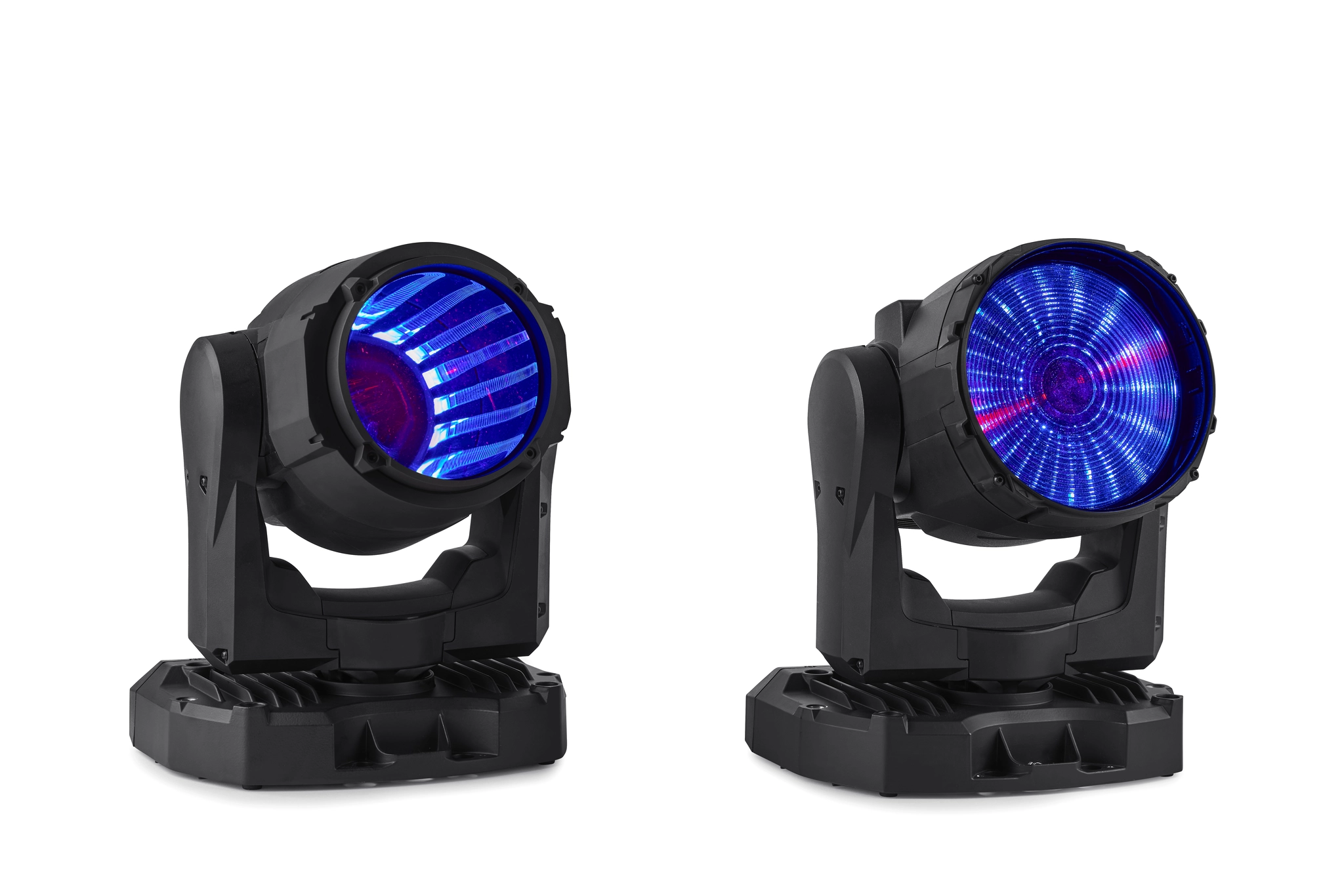

THREE-DIMENSIONAL BACKLIGHT EYE-CANDY

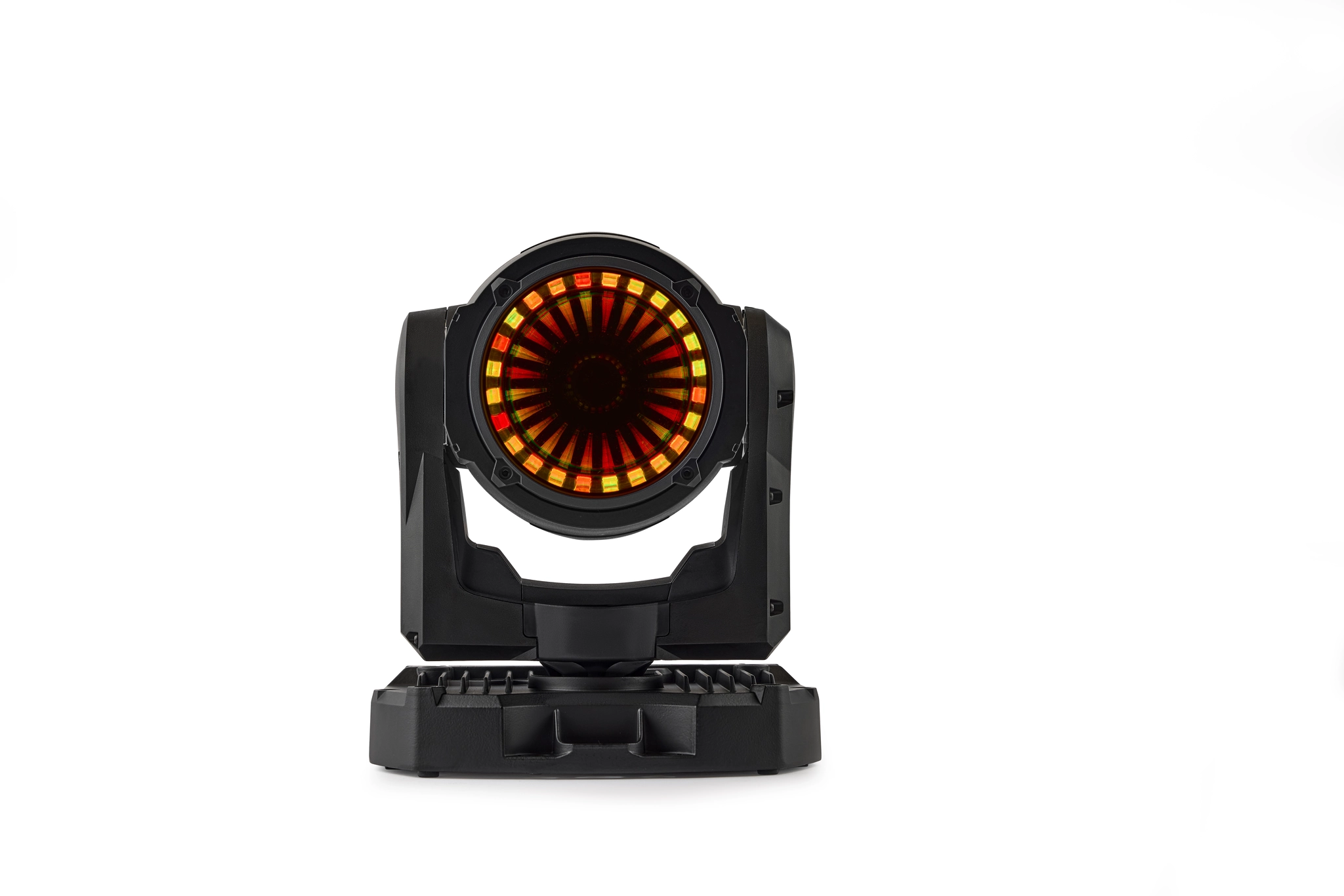

Behind the bold 120 mm lens, 24 RGB LEDs create a captivating backlight effect with pixel control. Even when the beam is idle, MAC One Beam adds visual depth and stage presence.

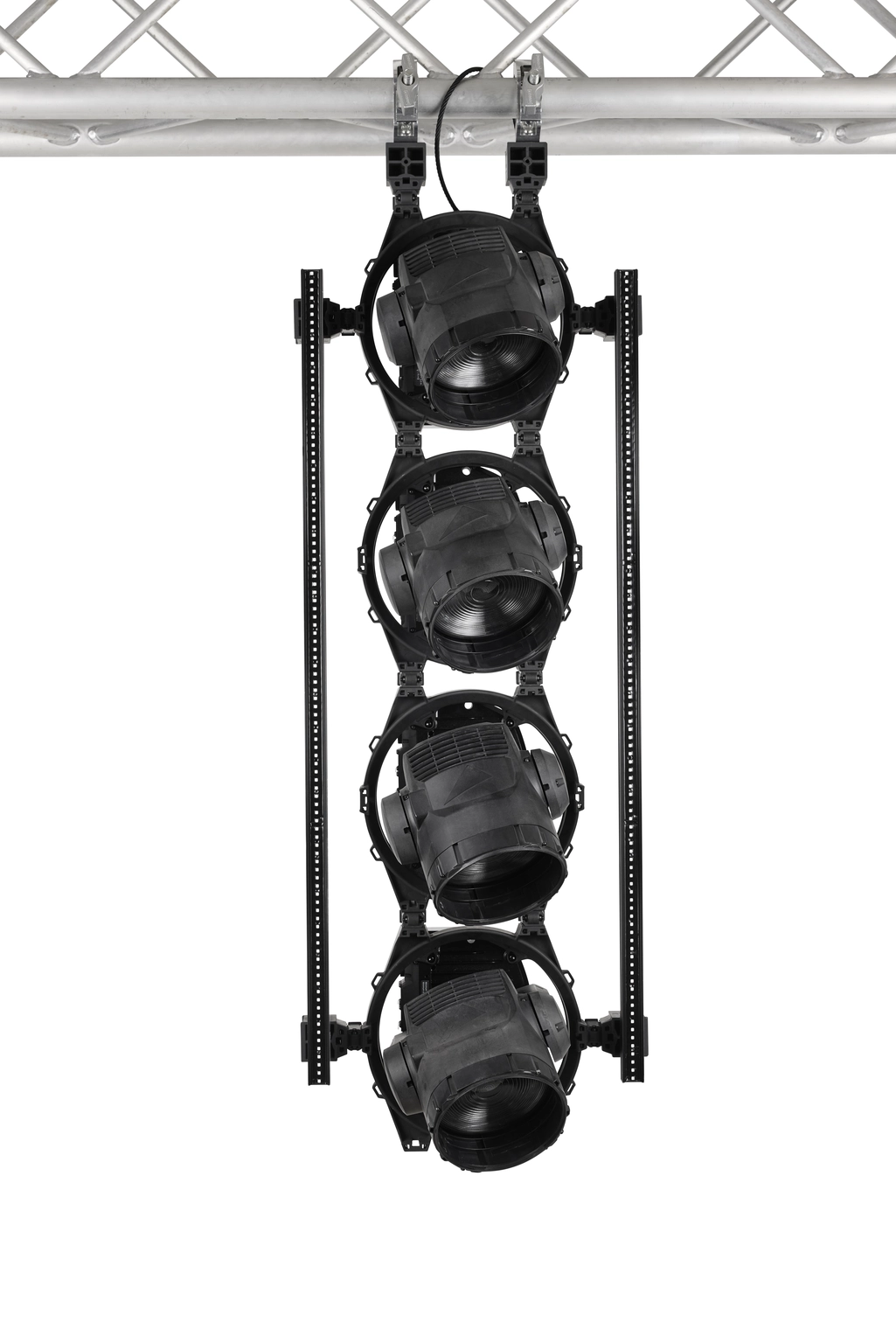

RIGGING VERSATILITY + SEAMLESS INTEGRATION

MAC One Beam shares accessories with the MAC One wash fixture, including the Fourbar and VDO Grid Mount System. Designers can mix fixture types freely, creating cohesive rigs, matrix layouts, and “walls of light” with ease.
P3 CONTROL + STREAMLINED SETUP

In addition to DMX, Art-Net, and sACN, MAC One Beam supports Martin P3 control for simplified mapping, addressing, and video integration. Ideal for large deployments, it reduces setup time and expands creative possibilities.

COMPACT FORM + MASSIVE IMPACT

MAC One Beam delivers an intense 7 Mcd beam from a fixture weighing under 5 kg, offering an exceptional output-to-size ratio. Its compact footprint enables dense deployment without compromising punch or precision.

AUTOMOTIVE-GRADE LILI ENGINE + SAFER BEAM PERFORMANCE

Powered by an automotive-grade LILI engine, MAC One Beam produces a razor-sharp, high-contrast beam while alleviating growing industry concerns around eye safety, offering a responsible and unmatched balance of performance and protection.

FAST CMY MIXING + SPLIT COLOR CREATIVITY

The fixture’s rapid CMY color mixing enables smooth transitions and vibrant split-color effects. Designers can achieve dynamic looks with snappy responsiveness and rich tonal control.

THREE-DIMENSIONAL BACKLIGHT EYE-CANDY

Behind the bold 120 mm lens, 24 RGB LEDs create a captivating backlight effect with pixel control. Even when the beam is idle, MAC One Beam adds visual depth and stage presence.

RIGGING VERSATILITY + SEAMLESS INTEGRATION

MAC One Beam shares accessories with the MAC One wash fixture, including the Fourbar and VDO Grid Mount System. Designers can mix fixture types freely, creating cohesive rigs, matrix layouts, and “walls of light” with ease.

P3 CONTROL + STREAMLINED SETUP

In addition to DMX, Art-Net, and sACN, MAC One Beam supports Martin P3 control for simplified mapping, addressing, and video integration. Ideal for large deployments, it reduces setup time and expands creative possibilities.

ビデオ

特長

Beam

Automotive-grade LILI (Laser Illuminated Lighting Instrument) engine
7 Mcd beam intensity
Fast CMY color mixing, offering smooth gradients and stunning split colors
Color Temperature Control
Tint Control

Backlight

24 RGB backlight LEDs
Three-dimensional effect behind 120 mm lens

Dynamic Effects

More than 200 built-in FX macros with control of foreground color, background color, speed and direction
P3 video mapping of fixture Beam and/or Lightguide Backlight pixels
P3 Mix allowing crossfade between video looks and DMX looks
Extreme-speed pan, tilt and CMY

Cooling and Noise

Ultra-quiet cooling system (no fans in base, only fans in head)
Theater / Broadcast mode at just 21.5 dB(A)
Low noise pan, tilt and CMY mode

Construction

Weight: 4.95 kg / 10.91 lbs.
Dimensions: 254 mm (10.00 in.) x 303 mm (11.93 in.) x 233 mm (9.17 in.)

Control

DMX, Art-Net, sACN & Martin P3 control
Fail-safe bypass on Ethernet ports
Battery-powered display for setup and configuration

Installation

Single omega bracket attachment
M12 threaded holes for direct clamp attachment or attachment to four-bar accessory
Optional four-bar accessory
Optional VDO Grid Mount Ring accessory

より詳しい情報はこちら

Perfect for lighting designers, rental houses, and production professionals, MAC One Beam shines in concerts, TV shows, corporate events, and installations. Its compact power and versatile effects make it ideal for creating impactful designs in every venue size and type, offering bold looks and creative freedom.

仕様

Physical
MAC One Beam Fixture
Width (across yoke): 226 mm (8.90 in.)
Width (base): 254 mm (10.00 in.)
Height (head forward): 303 mm (11.93 in.)
Height (maximum): 350 mm (13.78 in.)
Depth (head): 233 mm (9.17 in.)
Depth (base): 177 mm (6.97 in.)
Minimum center-to-center distance in side-by-side installation: 300 mm (11.81 in.)
Weight: 4.95 kg (10.91 lbs.)
MAC One Family Fourbar
Length: 1168 mm (45.98 in.)
Length (installed end-to-end): 1200 mm (47.24 in.)
Width: 88 mm (3.46 in.)
Height (without feet): 42 mm (1.65 in.)
Height (with feet): 60 mm (2.36 in.)
Weight: 3.20 kg (7.05 lbs.)
MAC One Family VDO Grid Mount Ring
Width: 282 mm (11.10 in.)
Width (installed side-to-side): 300 mm (11.81 in.)
Height: 282 mm (11.10 in.)
Height (installed side-to-side): 300 mm (11.81 in.)
Depth: 80 mm (3.15 in.)
Weight: 0.75 kg (1.65 lbs.)
MAC One Family Dual VDO Header
Length: 568 mm (22.36 in.)
Length (installed end-to-end): 600 mm (23.62 in.)
Width: 85 mm (3.35 in.)
Height: 58 mm (2.28 in.)
Weight: 2.20 kg (4.85 lbs.)
MAC One Family Single VDO Adapter
Length: 50 mm (1.97 in.)
Width: 57 mm (2.24 in.)
Height: 58 mm (2.28 in.)
Weight: 0.20 kg (0.44 lbs.)

Dynamic Effects
Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: CMY, independently variable 0 - 100%
Beam Virtual Color Temperature Control: Variable 2,000 – 12,850 K
Beam Virtual Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Beam Virtual Color wheel: 16 color presets, 18 split color presets, 18 split color shakes & random color
Pan: Motorized 540°
Tilt: Motorized 225°
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Backlight Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Backlight Dimming options: Choice of four dimming curves
Backlight Color Mixing: RGB, independently variable 0 - 100%
Backlight Color Temperature Control: Variable 2,000 – 12,850 K
Backlight Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Backlight Virtual Color wheel: 48 color presets, continuous rotation & random color
Backlight PixelMapping: Individual RGB control of each of the 24 Backlight pixels
Backlight P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Backlight or Combination; independent or synchronized/combined
Dimming Zones control: Up to 8 dimming zones featuring remote programming, preview & easy-adjust
Light Engine Frequency control: Variable Light Engine PWM control

Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3
Protocol Detection: Automatic
DMX Modes: Compact, Basic & Ludicrous
DMX Channels: 19, 35 & 107
Multi-Universe Overflow: Yes, in all DMX Modes
16-bit Controllable Parameters: Beam & Backlight Dimming, Beam Color Mixing, Pan and Tilt
Setting and Addressing: Display Menu, RDM, RDM over Art-Net or Martin P3
Local User Interface: Backlit LCD Display with battery-powered operation
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit: 32 fixtures
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
Firmware Update: via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

Optics
Front Lens Diameter: 120 mm (4.72 in.)
Beam Angle (Half Peak): 0.40°
Field Angle (Tenth Peak): 0.80°
Beam Light Source: 1 x 20 W Laser Illuminated Light Engine
Backlight Light Source: 24 x 0.25 W RGB LED
Max. Total Beam Engine Power: 20 W
Max. Total Backlight LED Engine Power: 6 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions

Photometric Data
Peak Luminous Intensity Narrow: 7,000,000 cd
CCT: Variable 2,000 K – 12,850 K
CRI (Color Rendering Index): ≥ 72
CQS (Color Quality Scale): ≥ 61
TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 65
TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 89
TLCI (Television Lighting Consistency Index): ≥ 37
Beam Light Engine Refresh Rate: 19,200 Hz with adjustment (+/- 2%) via DMX
Backlight LED Refresh Rate: 1,200 Hz
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Backlight
Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 7500 K white

Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20

Installation
Mounting options: clamps on fixture, omega on fixture, fourbar or VDO grid mount ring
Mounting points on Fixture: 1 pair of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracket and two M12 threaded holes
Mounting points on Fourbar: 1 fixed and 2 repositionable M12 threaded holes
Mounting points on VDO Grid Mount Ring: 6 receivers for VDO Couplers (compatible with VDO Atomic Bold/Dot)
Mounting points on Dual VDO Header: 2 repositionable M12 threaded holes and 4 receivers for VDO Couplers (compatible with VDO Grid Mount Ring and VDO Atomic Bold/Dot)
Mounting points on Single VDO Adapter: 1 fixed M12 threaded hole, 4 fixed M6 threaded holes and 1 receiver for VDO Coupler (compatible with VDO Grid Mount Ring and VDO Atomic Bold/Dot)
Maximum vertical column height in VDO Grid Mount Rings: 12 fixtures
Location: Indoor or outdoor protected from elements
Orientation: Any
Minimum distance to combustible materials: 0.20 m (7.87 in.)
Minimum distance to illuminated surfaces: 1.75 m (68.90 in.)

Connections AC mains power in/thru: Neutrik powerCON TRUE1 TOP DMX and RDM data in/thru: Neutrik 5-pin locking XLR Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 3.2 A
Typical earth-leakage current: 0.50 mA
Power Factor: 0.85 @ 100V , 0.82 @ 120V , 0.59 @ 208V , 0.57 @ 230V , 0.55 @ 240V
Max current draw: 0.6 A @ 100V / 120V, 0.4 A @ 208V / 230V / 240V
Typical current draw: 0.5 A @ 100 V , 0.4 A @ 120 V , 0.3 A @ 208 V , 0.3 A @ 230 V , 0.3 A @ 240 V *
Power Consumption
Maximum: 55 W
Typical: 45 W *
Idle: 12 W *
Hibernation: 8 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

Thermal Cooling: Forced air (temperature regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 65° C (149° F) Total heat dissipation (calculated, +/- 10%): 154 BTU/hr.

Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 19.6 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 19.2 dB(A)

Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant FSC: Certified cardboard inner and outer packaging Efficacy (max output): 216,583 cd/W LWR*: 1,414,141 cd/kg (641,613 cd/lbs.)
LWR = Lumen-to-Weight Ratio

Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 60825-1, EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3 US safety: UL 1573 Pending US EMC: FCC Part 15 Class B Pending Canadian safety: CSA C22.2 No. 166 Pending Canadian EMC: ICES-003 Class B, ICES-005 Class B Pending Australia/NZ: RCM Pending United Kingdom: UKCA Thailand: TIS Pending

Included Items
Single omega bracket with 1/4 turn fasteners for rigging clamp attachment
Multi-Language Safety and Installation Manual

Related Items
MAC One in dual SiP: P/N MAR-90250205HU
MAC One in Cardboard: P/N MAR-90250200HU
MAC One white in Cardboard: P/N MAR-90250210HU
VDO Atomic Bold in cardboard: P/N MAR-90357703
VDO Atomic Dot CLD in cardboard: P/N 90357701
VDO Atomic Dot WRM in cardboard: P/N 90357702
Martin Companion Cable (for firmware update over DMX): P/N 91616091
Martin Companion Software (for firmware update over DMX/Ethernet): Free download from www.martin.com

Accessories
Transport and Storage
Flightcase for 8 x MAC One (fits MAC One Beam and MAC One): P/N MAR-91515058
Additional dual SiP Foam Flightcase Insert for MAC One Beam and MAC One: P/N MAR-91611865HU
Consumables
CR123A 3-volt lithium battery: P/N 05801011
Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU
PDE Adapter Cables (for use in matrix with VDO Atomic Bold/Dot)
BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
Installation Hardware
MAC One Family Fourbar: P/N MAR-91616127HU
MAC One Family VDO Grid Mount Ring: P/N MAR-91616128HU

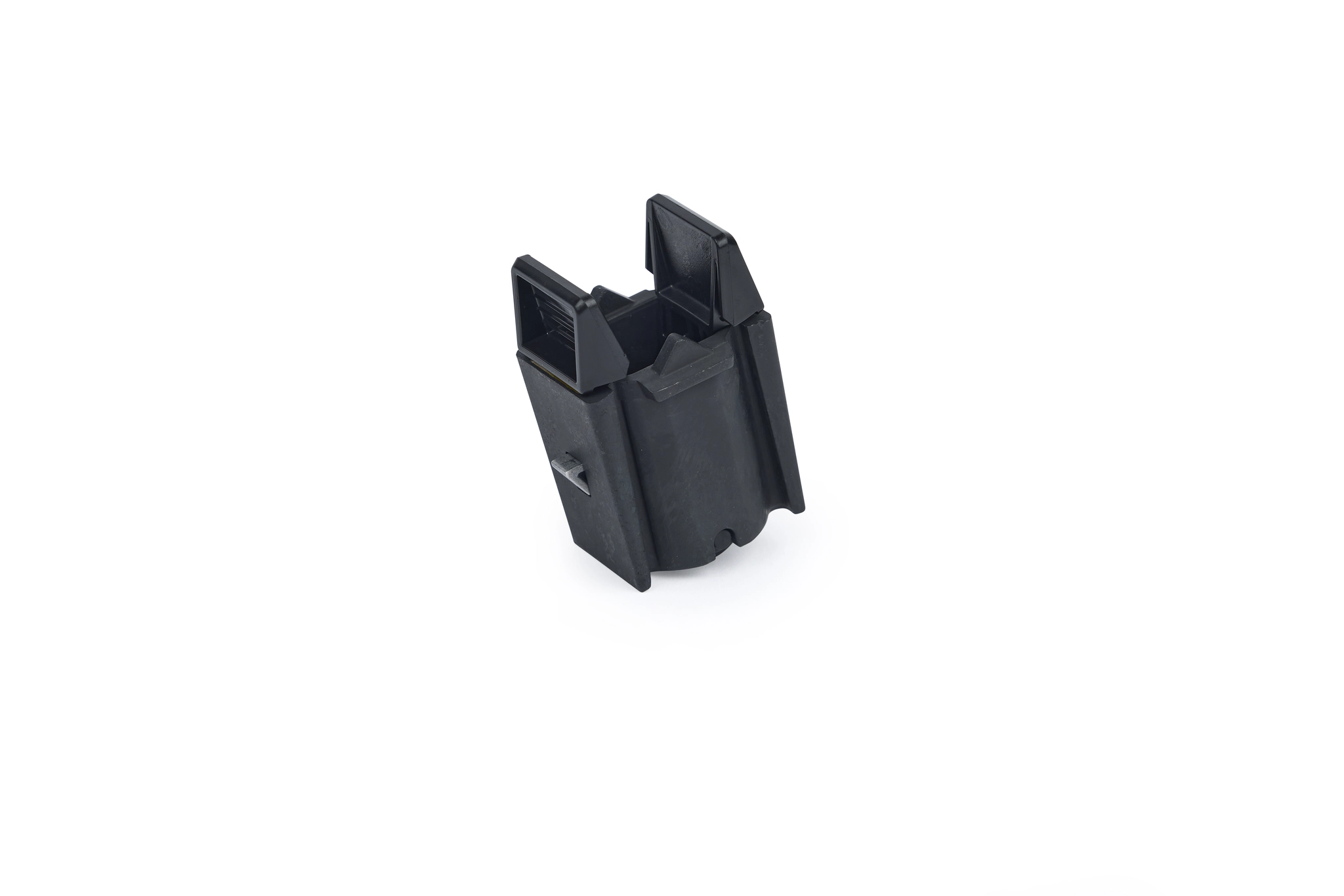

Set of 10 VDO Couplers: P/N MAR-91616129HU
Dual VDO Header: P/N MAR-91616130HU
Set of 10 Single VDO Adapters: P/N MAR-91616135
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information MAC One Beam in dual SiP (in cardboard box with dual SiP foam flight case insert): P/N MAR-90250505HU (to be ordered in multiples of 2) MAC One Beam in Cardboard (in cardboard box with cardboard inlay): P/N MAR-90250500HU MAC One Beam white in Cardboard (in cardboard box with cardboard inlay): P/N MAR-90250510HU

ダウンロード

Specifications

	バージョン	言語	サイズ	アップロード日
MAC One Beam - Spec Sheet バージョン B, 更新: 2026年2月	B		5.62MB	2026年2月
MAC One Beam - Acoustic Test Report バージョン A, 更新: 2026年3月	A		474KB	2026年3月
MAC One Family - Flightcase Spec Sheet バージョン A, 更新: 2026年1月	A		7.59MB	2026年1月
MAC One Family - SiP Spec Sheet バージョン A, 更新: 2026年1月	A		1.26MB	2026年1月

Manuals

	バージョン	言語	サイズ	アップロード日
MAC One Fourbar - Safety and Installation Manual バージョン B, 更新: 2025年10月	B		3.34MB	2025年10月
MAC One Beam - User, Safety and Installation Manual バージョン B, 更新: 2026年2月	B		2.15MB	2026年2月
MAC One Beam - Bedienungsanleitung mit Installations- und Sicherheitshinweisen バージョン B, 更新: 2026年3月	B		2.15MB	2026年3月
MAC One Beam - Guide de l’utilisateur avec Guide d’installation et de sécurité inclus バージョン B, 更新: 2026年3月	B		2.81MB	2026年3月
MAC One VDO Grid Mount System - Safety and Installation Manual バージョン B, 更新: 2025年10月	B		1.92MB	2025年10月
MAC One Beam - Manual de Usuario con Manual de Seguridad e Instalación バージョン B, 更新: 2026年3月	B		2.23MB	2026年3月

Photometrics

	バージョン	言語	サイズ	アップロード日
MAC One Beam - Photometric Files バージョン A, 更新: 2026年1月	A		891KB	2026年1月

Illustrations

	バージョン	言語	サイズ	アップロード日
MAC One Beam - 2D Dimensions バージョン A, 更新: 2026年1月	A		24.3MB	2026年1月
MAC One Family - Optimal Cable Length バージョン B, 更新: 2026年1月	B		3.02MB	2026年1月

Symbols

	バージョン	言語	サイズ	アップロード日
AutoCAD 2D Symbols バージョン 2.8, 更新: 2026年1月	2.8		4.42MB	2026年1月
AutoCAD 3D Symbols バージョン 2.8, 更新: 2026年1月	2.8		18.7MB	2026年1月
Vectorworks Symbols バージョン 4.6, 更新: 2026年1月	4.6		249MB	2026年1月
Martin Professional GDTF Library バージョン A, 更新: 2023年10月	A		203バイト	2023年10月

CAD Drawings

	バージョン	言語	サイズ	アップロード日
MAC One Beam - 3D Drawings バージョン A, 更新: 2026年1月	A		17.3MB	2026年1月

Compliances

	バージョン	言語	サイズ	アップロード日
Safety Document (SDS) for Batteries バージョン D, 更新: 2026年1月	D		332KB	2026年1月
MAC One Beam - EU Declaration of Conformity バージョン A, 更新: 2026年1月	A		217KB	2026年1月
MAC One Beam - UKCA Declaration of Conformity バージョン A, 更新: 2026年1月	A		160KB	2026年1月
MAC One Beam - CB Test Certificate バージョン A, 更新: 2026年1月	A		626KB	2026年1月
MAC One Beam - EU Test Verification of Conformity バージョン A, 更新: 2026年1月	A		520KB	2026年1月
MAC One Beam - ETL Authorization To Mark バージョン A, 更新: 2026年1月	A		141KB	2026年1月
MAC One Beam - ETL Listing Verification バージョン A, 更新: 2026年1月	A		814KB	2026年1月
