The VDO Grid Mount System enables compatible fixtures to be deployed in matrices and creative layouts with minimal effort. Based on the toolless VDO Coupler, designs can be deployed without requiring custom supporting structures. The VDO Grid Mount System is compatible with the following Martin fixtures:

MAC One
MAC One Beam
VDO Atomic Bold
VDO Atomic Dot CLD
VDO Atomic Dot WRM





MAC One Family VDO Grid Mount Ring

  • Enables Martin MAC One and MAC One Beam to be used in the VDO Grid Mount System.
  • VDO Grid Mount Ring is simply screwed onto the base of the MAC One / MAC One Beam fixture.
  • Sold per piece (P/N MAR-91616128HU).

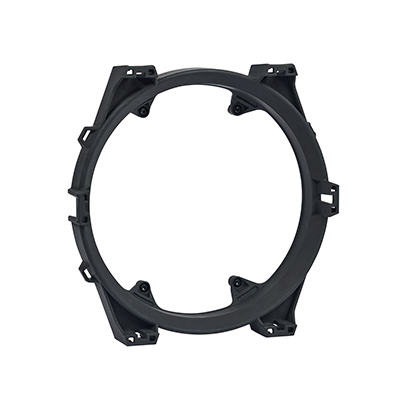

  • MAC One Family VDO Grid Mount Ring

  • MAC One Family VDO Grid Mount Ring installed on MAC One fixture

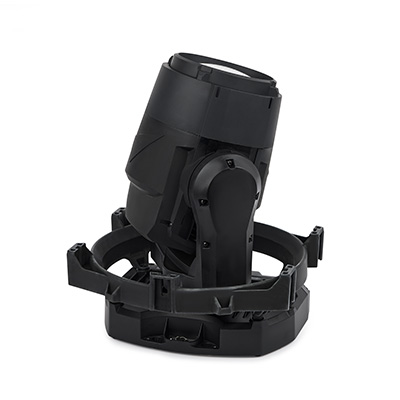

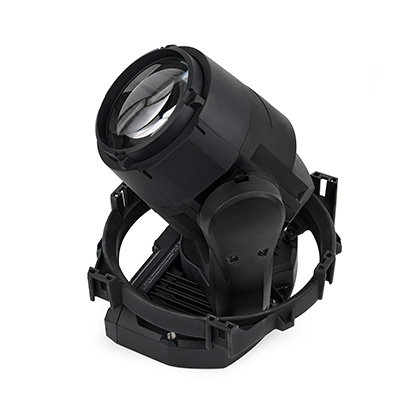

  • MAC One Family VDO Grid Mount Ring installed on MAC One Beam fixture

  • MAC One Family VDO Grid Mount Ring installed on MAC One Beam fixture 2





VDO Coupler

  • Toolless coupler used to join MAC One / MAC One Beam in VDO Grid Mount Ring and VDO Atomic Bold, and VDO Atomic Dot fixtures together.
  • Simply clicks into the indicated slot.
  • Sold in sets of 10 (P/N MAR-91616129HU).

  • VDO Coupler

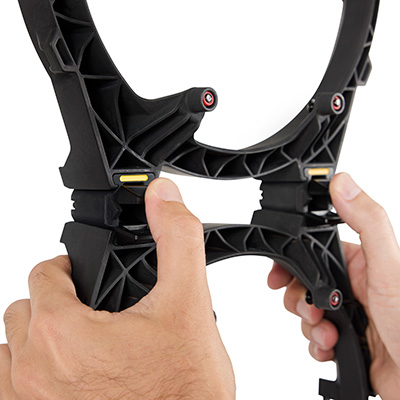

  • VDO Coupler installation

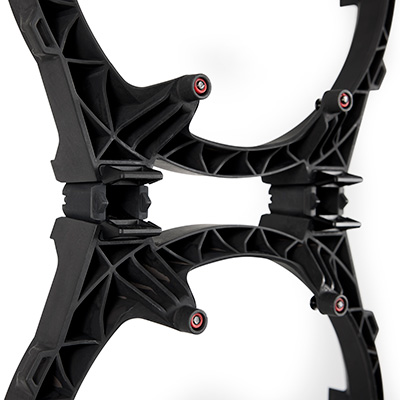

  • VDO Couplers between MAC One Family VDO Grid Mount Rings

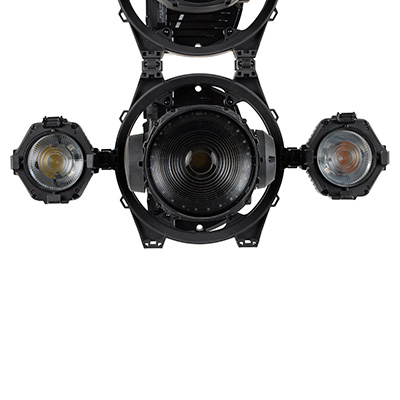

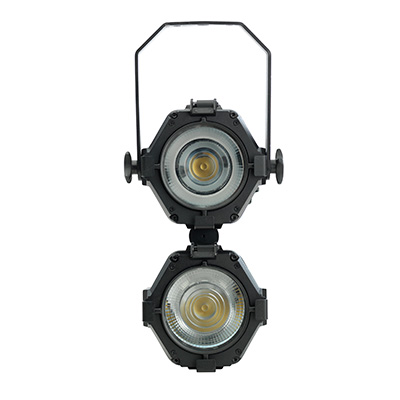

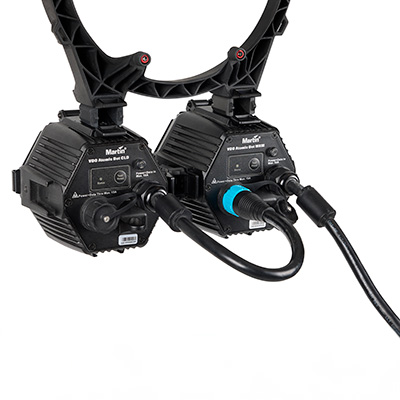

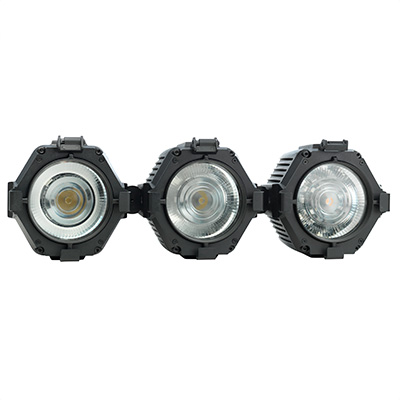

  • VDO Couplers on VDO Atomic Dot

  • VDO Couplers on VDO Atomic Dot

  • VDO Couplers on VDO Atomic Dot

  • VDO Couplers on VDO Atomic Dot

  • VDO Couplers on VDO Atomic Dot

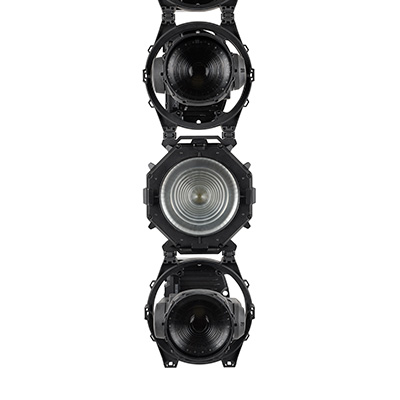

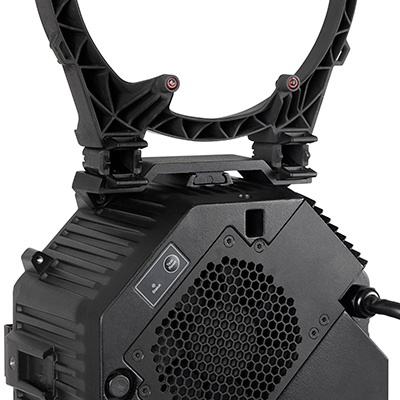

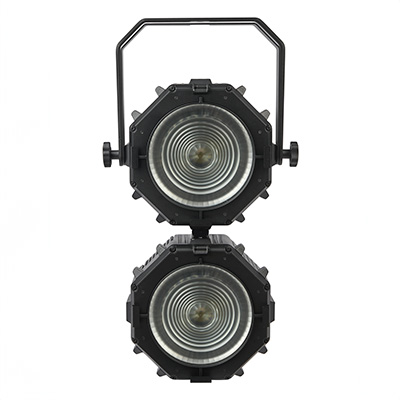

  • VDO Couplers on VDO Atomic Bold

  • VDO Couplers on VDO Atomic Bold

  • VDO Couplers on VDO Atomic Bold





Dual VDO Header

  • Supports rigging of VDO Grid Mount System fixtures.
  • Fitted with 2 repositionable M12 threaded holes for rigging clamps.
  • Features alignment system to link multiple headers.
  • Sold per piece (P/N MAR-91616130HU).

  • Dual VDO Header

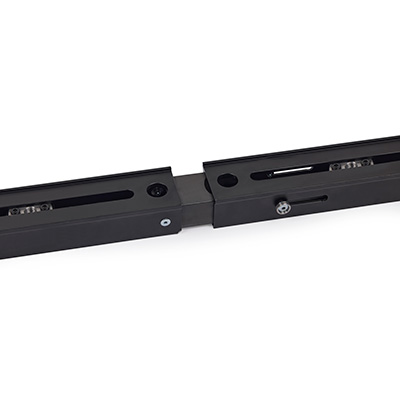

  • Two Dual VDO Headers linked together

  • Dual VDO Header fitted with rigging clamps

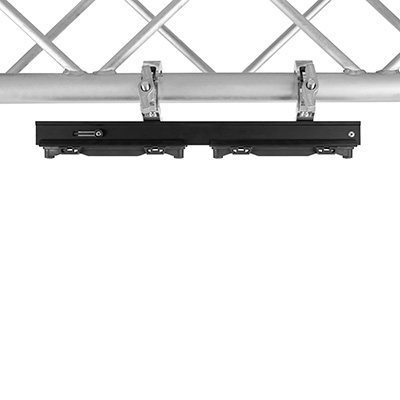

  • Two Dual VDO Header fitted with rigging clamps

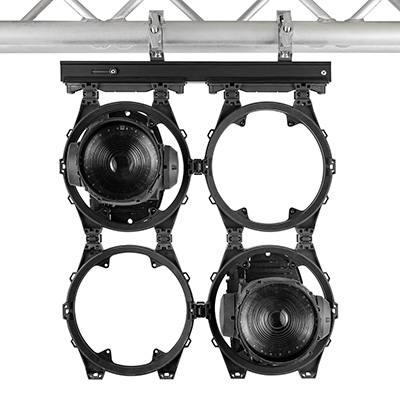

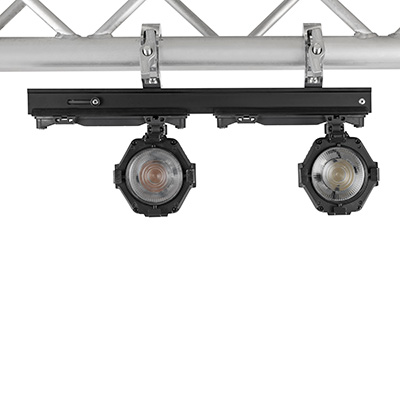

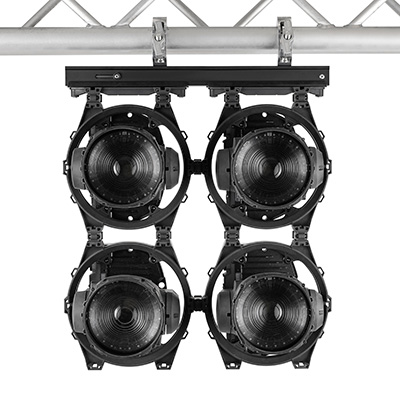

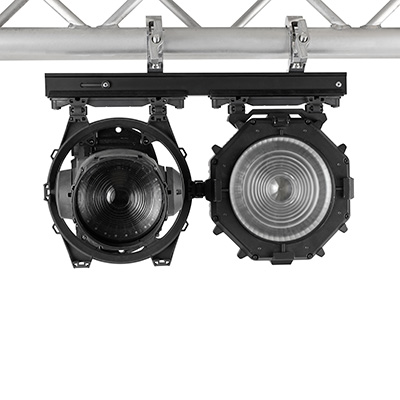

  • Fixtures hung from VDO Header

  • Fixtures hung from VDO Header

  • Fixtures hung from VDO Header

  • Fixtures hung from VDO Header





Single VDO Adapter

  • Supports rigging of VDO Grid Mount System fixtures.
  • Fitted with single M12 threaded hole for rigging clamp.
  • Fitted with four M6 threaded holes for additional attachments.
  • Sold in sets of 10 (P/N MAR-91616135).

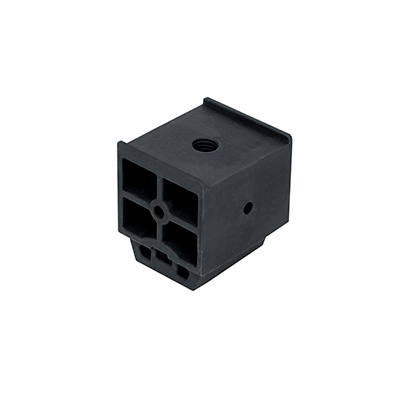

  • Single VDO Adapter

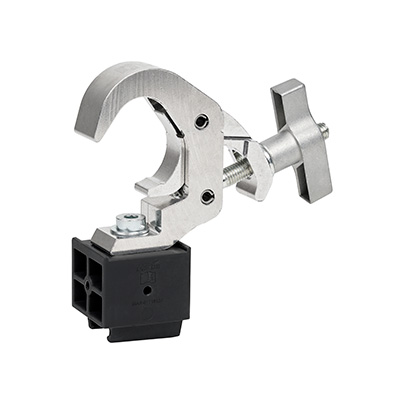

  • Single VDO Adapter fitted with rigging clamp

  • Single VDO Adapter fitted with spigot

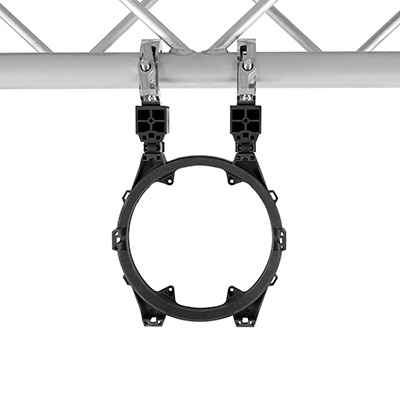

  • Single VDO Adapters supporting MAC One Family VDO Grid Mount Ring

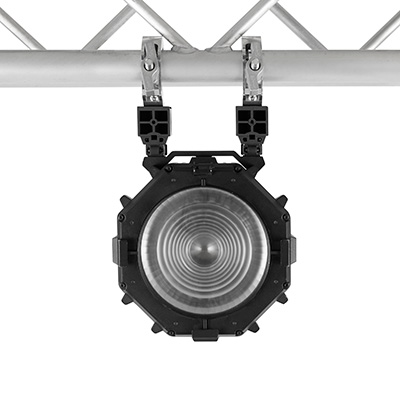

  • Single VDO Adapters supporting VDO Atomic Bold

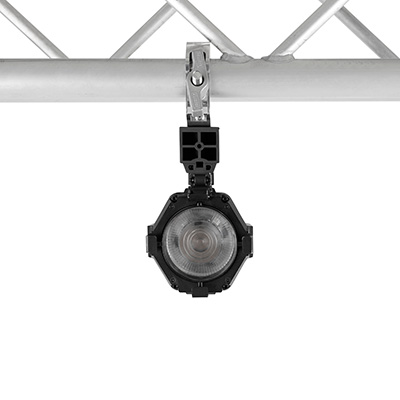

  • Single VDO Adapter supporting VDO Atomic Dot

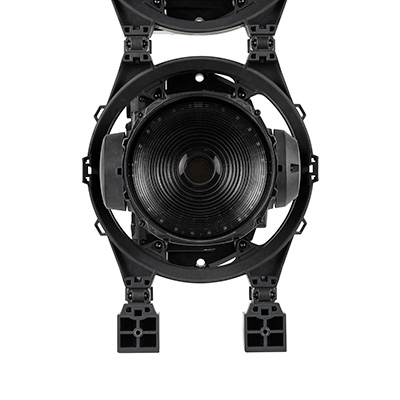

  • Single VDO Adapters attached to bottom of column

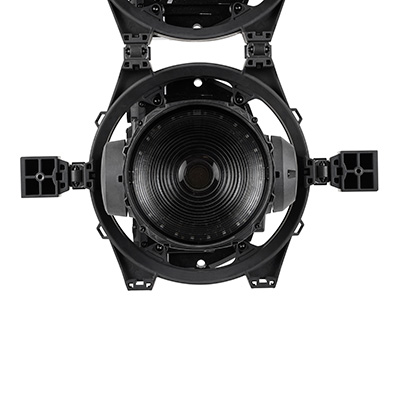

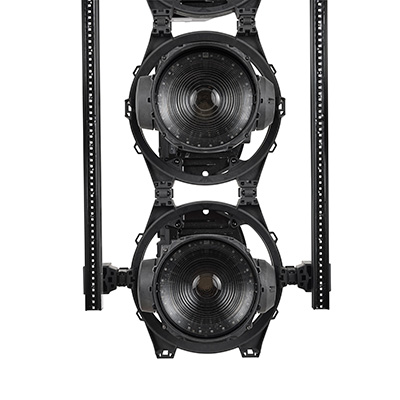

  • Single VDO Adapters attached to side of column

  • Single VDO Adapters used to attached VDO Sceptrons to side of column

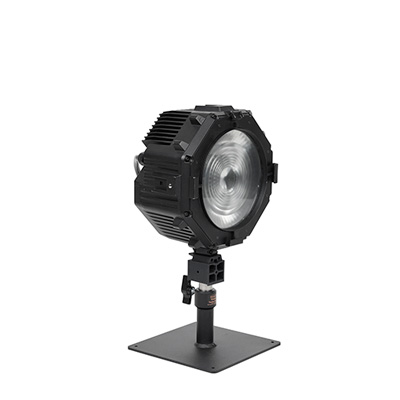

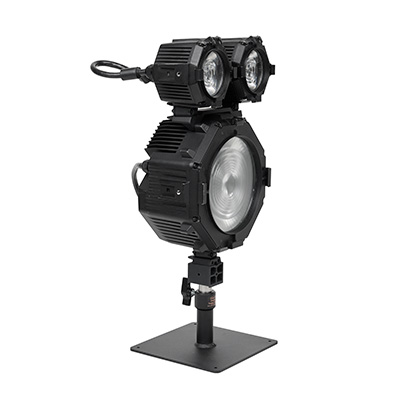

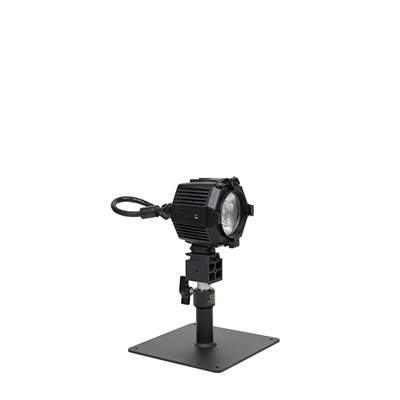

  • Use of Single VDO Adapter with spigot

  • Use of Single VDO Adapter with spigot

  • Use of Single VDO Adapter with spigot

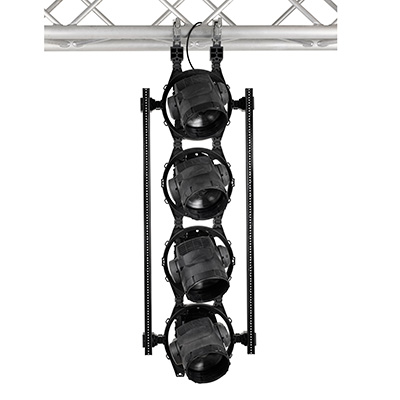

  • Full column supported by Single VDO Adapters

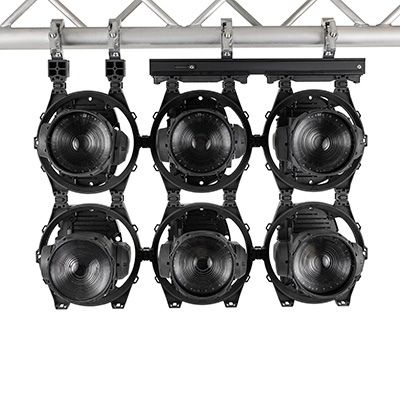

  • Single VDO Adapters combined with Dual VDO Header





VDO Atomic Bold Interlock Doubler

  • Can be attached to any side of a VDO Atomic Bold fixture.
  • Enables fitting VDO Atomic Bolds to MAC One Family VDO Grid Mount Rings.
  • Enables fitting two VDO Atomic Dots to any side of a VDO Atomic Bold.
  • Sold per piece (P/N MAR-91616122).

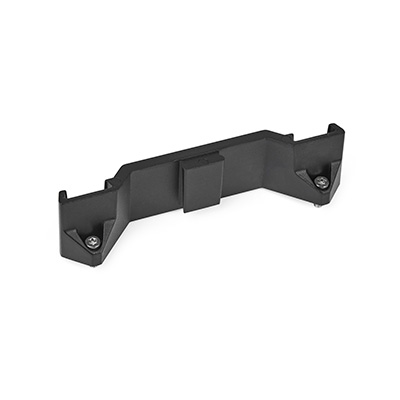

  • VDO Atomic Bold Interlock Doubler

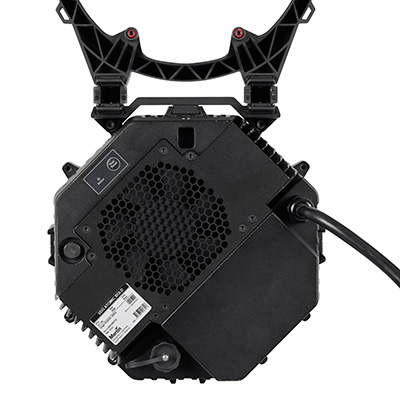

  • VDO Atomic Bold shown configured between MAC One Family VDO Grid Mount Rings

  • VDO Atomic Bold shown under MAC One Family VDO Grid Mount Ring

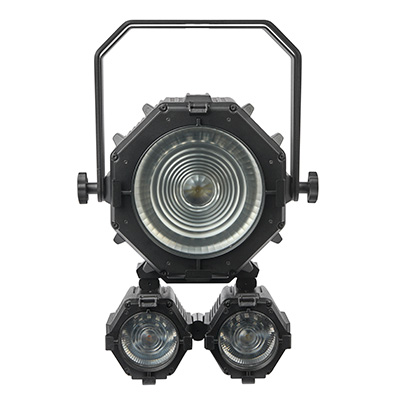

  • VDO Atomic Dot attached to VDO Atomic Bold
