• Physical Width: 482.6 mm (19.0 in.) Height: 88.90 mm (3.50 in.) (rackmount 2U) Depth: 508.0 mm (20.0 in.) Weight: 9.0 kg (19.8 lbs.)
  Control/User Interface

  User Interface: Full HD (1920x1080) or better monitor (VGA, DVI, HDMI or DP), USB keyboard & USB mouse
  Device Status: Status indication LEDs

  DVI Video Input

  Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
  Framerate: Supporting frame rates up to 60fps
  Scan: Progressive only
  EDID: Customizable via user interface
  Colour Depth: 8-bit
  Colour Sampling: RGB 4:4:4

  Component Video Input

  Connection: Via DVI-I breakout cable (not included)
  Standards: Composite NTSC/PAL/Secam, S-Video (Y/C) and component YPbPr w/Sync-on-G (Y)
  Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
  Sync: Supporting tri-level sync
  Scan: Progressive & Interlaced
  Sampling: 10-bit

  SDI Video Input

  2 x SD-SDI 525/60 (NTSC) or 625/50 (PAL) per SMPTE 259M
  2 x HD-SDI 720p per SMPTE 296M or 1080i per SMPTE 292M
  1 x dual-link HD-SDI per SMPTE 372M
  2 x 3G-SDI per SMPTE 424M (compatible with level A and level B sync)

  Genlock Input Supports bi-level and tri-level sync
  Video Processing

  Controller pixel processing capacity: 2,080,000 pixels (expandable by adding P3-300s)*
  Controller fixture capacity: 2,000 fixtures (expandable by adding P3-300s)*
  Maximum workspace area: 2,073,600 pixels
  Maximum active capture area: 2,073,600 pixels
  System processing depth: 16 bits per color (48 bits per pixel)
  System latency progressive: 2 frames
  System latency interlaced: 3 frames
  Latency between first and last fixture: None
  Scaling: Yes, global and mixed pixel pitch
  Gamma Curve Control: Yes, adjustable
  Image Control Parameters: Hue, Saturation, Brightness, Contrast, Lowlight & Gain
  Mapping: Real-time
  Colour Temperature Control: Real-time
  Colour Space Control: Real-time
  Preview: Real-time (incoming video & mapping onto fixtures)
  *See also P3 System Controller Capacity Info Note on Downloads page

  DMX Controls

  Up to 64 universes of Art-Net or sACN input*
  Control of intensity and colours
  Control of colour temperature
  Merge video input with DMX controls towards fixtures
  Cross-fade or toggle between video and DMX controls
  Freeze, blackout or activate testpatterns on video engine
  Recall video presets (video settings, fixture positions and more)
  *See also P3 System Controller Capacity Info Note on Downloads page

  Motion Controls

  One universe of Art-Net, sACN or Kinesys K2 input*
  Compatible with Kinesys K2/Vector, Tait Navigator and others
  Control fixture or group position on video canvas
  Control fixture or group rotation on video canvas
  *See also P3 System Controller Capacity Info Note on Downloads page

  P3 Signal Protocol

  Signal type: Gigabit Ethernet
  Protocol : Proprietary Martin P3
  Hot pluggable: Yes, electrically isolated at all connections
  Cable type: Ethernet, shielded, Cat 5e or better
  Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
  Maximum number of fixtures per daisy-chain: 50, extendable with Ethernet switch

• Construction Housing: Steel and aluminum Color: Matte black Protection rating: IP20
  Installation Mounting: 19" rackmount (2U) or free-standing Location: Indoor or outdoor protected from elements Orientation: Horizontal only
  Connections

  Power input: IEC socket with integrated power switch
  P3 data in/out: 4x etherCON socket (1000Mbit)
  EtherDMX Network (Art-Net, sACN and Kinesys K2/Vector): 1x etherCON socket (100/1000Mbit)
  Management Network (remote management, syslog and webserver): 1x etherCON socket (100/1000Mbit)
  DMX in: 5-pin locking XLR
  DMX thru: 5-pin locking XLR
  DVI/component video in: DVI-I (component via BNC-to-DVI-A adapter cable, not included)
  DVI/component video thru: DVI-I
  SDI video in: 2 x BNC
  SDI video thru: 2 x BNC
  Genlock in: 1 x BNC
  Genlock thru: 1 x BNC
  Peripherals and USB memory devices: 4 x USB 2.0 ports
  User interface monitor: DisplayPort++ (compatible with adapters to DVI, HDMI and VGA, not supplied)

  Electrical

  AC power: 100-240 V AC nominal, 50/60 Hz
  Power supply unit: Auto-ranging electronic switch mode

  Thermal Cooling: Filtered forced air (temperature-controlled fans) Maximum ambient temperature (Ta max.): 50° C (122° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Total heat dissipation (calculated, +/- 10%): 157 BTU/hr.
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
  Approvals EU safety: EN 60950-1 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 6100-4-2, EN 6100-4-3, EN 6100-4-4, EN 6100-4-5, EN 6100-4-6, EN 6100-4-11 US safety: ANSI/UL 60950-1 Canadian safety: CAN/CSA C22.2 No. 60950-1 Australia/NZ: RCM United Kingdom: UKCA
  Included Items

  Safety Guide
  Quick Start Guide
  EU-type power cable with Schuko connector
  US-type power cable
  UK-type power cable

  Related Items

  Martin P3-050 System Controller: P/N 90721090
  Martin P3-150 System Controller: P/N 90721015
  Martin P3-175 System Controller: P/N MAR-90721100
  Martin P3-275 System Controller: P/N MAR-90721101
  Martin P3-PC System Controller: Free download from www.martin.com

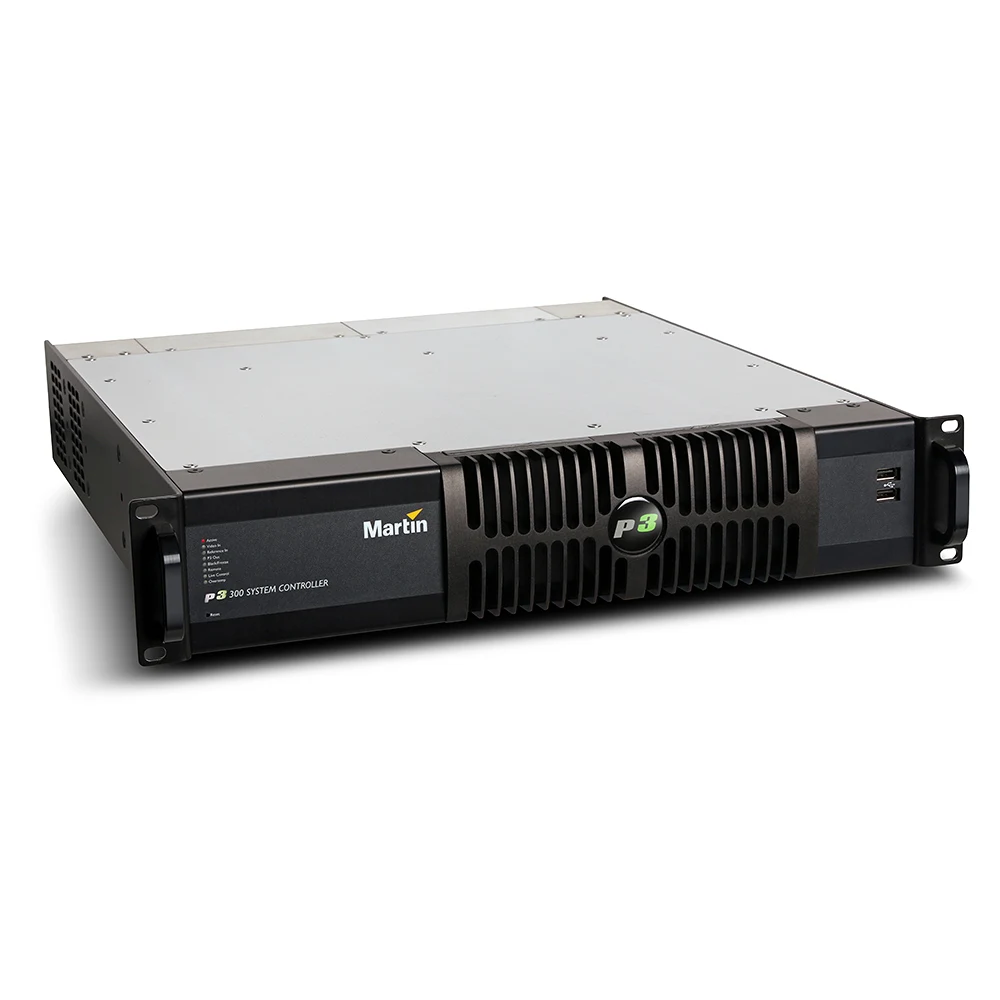

  Ordering Information Martin P3-300 System Controller: P/N 90721060

•
