P3 System Controller

The Martin family of P3 System Controllers is designed to enable easy setup and monitoring of fixtures, while allowing creative control using a lighting console, video-mapping of a combination of both. They enhance and maximize the creative potential of Martin’s P3 enabled fixtures.

They support a wide range of Martin P3-driven fixtures, including moving heads, creative LED and architectural fixtures.

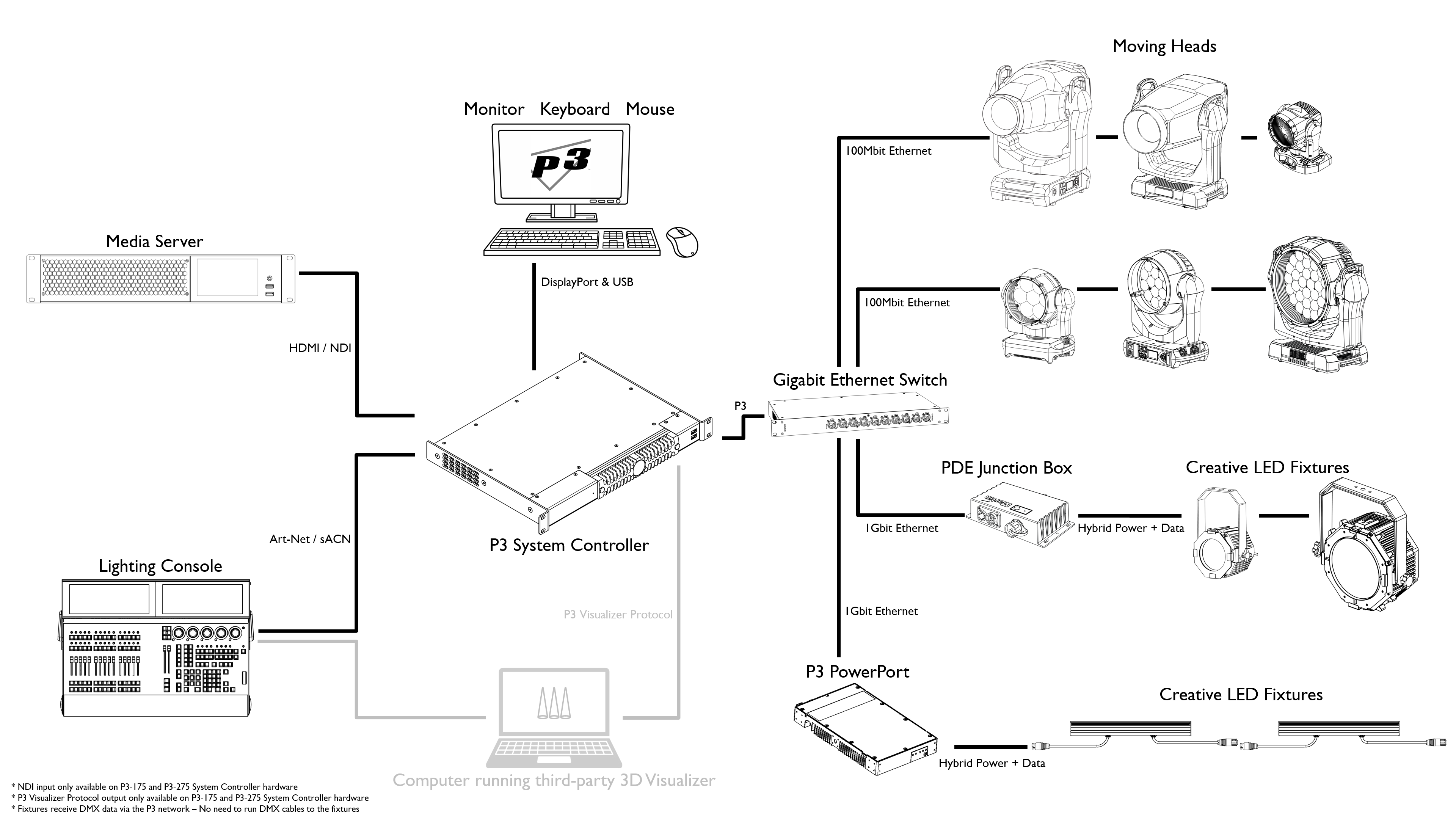

While integrating in any workflow through MVR import/export, mapping mask export and real-time visualization via the Martin P3 Visualizer Protocol.

How Martin P3 Visual Control Leads the Industry

MIX DMX AND VIDEO CONTROL

Gives the lighting designer the freedom to create unique looks by entering parameters or by sending content to fixtures to ultimately create the ideal look that the designer envisions.

TIME-SAVING MVR INTEGRATION

Mapping and patches can be exported to third-party lighting consoles, visualizers and CAD programs. There is no need to re-create a system repeatedly using different software packages.

Third-Party 3D Visualizer Protocol

Enables seamless integration with third-party 3D visualization software to empower stunning 3D visualization within the P3 environment—perfect for tours, performances, and any professional lighting needs.

REMOTE ADDRESSING AND SETTING

Eliminates the need to physically access fixtures to address and configure each one locally via the display.

REAL-TIME MONITORING

Offers a complete view of your entire system to diagnose any issues.

SYSTEM-WIDE SYNCHRONIZATION

Deliver perfect performance across the entire system, without visible lag and latency issues.

LIVE PREVIEW

Visualize results during pre-programming without connecting actual fixtures.

	P3-050 System Controller	P3-150 System Controller	P3-175 System Controller	P3-275 System Controller	P3-300 System Controller	P3-PC System Controller
Video Input	1x DVI-D up to 1920x1080	1x DVI-D up to 1920x1080	1x HDMI up to 1920x1080 1x NDI up to 1920x1080	1x HDMI up to 4096x2160 1x NDI up to 4096x2160	1x DVI-D up to 1920x1080 2x SDI up to 3G-SDI 1x Genlock	NDI, Screen-capture or Media Server Integration
DMX Input	1 universe DMX 128 universes Art-Net / sACN	1 universe DMX 128 universes Art-Net / sACN	256 universes Art-Net / sACN	1024 universes Art-Net / sACN	1 universe DMX 64 universes Art-Net / sACN	256 universes Art-Net / sACN
Visualizer Protocol Output	-	-	Yes	Yes	-	Yes
P3 Output	1 network with up to 100.000 pixels worth of fixtures Maximum 2.000 fixtures	1 network with up to 520.000 pixels worth of fixtures Maximum 2.000 fixtures	1 network with up to 520.000 pixels worth of fixtures Maximum 2.000 fixtures	2 networks with up to 1.040.000 pixels worth of fixtures Maximum 6.000 fixtures	4 networks with up to 2.080.000 pixels worth of fixtures Maximum 2.000 fixtures	1 network with up to 20.736 pixels worth of fixtures Maximum 2.000 fixtures
Form-Factor	1U 19” rackmount	1U 19” rackmount	1U 19” rackmount	2U 19” rackmount	2U 19” rackmount	Software installed on customer-supplied Windows computer
Remote Management	Yes, internal webpages and syslog	Yes, internal webpages and syslog	Yes, internal webpages and syslog	Yes, internal webpages and syslog	Yes, internal webpages and syslog	No

Please consult P3 System Controller Capacity Info Note for more details
