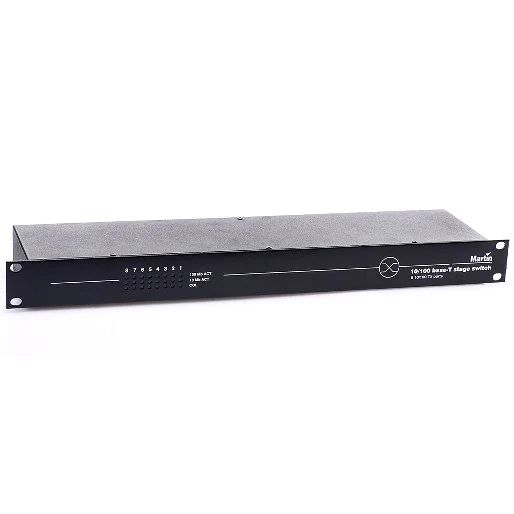

The Martin Ethernet switch is designed to allow full logistic capability within large lighting control systems featuring multiple control consoles and increased numbers of DMX universes.
Immagini più grandi
Caratteristiche
Ulteriori dettagli
Physical
Length: 482 mm
Width: 110 mm
Height: 45 mm
Weight: 1.4 kg
Performance
Full speed input and transmission of Ethernet frames:
Maximum frame length: 1536 bytes
Automatic 10 Mb or 100 Mb device detection:
Automatic half and full duplex mode switching:
Automatic detection of straight or crossover connections, automatic port configuration:
Control/User Interface
8 x 3 LED matrix displays 10Mb activity, 100Mb activity and collision for each port:
Construction
Housing: Steel and aluminum
Finish: Electrostatic powder-coated
Installation
19-inch rackmount (1U):
Connections
8 x 10/100 base-T ethernet ports: Neutrik locking RJ45 Ethercon sockets
AC power input: 3-pin IEC
Electrical
AC power: Auto-ranging 100 - 240 VAC nominal, 50/60 Hz
Typical Power and Current
120 V, 60 Hz: 3 W, 0.1 A
230 V, 50 Hz: 3 W, 0.1 A
Approvals
US safety: UL 60950
EU safety: EN 60950
EU EMC: EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-3
ETL US ONLY
ETL US ONLY Included Items
5 m Ethernet cable, straight, Neutrik NE8MC protected RJ-45 connectors, UL/IEC approved: 91611100
User manual: 35000165
Ordering Information
Ethernet Switch: 90758110
