Ethernet Switch (discontinued)

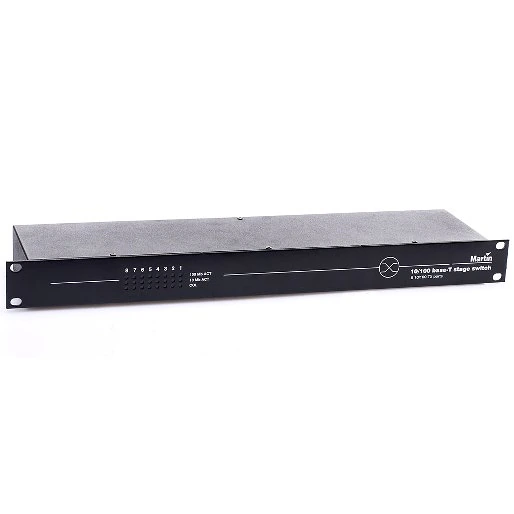

Ethernet Switch
Larger Images

The Martin Ethernet switch is designed to allow full logistic capability within large lighting control systems featuring multiple control consoles and increased numbers of DMX universes.



Physical Length: 482 mm Width: 110 mm Height: 45 mm Weight: 1.4 kg
Performance Full speed input and transmission of Ethernet frames: Maximum frame length: 1536 bytes Automatic 10 Mb or 100 Mb device detection: Automatic half and full duplex mode switching: Automatic detection of straight or crossover connections, automatic port configuration:
Control/User Interface 8 x 3 LED matrix displays 10Mb activity, 100Mb activity and collision for each port:
Construction Housing: Steel and aluminum Finish: Electrostatic powder-coated
Installation 19-inch rackmount (1U):
Connections 8 x 10/100 base-T ethernet ports: Neutrik locking RJ45 Ethercon sockets AC power input: 3-pin IEC
Electrical AC power: Auto-ranging 100 - 240 VAC nominal, 50/60 Hz
Typical Power and Current 120 V, 60 Hz: 3 W, 0.1 A 230 V, 50 Hz: 3 W, 0.1 A
Approvals US safety: UL 60950 EU safety: EN 60950 EU EMC: EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-3
Included Items 5 m Ethernet cable, straight, Neutrik NE8MC protected RJ-45 connectors, UL/IEC approved: 91611100 User manual: 35000165
Ordering Information Ethernet Switch: 90758110
