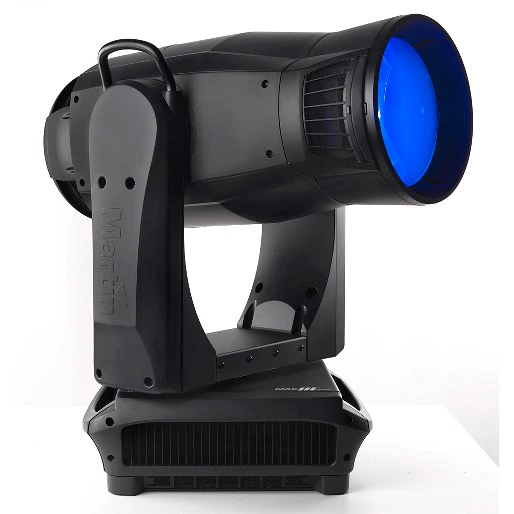

Il MAC III AirFX da 1500 watt è un proiettore di illuminazione estremamente luminoso e altamente versatile, un nuovo concetto che combina effetti hard-edge, effetti mid-air e un bellissimo campo wash in un'unica apparecchiatura. Capace di proiettare un fascio hard-edge denso con straordinari effetti aerei mid-air, il sistema ottico unico della fixture consente di passare istantaneamente da un fascio stretto a un wash radioso per una maggiore flessibilità progettuale.
Le proiezioni gobò del fascio possono adattarsi su tutta la gamma di zoom per una grande varietà di aspetti mid-air. A differenza di altri proiettori, il MAC III AirFX mantiene un'elevata efficienza su tutta la gamma di zoom con uno zoom completamente lineare che non produce salti visibili del fascio da stretto a ampio.
Straordinariamente luminoso, il MAC III AirFX è sufficientemente potente da tagliare la luce anche dai più potenti schermi LED.
Immagini più grandi
Caratteristiche
- 4 effetti aerei - tutti rotanti e intercambiabili
- Filtro frost con dissolvenza per effetto wash
- Iris / Dimmer / Shutter
- Potenza luminosa 59.500 lm
- Luminare beam, effetti mid-air e wash in uno
- Zoom lineare 10-47° con focus collegato
- Lente PC di precisione 9" trasparente (Fresnel opzionale)
- Miscelazione colore CMY più color wheel
- CTO variabile
Ulteriori dettagli
Physical Length (Head): 712 mm Width: 536 mm Height: 936 mm Weight: 54.9 kg
Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color temperature control: CTO, variable 6000 - 3200 K Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random color Rotating aerial effects: Wheel with 4 interchangeable rotating aerial effects, effect indexing, continuous rotation and shake Iris: Variable, pulse effects Dimming: Combined electronic and mechanical 0-100% continuous dimming, choice of four dimming curves Mechanical shutter: Strobe effect, pulse effects, instant open and blackout Focus: 2 m to infinity Zoom: Motorized Zoom-focus linking system: Automatic Wash effect: Fade in/out Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring
Control and Programming DMX channels: 22 Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX RDM: Implemented 16-bit control: Aerial effect indexing and rotation speed, dimmer, pan and tilt DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Receiver: Opto-isolated RS-485 Firmware update: USB memory device or USB/DMX hardware interface over DMX link
Lamp Type: 1500 W discharge Approved lamp: Osram HTI 1500W/60/P50 7mm Lok-it Color temperature: 6000 K CRI (Color rendering index): >90 Average lifetime: 750 hours Hot restrike: Semi-hot (restrike in under 90 seconds) Socket: PGJ50 Ballast: Electronic
Photometric Data Total output (max.): 59,500 lm Beam angle: 10° - 47°
Service Utilities Fixture identification: User-settable 12-digit ID number
Construction Color(s): Black Housing: Magnesium alloy, UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Installation Mounting points: Eight quarter-turn locking points Orientation: Any Minimum distance to illuminated surfaces: 5.8 m Minimum distance to combustible materials: 0.2 m
Connections AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR Ethernet (Artnet II compatible, ACN-ready): Neutrik RJ-45 socket (accepts Neutrik EtherCon connectors in housing) USB memory devices: USB host socket Future USB options: USB device socket
Electrical AC power: 200-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuses: 16 AT (x 2)
Typical Power and Current 200 V, 50 Hz: 1801 W, 9.0 A, PF 0.996 200 V, 60 Hz: 1805 W, 9.1 A, PF 0.995 208 V, 60 Hz: 1802 W, 8.8 A, PF 0.994 220 V, 50 Hz: 1788 W, 8.2 A, PF 0.994 230 V, 50 Hz: 1783 W, 7.8 A, PF 0.993 240 V, 50 Hz: 1779 W, 7.5 A, PF 0.989 240 V, 60 Hz: 1786 W, 7.5 A, PF 0.987 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.: PF = power factor:
Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 170° C Total heat dissipation (calculated, +/- 10% at 200 V, 60 Hz): 6160 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 55 015, EN 55 103-1, EN 61 547 US safety (pending): ANSI/UL 1573 Canadian safety (pending): CAN/CSA E60598-1, CAN/CSA E598-2-17
Included Items Lamp (installed): 97010348 Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001 User manual:
Accessories Power cable, 12 AWG, SJT, with Neutrik PowerCon NAC3FCA input connector, 3 m: 11541503 Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: 05342804 Omega clamp attachment bracket with 1/4-turn fasteners: 91602001 T-shaped omega clamp attachment bracket with 1/4-turn fasteners: 91602008 Half-coupler clamp: 91602005 G-clamp (suspension with yoke vertically downwards only): 91602003 Quick-trigger clamp (suspension with yoke vertically downwards only): 91602007 Super Truss 20.5" mounting plate with half-couplers: 91602014 Swing-wing truss mounting plate with half-couplers: 91602010 Safety cable, safe working load 70 kg: 91604004 Flightcase for 1 x MAC III: 91510080
Related Items Martin USB Duo™ DMX Interface Box: 90703010 Martin RDM 5.5 Splitter™: 90758150
Spare Parts Osram HTI 1500W/60/P50 7mm Lok-it lamp: 97010348 Base air filter, short: 20800220 Base air filter, long: 20800230 Main fuse (16 AT): 05020047
Ordering Information MAC III AirFX™ in cardboard box: 90206500 MAC III AirFX™ in single flightcase: 90206510
Shipping Information In cardboard carton: Shipping dimensions (LxWxH): 530 mm x 640 mm x 1060 mm Shipping weight: 64 kg Quantity on pallet: Four products in single layer Pallet dimensions (LxWxH): 1200 mm x 1000 mm x 1320 mm Pallet volume: 1.9 m3 Pallet weight (incl. pallet): 275 kg In flightcase: Shipping dimensions (LxWxH): 970 mm x 600 mm x 930 mm Shipping weight: 104 kg Quantity on pallet: Four products in two layers Pallet dimensions (LxWxH): 1200 mm x 1000 mm x 1800 mm Pallet volume: 2.2 m3 Pallet weight (incl. pallet): 430 kg
