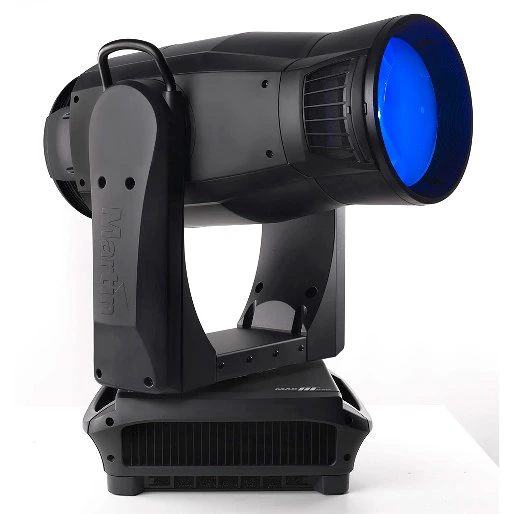

1500瓦的MAC III AirFX是一款极其明亮且高度多功能的灯具，这是一种将硬边、中间特效和美丽洗光场结合在一个灯具中的新概念。该灯具能够投射出密集的硬边光束，并产生惊人的中间空中效果，其独特的光学系统使其能够瞬间从紧凑光束调整为辉煌洗光，从而提供更大的设计灵活性。
光束图案投影可以在整个变焦范围内调整，提供多样的中间效果。与其他灯具不同，MAC III AirFX在整个变焦范围内保持高效，拥有全线性变焦，从紧凑到宽广没有明显的光束跳跃。
超级明亮的MAC III AirFX足够强大，能够穿透甚至是最强大的LED屏幕的光线。
较大的图像
特点
- 4个旋转可更换的空中效果
- 淡入磨砂滤镜，实现洗色效果
- 光圈 / 调光 / 快门
- 59,500流明输出
- 集光束、空中效果和洗色灯于一身
- 10-47°线性变焦，配套联动调焦
- 9"透明精密PC透镜（可选菲涅尔透镜）
- CMY色彩混合加色轮
- 可变色温偏移
更多详情
Physical Length (Head): 712 mm Width: 536 mm Height: 936 mm Weight: 54.9 kg
Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color temperature control: CTO, variable 6000 - 3200 K Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random color Rotating aerial effects: Wheel with 4 interchangeable rotating aerial effects, effect indexing, continuous rotation and shake Iris: Variable, pulse effects Dimming: Combined electronic and mechanical 0-100% continuous dimming, choice of four dimming curves Mechanical shutter: Strobe effect, pulse effects, instant open and blackout Focus: 2 m to infinity Zoom: Motorized Zoom-focus linking system: Automatic Wash effect: Fade in/out Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring
Control and Programming DMX channels: 22 Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX RDM: Implemented 16-bit control: Aerial effect indexing and rotation speed, dimmer, pan and tilt DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Receiver: Opto-isolated RS-485 Firmware update: USB memory device or USB/DMX hardware interface over DMX link
Lamp Type: 1500 W discharge Approved lamp: Osram HTI 1500W/60/P50 7mm Lok-it Color temperature: 6000 K CRI (Color rendering index): >90 Average lifetime: 750 hours Hot restrike: Semi-hot (restrike in under 90 seconds) Socket: PGJ50 Ballast: Electronic
Photometric Data Total output (max.): 59,500 lm Beam angle: 10° - 47°
Service Utilities Fixture identification: User-settable 12-digit ID number
Construction Color(s): Black Housing: Magnesium alloy, UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Installation Mounting points: Eight quarter-turn locking points Orientation: Any Minimum distance to illuminated surfaces: 5.8 m Minimum distance to combustible materials: 0.2 m
Connections AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR Ethernet (Artnet II compatible, ACN-ready): Neutrik RJ-45 socket (accepts Neutrik EtherCon connectors in housing) USB memory devices: USB host socket Future USB options: USB device socket
Electrical AC power: 200-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuses: 16 AT (x 2)
Typical Power and Current 200 V, 50 Hz: 1801 W, 9.0 A, PF 0.996 200 V, 60 Hz: 1805 W, 9.1 A, PF 0.995 208 V, 60 Hz: 1802 W, 8.8 A, PF 0.994 220 V, 50 Hz: 1788 W, 8.2 A, PF 0.994 230 V, 50 Hz: 1783 W, 7.8 A, PF 0.993 240 V, 50 Hz: 1779 W, 7.5 A, PF 0.989 240 V, 60 Hz: 1786 W, 7.5 A, PF 0.987 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.: PF = power factor:
Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 170° C Total heat dissipation (calculated, +/- 10% at 200 V, 60 Hz): 6160 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 55 015, EN 55 103-1, EN 61 547 US safety (pending): ANSI/UL 1573 Canadian safety (pending): CAN/CSA E60598-1, CAN/CSA E598-2-17
Included Items Lamp (installed): 97010348 Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001 User manual:
Accessories Power cable, 12 AWG, SJT, with Neutrik PowerCon NAC3FCA input connector, 3 m: 11541503 Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: 05342804 Omega clamp attachment bracket with 1/4-turn fasteners: 91602001 T-shaped omega clamp attachment bracket with 1/4-turn fasteners: 91602008 Half-coupler clamp: 91602005 G-clamp (suspension with yoke vertically downwards only): 91602003 Quick-trigger clamp (suspension with yoke vertically downwards only): 91602007 Super Truss 20.5" mounting plate with half-couplers: 91602014 Swing-wing truss mounting plate with half-couplers: 91602010 Safety cable, safe working load 70 kg: 91604004 Flightcase for 1 x MAC III: 91510080
Related Items Martin USB Duo™ DMX Interface Box: 90703010 Martin RDM 5.5 Splitter™: 90758150
Spare Parts Osram HTI 1500W/60/P50 7mm Lok-it lamp: 97010348 Base air filter, short: 20800220 Base air filter, long: 20800230 Main fuse (16 AT): 05020047
Ordering Information MAC III AirFX™ in cardboard box: 90206500 MAC III AirFX™ in single flightcase: 90206510
Shipping Information In cardboard carton: Shipping dimensions (LxWxH): 530 mm x 640 mm x 1060 mm Shipping weight: 64 kg Quantity on pallet: Four products in single layer Pallet dimensions (LxWxH): 1200 mm x 1000 mm x 1320 mm Pallet volume: 1.9 m3 Pallet weight (incl. pallet): 275 kg In flightcase: Shipping dimensions (LxWxH): 970 mm x 600 mm x 930 mm Shipping weight: 104 kg Quantity on pallet: Four products in two layers Pallet dimensions (LxWxH): 1200 mm x 1000 mm x 1800 mm Pallet volume: 2.2 m3 Pallet weight (incl. pallet): 430 kg
