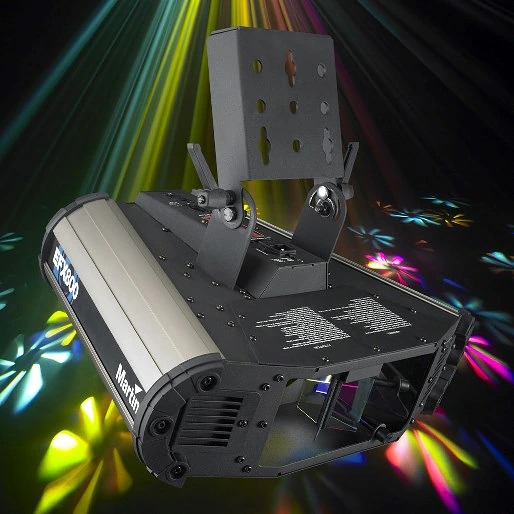

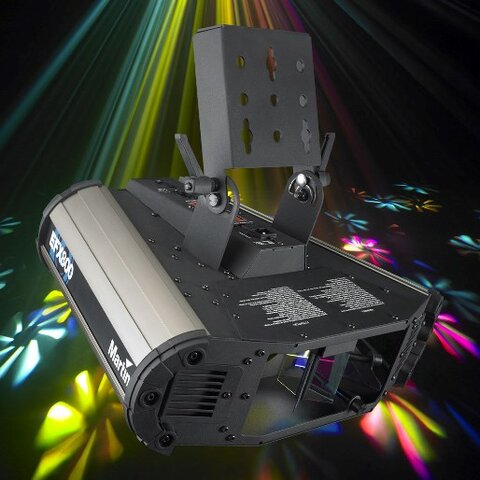

The Mania EFX800 is a 150 W discharge light with a broad sweeping flower effect and a rotating glass color paddle which gives your night an ever changing look and feel.
Immagini più grandi
Caratteristiche
- Lampada a scarica da 150 W
- Lunga durata della lampada (6000 ore)
- Ruota portacolori rotante e indicizzabile
- Otturatore separato per effetto stroboscopico
- Messa a fuoco manuale
- DMX, stand alone (music o auto-trig) e funzione host/client
- Funzionamento continuo - nessun tempo di raffreddamento necessario
- 12 macro pre-programmate per un avvio rapido
- 12 gobo
- Tutte le principali approvazioni di sicurezza CE, ETL e CETL
- Testato rigorosamente per la massima affidabilità
Ulteriori dettagli
Physical Length: 400 mm Width: 500 mm Height: 230 mm Weight: EU model 14.7 kg, US model 17.2 kg All dimensions and weights include the supplied mounting plate.:
Dynamic Effects Motorized rotating parabolic mirror dish: Gobo wheel: 12 colored gobos Motorized dichroic filter paddlewheel: Continuous 360° rotation (tilt) Mechanical dimmer/shutter: 0 - 100% dimming, strobe effects
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 5/7 DMX address setting: Onboard control panel with 3-digit display Macro programs selectable via DMX: 12 Stand-alone trigger options: Music trig (selectable via control panel or via DMX), auto trig Music trig sensitivity: Electronically adjustable Protocol: USITT DMX512/1990 Receiver: RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 150 W discharge Approved lamps: Philips CDM SA-T 150, Osram HSD 150/70 Socket: G12
Optics Manual focus: 2 m - 20 m
Construction Housing: Steel and aluminum
Installation Mounting points: Adjustable mounting bracket Orientation: Any
Connections AC power input: 3-pin IEC male socket DMX data in/out: 3-pin locking XLR
Electrical AC power (US models): 110-120 V nominal, 60 Hz AC power (EU models): 220-240 V nominal, 50 Hz Main fuse (110-120 V power): 3.15 AT (slow blow) Main fuse (220-240 V power): 2 AT (slow blow)
Typical Power and Current US model: 110 V, 60 Hz: 189 W, 1.8 A, PF 0.963 115 V, 60 Hz: 207 W, 1.9 A, PF 0.964 120 V, 60 Hz: 226 W, 2.0 A, PF 0.957 EU model: 220 V, 50 Hz: 181 W, 0.9 A, PF 0.950 230 V, 50 Hz: 197 W, 1.0 A, PF 0.926 240 V, 50 Hz: 204 W, 1.0 A, PF 0.923 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 80° C Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 650 / 670 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 Canadian safety: CSA C22.2 No. 166
Included Items Philips CDM-SA/T 150 W lamp (installed): 97010111 Adjustable mounting bracket: 5 m data cable, 3-pin XLR: 11820008 2 m US power cable, 3 x 18 AWG, with UL approved US power plug (US model): 11501501 3 m EU power cable, 3 x 1 mm2, IEC, Schuko mains plug (EU model): 11501017 3 m EU power cable, 3 x 1 mm2, IEC, no mains plug (EU model): 11501013 User manual: 35000168
Accessories G-clamp: 91602003 Half-coupler clamp: 91602005 DMX termination plug, 3-pin male XLR: 91613017 Safety cable, safe working load 50 kg: 91604003
Spare Parts Philips CDM-SA/T 150 W lamp: 97010111 3.15 AT 5x20mm main fuse (US models): 05020043 2 AT 5x20mm main fuse (EU models): 05020009
Ordering Information Mania EFX800 US model, 110-120 V, 60 Hz: 90430057 Mania EFX800 EU model, 220-240 V, 50 Hz: 90430056
Download
Manuals
| Dimensione | |
Mania SCX500, Mania EFX500, Mania EFX600, Mania SCX600, Mania SCX700, Mania EFX700, Mania EFX800- Manuale d´uso
versione C,
aggiornato: ott 2020
|
613 KB |
Mania EFX500, Mania EFX600, Mania EFX700, Mania EFX800- User Manual
versione C,
aggiornato: mag 2018
|
1,02 MB |
|
Mania EFX500, Mania EFX600, Mania EFX700, Mania EFX800- Manuale d´uso
versione C,
aggiornato: mag 2018
|
831 KB |
|
|
985 KB |
Mania EFX500, Mania EFX600, Mania EFX700, Mania EFX800- Bedienungsanleitung
versione D,
aggiornato: mag 2018
|
940 KB |
Illustrations
| Dimensione | |
|
|
223 KB |
|
|
358 KB |
Compliances
| Dimensione | |
Mania EFX500, Mania EFX600, Mania EFX700, Mania EFX800- EU Declaration of Conformity
versione A,
aggiornato: mag 2018
|
83,1 KB |
Service Notes
| Dimensione | |
|
CPFC Capacitor Replacement Recommendation
versione B,
aggiornato: mag 2018
|
Hints and Tips
| Dimensione | |
|
Discharge Lighting Shutdown Guidelines
versione A,
aggiornato: mag 2018
|
|
|
Electrical safety test equipment
versione B,
aggiornato: mag 2018
|
