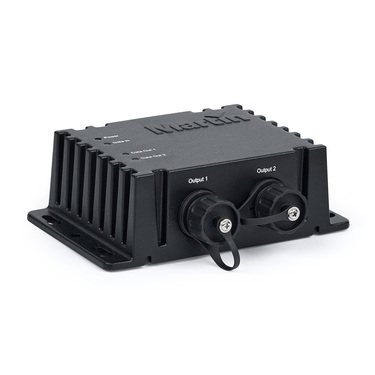

The Martin DCE DataSplitterBooster IP is an indoor/outdoor power+data splitter for Martin Creative LED fixtures that is ideal for rental and install applications. It can be used to split a power+data chain, which started at a P3 PowerPort, in two branches to facilitate easier cabling. Additionally, it can be used to extend the range of a power+data chain, allowing fixtures to be placed further away from the P3 PowerPort. The DCE DataSplitterBooster IP is powered by the P3 PowerPort and hence, does not require separate power input. It is fitted with DCE connectors for easy deployment and can be wall- or truss-mounted.
រូបភាពធំជាង
លក្ខណៈពិសេស
- Indoor/outdoor power+data splitter unit for Martin Creative LED fixtures
- Suitable for rental and install applications
- Can be used to split DCE power+data chain in two branches
- Can be used to extend range of power+data chain (fixtures further away from P3 PowerPort)
- Powered via DCE input from P3 PowerPort
- Fitted with DCE connectors for easy deployment
- Can be truss or wall-mounted
- IP66 rated
ព័ត៌មានលម្អិត
Martin P3 PowerPort solutions are ideal for system Integrators building a system containing Martin Creative LED fixtures, rental companies creating a fleet of fixtures and supporting infrastructure to cover a wide variety of applications, and installation customers complementing their fixture-installation with the needed supporting infrastructure.
លក្ខណៈពិសេស
-
Physical
Width: 124.0 mm (4.9 in.)
Height: 40.0 mm (1.6 in.)
Depth: 124.0 mm (4.9 in.)
Weight: 0.5 kg (1.1 lbs.)Data InterfacesControl Protocols: P3, sACN, Art-Net and RDM over Art-Net
Protocol Detection: Automatic
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2018
Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
Ethernet Transceiver IN: 100Mbit
Ethernet Transceiver OUT 1-2: 100Mbit
Firmware Update: not applicableData Splitting & Boosting FunctionalitySplit: Split a DCE line in two branches
Boost: Extend maximum cable length between two devices from 90 m to 2x 90 mPower Splitting & Boosting FunctionalitySplit: Passive split of DCE 48 VDC input in two branches
Boost: None, system power limitations still applyControl/User Interface ExternalPower Status: 1x Green LED
Ethernet In Status: 1x Amber LED
Ethernet Out Status 1-2: 2x Amber LEDConstructionColor: Matte Black
Housing Material: Aluminium
Protection Rating: IP 66
NEMA Enclosure Rating: Type 3
Impact Resistance: IK 08
Corrosion Resistance: ISO 12944-6: 2018; C5 High, Test regime ISO 9227, 1440h
Vibration resistance: 1.0g Sinusoidal (IEC 60068-2-6) and 0.7g RMS Random (IEC 60068-2-64)InstallationOrientation: Any
Wallmount: Flanges for installation on flat surface
Trussmount: Using half-coupler clamp in M10 threaded hole, max. bolt length 20 mm
Location: indoor or permanent outdoorConnectionsDC Power and Network input: 1x chassis-mount DCE hybrid connector (7pin)
DC Power and Network output: 2x chassis-mount DCE hybrid connector (7pin)
Max. distance between source (P3 PowerPort) or previous fixture and DCE DataSplitterBooster IP: 90 m
Max. distance between DCE DataSplitterBooster IP and following fixture or next DCE DataSplitterBooster IP: 90 m
Max. number of units in a daisy-chain: Unlimited, unless limited by power consumption
Surge protection: 4 KV
All connections hot plugging compatible -
Electrical
Nominal Input Voltage: 48 VDC +/- 10%
Power Supply Options: Martin P3 PowerPort 2000, Martin P3 PowerPort 500 IP Rental, Martin P3 PowerPort 500 IP Install, Martin DCE PSU 240 IP or generic 48 VDC PSU
Power Consumption
Typical: 0.5 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.ThermalCooling: Convection
Maximum Ambient Temperature (Ta max): 55° C (131° F)
Minimum Ambient Temperature (Ta min): -30° C (-22° F)
Maximum Surface Temperature, steady state, at 40° C ambient: 55° C (131° F)
Typical Heat Dissipation (calculated, +/- 10%): 2 BTU/hr.Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant FSC: Certified cardboard inlay and outer packagingApprovals Global CB Certification/IECEE: IEC 62368-1 EU safety: EN 62368-1 EU EMC: EN 55032, EN55035, EN 61000-3-2, EN 61000-3-3 US safety: UL 62368-1 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 62368-1 Canadian EMC: ICES-003 Class B Australia/NZ: RCM United Kingdom: UKCACompatible FixturesVDO Sceptron XB
Exterior Dot-1 Pro (via Exterior DC-Feeder)
Exterior Dot-4 Pro (via Exterior DC-Feeder)
Exterior Dot-9 Pro (via Exterior DC-Feeder)
Exterior Dot-HP ProIncluded Items1x Multi-Language Safety & Installation Manual
Related ItemsP3 PowerPort 2000: P/N MAR-90721200
P3 PowerPort 500 IP Rental: P/N MAR-90721201
P3 PowerPort 500 IP Install: P/N MAR-90721202
DCE PSU 240 IP: P/N MAR-90721203AccessoriesPre-Assembled Hybrid DCE Cables
DC + Ethernet Cable DCE-DCE 1m: P/N MAR-91700100
DC + Ethernet Cable DCE-DCE 2.5m: P/N MAR-91700101
DC + Ethernet Cable DCE-DCE 5m: P/N MAR-91700102
DC + Ethernet Cable DCE-DCE 10m: P/N MAR-91700103
DC + Ethernet Cable DCE-DCE 25m: P/N MAR-91700104Bulk Hybrid DCE Cables
DC + Ethernet Cable 100m: P/N MAR-91700105
DC + Ethernet Cable LSZH 100m: P/N MAR-91700106Field-Installable DCE Connectors
Field-installable Connector DCE Male: P/N MAR-91700107
Field-installable Connector DCE Female: P/N MAR-91700108Closing Caps for DCE Connectors
Closing Cap Male DCE Connector: P/N MAR-91700109
Closing Cap Female DCE Connector: P/N MAR-91700110Hybrid DCE Adapters
DC + Ethernet Adapter DCE Male-Male: P/N MAR-91700111
DC + Ethernet Adapter DCE Female-Female: P/N MAR-91700112
DC + Ethernet Adapter EtherCON+Wires to DCE: P/N MAR-91700113
DC + Ethernet Adapter DCE to EtherCON: P/N MAR-91700114Rigging Accessories
Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007Ordering InformationDCE DataSplitterBooster IP: P/N MAR-90721204
