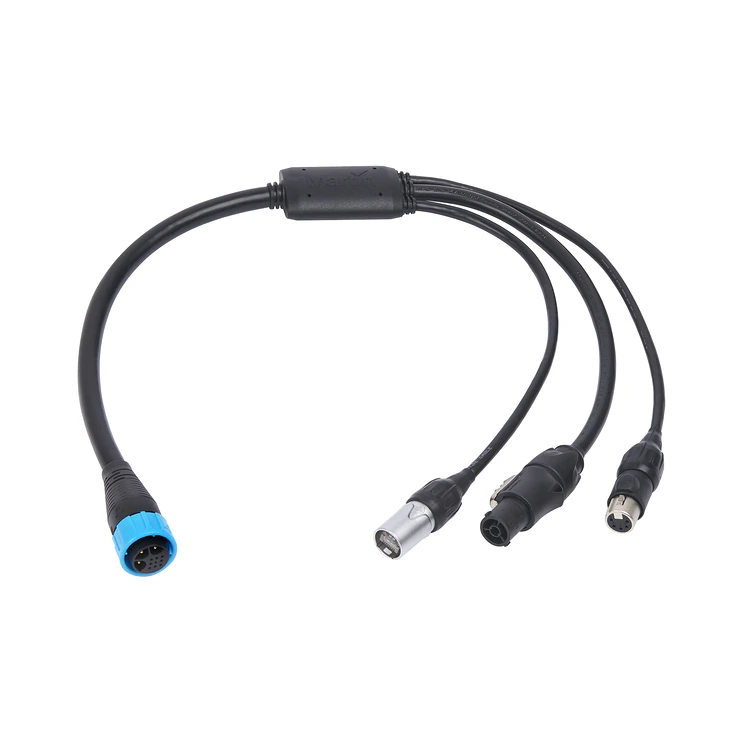

The Martin PDE BreakOut Cable splits Power, DMX & Ethernet signals out from the single connector and cable system as used by the Martin VDO Atomic family of fixtures.
The cable is fully IP65 rated for outdoor use and features robust connectors.
较大的图像
特点
- Martin PDE Hybrid input
- powerCON TRUE1 TOP power output
- XLR 5 TOP DMX output
- etherCON TOP Ethernet output
- IP65 rated
性能
-
物理特性 长度: 500 mm (19.7 in.) 重量: 325 g (0.52 lbs.)Construction Housing: PVC 颜色: Black Protection rating: IP65 Cable Jacket: PVCInstallation Location: indoor or temporary outdoor use Orientation: AnyConnections
AC Power, DMX and Network input: PDE Hybrid Connector (IP65)
AC Power out: Neutrik powerCON TRUE1 TOP (IP65)
Ethernet out: Neutrik etherCON TOP (IP65)
DMX out: Neutrik XLR 5-pin Female TOP (IP65)
All connections hot plugging compatibleElectrical AC power: 100-240V AC nominal, 50/60Hz -
Thermal Maximum ambient temperature (Ta max.): 75° C Minimum ambient temperature (Ta min.): -15° CEnvironmental RoHS: Compliant REACH: CompliantRelated Items
Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002
Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003
VDO Atomic Dot CLD in cardboard: P/N 90357701
VDO Atomic Dot WRM in cardboard: P/N 90357702
VDO Atomic Bold in cardboard: P/N MAR-90357703AccessoriesPre-Assembled Hybrid PDE Cables
Power+Data Cable Rental PDE-PDE 1 m: P/N 91616001
Power+Data Cable Rental PDE-PDE 2.5 m: P/N 91616002
Power+Data Cable Rental PDE-PDE 5 m: P/N 91616003
Power+Data Cable Rental PDE-PDE 10 m: P/N 91616004
Power+Data Cable Rental PDE-PDE 25 m: P/N 91616005Bulk Hybrid PDE Cable and Connectors
Power+Data Connector PDE Male: P/N 91611701
Power+Data Connector PDE Female: P/N 91611702
Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006Power Cables
Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Cable Connector, Neutrik PowerCON TRUE1 Male: P/N 91611788HUOrdering Information BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
