Macula

远程追光系统

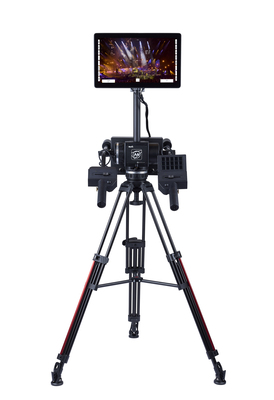

Martin Macula 是一套远程跟踪追光系统,用于使标准移动灯跟随舞台上的演员和/或物体。它重新定义了精准追光操作,消除了传统系统所存在的吊装限制、操作人员疲劳和安全隐患。Martin Macula 经过精心设计,具有绝对平顺的运动、精确的定位和卓越的人体工学设计,代表了将移动灯转变为高性能舞台演员和物体跟踪仪的根本性转变。

从单个基站出发,Martin Macula 可以控制多个移动灯,反应灵敏且毫不妥协。基站提供实时操作视角,使操作员几乎位于灯具位置,提供"如同站在移动灯旁"的视觉参考。配置和设置经过精心简化,能够以最少的培训实现高效操作,同时保持专业级的性能标准。运动控制可以动态分配,在演出的特定部分由标准灯光控制台操作,然后无缝转移到 Macula 基站进行其他操作。

Macula 基站还可以在需要时管理调光、颜色和柔光等其他参数。可以创建预设和灯具库来在演出过程中动态修改系统行为,提供高度的可定制性。单个 Macula 基站可以控制一个或多个移动灯,使演员能够同时被一个或多个灯具以一致的精度进行跟踪。

Macula 与 Martin MAC Ultra Performance、MAC Viper XIP 和 MAC Encore Two 灯具配合效果极佳,这些灯具已针对平顺和响应灵敏的运动进行了优化。不过,Macula 完全不受品牌限制,可以使用任何合适的移动头灯具作为追光灯,并配备摄像头。网络基础设施设计简洁明了,摄像头信号和控制数据通过单一网络传输,灯具和基站之间无需专用视频布线。

该系统还支持 PosiStageNet 输出,允许演员或物体的 XYZ 位置数据与第三方应用程序共享,为高级跟踪和自动化工作流程的集成开辟了机遇。

Martin Macula 将前所未有的控制权直接交到操作员的指尖,显著提高了健康、安全和操作一致性。它为租赁公司、灯光技师和灯光设计师开创了全新的操作和创意可能性。

  • 高分辨率流体云台编码器

    提供极其平顺的运动控制,兼具精准度与用户舒适性。

  • TOP-NOTCH ERGONOMICS

    The large touchscreen with intuitive user-interface, and handle-bars with the essential controls at your fingertips improve operator ergonomics.

  • 单个或多个灯具

    单个基站可以控制单个带摄像头的灯具、在多个带摄像头的灯具之间切换,或让无摄像头的灯具进行跟随。

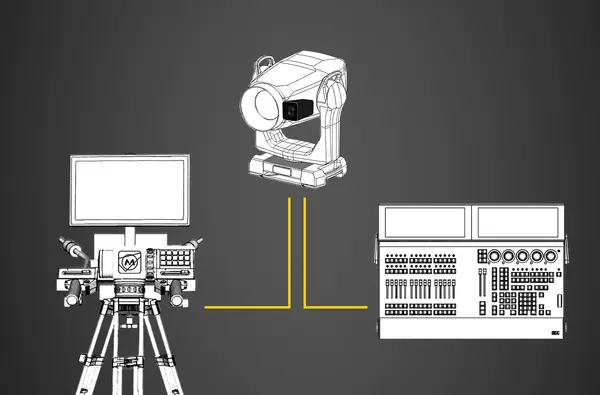

  • 灵活合并

    灯具可由基站完全控制,或将部分参数交由灯光控制台处理。可逐个场景(cue)灵活切换,满足最先进演出的需求。

  • 轻松搭建基础设施

    无需布设视频线缆,所有摄像机信号均通过网络传输。基站与灯具之间无需敷设专用线缆,所有连接均整合在单一网络基础设施中。

  • 品牌无关

    任何品牌的任何灯具都可用作追光灯并配备摄像头。任何品牌的任何灯具都可控制实现跟随,无需摄像头。

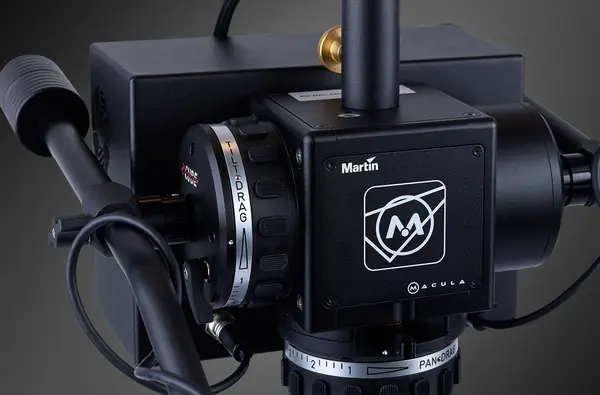

高分辨率流体云台编码器

提供极其平顺的运动控制,兼具精准度与用户舒适性。

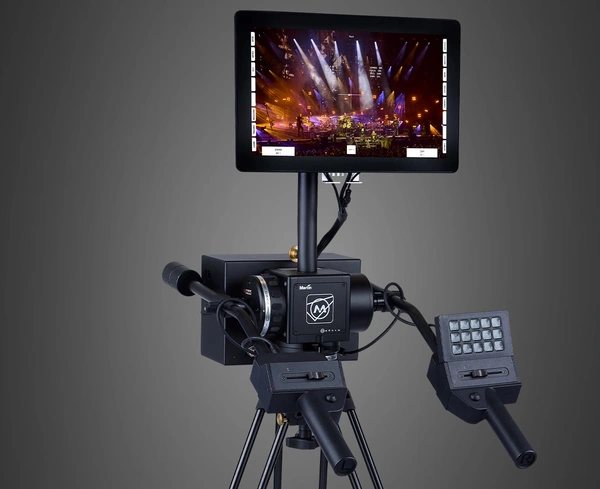

TOP-NOTCH ERGONOMICS

The large touchscreen with intuitive user-interface, and handle-bars with the essential controls at your fingertips improve operator ergonomics.

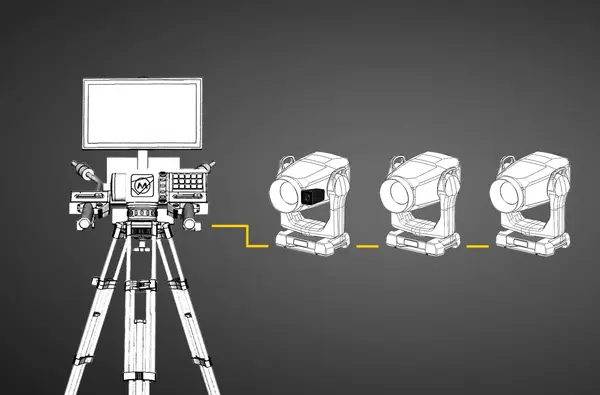

单个或多个灯具

单个基站可以控制单个带摄像头的灯具、在多个带摄像头的灯具之间切换,或让无摄像头的灯具进行跟随。

灵活合并

灯具可由基站完全控制,或将部分参数交由灯光控制台处理。可逐个场景(cue)灵活切换,满足最先进演出的需求。

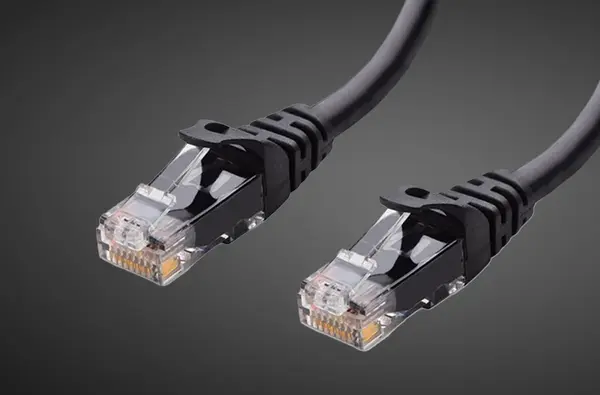

轻松搭建基础设施

无需布设视频线缆,所有摄像机信号均通过网络传输。基站与灯具之间无需敷设专用线缆,所有连接均整合在单一网络基础设施中。

品牌无关

任何品牌的任何灯具都可用作追光灯并配备摄像头。任何品牌的任何灯具都可控制实现跟随,无需摄像头。

视频









特点

  • 高分辨率流体云台编码器
  • 符合人体工程学设计的手柄,控制按钮触手可及
  • 大型触摸屏,配备直观的用户界面
  • 一个基站可同时控制一个或多个移动灯具
  • 基站控制与灯光控制台控制可自定义合并
  • 可独立使用或与系统中的灯光控制台配合使用
  • PosiStageNet输出(将演员/物体的XYZ位置发送至第三方应用程序,支持高级工作流程)
  • 网络基础设施简洁易用
  • 品牌无关——支持控制任何品牌的移动灯具、任何移动灯具可加装摄像头、不配备摄像头的移动灯具可跟随联动
  • 移动灯具摄像头与基站间的网络布线简单

更多详情

Martin Macula 为体育赛事、演艺和现场演出场所提供追光灯,消除了高空作业式追光系统给租赁公司、灯光技术人员和灯光设计师带来的安全风险。

性能

  • 物理特性

    Macula Base Station
    Width: Max. 1500 mm (59.1 in.)
    Depth: Max. 1500 mm (59.1 in.)
    Height: Max. 2260 mm (89.0 in.)
    Weight: 20.1 kg (44.3 lbs.)

    Macula Camera
    Width: 70 mm (2.8 in.)
    Height: 70 mm (2.8 in.)
    Length: 116 mm (4.6 in.)
    Weight: 0.6 kg (1.3 lbs.)

    Control/User Interface

    Pan/Tilt Encoder: Fluid Head Encoder with adjustable drag
    Left Handle: Motorized Fader, Action Button & Z-Roller
    Right Handle: Motorized Fader, Action Button, 15 LCD Shortcut Buttons & Z-Roller
    Monitor: 15.6” Touch Screen

    Camera Video Input

    Standard: NDI HX2
    Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
    Framerate: Supporting frame rates up to 60fps

    Compatible Cameras

    Everet EVZ220
    Everet EVZ230
    Aida HD-NDI-X20
    BirdDog PF120

    Position Processing

    Method: Real-world XYZ position tracking
    Multi-Fixture Support: Yes, one base station can control multiple fixtures

    Fixture Controls

    Base station can control parameters of fixtures autonomously, or merge with controls from lighting console.
    Controllable Parameters: Pan, Tilt, Dimmer, Color, CTO, Frost, Zoom, Iris & Focus.

    Presets

    User-definable presets containing any combination of parameters for easy recall of looks and/or positions.
    Presets can be assigned to LCD shortcut buttons on right handle.

    Banks

    User-definable banks containing a fixture or combination of fixtures to be controlled.
    Easy recall of different fixtures or fixture combinations for dynamic followspot assignment.
    Different banks can have a different Leader fixture (fixture with camera), enabling dynamic camera switching.

    DMX Controls

    Recall presets via DMX
    Recall banks via DMX

    System Output

    Autonomous output of full fixture controls via Art-Net or sACN.
    Merged output with controls from lighting console via Art-Net or sACN.
    PosiStageNet output towards 3rd party control systems.

    Art-Net Input & Output

    Up to 4 universes of Art-Net Input & Output.

  • sACN Input & Output

    Up to 32 universes of sACN Input & Output.

    Construction Housing: Steel and aluminum 颜色: Black Protection rating: IP20
    Installation 装配: Free-standing using supplied adjustable tripod or attachment to surface or truss using third-party accessories Location: Indoor or outdoor protected from elements
    Connections

    Macula Base Station
    Power input: IEC C14 socket
    DC Power through (towards monitor): Neutrik 4-pin locking XLR
    User interface monitor: Neutrik HDMI
    USB Touchscreen Out: Neutrik USB
    Peripherals and USB memory devices: Neutrik USB
    Left Handle Interface: Custom 8-pin connector
    Right Handle Interface: Custom 8-pin connector
    NDI Video Network (Camera and PSN): 1x etherCON socket (100/1000Mbit)
    EtherDMX Network (Art-Net, sACN and PSN): 1x etherCON socket (100/1000Mbit)

    Macula Camera (mounted in camera mount kit)
    NDI Video Out and PoE In: 1x etherCON socket (100/1000Mbit)

    Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15 A
    Typical earth-leakage current: 0.05 mA
    Power Factor: 0.25 @ 100V / 120V / 208V / 230V / 240V
    Max current draw: 0.7 A @ 100V / 120V / 208V / 230V / 240V
    Typical current draw: 0.7 A @ 100V / 120V / 208V / 230V / 240V *
    Power Consumption
    Maximum: 30 W
    Typical: 30 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: machine running at full capacity.

    Thermal 散热: Convection Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Typical heat dissipation (calculated, +/- 10%): 102 BTU/hr
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
    Approvals EU safety: EN 62368-1 EU EMC: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3 US safety: UL 62368-1 Canadian safety: CSA C22.2 No. 62368-1 Australia/NZ: RCM United Kingdom: UKCA India: BIS (pending) Korea: KS C
    Included Items

    Macula System in Flightcase
    Macula Control Unit and Encoder Head
    Adjustable Tripod
    15.6” Touch Screen
    Pole for Touch Screen placement
    Control Unit to Touch Screen loom (HDMI + 12Vdc + USB)
    Left motorized handlebar
    Right motorized handlebar
    Control Unit to Left motorized handlebar cable
    Control Unit to Right motorized handlebar cable
    EU-type IEC C13 power cable with Schuko connector
    US-type IEC C13 power cable
    UK-type IEC C13 power cable
    Flightcase
    Multi-Language Safety and Installation Manual

    Macula Camera Kit
    NDI Camera (Everet EVZ220)
    Camera attachment screw
    3/16" Allen key
    PoE Injector for Camera with IEC C6 input
    EU-type IEC C5 power cable with Schuko connector
    US-type IEC C5 power cable
    UK-type IEC C5 power cable
    Multi-Language Safety and Installation Manual

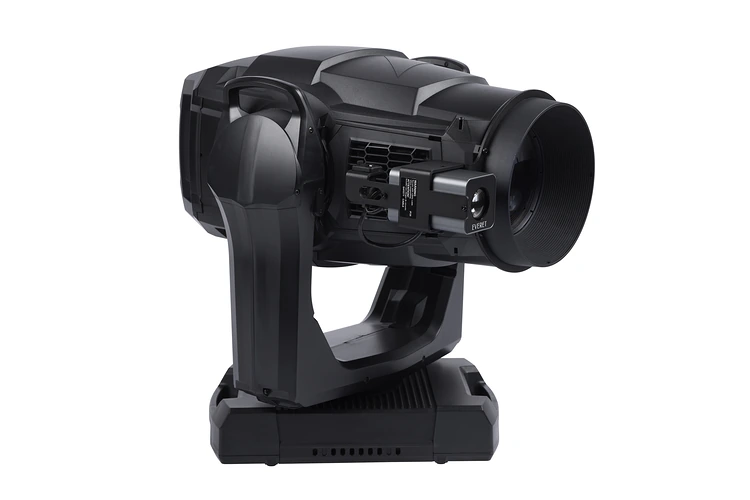

    MAC Ultra Performance Camera Mount Kit
    Camera Mount Ring for MAC Ultra Performance
    Snoot upgrade for MAC Ultra Performance (incl. front-accessory screws)
    Camera safety screws
    Short network cable between camera and robust etherCON socket
    Safety Cable
    Multi-Language Safety and Installation Manual

    MAC Viper XIP / MAC Encore Two Camera Mount Kit
    Camera Mount Ring for MAC Viper XIP / MAC Encore Two
    Camera safety screws
    Short network cable between camera and robust etherCON socket
    Safety Cable
    Multi-Language Safety and Installation Manual

    Accessories

    Transport and Storage
    Flightcase for Macula System: P/N MAR-91515071

    Camera Mount Kits
    MAC Ultra Performance Camera Mount Kit: P/N MAR-90770001
    MAC Viper XIP / MAC Encore Two Camera Mount Kit: P/N MAR-90770002

    Verified Third-Party Accessories

    Base Station Mounting
    High Hat Bowl Riser: P/N Slidekamera AF-15-100

    Ordering Information Macula System in Flightcase: P/N MAR-90770000 Macula Camera Kit: P/N MAR-90770003
