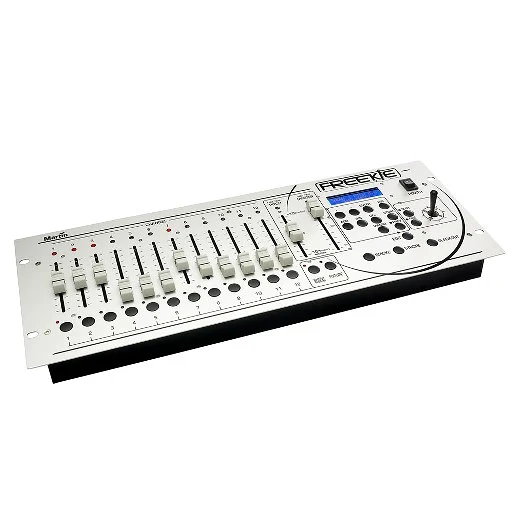

The Freekie is a DJ controller that adds instant lighting control to the dancefloor mix. Packed with easy-to-use features, Freekie has pitch and pan/tilt control for instant lightshow to music synchronization
Gambar Lebih Besar
Fitur
- Pitch fader allowing instant speed manipulation of lightshow
- Controls up to 12 fixtures each with 12 channels
- Smart macro function for easy creation of circle movements
- Joystick for pan/tilt control
- Master intensity fader for all fixtures
- Audio control: built-in microphone or external control signal input
- Multi-purpose smoke and strobe buttons (customizable for additional DMX units)
- Instant control of up to 24 shows with MIDI
- Set wait/fade times for advanced programming
- Followspot function: isolate any single fixture to work as joystick-controlled followspot
Keterangan Lebih Lanjut
Physical
Length: 482 mm
Width: 176 mm
Height: 95 mm
Weight: 2.5 kg
Control and Programming
Protocol: DMX512
10 banks of 12 programmable shows, each containing up to 10 scenes:
On-the-fly global timing changes:
Macros:
Control/User Interface
Backlit alphanumeric LCD display, 2 rows of 16 characters:
Joystick for pan/tilt control, normal and fine control modes:
Follow-spot mode, normal and fine joystick control:
Pitch fader for instant speed adjustment during playback:
Master fader:
12 x faders, 12 x fixture selection buttons:
Buttons for instant smoke, strobe and blackout/dim all:
Playback
Playback triggering options: Programmed scene changes, audio with built-in microphone or external audio signal, MIDI
Individual fade in/fade out times for all playbacks:
Live 0-100% override of global cue timings:
Installation
Table or 19-inch rack (4U) mount:
Connections
9 V DC power input: Co-ax low-voltage
DMX out: 2 x 3-pin and 2 x 5-pin locking XLR
MIDI in, thru: Standard MIDI (5-pin DIN)
Audio trigger signal in: 6.3mm (1/4-inch) mono jack
Approvals
EU safety: EN 60950
EU EMC: EN 55103-1, EN 55103-2
Included Items
9 V DC mains adapter:
Freekie guide/inspiration DVD: 98163005
User manual: 35000113
Ordering Information
Freekie Controller, 210-230 V*: 90734000
Freekie Controller, 110-130 V*: 90734010
*Operates on any mains supply with suitable 9 V DC, 1 A transformer:
