Martin Freekie

Grandes images

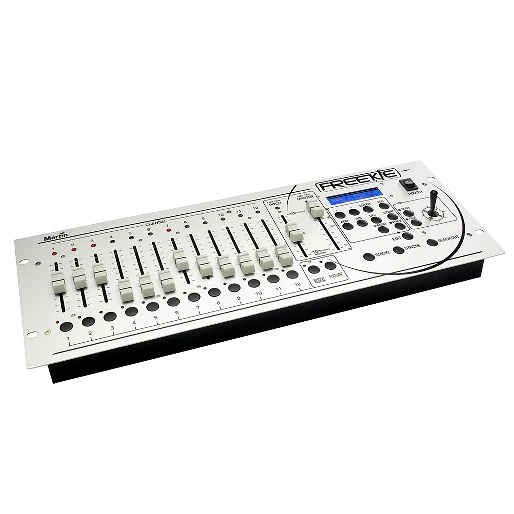

The Freekie is a DJ controller that adds instant lighting control to the dancefloor mix. Packed with easy-to-use features, Freekie has pitch and pan/tilt control for instant lightshow to music synchronization

Caractéristiques

Pitch fader allowing instant speed manipulation of lightshow
Controls up to 12 fixtures each with 12 channels
Smart macro function for easy creation of circle movements
Joystick for pan/tilt control
Master intensity fader for all fixtures
Audio control: built-in microphone or external control signal input
Multi-purpose smoke and strobe buttons (customizable for additional DMX units)
Instant control of up to 24 shows with MIDI
Set wait/fade times for advanced programming
Followspot function: isolate any single fixture to work as joystick-controlled followspot

plus de détails

Physical Length: 482 mm Width: 176 mm Height: 95 mm Weight: 2.5 kg

Control and Programming Protocol: DMX512 10 banks of 12 programmable shows, each containing up to 10 scenes: On-the-fly global timing changes: Macros:

Control/User Interface Backlit alphanumeric LCD display, 2 rows of 16 characters: Joystick for pan/tilt control, normal and fine control modes: Follow-spot mode, normal and fine joystick control: Pitch fader for instant speed adjustment during playback: Master fader: 12 x faders, 12 x fixture selection buttons: Buttons for instant smoke, strobe and blackout/dim all:

Playback Playback triggering options: Programmed scene changes, audio with built-in microphone or external audio signal, MIDI Individual fade in/fade out times for all playbacks: Live 0-100% override of global cue timings:

Installation Table or 19-inch rack (4U) mount:

Connections 9 V DC power input: Co-ax low-voltage DMX out: 2 x 3-pin and 2 x 5-pin locking XLR MIDI in, thru: Standard MIDI (5-pin DIN) Audio trigger signal in: 6.3mm (1/4-inch) mono jack

Approvals EU safety: EN 60950 EU EMC: EN 55103-1, EN 55103-2

Included Items 9 V DC mains adapter: Freekie guide/inspiration DVD: 98163005 User manual: 35000113

Ordering Information Freekie Controller, 210-230 V*: 90734000 Freekie Controller, 110-130 V*: 90734010 *Operates on any mains supply with suitable 9 V DC, 1 A transformer:

Téléchargements

Specifications

	Version	Langue	Taille	Téléchargé
SP_Freekie_EN_B version B, mis à jour : oct. 2020	B		7,04 ko	oct. 2020
Freekie- Technische Daten version B, mis à jour : mai 2018	B		407 ko	mai 2018
Freekie, Mania DC1, Mania DC2, Stage Cyclo, Cyclo 04 DMX Wallwasher- Specifiche version B, mis à jour : oct. 2020	B		9,33 ko	oct. 2020
Freekie, MAC 550, Mania PR1, Magnum 1500, MAC TW1, MP 2 Uploader, Mania EF1, Ego X4- Caractéristiques techniques version A, mis à jour : oct. 2020	A		129 ko	oct. 2020
SP_Freekie_EN_D version D, mis à jour : oct. 2020	D		32 ko	oct. 2020

Manuals

	Version	Langue	Taille	Téléchargé
Freekie- Manuale d'uso version B, mis à jour : mai 2018	B		176 ko	mai 2018
Freekie- Manuel d'utilisation version A, mis à jour : mai 2018	A		334 ko	mai 2018
Freekie - User manual version E, mis à jour : mai 2018	E		192 ko	mai 2018
Freekie- Bedienungsanleitung version B, mis à jour : mai 2018	B		728 ko	mai 2018
Nederlandse handleiding version B, mis à jour : oct. 2020	B		360 ko	oct. 2020

Compliances

	Version	Langue	Taille	Téléchargé
MC 1 Controller, 2510 Controller, Detonator, Maxxyz, Freekie, Xciter, 2518 DMX Controller, 2532 Direct Access, MC Showtime, LightCorder- EU Declaration of Conformity version A, mis à jour : oct. 2020	A		711 ko	oct. 2020

Hints and Tips

	Version	Langue	Taille	Téléchargé
MIDI Activation Bug version A, mis à jour : mai 2018	A			mai 2018
