Martin ELP WW IP

Gambar Lebih Besar

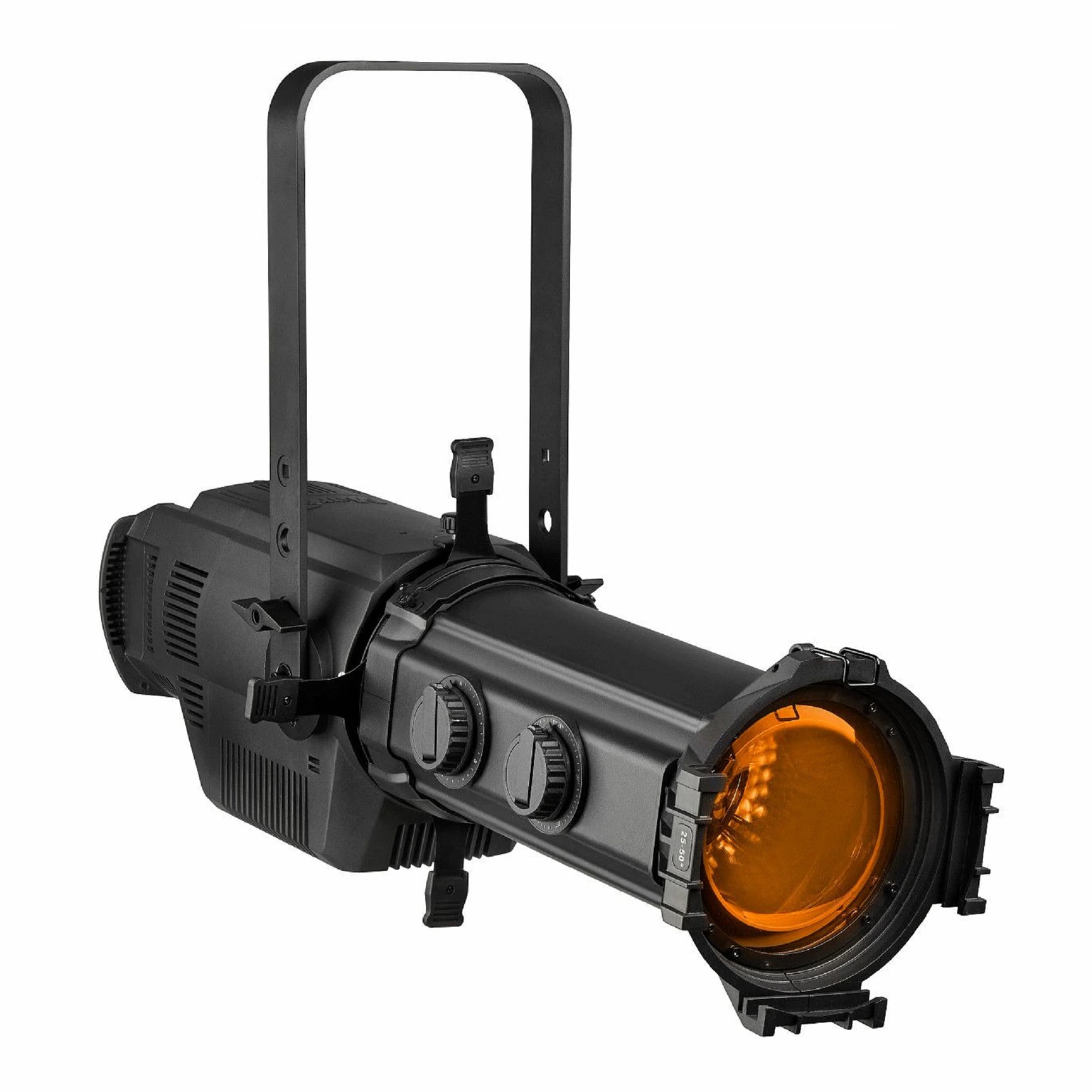

Lampu ellipsoidal LED Martin ELP menghadirkan luminansi, kecerahan, dan reproduksi warna hidup yang telah menjadi ciri khas nama Martin selama lebih dari 30 tahun. Martin ELP WW IP menawarkan reproduksi warna dan kecerahan terdepan di industri sebagaimana Martin ELP WW orisinal, namun memperluas keserbagunaannya ke aplikasi luar ruangan sementara melalui pemenuhan standar IP65 untuk ketahanan terhadap kelembapan dan perlindungan penuh dari debu, serta ketahanan korosi C3. Rekayasa ergonomis Denmark pada ELP menghadirkan kemajuan dalam fungsionalitas pencahayaan, mencakup Fine Focus berbasis roda gigi yang sangat efisien—yang pertama di industri; serta Fast Focus yang memungkinkan pemfokusan lampu tanpa perlu aliran data ke unit tersebut. ELP juga menawarkan peredupan 16-bit dengan 4 kurva yang dapat dipilih. ELP WW IP tersedia dalam pilihan rumah lampu hitam dan putih, serta dapat dikonfigurasikan dengan salah satu dari empat tabung lensa statis Martin dengan sudut berkas 19, 26, 36, dan 50 derajat, atau pilihan dua lensa Zoom Martin dengan rentang 15–30 derajat dan 25–50 derajat. ELP juga menawarkan fleksibilitas dalam desain pencahayaan dan manajemen inventaris melalui kompatibilitas dengan tabung lensa pihak ketiga serta berbagai aksesori, termasuk bingkai gel dan gobo. Keluaran cahaya, optik, dan reproduksi warna yang unggul, dikombinasikan dengan perlindungan tangguh dari cuaca, kemudahan penggunaan yang tak tertandingi, serta kepraktisan, menjadikan Martin ELP sebagai lampu ellipsoidal LED terdepan di kelasnya.

Martin menganjurkan penggunaan aksesori ELP resmi bermerek Martin untuk kinerja setinggi mungkin. Meskipun kami berupaya memastikan kompatibilitas dengan aksesori pihak ketiga, kami tidak dapat menjamin kinerja yang optimal dan menganjurkan agar pengguna melakukan evaluasi atas aksesori tersebut sebelum melakukan pembelian.

Advanced Martin Optics Meet Cutting-Edge LED Technology
The ELP is designed to maximize efficiency and deliver a flat field of illumination for smoother blending and mixing between fixtures. Halation color correction removes atypical blue and brown halos when using Martin lens tubes.
Classic Style With a Focus on Functionality
ELP IP takes a classic light fixture to new performance levels with a suite of innovative features. Our gear-based Fine Focus adjustment—an industry first—lets you lock focus exactly where you want it, instantly. There’s no refocusing, no drifting and no slipping. Our innovative Fast Focus feature brings the fixture to full output without data running to the fixture.

Rugged enclosures are IP65 rated for water resistance and complete protection against dust and other particulates.
Expand Versatility With ELP Zoom Lenses
In addition to a choice of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles you can expand the versatility and range of ELP with Zoom Lenses in 15–30-degree and 25–50-degree ranges. The 6 lens optical design delivers unrivaled optical performance, providing the ultrabright output, unmatched flat projection and crisp focus of a static lens, with the speed and flexibility of a zoom lens.
Invest in the Future, With a Minimal Financial Investment
It’s never been easier to transition your inventory to LED ellipsoids: The ELP line fits common lens tubes and accessories, which means you can save money by using your existing gel frames, gobo holders and rotators and lens tubes.

Advanced Martin Optics Meet Cutting-Edge LED Technology
The ELP is designed to maximize efficiency and deliver a flat field of illumination for smoother blending and mixing between fixtures. Halation color correction removes atypical blue and brown halos when using Martin lens tubes.

Classic Style With a Focus on Functionality
ELP IP takes a classic light fixture to new performance levels with a suite of innovative features. Our gear-based Fine Focus adjustment—an industry first—lets you lock focus exactly where you want it, instantly. There’s no refocusing, no drifting and no slipping. Our innovative Fast Focus feature brings the fixture to full output without data running to the fixture.

Rugged enclosures are IP65 rated for water resistance and complete protection against dust and other particulates.

Expand Versatility With ELP Zoom Lenses
In addition to a choice of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles you can expand the versatility and range of ELP with Zoom Lenses in 15–30-degree and 25–50-degree ranges. The 6 lens optical design delivers unrivaled optical performance, providing the ultrabright output, unmatched flat projection and crisp focus of a static lens, with the speed and flexibility of a zoom lens.

Invest in the Future, With a Minimal Financial Investment
It’s never been easier to transition your inventory to LED ellipsoids: The ELP line fits common lens tubes and accessories, which means you can save money by using your existing gel frames, gobo holders and rotators and lens tubes.

Fitur

Legendary Martin quality in LED ellipsoidal light fixtures
Advanced optics engineered in Denmark
Warm White light engine employs leading-edge LED chipset technology for high output and smooth LED blending
Impressive light output of 7,000 lumens (at 3000K)
Industry-leading CRI rating of 97
Fast focus feature for data free focusing
Revolutionary Fine Focus gear-driven focus-adjustment knob locks in placement the first time
IP65-rated for water resistance and complete protection against dust and other particulates
16-bit dimming with 4 selectable dimming curves
Compatible with universal accessories such as gel frames and gobo holders and rotators
Options include 4 static lens tubes and 2 zoom lenses with compatibility for 3rd party accessories
Halation color correction removes atypical blue and brown halos when using Martin lens tubes
Flicker-free operation
4-blade manual framing shutters
Center of gravity at yoke for ergonomic use
Tilt knobs positioned to clear framing shutters
Regulated cooling for ultra-quiet operation
5-pin DMX/RDM and Neutrik True1 In/Thru connectivity

Spesifikasi

Physical Length: 644 mm (25.4 in.) Width: 255 mm (10.1 in.) Height: 255 mm (10.1 in.), 527 mm (20.1 in.) with bracket Weight: 11 kg (24.3 lb.) body only

Dynamic Effects Electronic dimming: 0–100%, Four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout

Control and Programming Control options: DMX, stand-alone 16-bit control: Intensity DMX address setting: Control panel with OLED display or via RDM DMX channels: 1/2/4 PWM: 600–2400 Hz DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485 Stand-alone programming: Control panel with OLED display

Optics Light source: 91 x 3 W warm white LEDs Minimum LED lifetime: 30 000 hours (to >70% luminous output)* Color temperature: 3000K Fixed Lens Tube Options: 19°, 26°, 36° and 50° Zoom Lens Tube Options: 15–30° and 25–50° Binning: Tight color and flux binning *Figure obtained under manufacturer's test conditions

Photometric Data Light engine luminous output: 16000 lumens Fixture luminous output: 7000 lumens CRI (Color Rendering Index) : >97 CQS (Color Quality Scale): >93 TM-30 Rf (IES TM-30-15 Fidelity Index): >93 TM-30 Rg (IES TM-30-15 Gamut Index): >101 TLCI (Television Lighting Consistency Index): >96
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction Housing: Die-cast aluminum Color: Black or white variant Protection rating: IP65

Gobos and Color Frame Gobo size : A size, 100 mm OD, 75 mm image*
Gobo size: B size, 86 mm OD, 64.5 mm image* Color frame size: 159 x 159 mm (6.25 in. x 6.25 in.)
*Gobo holder not included

Installation Mounting: Adjustable bracket Location: Indoor, outdoor use, suitable for wet locations Orientation: Any Minimum distance to combustible materials: 0.2 m (0.7 ft.) Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
Connections AC power in, thru: P65-rated Neutrik PowerCON TRUE1 TOP DMX & RDM data in/thru: IP65-rated 5-pin XLR

Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 18.0 A
Power Factor: 0.99 @ 110 V , 0.97 @ 208 V , 0.96 @ 230 V / 240 V
Typical current draw: 2.6 A @ 110 V , 1.4 A @ 208 V , 1.2 A @ 230 V / 240 V / *
Power Consumption
Typical: 280 W *
Idle: 5 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.

Thermal Cooling: Forced air (temperature-regulated, low noise) Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1000 BTU/hr. Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)

Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 28 lm/W LWR*: 636 lm/kg (288 lm/lb)
LWR = Lumen-to-Weight Ratio

Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-3 (B)/NMB-3 (B); ICES-5 (B)/NMB-5 (B) Australia/NZ: RCM

Included Items
Mounting bracket
User manual

Related Items Martin Companion Cable: P/N 91616091 Martin ELP Lens Tube 19°: P/N 9045107782 Martin ELP Lens Tube 19° White : P/N 9045115166 Martin ELP Lens Tube 26°: P/N 9045107783 Martin ELP Lens Tube 26° White : P/N 9045115167 Martin ELP Lens Tube 36°: P/N 9045107784 Martin ELP Lens Tube 36° White : P/N 9045115168 Martin ELP Lens Tube 50°: P/N 9045107785 Martin ELP Lens Tube 50° White : P/N 9045115170 Martin ELP Zoom Lens Tube 15–30°: P/N 9045121618 Martin ELP Zoom Lens Tube 15–30°, White: P/N 9045122108 Martin ELP Zoom Lens Tube 25–50°: P/N 9045121619 Martin ELP Zoom Lens Tube 25–50°, White: P/N 9045122109

Accessories
Power Input Cables (16 A)*
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Power Relay Cables*
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1 2.5 m (8.2 ft.): P/N 91611796

Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power Connectors*
Neutrik PowerCON TRUE1 NAC3MX-W (male): P/N 91611788HU
Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789HU
*All TRUE1 connectors are IP65-rated TOP type
Spare Parts
Pressure Relief Valve with Gore membrane, M12 x 1.5: P/N 5127883-00
Installation hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information Martin ELP WW IP (Body Only): P/N 9045122813 Martin ELP WW IP (Body Only), White: P/N 9045122815

Unduhan

Specifications

	Versi	Bahasa	Ukuran	Diunggah
ELP WW IP Spec Sheet versi A, diperbarui: Des 2020	A		1010 KB	Des 2020
Martin ELP WW IP Acoustic Test Report versi A, diperbarui: Okt 2020	A		1,16 MB	Okt 2020

Manuals

	Versi	Bahasa	Ukuran	Diunggah
ELP WW IP User Manual versi D, diperbarui: Sep 2023	D		1,53 MB	Sep 2023
ELP WW IP User Manual versi B, diperbarui: Okt 2020	B		1,35 MB	Okt 2020
ELP WW IP User Manual versi B, diperbarui: Okt 2020	B		1,93 MB	Okt 2020

Photometrics

	Versi	Bahasa	Ukuran	Diunggah
ELP WW IP Photometric Files versi A, diperbarui: Okt 2020	A		5,77 MB	Okt 2020

Illustrations

	Versi	Bahasa	Ukuran	Diunggah
ELP IP - 2D Dimensions (DWG) versi A, diperbarui: Okt 2020	A		8,3 MB	Okt 2020
ELP IP - 2D Dimensions (PDF) versi A, diperbarui: Okt 2020	A		792 KB	Okt 2020

Symbols

	Versi	Bahasa	Ukuran	Diunggah
AutoCAD 3D Symbols versi 2.9, diperbarui: Agu 2026	2.9		24,6 MB	Agu 2026
AutoCAD 2D Symbols versi 2.9, diperbarui: Agu 2026	2.9		5,2 MB	Agu 2026
Vectorworks Symbols versi 4.7, diperbarui: Agu 2026	4.7		286 MB	Agu 2026

CAD Drawings

	Versi	Bahasa	Ukuran	Diunggah
ELP IP 3D Files versi A, diperbarui: Okt 2020	A		7,19 MB	Okt 2020

BIM Objects

	Versi	Bahasa	Ukuran	Diunggah
ELP WW IP - BIM Object versi A, diperbarui: Apr 2024	A			Apr 2024

Compliances

	Bahasa	Ukuran	Diunggah
ELP IP Listing Mark Verification Letter diperbarui: Jul 2020		147 KB	Jul 2020
ELP IP Supplier's Declaration of Conformity diperbarui: Jul 2020		652 KB	Jul 2020
ELP IP Declaration of Conformity diperbarui: Jul 2020		708 KB	Jul 2020
ELP IP Declaration of Conformity diperbarui: Jul 2020		715 KB	Jul 2020
