• Physical Length: 415 mm (16.4 in.) Width: 293 mm (11.6 in.) Height: 444 mm (17.5 in.) Weight: 17.5 kg (38.6 lbs.) All figures include mounting yoke
  Dynamic Effects Color wheel: 8 interchangeable colors + open Gobo wheel: 6 rotating gobos plus open, indexing, variable rotation Gobo animation: Variable speed linear animation effect Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing Frost (wash effect): Motorized variable Dimming: 0-100% electronic Shutter: Strobe and pulse effects, instant open and blackout Focus: Motorized, variable 3 m (9.8 ft.) to infinity

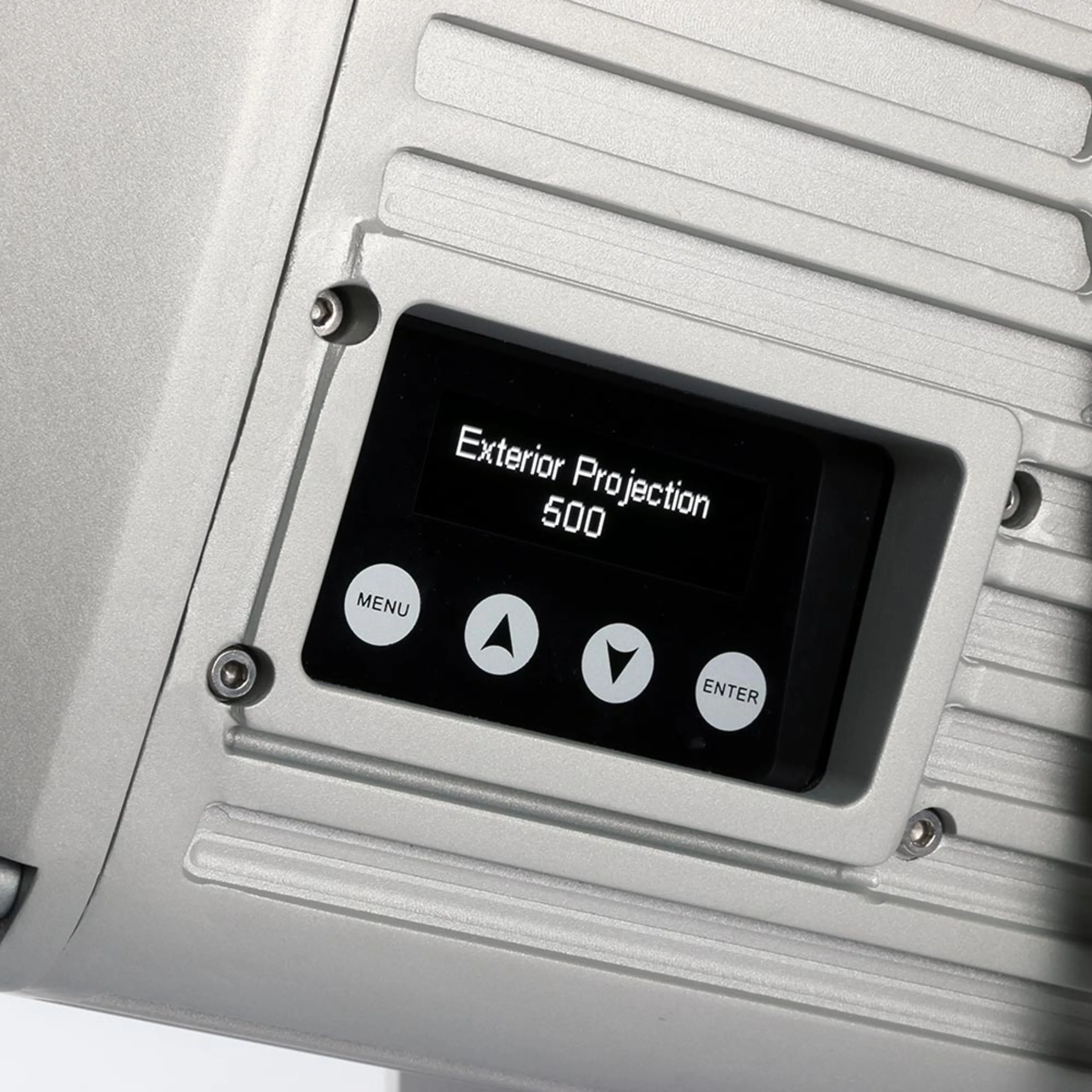

  Control and Programming Stand-alone control: Up to 20 scenes with global fade/hold times Control options: DMX, RDM, standalone Configuration, addressing and status: Onboard control panel with OLED display 8-bit control: color/gobo selection, prism, frost, animation 16-bit control: Gobo indexing and rotation, focus and intensity DMX channels: 13 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20
  Optics Light source: 230 W white light LED engine CRI (Color Rendering Index): 72 Color temperature: 8300 K LED lifetime: 20,000 hours (to >70% luminous output)* LED manufacturer: Prolight Opto Binning: Tight color and flux binning *Figure obtained under manufacturer's test conditions
  Photometric Data Narrow:

  Cut-off angle: 12°
  Total output: 5000 lumens
  Center peak: 203,000 cd

  Medium:

  Cut-off angle: 22°
  Total output: 6100 lumens
  Center peak: 77,000 cd

  Wide:

  Cut-off angle: 37°
  Total output: 5700 lumens
  Center peak: 28,000 cd

  Very Wide:

  Cut-off angle: 50°
  Total output: 3400 lumens
  Center peak: 11,000 cd

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Construction Housing: Cast aluminum Finish: Hard anodized, metallic grey lacquered Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass Ingress protection: IP66 Impact resistance: IK08 (with control panel display cover plate installed) Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
  0,7g RMS Random (IEC 60068-2-64) EPA (Effective Projected Area): 0.15 m2 RoHS compliant
  Gobos Suitable material: Borosilicate glass, coatings heat-resistant to 450°C (842° F) Alternative material: Aluminum 1060, paint on front lens side, 450° C (842° F) Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.) Maximum image diameter: 23 mm (0.91 in.) Glass gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.) Glass gobo thickness, maximum: 3.0 mm ±0.3 mm (0.12in. ± 0.012 in.) Aluminum gobo thickness: 0.5 mm ± 0.02 mm (0.020 in. ± 001 in.) HT paint
  Gobos and Color Frame
  Installation Mounting: Adjustable yoke Location: Suitable for wet locations. Do not immerse in water. Orientation: Any (sides must be kept vertical) Minimum distance to illuminated surfaces: 0.5 m (20 in.)
• Connections Power cable entry: IP68 cable gland Power connection: 1.8 m (5.9 ft.) cable tail with bare ends Data cable entry: IP68 cable gland Data connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends
  Electrical AC power: 100-240/277 V nominal, 50/60 Hz Power Supply: Auto-ranging electronic switch-mode Typical half-cycle RMS inrush current: 8.4 A Idle power (zero intensity, no effects applied): 32 W, 0.3 A Surge protection: 4 KV
  Typical Power and Current 110 V, 60 Hz: 320 W, 2.9 A, PF 0.977 230 V, 50 Hz: 310 W, 1.4 A, PF 0.971 277 V, 60 Hz: 305 W, 1.2 A, PF 0.950

  Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

  Thermal Cooling: Convection, internal forced air Total heat dissipation (calculated): 1100 BTU/hr. Maximum surface temperature: 85° C (185° F) Maximum ambient temperature (Ta max.): 45° C (113° F) * Minimum ambient temperature (Ta min.): -30° C (-22° F)**

  *Above this temperature, the fixture regulates output to protect from overheating.
  ** An integrated heat-element will heat-up internal components at ambient temperatures below 0° C (32° F) - For instant wake-up with no warm-up time, leave power applied constantly.


  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 20 lm/W LWR*: 349 lm/kg (158 lm/lb)

  LWR = Lumen-to-Weight Ratio

  Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN 60598-2-1, EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61547 US safety: ANSI/UL 1598 US EMC: CFR 47 Part 15 Class A Canadian safety: CSA C22.2 No 250.0 Australia/NZ: RCM India: BIS
  Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader)
  Accessories Glare Shield, Exterior Projection 500, aluminum: P/N 91611767 Projection Setup Gobo: P/N 91616068 EP-500, Manual Framing Module: P/N 91611842 Ring for gobo, OD30, set of 10 pcs: P/N MAR-91611851
  Spare Parts Silica gel desiccant bag in sealed foil pack: P/N 37220000 Goboholder with magnet incl. washer, short spring & long spring: P/N 50481990 Goboholder without magnet incl. washer, short spring & long spring: P/N 50481992
  Ordering Information EU models:

  Exterior Projection 500, Narrow, EU, Aluminum: P/N 90506500
  Exterior Projection 500, Medium, EU, Aluminum: P/N 90506505
  Exterior Projection 500, Wide, EU, Aluminum: P/N 90506510
  Exterior Projection 500, Very Wide, EU, Aluminum: P/N 90506535
  Exterior Projection 500, Narrow, EU, White: P/N 90506540
  Exterior Projection 500, Medium, EU, White: P/N 90506545
  Exterior Projection 500, Wide, EU, White: P/N 90506550
  Exterior Projection 500, Very Wide, EU, White: P/N 90506555

  US Models:

  Exterior Projection 500, Narrow, US, Aluminum: P/N 90506515
  Exterior Projection 500, Medium, US, Aluminum: P/N 90506520
  Exterior Projection 500, Wide, US, Aluminum: P/N 90506525
  Exterior Projection 500, Very Wide, US, Aluminum: P/N 90506530
