Martin™ M-DMX Interface BoxLength: 92 mm (3.6 in.)Width: 82 mm (3.2 in.)Height: 41 mm (1.6 in.)Weight: 245 g (0.54 lbs.)Ambient temperature: 0° – 50° C (32° – 122° F)Protection rating: IP20
Trig sources: Manual, auto, audio input with FFT analyzer, DMX in, MIDI, Light Jockey ManagerCue list time code synchronization (CLTCS) optionsInternal timer, including 24-hour clockAudio CD time code from CD-ROM driveDigital Audio (MP3, WAV, etc.) time code using built-in media playerMIDI Time code, SMPTE with suitable SMPTE/MTC interface
Number of fixtures: Up to 100, or 680 RGB fixturesNumber of DMX Universes: 4Fixture library: All Martin (DMX) fixtures, user-definable profiles for non-Martin fixtures, generic DMX profilesControl: Graphical control of all fixture parametersVisualization: Real-time realistic 3D visualizer MSD 6 Lite™ for off-site programming (One-Year version)Macros: Pan and tilt, relative or absolute movement, shape generator with different shapes and delay styles
Cue contains 12 sequences with global or individual fade time adjustmentMaster intensity control + 8 configurable intensity groupsManual override with direct access to all functionsIndependent background cue with 5 parallel sequencesBlackout and fade out functionGo button for manual cue listsAssignable keyboard hotkeys for faster accessSmoke control independent from programmingFollow spot functionCue list for synchronization with timer, digital audio or Audio CD-ROM timecodeAudio analyzer for trigging sequences by audioFunction and DMX channel override via DMX IN (M-DMX output can be converted to input in software)
1 GB RAMIntel Core i3 or betterMonitor resolution of 1024x768USB 2.0 port for DMX interface hardware500 MB drive space availableWindows 7, 8, 10

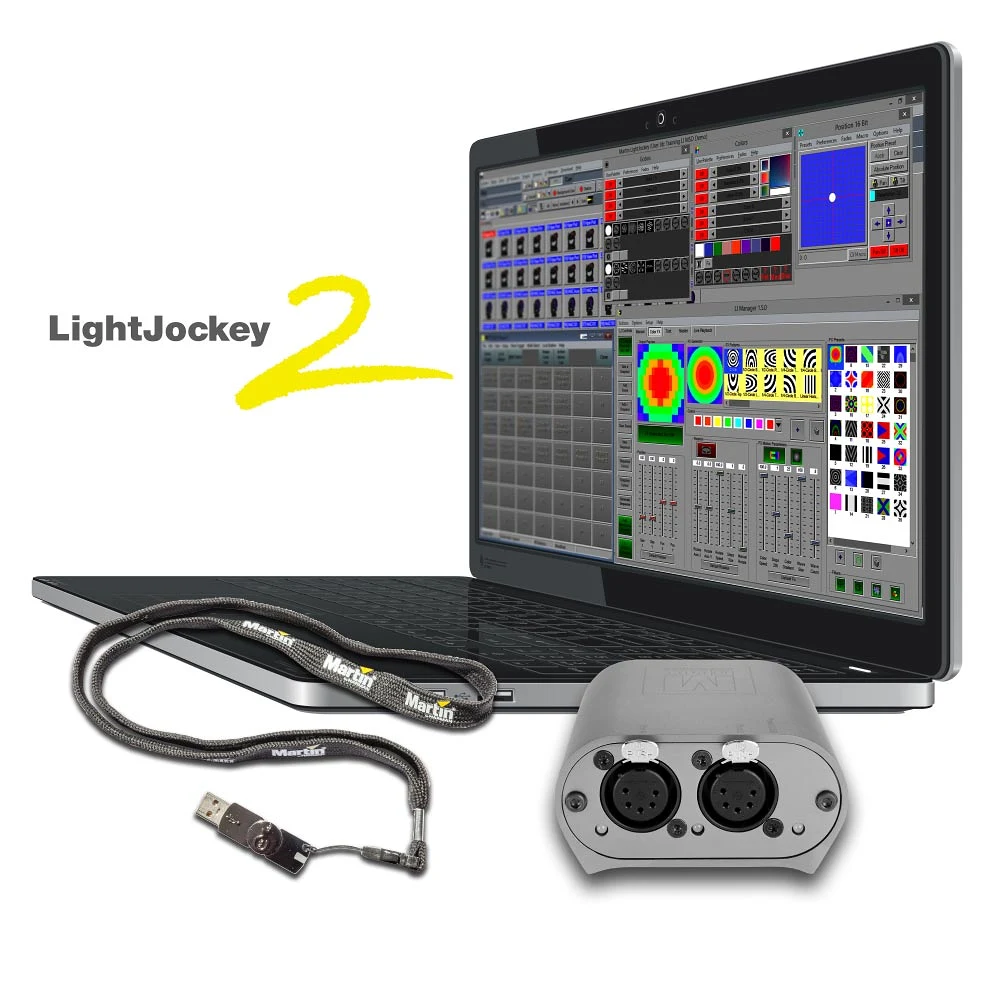

Included in M-PC Pro™, LightJockey 2™ and Martin™ M-DMX package, P/N 90737060Martin One-Key™ USB dongle with 64-universe M-PC™ and 4-universe LightJockey 2™ licensesMartin™ M-DMX USB-DMX Interface BoxMartin™ USB cableMartin ShowDesigner 6 Lite™ 3D Visualizer one-year licenseSoftware download instructions
Martin™ M-PC 2U / M-DMX: P/N 90737070
Martin M-PC Pro-64 / LJ-4 Controller kit: P/N 90737060Martin M-PC Pro-64 / LJ-4 License: P/N 39808015Martin One-Key with M-PC Pro-64 /LJ-4 License: P/N 70758460For an additional Martin M-DMX interface Box, order M-PC 2U™ and M-DMX package: P/N 90737070
