LightJockey 2 (discontinued)

LightJockey 2
Larger Images

Effective 14 March, 2018, Elation Professional has acquired the M-Series range of lighting controllers and software from HARMAN Professional and will now be providing sales and product support. View the announcement from Elation Professional.

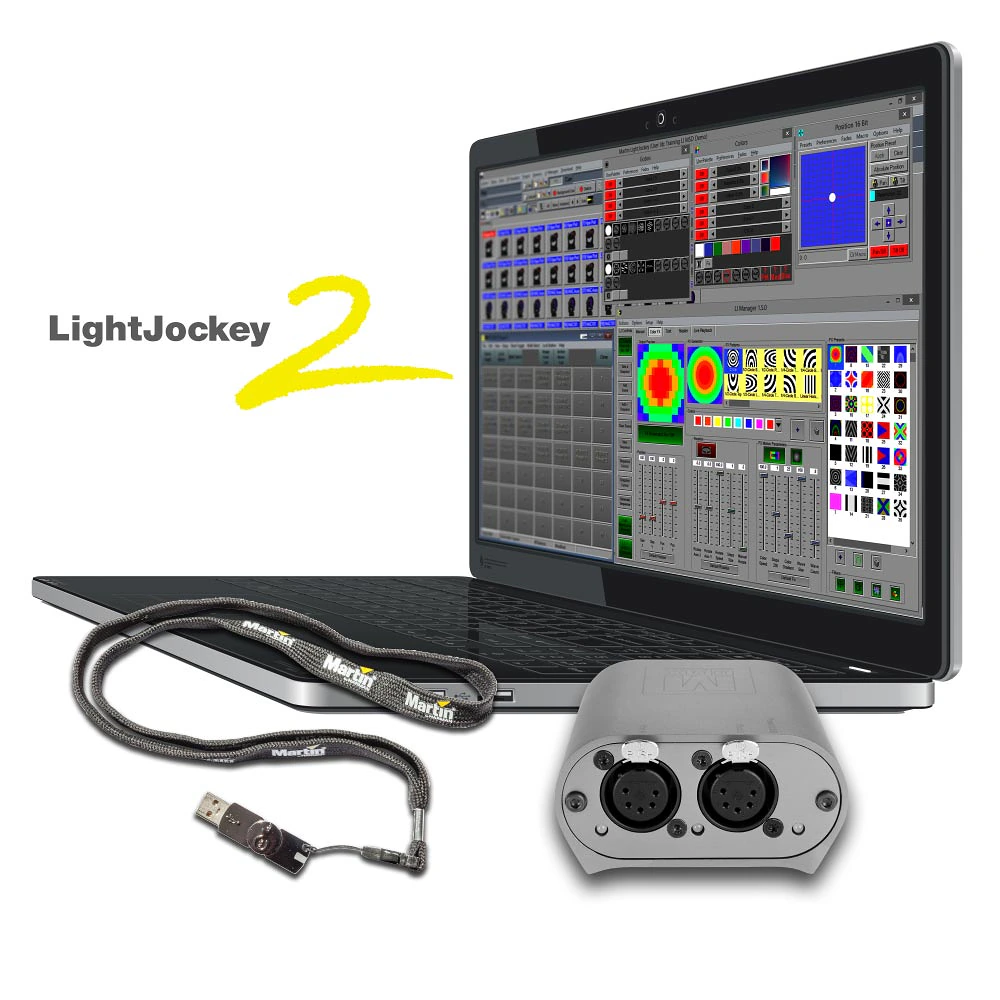

LightJockey 2™ is a flexible, easy-to-use Windows-based controller package that includes a Martin™ M-DMX USB Interface Box.
One of the industry’s most popular PC-based controllers for well over a decade, LightJockey 2™ offers lighting designers greater flexibility, spontaneity and ease of use in a user-focused control package. LightJockey™ software can be downloaded here

  • Control of up to 100 fixtures, 2048 DMX channels
  • Large fixture library and user-configurable editor
  • Martin™ M-DMX interface with 2 x 512 channels DMX In/Out

Features

  • Windows 7 and higher lighting controller software
  • Free Martin ShowDesigner 6 Lite™ 3D Visualizer one-year license
  • Supports MP3, audio CD, SMPTE and MIDI timecode
  • Control of up to 100 fixtures, 2048 DMX channels
  • Graphical representation of all fixture functions
  • Add-on LightJockey Manager, free downloadable software for scheduling events
  • LED-Trix plug-in included for programming color-mixing fixtures

Specifications

PhysicalMartin™ M-DMX Interface BoxLength: 92 mm (3.6 in.)Width: 82 mm (3.2 in.)Height: 41 mm (1.6 in.)Weight: 245 g (0.54 lbs.)Ambient temperature: 0° – 50° C (32° – 122° F)Protection rating: IP20
Control and ProgrammingTrig sources: Manual, auto, audio input with FFT analyzer, DMX in, MIDI, Light Jockey ManagerCue list time code synchronization (CLTCS) optionsInternal timer, including 24-hour clockAudio CD time code from CD-ROM driveDigital Audio (MP3, WAV, etc.) time code using built-in media playerMIDI Time code, SMPTE with suitable SMPTE/MTC interface
ProgrammingNumber of fixtures: Up to 100, or 680 RGB fixturesNumber of DMX Universes: 4Fixture library: All Martin (DMX) fixtures, user-definable profiles for non-Martin fixtures, generic DMX profilesControl: Graphical control of all fixture parametersVisualization: Real-time realistic 3D visualizer MSD 6 Lite™ for off-site programming (One-Year version)Macros: Pan and tilt, relative or absolute movement, shape generator with different shapes and delay styles
PlaybackCue contains 12 sequences with global or individual fade time adjustmentMaster intensity control + 8 configurable intensity groupsManual override with direct access to all functionsIndependent background cue with 5 parallel sequencesBlackout and fade out functionGo button for manual cue listsAssignable keyboard hotkeys for faster accessSmoke control independent from programmingFollow spot functionCue list for synchronization with timer, digital audio or Audio CD-ROM timecodeAudio analyzer for trigging sequences by audioFunction and DMX channel override via DMX IN (M-DMX output can be converted to input in software)
System Requirements1 GB RAMIntel Core i3 or betterMonitor resolution of 1024x768USB 2.0 port for DMX interface hardware500 MB drive space availableWindows 7, 8, 10
Included ItemsIncluded in M-PC Pro™, LightJockey 2™ and Martin™ M-DMX package, P/N 90737060Martin One-Key™ USB dongle with 64-universe M-PC™ and 4-universe LightJockey 2™ licensesMartin™ M-DMX USB-DMX Interface BoxMartin™ USB cableMartin ShowDesigner 6 Lite™ 3D Visualizer one-year licenseSoftware download instructions
AccessoriesMartin™ M-PC 2U / M-DMX: P/N 90737070
Ordering InformationMartin M-PC Pro-64 / LJ-4 Controller kit: P/N 90737060Martin M-PC Pro-64 / LJ-4 License: P/N 39808015Martin One-Key with M-PC Pro-64 /LJ-4 License: P/N 70758460For an additional Martin M-DMX interface Box, order M-PC 2U™ and M-DMX package: P/N 90737070

Downloads

  Version Language Size Uploaded
Specifications
file type icon LightJockey 2 Spec Sheet-English
en updated: Oct 2020
  en  510 KB Oct 2020
Manuals
file type icon LightJockey 2 User Manual
en version 2.100, updated: Dec 2020
2.100  en  5.77 MB Dec 2020
Software
file type icon M-Series Software
version 3.70.885, updated: Jun 2018
3.70.885    Jun 2018
Martin Lightjockey (for Martin One Key)
updated: Jan 2019
      Jan 2019
platform icon LightJockey Manager
updated: Jul 2020
    7.87 MB Jul 2020
Parts
LJ Profile -Archive
en version 1, updated: May 2018
1   en    May 2018
file type icon LJ Profile -Archive
updated: Dec 2017
    Dec 2017
Service Procedures
LJ Profile Downloads
en version 1, updated: May 2018
1   en    May 2018
Service Notes
file type icon Martin One-Key License request and installation procedure
en version F, updated: Oct 2020
en  1.36 MB Oct 2020
file type icon LJ 2.100 Installation Guide
en version 2.100, updated: May 2018
2.100  en  1.17 MB May 2018
Tech Notes
file type icon Martin One-key Online Backup
updated: Dec 2017
    Dec 2017
Hints And Tips
Martin One-Key online backup
en version A, updated: May 2018
A   en    May 2018
Trainings
M-Series 07: Network
en version A, updated: Aug 2023
A   en    Aug 2023
M-Series 06: Cues and cuelists
en version A, updated: Aug 2023
A   en    Aug 2023
file type icon M-Series 07: Network
updated: Dec 2017
    Dec 2017
file type icon M-Series 06: Cues and cuelists
updated: Dec 2017
    Dec 2017
Firmware
platform icon M-Series Firmware Update Program
updated: Jul 2020
    369 MB Jul 2020
