Length: 300 mm (11.9 in.)Width: 540 mm (21.3 in.)Height: 99 mm (3.9 in.)Weight: 9 kg (19.8 lbs.)
Protocol: DMX512A (RDM), Art-Net2, sACN4 physical DMX ports20 DMX universes integratedNo limit to number of DMX channels per fixtureExtensive fixture library for all known manufacturers65000 presets for each group of functions (P/T, color, gobo, etc.)Effect generator for automated programming of complex effectsCustomizable highlight and lowlight function to identify individual fixturesRelative or absolute programmingFan function for all channels (including timing parameters)On-the-fly global timing changesVirtual cuelistsMacrosWait, follow and link cuesHTP, LTP, chase, timecode, submaster and group master playback functionalityIndividual parameter timingsIntuitive patch featureFixture type cloningAll channels with 16-bit resolution
Main playback interface: Ten 60 mm playback faders, each with four function-assignable buttonsEight customizable multi-function keysPlayback Select buttonMaster Go section with Go, Pause, Snap and ReleaseFour digital rotary encoders with push function and status LED for fixture parameter control3.5” touchscreen for parameter groups, effect parameters, fanning and global timings and buttonBuilt-in 2D visualizer for selection and real-time visualization Grand master rotary faderBlind/preview buttonCustomizable highlight/lowlight functionCustomizable parameter defaultsNext/last fixtures/groupsLarge command keys
Assign a cue, cuelist or effect to any playback fader500 playback banks, each containing 10 playbacks100 pages of 100 playbacks activated by touchscreen buttonNo limit to cues per cuelistFull 16-bit fading for high-resolution fixturesIndividual fade in/fade out times for all playbacksManual override available at all timesLive 0-1000% override of global cue timingsLive programmer timing (“Sneak”)Cuelists can be executed in tracking or non-tracking mode
Industrial 15.6 inch TFT 16:9 touchscreen (1376x768 pixels)3.5" RGB touchscreen64 GB SSD storage driveIndustrial motherboard with Intel Quad-Core processor8 GB RAMIntegrated graphics processor
Windows 10 Embedded OSOS installation by USB 3.0 storage deviceShow backup on hard disk or USB storage device (not included)Support for ELO and Windows USB touchscreens
4 x DMX universe outputs: 5-pin locking XLRExternal monitor screen: 2 x HDMIArt-Net/sACN for up to 20 DMX universes in total:GigabitRJ-45 MaxNet controller link: Gigabit RJ-45Storage media/hardware peripherals: USB 3.0Built-in Internal MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode)Built-in Internal SMPTE Timecode In/Out: 3-pin XLR12 VDC power supply input: 4-pin XLRDesk lamp (dimmable): XLRUSB (storage media/hardware peripherals)Back of mainboard: 4 x USB 3.0Side of console: 1 x USB 2.0
AC mains power to 12 VDC external PSU (included):100-240 V nominal, 50/60 HzMaximum current: 1.4 A12 VDC output: 5 A, 60 W max.
1.5 m power cable, EU (Schuko), 3-pin IEC1.5 m power cable, US, 3-pin IECMW 12 VDC 5 A external PSULED desk lamp, angular XLR connector, 13"Dust coverMartin™ One-Key with M-PC Pro lifetime license and ShowDesigner 6™ Lite 3D Visualizer 1 year licenseM-PC Pro with 64 Universe License
Replacement MW 12 VDC 5A external PSU: P/N 91613100Replacement LED desk lamp: P/N 91613090Replacement dust cover for M2GO HD: P/N 5085928Flightcase for M2GO HD: P/N 91535085Martin™ M-Play: P/N 90737030
Martin Ether2DMX8™: P/N 90758130Martin M-DMX Interface Box / Martin M-PC 2U package: P/N 90737070

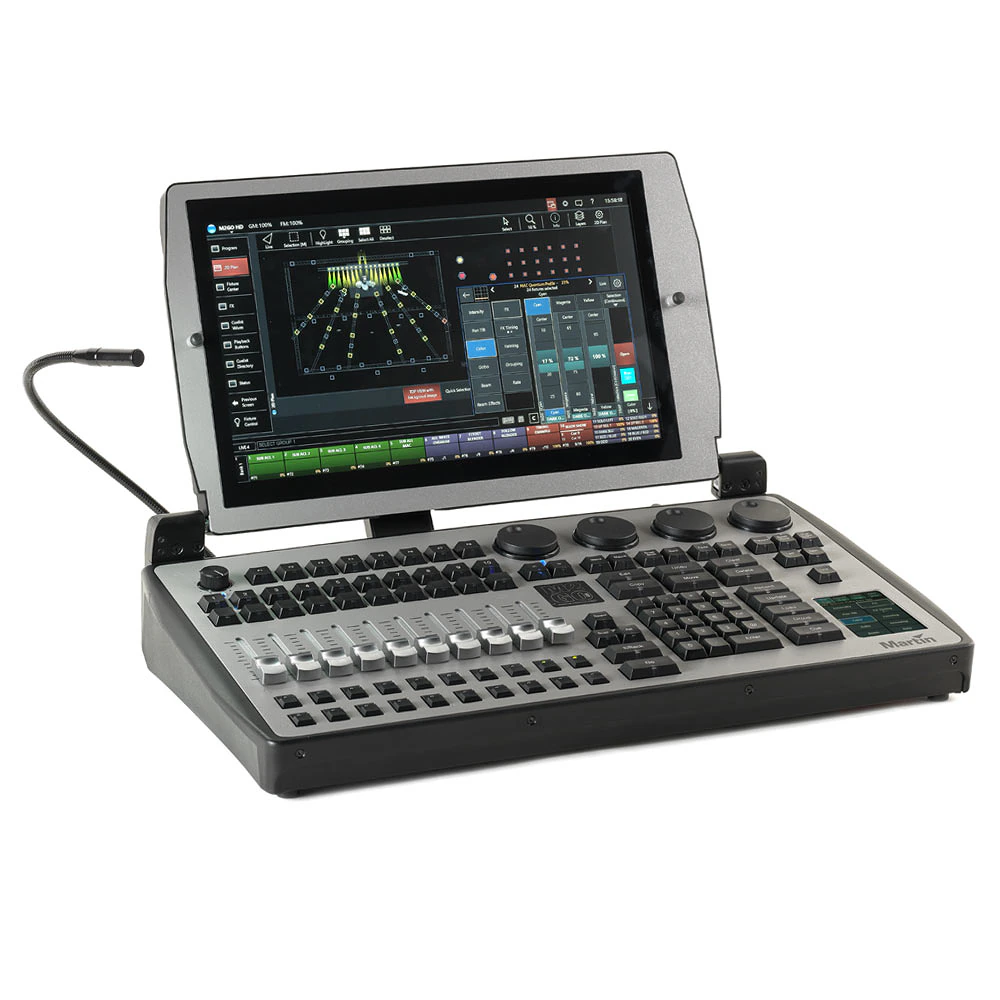

M2GO HD Console: P/N 90737080
