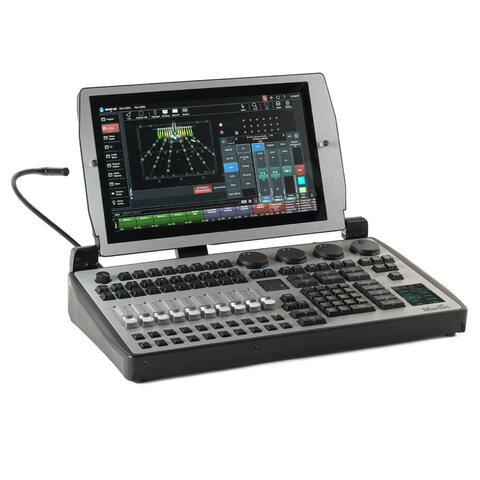

M2GO HD (discontinued)

M2GO HD
Larger Images

Effective 14 March, 2018, Elation Professional has acquired the M-Series range of lighting controllers and software from HARMAN Professional and will now be providing sales and product support. View the announcement from Elation Professional.

With its small footprint and large built-in touchscreen, the M2GO HD answers the demand for a more powerful all-in-one lighting console in a smaller form. It offers a professional level of features in a portable package and has been developed with cost, ergonomics, feature set, size and weight in mind. The M2GO HD is a unique, portable and powerful lighting console.

  • Complete console with integrated processing in a small footprint
  • Folding capacitive multi-touchscreen with 4 encoders
  • 10 playbacks, 8 encoders for fast user access

Videos





Features

  • High-resolution folding capacitive multi-touchscreen
  • Integrated Industrial high-speed processing
  • 3.5” touchscreen for fast and direct parameter  access
  • 8 digital encoders for parameter control
  • 8 customizable function keys
  • 4 DMX universes direct from the console; up to 20 universes via Artnet and sACN without external processors
  • Controls up to 10240 parameters
  • Built-in 2D visualizer for selection and real-time visualization
  • Customizable Graphical User Interface with context-sensitive toolbars and integrated Help menu
  • Powerful effects engine
  • 1000 cuelists with fader control
  • 1000 cuelists with playback control buttons
  • Parallel execution of multiple cuelists
  • Submaster, Groupmaster and Override functionality
  • Parameter and Time-fanning functionality
  • Auto update for presets and cues
  • On-the-fly global timing adjustments
  • M-Series Manager Software for programming and triggering via time and calendar schedules,RS232 and IP triggers
  • Multiple wing attachment (M-Series Modules)
  • MaxNet synchronized programming and playback support

Specifications

PhysicalLength: 300 mm (11.9 in.)Width: 540 mm (21.3 in.)Height: 99 mm (3.9 in.)Weight: 9 kg (19.8 lbs.)
Control and ProgrammingProtocol: DMX512A (RDM), Art-Net2, sACN4 physical DMX ports20 DMX universes integratedNo limit to number of DMX channels per fixtureExtensive fixture library for all known manufacturers65000 presets for each group of functions (P/T, color, gobo, etc.)Effect generator for automated programming of complex effectsCustomizable highlight and lowlight function to identify individual fixturesRelative or absolute programmingFan function for all channels (including timing parameters)On-the-fly global timing changesVirtual cuelistsMacrosWait, follow and link cuesHTP, LTP, chase, timecode, submaster and group master playback functionalityIndividual parameter timingsIntuitive patch featureFixture type cloningAll channels with 16-bit resolution
Control/User InterfaceMain playback interface: Ten 60 mm playback faders, each with four function-assignable buttonsEight customizable multi-function keysPlayback Select buttonMaster Go section with Go, Pause, Snap and ReleaseFour digital rotary encoders with push function and status LED for fixture parameter control3.5” touchscreen for parameter groups, effect parameters, fanning and global timings and buttonBuilt-in 2D visualizer for selection and real-time visualization Grand master rotary faderBlind/preview buttonCustomizable highlight/lowlight functionCustomizable parameter defaultsNext/last fixtures/groupsLarge command keys
PlaybackAssign a cue, cuelist or effect to any playback fader500 playback banks, each containing 10 playbacks100 pages of 100 playbacks activated by touchscreen buttonNo limit to cues per cuelistFull 16-bit fading for high-resolution fixturesIndividual fade in/fade out times for all playbacksManual override available at all timesLive 0-1000% override of global cue timingsLive programmer timing (“Sneak”)Cuelists can be executed in tracking or non-tracking mode
HardwareIndustrial 15.6 inch TFT 16:9 touchscreen (1376x768 pixels)3.5" RGB touchscreen64 GB SSD storage driveIndustrial motherboard with Intel Quad-Core processor8 GB RAMIntegrated graphics processor
SoftwareWindows 10 Embedded OSOS installation by USB 3.0 storage deviceShow backup on hard disk or USB storage device (not included)Support for ELO and Windows USB touchscreens
Connections4 x DMX universe outputs: 5-pin locking XLRExternal monitor screen: 2 x HDMIArt-Net/sACN for up to 20 DMX universes in total:GigabitRJ-45 MaxNet controller link: Gigabit RJ-45Storage media/hardware peripherals: USB 3.0Built-in Internal MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode)Built-in Internal SMPTE Timecode In/Out: 3-pin XLR12 VDC power supply input: 4-pin XLRDesk lamp (dimmable): XLRUSB (storage media/hardware peripherals)Back of mainboard: 4 x USB 3.0Side of console: 1 x USB 2.0
ElectricalAC mains power to 12 VDC external PSU (included):100-240 V nominal, 50/60 HzMaximum current: 1.4 A12 VDC output: 5 A, 60 W max.
Included Items1.5 m power cable, EU (Schuko), 3-pin IEC1.5 m power cable, US, 3-pin IECMW 12 VDC 5 A external PSULED desk lamp, angular XLR connector, 13"Dust coverMartin™ One-Key with M-PC Pro lifetime license and ShowDesigner 6™ Lite 3D Visualizer 1 year licenseM-PC Pro with 64 Universe License
AccessoriesReplacement MW 12 VDC 5A external PSU: P/N 91613100Replacement LED desk lamp: P/N 91613090Replacement dust cover for M2GO HD: P/N 5085928Flightcase for M2GO HD: P/N 91535085Martin™ M-Play: P/N 90737030
Related ItemsMartin Ether2DMX8™: P/N 90758130Martin M-DMX Interface Box / Martin M-PC 2U package: P/N 90737070
Ordering InformationM2GO HD Console: P/N 90737080

Downloads

  Version Language Size Uploaded
Specifications
file type icon M2GO HD Spec Sheet-English
en updated: Oct 2020
  en  471 KB Oct 2020
Manuals
file type icon Safety and Installation guide
en version A, updated: May 2018
en  2.36 MB May 2018
Illustrations
file type icon Martin M2GO HD - Dimensions (2D DXF)
en version A, updated: May 2018
en  6.66 MB May 2018
Compliances
file type icon Martin M2GO HD - EU Declaration of Conformity
en version A, updated: May 2018
en  106 KB May 2018
file type icon M2Go HD - EU Declaration of Conformity
version A, updated: May 2018
  109 KB May 2018
Software
file type icon Firmware Update Package
en version C, updated: Oct 2020
en  369 MB Oct 2020
file type icon Martin M2GO HD firmware for release version
en version 3.70.885, updated: May 2018
3.70.885  en  190 KB May 2018
file type icon M-Series Software
version 3.70.885, updated: Jun 2018
3.70.885    Jun 2018
Service Notes
file type icon Adding External Touchscreens
updated: Dec 2017
    Dec 2017
Hints And Tips
file type icon Decimal to ArtNet Universe Conversion Table
en version A, updated: Oct 2020
en  78.5 KB Oct 2020
Adding External Touchscreens
en version A, updated: May 2018
A   en    May 2018
Trainings
M-Series 01: The Interface
en version A, updated: Aug 2023
A   en    Aug 2023
M-Series 02: Patch
en version A, updated: Aug 2023
A   en    Aug 2023
M-Series 03: Fixtures and Groups
en version A, updated: Aug 2023
A   en    Aug 2023
M-Series 05: FX
en version A, updated: Aug 2023
A   en    Aug 2023
M-Series 06: Cues and cuelists
en version A, updated: Aug 2023
A   en    Aug 2023
M-Series 07: Network
en version A, updated: Aug 2023
A   en    Aug 2023
file type icon M-Series 01: The Interface
updated: Dec 2017
    Dec 2017
file type icon M-Series 02: Patch
updated: Dec 2017
    Dec 2017
file type icon M-Series 03: Fixtures and Groups
updated: Dec 2017
    Dec 2017
file type icon M-Series 05: FX
updated: Dec 2017
    Dec 2017
file type icon M-Series 06: Cues and cuelists
updated: Dec 2017
    Dec 2017
file type icon M-Series 07: Network
updated: Dec 2017
    Dec 2017
Firmware
platform icon M-Series Firmware Update Program
updated: Jul 2020
    369 MB Jul 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
