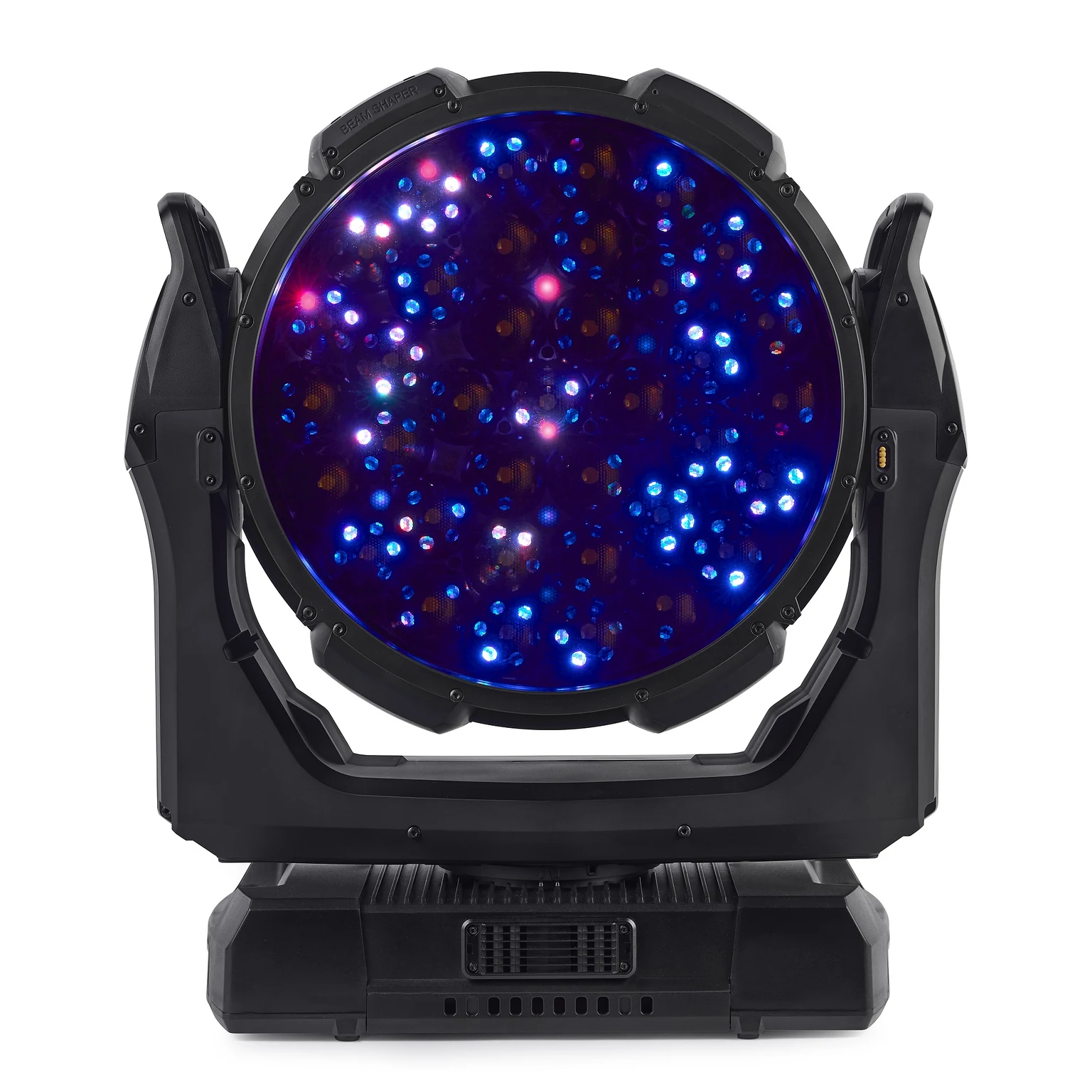

Martin MAC Aura Raven XIP

Gambar Lebih Besar

The Martin MAC Aura Raven XIP is a premium moving head fixture that combines wash, beam, eye-candy, and smart weatherproof functionality to lead as the biggest, brightest and boldest fixture of the MAC Aura family. Delivering class-leading lumen output and unparalleled performance indoors or outdoors, MAC Aura Raven XIP is perfect for lighting designers, rental companies, and installation customers needing a truly versatile workhorse for illuminating festival stages, theatrical performances, corporate events, and broadcast applications.

With the cleanest wash field in its class and exceptional optical performance, MAC Aura Raven XIP’s industry-leading light engine delivers 27,000 lumens of output and a high-intensity beam through its massive 343 mm (13.5 in) front lens. An array of 234 individual LEDs, positioned behind the front lens, creates an enhanced pixelated Aura backlight effect, adding an entirely new layer of visual effect possibilities.

Setting new performance and feature benchmarks for wash, beam, and eye-candy fixtures, MAC Aura Raven XIP uses RGBL (Red, Green, Blue, Lime) light engine LEDs, significantly enhancing skin tones and overall quality of light. It also includes a dark lens, offering a very discreet look that seamlessly blends into more décors and applications.

A significantly enhanced belt-driven zoom system ensures extremely fast and near silent operation. Other firsts for the MAC Aura family include a Universal Connect Module slot; Companion Mobile app control; and yoke handles for easier transport and handling. Martin’s P3 control also simplifies setup, configuration, and the mapping and mixing of DMX with video.

MAC Aura Raven XIP is perfect for rental companies and installation customers needing a versatile workhorse that can deliver 70% more brightness than the legendary Martin MAC Quantum Wash. It was also designed to generate higher ROI through lower maintenance requirements as an alternative to IP20-rated fixtures. For lighting designers, we built the fixture to be extremely versatile by combining a powerful wash light with incredible eye-candy effects that can easily be specified for theater, television, or corporate events, while also being outdoor-rated for festivals, concerts, and other events.

Unleash the power of light with the MAC Aura Raven XIP. Experience unparalleled performance, superior light quality, and cutting-edge features – experience the flagship MAC Aura Raven XIP.

Learn More About XIP Technology

CLASS-LEADING WASH PERFORMANCE & LUMEN OUTPUT

Designed for applications that demand intense illumination with 27,000 lumens of output, the fixture delivers a smooth, even wash with a soft edge, free from color artifacts, brown edges, or hotspots. The optional BeamShaper accessory is available to cover specific applications, ensuring increased ROI.
BEAUTIFUL RGBL QUALITY OF LIGHT
Thanks to the RGBL (Red, Green, Blue, Lime) LED engine, MAC Aura Raven XIP offers the widest spectrum of light coverage of any MAC Aura fixture.
XIP SMART WEATHERPROOF ADVANTAGE

Thanks to integrated XIP technology, MAC Aura Raven XIP strikes the ideal balance between indoor and outdoor functionality. It combines the compact size, lightweight design, efficiency, sleek appearance, and low noise levels of an indoor fixture with the rugged durability of a heavy-duty, outdoor-rated fixture without sacrificing on size, weight, or performance.
IMMERSIVE AURA EFFECT

Featuring a stunning pixelated Aura backlight effect, powered by 234 LEDs and integrating a dark lens background, MAC Aura Raven XIP creates a captivating ‘round video screen’ appearance, adding dynamic visual impact to any setting with vivid, immersive lighting.
REFINED ELEGANCE

MAC Aura Raven XIP integrates an elegant, creative design that seamlessly blends into any environment, regardless of its size. With its sleek housing and dark lens, the fixture is not only visually subtle, but also operates with near-silent performance.

CLASS-LEADING WASH PERFORMANCE & LUMEN OUTPUT

Designed for applications that demand intense illumination with 27,000 lumens of output, the fixture delivers a smooth, even wash with a soft edge, free from color artifacts, brown edges, or hotspots. The optional BeamShaper accessory is available to cover specific applications, ensuring increased ROI.

BEAUTIFUL RGBL QUALITY OF LIGHT
Thanks to the RGBL (Red, Green, Blue, Lime) LED engine, MAC Aura Raven XIP offers the widest spectrum of light coverage of any MAC Aura fixture.

XIP SMART WEATHERPROOF ADVANTAGE

Thanks to integrated XIP technology, MAC Aura Raven XIP strikes the ideal balance between indoor and outdoor functionality. It combines the compact size, lightweight design, efficiency, sleek appearance, and low noise levels of an indoor fixture with the rugged durability of a heavy-duty, outdoor-rated fixture without sacrificing on size, weight, or performance.

IMMERSIVE AURA EFFECT

Featuring a stunning pixelated Aura backlight effect, powered by 234 LEDs and integrating a dark lens background, MAC Aura Raven XIP creates a captivating ‘round video screen’ appearance, adding dynamic visual impact to any setting with vivid, immersive lighting.

REFINED ELEGANCE

MAC Aura Raven XIP integrates an elegant, creative design that seamlessly blends into any environment, regardless of its size. With its sleek housing and dark lens, the fixture is not only visually subtle, but also operates with near-silent performance.

Video

Fitur

27,000 lumens of output
Silent and extremely fast zoom system with a range from 6 to 51 degrees
RGBL (Red/Green/Blue/Lime) LED engine, providing higher light quality (CRI / TM-30 / TLCI)
Large 343 mm (13.5 in) diameter front lens
Dark lens, offering a much more discreet look and higher contrast for the pixelated Aura backlight effect
Pixelated Aura Backlight Effect with 234 RGB LEDs
Full pixel-control over 37 main LEDs and 234 Aura backlight LEDs
DMX, Art-Net, sACN & Martin P3 control
XIP smart weatherproof technology for temporary outdoor use
Most compact and lightweight fixture in its class
Yoke handles for easy handling of the fixture, and easy, upside-down flipping
Battery-powered display for setup and configuration
NFC interface, supporting configuration and diagnostics via Companion Mobile App
Universal Connect Module slot, supporting third-party wireless modules
Optional BeamShaper module, that can be added and shapes the field of light being projected

Spesifikasi

Physical
Width (across yoke): 528 mm (20.8 in.)
Width (base): 429 mm (16.9 in.)
Height (head forward): 588 mm (23.1 in.)
Height (maximum): 603 mm (23.7 in.)
Depth (head): 241 mm (9.5 in.)
Depth (base): 285 mm (11.2 in.)
Minimum center-to-center distance in side-by-side installation: 540 mm (21 in.)
Weight: 28.8 kg (63.5 lbs.)

Dynamic Effects
Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: RGB(L), independently variable 0 - 100%
Beam Color Temperature Control: Variable 2,000 – 12,850 K
Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
Zoom: Motorized with 1:5.3 zoom ratio
Pan: Motorized 540°
Tilt: Motorized 250°
Beam PixelMapping: Individual RGB control of each of the 37 Beam pixels
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Aura Dimming options: Choice of four dimming curves
Aura Color Mixing: RGB, independently variable 0 - 100%
Aura Color Temperature Control: Variable 2,000 – 12,850 K
Aura Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
Aura PixelMapping: Individual RGB control of each of the 234 Aura pixels
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined; featuring foreground color, background color, speed and direction control
LED Frequency control: Variable LED PWM control

Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3 (additional protocols, incl. wireless, available via Universal Connect Module)
Protocol Detection: Automatic
DMX Modes: Compact, Basic, Extended, Ludicrous, Plaid & Compact Direct
DMX Channels: 22, 38, 149, 266, 851 & 22
Multi-Universe Overflow: Yes, in all DMX Modes
16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Zoom, BeamShaper Indexing, Pan and Tilt
Setting and Addressing: Display Menu, NFC, RDM, RDM over Art-Net or Martin P3
Local User Interface: Backlit LCD Display with battery-powered operation and integrated NFC antenna
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2018
Martin P3 Compliance: P3 System Controller Software 6.2.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit: 32 fixtures
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

Optics
Front Lens Diameter: 343 mm (13.5 in.)
Zoom Range: 1:5.3
Full Zoom Range at Half Peak (Beam Angle): 6.6° - 35.3°
Full Zoom Range at Tenth Peak (Field Angle): 9.9° - 51.0°
Beam Light Source: 37 x 40 W RGBL LED
Aura Light Source: 234 x 0.30 W RGB LED
Max. Total Beam LED Engine Power: 830 W
Max. Total Aura LED Engine Power: 70 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions

Photometric Data
Light Engine Luminous Output: 39,000 lumens
Fixture Luminous Output Wide: 27,000 lumens
Fixture Luminous Output Narrow: 23,000 lumens
Peak Luminous Intensity Narrow: 1,900,000 cd
CCT: Variable 2,000 K – 12,850 K (+/- 200 K)
CRI (Color Rendering Index): ≥ 82
CQS (Color Quality Scale): ≥ 89
TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 84
TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 110
TLCI (Television Lighting Consistency Index): ≥ 84
Beam LED Refresh Rate: 2,400 Hz with fine adjustment (+/- 2%) and 19,200 Hz mode (DMX controllable)
Aura LED Refresh Rate: 62,500 Hz
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Beam and Aura
Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 6500 K white

Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP54

Installation Mounting points: 4 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets Location: Indoor or Temporary Outdoor use Orientation: Any, except with display/connectors facing upwards in outdoor application Minimum distance to combustible materials: 0.2 m (7.9 in.) Minimum distance to illuminated surfaces: 2.5 m (98.4 in.)

Connections
AC mains power in/thru: Neutrik Rean powerCON TRUE1 TOP
DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
Firmware from flash memory: USB 2.0 type C port
Accessory Plug-In: Universal Connect Module Slot

Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
Typical earth-leakage current: 0.7 mA
Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
Max current draw: 11.3 A @ 100 V / 120 V , 5.6 A @ 208 V , 4.8 A @ 230 V / 240 V
Typical current draw: 9.8 A @ 100 V , 8.1 A @ 120 V , 4.6 A @ 208 V , 4.2 A @ 230 V , 4.0 A @ 240 V *
Power Consumption
Maximum: 1120 W
Typical: 1020 W *
Idle: 135 W *
Hibernation: 6 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal Cooling: Forced air (temperature regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): -10° C (14° F) – Warm up condition may apply Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F) Total heat dissipation (calculated, +/- 10%): 3478 BTU/hr.

Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 35.5 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 23.6 dB(A)

Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Packaging: FSC Certified cardboard outer packaging & Recycled EPS inner packaging Efficacy (max output): 26.4 lm/W LWR*: 937 lm/kg (425 lm/lbs.)
* LWR = Lumen-to-Weight Ratio

Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM United Kingdom: UKCA Thailand: TIS 1955-2551 Korea: KS C 9832, KS C 9835

Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
SoftLens
Multi-Language Safety and Installation Manual

Related Items
Martin Companion Cable (for firmware update over DMX): P/N 91616091
Martin Companion Software (for firmware update over DMX/Ethernet and fixture setup/configuration via NFC): Free download from www.martin.com, app store and play store

Accessories
Optical
MAC Aura Raven XIP BeamShaper Module: P/N MAR-91614064HU
Transport and Storage
Flightcase for 2 x MAC Aura Raven XIP: P/N MAR-91515064
Additional SiP Foam Flightcase Insert for MAC Aura Raven XIP: P/N MAR-91611864HU
Consumables
CR123A 3-volt lithium battery: P/N 05801011
Spare Parts
Additional MAC Aura Raven XIP SoftLens: P/N 5145811-00
Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
Power Daisy-Chain Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU
Installation Hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Half-coupler Clamp: P/N 91602005
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Verified Third-Party Accessories
Beam Control
MAC Aura Raven XIP Top Hat: P/N City Theatrical 2825
MAC Aura Raven XIP Hexcel Louver: P/N City Theatrical 2824
MAC Aura Raven XIP Concentric Ring: P/N City Theatrical 2823
Universal Connect Module
Multiverse Connect Module 2.4GHz: P/N City Theatrical 5914
Multiverse Connect Module 900MHz: P/N City Theatrical 5915

Ordering Information MAC Aura Raven XIP in SiP (in cardboard box with SiP foam flight case insert): P/N MAR-90250405HU MAC Aura Raven XIP in Cardboard (in cardboard box with EPS, reused material): P/N MAR-90250400HU MAC Aura Raven XIP White in Cardboard (in cardboard box with EPS, reused material): P/N MAR-90250410HU

Unduhan

Specifications

	Versi	Bahasa	Ukuran	Diunggah
MAC Aura Raven XIP - Flightcase Spec Sheet versi A, diperbarui: Jan 2025	A		8,19 MB	Jan 2025
MAC Aura Raven XIP - Spec Sheet versi C, diperbarui: Jan 2026	C		1,94 MB	Jan 2026
Universal Connect Module Standard versi 1.20, diperbarui: Nov 2025	1.20		3,32 MB	Nov 2025
MAC Aura Raven XIP - SiP Spec Sheet versi A, diperbarui: Jan 2025	A		577 KB	Jan 2025
MAC Aura Raven XIP - Acoustic Test Report versi A, diperbarui: Apr 2025	A		581 KB	Apr 2025

Manuals

	Versi	Bahasa	Ukuran	Diunggah
MAC Aura Raven XIP - Manual de Usuario con Manual de Seguridad e Instalación versi C, diperbarui: Jan 2026	C		3,45 MB	Jan 2026
MAC Aura Raven XIP - User, Safety and Installation Manual versi C, diperbarui: Jan 2026	C		2,8 MB	Jan 2026
MAC Aura Raven XIP - Bedienungsanleitung mit Installations- und Sicherheitshinweisen versi C, diperbarui: Jan 2026	C		3,48 MB	Jan 2026
MAC Aura Raven XIP - Guide de l’utilisateur avec Guide d’installation et de sécurité inclus versi C, diperbarui: Jan 2026	C		2,86 MB	Jan 2026
MAC Aura Raven XIP - Safety and Installation Manual versi C, diperbarui: Jan 2026	C		1,47 MB	Jan 2026
MAC Aura Raven XIP Beamshaper - Installation Guide versi A, diperbarui: Feb 2026	A		318 KB	Feb 2026

Photometrics

	Versi	Bahasa	Ukuran	Diunggah
MAC Aura Raven XIP - Photometric Files versi A, diperbarui: Apr 2025	A		11,4 MB	Apr 2025
MAC Aura Raven XIP - Third Party Photometric Reports versi A, diperbarui: Jul 2025	A		822 KB	Jul 2025

Illustrations

	Versi	Bahasa	Ukuran	Diunggah
MAC Aura Raven XIP - 2D Dimensions versi B, diperbarui: Des 2025	B		9,4 MB	Des 2025

Symbols

	Versi	Bahasa	Ukuran	Diunggah
AutoCAD 2D Symbols versi 2.8, diperbarui: Jan 2026	2.8		4,42 MB	Jan 2026
AutoCAD 3D Symbols versi 2.8, diperbarui: Jan 2026	2.8		18,7 MB	Jan 2026
Vectorworks Symbols versi 4.6, diperbarui: Jan 2026	4.6		249 MB	Jan 2026
Martin Professional GDTF Library versi A, diperbarui: Okt 2023	A		203 Byte	Okt 2023

CAD Drawings

	Versi	Bahasa	Ukuran	Diunggah
MAC Aura Raven XIP - 3D Drawings versi A, diperbarui: Feb 2025	A		83,3 MB	Feb 2025

BIM Objects

	Versi	Bahasa	Ukuran	Diunggah
MAC Aura Raven XIP - BIM Object versi A, diperbarui: Agu 2025	A			Agu 2025

Compliances

	Versi	Bahasa	Ukuran	Diunggah
MAC Aura Raven XIP - Product Verification and Reliability Report versi A, diperbarui: Des 2025	A		594 KB	Des 2025
Safety Document (SDS) for Batteries versi D, diperbarui: Jan 2026	D		332 KB	Jan 2026
MAC Aura Raven XIP - CB Test Certificate versi A, diperbarui: Apr 2025	A		570 KB	Apr 2025
MAC Aura Raven XIP - EU Declaration of Conformity versi A, diperbarui: Apr 2025	A		227 KB	Apr 2025
MAC Aura Raven XIP - UKCA Declaration of Conformity versi A, diperbarui: Apr 2025	A		159 KB	Apr 2025
MAC Aura Raven XIP - ETL Listing Verification versi A, diperbarui: Apr 2025	A		834 KB	Apr 2025
MAC Aura Raven XIP - EU Test Verification of Conformity versi A, diperbarui: Apr 2025	A		519 KB	Apr 2025
MAC Aura Raven XIP - ETL Authorization To Mark versi A, diperbarui: Apr 2025	A		87,8 KB	Apr 2025
