• Physical

  1000 mm Variant
  Length: 1000 mm (39.4 in.)
  Width: 27 mm (1.1 in.)
  Height (without diffuser/lens): 37 mm (1.5 in.)
  Height (with included square diffuser): 51 mm (2.0 in.)
  Weight: 1.6 kg (3.5 lbs.)

  320 mm Variant
  Length: 320 mm (12.6 in.)
  Width: 27 mm (1.1 in.)
  Height (without diffuser/lens): 37 mm (1.5 in.)
  Height (with included square diffuser): 51 mm (2.0 in.)
  Weight: 0.6 kg (1.3 lbs.)

  Dynamic Effects

  Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
  Dimming options: Choice of four dimming curves
  Color Mixing: RGBW, independently variable 0 - 100%
  Color Temperature Control: Variable 1,800 – 12,850 K
  Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
  Virtual Color wheel: 48 color presets, continuous rotation & random color
  PixelMapping: Individual RGB control of each pixel
  P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
  Pre-programmed effects: Various pre-programmed FX; featuring foreground color, background color, speed and direction control
  LED Frequency control: Two LED PWM control modes

  Control and Programming

  Control Protocols: Art-Net, RDM over Art-Net, sACN and Martin P3
  Protocol Detection: Automatic
  DMX Modes 1000 mm Variant: Compact, Basic, Extended 5 Segments, Extended 10 Segments, Extended 25 Segments, Extended 100 Pixels, Compact Direct, RGB, PixelMap 5 Segments, PixelMap 10 Segments, PixelMap 25 Segments and PixelMap 100 Pixels
  DMX Modes 320 mm Variant: Compact, Basic, Extended 2 Segments, Extended 4 Segments, Extended 8 Segments, Extended 32 Pixels, Compact Direct, RGB, PixelMap 2 Segments, PixelMap 4 Segments, PixelMap 8 Segments and PixelMap 32 Pixels
  DMX Channels 1000 mm Variant: 8, 14, 29, 44, 89, 314, 8, 3, 15, 30, 75 & 300
  DMX Channels 320 mm Variant: 8, 14, 20, 26, 38, 110, 8, 3, 6, 12, 24 & 96
  Multi-Universe Overflow: Yes, in all DMX Modes
  16-bit Controllable Parameters: Dimming
  Setting and Addressing: Martin P3 or RDM over Art-Net
  Local User Interface: Magnet Sensor to recall testpatterns and reset fixture
  Fixture identification: User-settable ID number
  Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
  sACN Compliance: ANSI E1.31 - 2018
  Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
  Ethernet Transceiver: 10/100Mbit
  Firmware Update: via Ethernet using Martin Companion or P3 System Controller

  Stand Alone Programming Programming Interface: Martin Companion Application via RDM over Art-Net Controllable Parameters: All, including internal FX Maximum Number of Scenes: 20 Hold Time: Global or per scene Fade Time: Global or per scene Synchronization: Yes, including synchronization across different fixture types
  P3 Video Processing

  System processing depth: 16 bits per color (64 bits per pixel)
  Frame rate: up to 60 frames/sec
  Brightness control: 0-100% (maintaining full color depth)
  Latency between first and last fixture: None
  Gamma Curve Control: Yes, adjustable
  Image Control Parameters: Hue, Saturation, Brightness, Contrast, Lowlight & Gain
  Color temperature control: Variable 1,800 – 12,850 K
  Tint control: Variable green-magenta shift Δuv -0.05 – +0.05
  Color Gamut Control: Real-time

  Control/User Interface Device status: Multi-color visual indication Device test and reset: Magnet sensor to call up local test patterns and reset fixture
  Optics

  Pixel Pitch: 10.00 mm
  Pixel Quantity 1000 mm Variant: 100 RGBW pixels
  Pixel Quantity 320 mm Variant: 32 RGBW pixels
  LED Type: Single RGBW LED per pixel
  Beam Angle (Half Peak): 122x122° (without diffuser/lens installed)
  Field Angle (Tenth Peak): 145x145° (without diffuser/lens installed)
  Beam Angle (Half Peak): 24x84° (with graze lens installed)
  Field Angle (Tenth Peak): 51x130° (with graze lens installed)
  Beam Angle (Half Peak): 16x76° (with blade lens installed)
  Field Angle (Tenth Peak): 31x120° (with blade lens installed)
  Minimum LED lifetime: > 100.000 hours (to > 70% luminous output)*
  * Figure obtained under manufacturer's test conditions at Ta = 25° C

  Photometric Data

  Luminous Output Mixed White (full power mode): 2,300 lumens / m
  Luminous Output Red (full power mode): 640 lumens / m
  Luminous Output Green (full power mode): 1,940 lumens / m
  Luminous Output Blue (full power mode): 350 lumens / m
  Luminous Output Mixed White (half power mode): 1,250 lumens / m
  Luminous Output Red (half power mode): 320 lumens / m
  Luminous Output Green (half power mode): 970 lumens / m
  Luminous Output Blue (half power mode): 175 lumens / m
  Luminous Intensity Mixed White (full power mode): 830 cd / m
  Luminance, Mixed White (full power mode): 27,666 nits (fixtures placed in continuous surface at 30 mm center-to-center)
  CCT: Variable 1,800 K – 12,850 K (+/- 200 K)
  CRI (Color Rendering Index): ≥ 78
  CQS (Color Quality Scale): ≥ 74
  TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 77
  TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 92
  TLCI (Television Lighting Consistency Index): ≥ 61
  LED Refresh Rate: 1,001 Hz or 4,004 Hz (selectable)
  Binning: Tight color and flux binning
  Calibration: Full Gamut Pixel Calibration
  Color Modes: Direct Color Mode, Extended Gamut Mode, Calibrated Color Mode and Linear Video Mode
  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
  * All Photometric Data measured at 6500 K white
  * All Photometric Data without diffuser/lens installed

  Optical Accessories

  Flat Diffuser
  Flat Smoked Diffuser
  Round Diffuser
  Round Smoked Diffuser
  Square Diffuser
  Square Smoked Diffuser
  Tube Diffuser
  Tube Smoked Diffuser
  Graze Lens
  Blade Lens
  Glare Shield
  All optical accessories are interchangeable and clip onto fixtures

  Construction

  Color: Matte Black
  Housing Material: Aluminium
  Protection Rating: IP 65
  Corrosion Resistance: ISO 12944-6: 2018; C3 High, Test regime ISO 9227, 240h

• Installation

  Mounting: Channel for M6 captive nuts on back of fixture
  Mounting Options: M6 bolts, sliding bracket, half coupler, spigot adapter, linear coupler, pivot coupler, parallel coupler or floorstand
  Maximum vertical column height: 6 fixtures
  Orientation: Any
  Location: indoor or temporary outdoor use

  Connections

  DC Power and Network input: cable tail with DCE hybrid connector (7pin)
  DC Power and Network thru: cable tail with DCE hybrid connector (7pin)
  All connections hot plugging compatible

  Electrical

  Nominal Input Voltage: 48 V DC +/- 4%
  Power Supply Options: P3 PowerPort 2000, P3 PowerPort 500 IP Rental, P3 PowerPort 500 IP Install, DCE PSU 240 IP or generic 48 V DC PSU
  Power Consumption 1000 mm Variant
  Typical Full Power Mode: 30.0 W *
  Typical Half Power Mode: 16.9 W *
  Idle: 3.3 W *
  Hibernation: 1.6 W *
  Power Consumption 320 mm Variant
  Typical Full Power Mode: 11.0 W *
  Typical Half Power Mode: 6.5 W *
  Idle: 2.2 W *
  Hibernation: 1.6 W *
  * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  Typical: fixture at full output white.
  Idle: fixture at zero output.
  Hibernation: no output; wake-up procedure required to re-use fixture.

  Thermal

  Cooling: Convection
  Maximum ambient temperature (Ta max.): 50° C (122° F)*
  Minimum ambient temperature (Ta min.): -20° C (-4° F)*
  Typical Heat Dissipation 1000 mm variant (calculated, +/- 10%): 102 BTU/hr.
  Typical Heat Dissipation 320 mm variant (calculated, +/- 10%): 35 BTU/hr.
  * At temperatures above 50° C (122° F), the fixture will automatically limit its output to prevent overheating.
  * At temperatures below 0° C (32° F), the quantity of fixtures per daisy-chain needs to be reduced.


  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant FSC: Certified cardboard inlay and outer packaging Efficacy (max output): 76.6 lm/W LWR*: 1438 lm/kg (657 lm/lbs.)

  * LWR = Lumen-to-Weight Ratio

  Approvals Global CB Certification/IECEE: IEC 62368-1 EU safety: IEC 62368-1 EU EMC: EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3 US safety: UL 62368-1 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No.62368-1 Canadian EMC: ICES-003 Class B Australia/NZ: RCM United Kingdom: UKCA India: BIS IS 10322 (Part 5 / Section 1)
  Included Items

  Square Diffuser
  Square Smoked Diffuser
  2x Cable Clip
  Safety Cable Attachment Eyelet
  Multi-Language Safety and Installation Manual

  Related Items

  P3-175 System Controller: P/N MAR-90721100
  P3-275 System Controller: P/N MAR-90721101
  P3-PC System Controller: Free download from www.martin.com
  Martin Companion Firmware Upload, Addressing and Stand-Alone Programming Software: Free download from www.martin.com

  Accessories

  Transport and Storage
  Flightcase for 10 x VDO Sceptron XB 1000 mm / 30 x VDO Sceptron XB 320 mm: P/N MAR-91515066
  Flightcase Extender for 10 x VDO Sceptron XB 1000 mm / 30 x VDO Sceptron XB 320 mm: P/N MAR-91515067
  VDO Sceptron Flightcase to XB Foam Upgrade Kit: P/N MAR-91515068

  Tools
  Magnetic Test Tool, set of 10: P/N 91610139
  VDO Sceptron Diffuser/Lens Removal Jaws: P/N 91611836

  Diffusers and Lenses 1000 mm
  VDO Sceptron Flat Diffuser 1000 mm: P/N 91610112
  VDO Sceptron Flat Smoked Diffuser 1000 mm: P/N 91610114
  VDO Sceptron Round Diffuser 1000 mm: P/N 91610116
  VDO Sceptron Round Smoked Diffuser 1000 mm: P/N 91610118
  VDO Sceptron Square Diffuser 1000 mm: P/N 91610120
  VDO Sceptron Square Smoked Diffuser 1000 mm: P/N 91610122
  VDO Sceptron Tube Diffuser 1000 mm: P/N 91611640
  VDO Sceptron Tube Smoked Diffuser 1000 mm: P/N 91611660
  VDO Sceptron XB Graze Lens 1000 mm: P/N MAR-91616132
  VDO Sceptron XB Blade Lens 1000 mm: P/N MAR-91616134
  VDO Sceptron XB Glare Shield 1000 mm: P/N MAR-91616138

  Diffusers and Lenses 320 mm
  VDO Sceptron Flat Diffuser 320 mm: P/N 91610111
  VDO Sceptron Flat Smoked Diffuser 320 mm: P/N 91610113
  VDO Sceptron Round Diffuser 320 mm: P/N 91610115
  VDO Sceptron Round Smoked Diffuser 320 mm: P/N 91610117
  VDO Sceptron Square Diffuser 320 mm: P/N 91610119
  VDO Sceptron Square Smoked Diffuser 320 mm: P/N 91610121
  VDO Sceptron Tube Diffuser 320 mm: P/N 91611630
  VDO Sceptron Tube Smoked Diffuser 320 mm: P/N 91611650
  VDO Sceptron XB Graze Lens 320 mm: P/N MAR-91616131
  VDO Sceptron XB Blade Lens 320 mm: P/N MAR-91616133
  VDO Sceptron XB Glare Shield 320 mm: P/N MAR-91616137

  Power and Data Supply Units
  P3 PowerPort 2000: P/N MAR-90721200
  P3 PowerPort 500 IP Rental: P/N MAR-90721201
  P3 PowerPort 500 IP Install: P/N MAR-90721202
  DCE PSU 240 IP: P/N MAR-90721203

  Data Splitter & Booster for Split or Extended Cable Runs
  DCE DataSplitterBooster IP: P/N MAR-90721204

  Pre-Assembled Hybrid DCE Cables
  DC + Ethernet Cable DCE-DCE 1m: P/N MAR-91700100
  DC + Ethernet Cable DCE-DCE 2.5m: P/N MAR-91700101
  DC + Ethernet Cable DCE-DCE 5m: P/N MAR-91700102
  DC + Ethernet Cable DCE-DCE 10m: P/N MAR-91700103
  DC + Ethernet Cable DCE-DCE 25m: P/N MAR-91700104

  Bulk Hybrid DCE Cables
  DC + Ethernet Cable 100m: P/N MAR-91700105
  DC + Ethernet Cable LSZH 100m: P/N MAR-91700106

  Field-Installable DCE Connectors
  Field-installable Connector DCE Male: P/N MAR-91700107
  Field-installable Connector DCE Female: P/N MAR-91700108

  Closing Caps for DCE Connectors
  Closing Cap Male DCE Connector: P/N MAR-91700109
  Closing Cap Female DCE Connector: P/N MAR-91700110

  Hybrid DCE Adapters
  DC + Ethernet Adapter DCE Male-Male: P/N MAR-91700111
  DC + Ethernet Adapter DCE Female-Female: P/N MAR-91700112
  DC + Ethernet Adapter EtherCON+Wires to DCE: P/N MAR-91700113
  DC + Ethernet Adapter DCE to EtherCON: P/N MAR-91700114
  DC + Ethernet Adapter Bare Wires to DCE: P/N MAR-91700115

  Rigging Accessories
  VDO Sceptron Sliding Brackets, set of 10: P/N 91610123
  Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
  VDO Sceptron Low Profile Half Coupler: P/N 91611790
  VDO Sceptron Linear Aligners, set of 10: P/N 91610124
  VDO Sceptron Linear Coupler: P/N 91611843
  VDO Sceptron Parallel Couplers, 30/40/50 mm, set of 10: P/N 91610125
  VDO Sceptron Parallel Couplers, 60/70/80 mm, set of 10: P/N 91610138
  VDO Sceptron Spigot Adapter, 28 mm: P/N 91611791
  VDO Sceptron Floorstands, set of 2: P/N 91611792

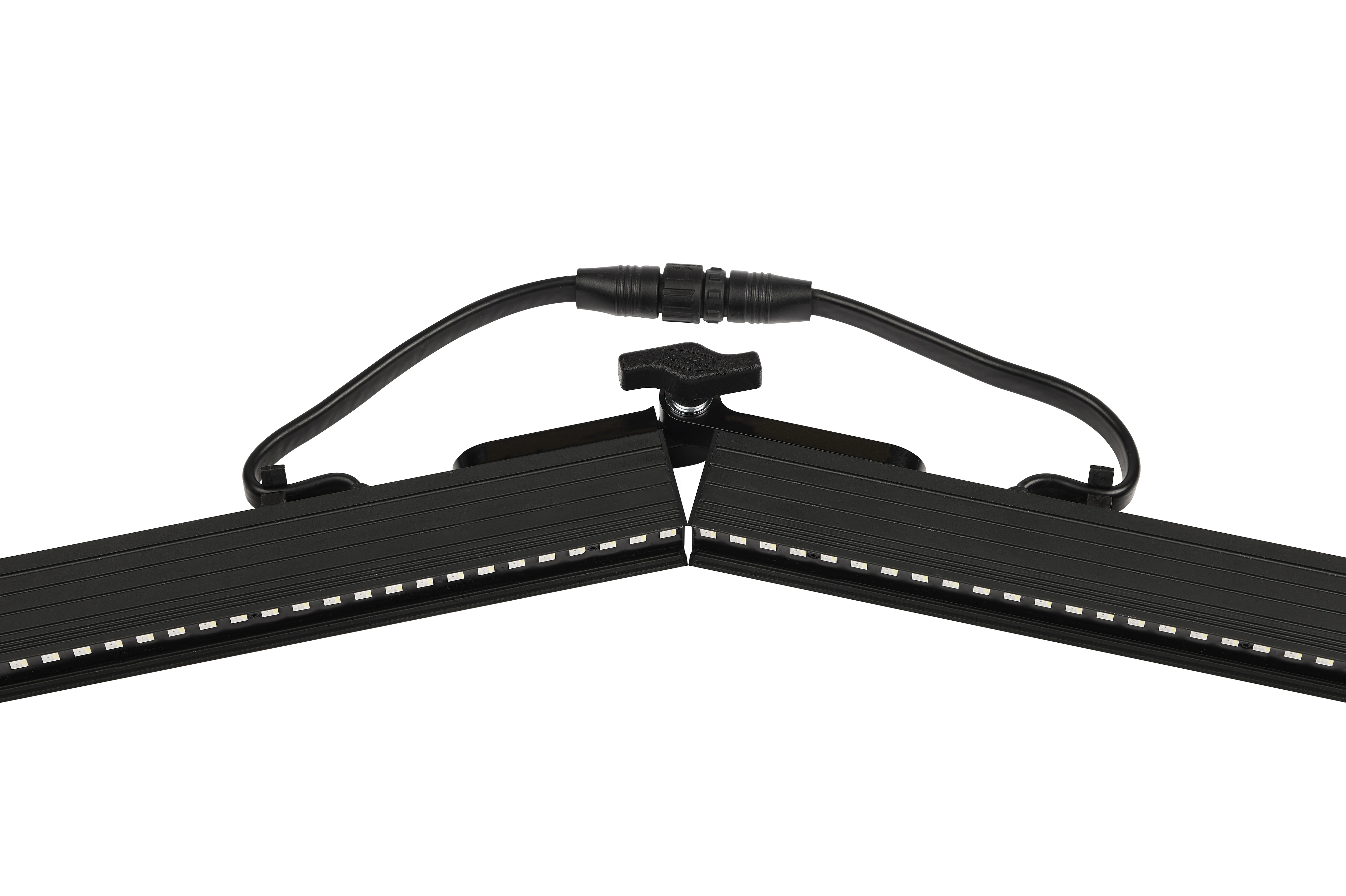

  VDO Sceptron Pivot Coupler: P/N 91611793
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
  Set of 10 VDO Sceptron XB Cable Clips: P/N MAR-91616139

  Spare Parts
  Safety Wire Bracket Assembly: P/N M62420451

  Ordering Information

  VDO Sceptron XB 1000 mm, in cardboard box: P/N MAR-90357902
  VDO Sceptron XB 320 mm, in cardboard box: P/N MAR-90357901

•
