ELP Zoom Lenses

Zoom Lens Accessories for Martin ELP LED Ellipsoidal Lights

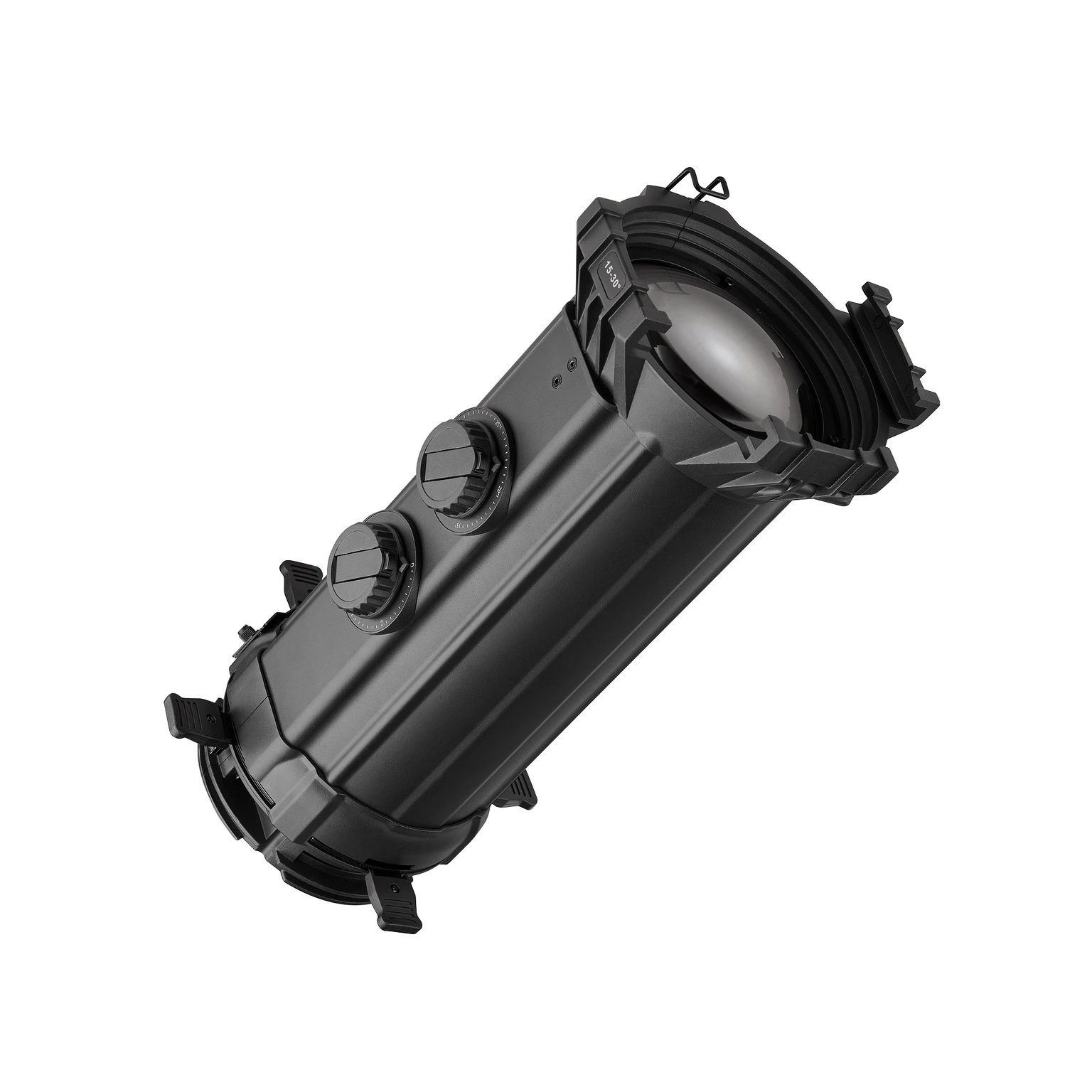

ELP Zoom Lenses

Martin ELP Zoom Lenses expand the versatility and range of ELP CL and WW LED ellipsoidal lights with two industry-standard beam ranges and two housing color variants: Lenses are available in 15-30 degree and 25-50 degree beam ranges, in black or white housing.

An all-new 6-lens design optical design delivers unrivaled optical performance, providing the ultrabright output, unmatched flat projection and crisp focus of a static lens, with the speed and flexibility of a zoom lens. Innovations like independent zoom and focus controls, an anti-slip locking mechanism and a service hatch for easy maintenance and cleaning round out the lenses’ user-friendly features.

Bring new simplicity, flexibility and speed to lighting design with Martin ELP Zoom Lenses.

비디오





특징

  • Zoom range: 15–30 degrees
  • Zoom range: 25–50 degrees
  • All-new 6-lens optical design
  • Flat projection across full zoom range
  • Sharp focus across full image area across full zoom range
  • Independent focus and zoom controls
  • All-in-one gobo/accessory gate and focus control
  • Service hatch allows easy lens cleaning and maintenance
  • Critical components exhibit C3 corrosion resistance
  • 4-blade framing system with sharp focus
  • Color gel frame included
  • Additional mechanical locking system prevents slipping when attached to the body
  • Both lens ranges available in black and white housing variants
  • Weight 6.0 kg (13.2 lbs)

사양

  • Related Items Martin ELP Zoom Lens Tube 15–30°: P/N 9045121618 Martin ELP Zoom Lens Tube 15–30°, White: P/N 9045122108 Martin ELP Zoom Lens Tube 25–50°: P/N 9045121619 Martin ELP Zoom Lens Tube 25–50°, White: P/N 9045122109
    Ordering Information Martin ELP WW (Body Only): P/N 9045107781 Martin ELP WW (Body Only), White: P/N 9045115165 Martin ELP WW IP (Body Only): P/N 9045122813 Martin ELP WW IP (Body Only), White: P/N 9045122815 Martin ELP CL (Body Only): P/N 9045107780 Martin ELP CL (Body Only), White: P/N 9045115164 Martin ELP CL IP (Body Only): P/N 9045122814 Martin ELP CL IP (Body Only), White: P/N 9045122816
