VDO Sceptron 픽스처는 고성능 조명 및 창의적인 비디오 애플리케이션을 위해 설계된 컴팩트하고 고성능의 LED 픽셀 배튼입니다. 조명 디자이너, 렌탈 업체 및 설치 전문가에게 이상적인 VDO Sceptron 모델은 동급 최고의 성능, 타의 추종을 불허하는 다용도성 및 미래 지향적 설계를 제공합니다.

VDO SCEPTRON 제품군 비교



  VDO Sceptron XB VDO Sceptron 10 VDO Sceptron 20 VDO Sceptron 40

VDO Sceptron XB

VDO Sceptron 10

VDO Sceptron 20

VDO Sceptron 40
Pixel Pitch 10 mm 10 mm 20 mm 40 mm
Source RGBW RGB RGB RGB
Output White 2,300 lm / m (full power mode)
1,250 lm / m (half power mode) 		750 lm / m 375 lm / m 187 lm / m
Output R/G/B 640/1940/350 lm / m (full power mode) 205/491/54 lm / m 103/245/27 lm / m 51/123/13 lm / m
ColorBoost Yes No No No
Control Art-Net, sACN & P3 DMX & P3 DMX & P3 DMX & P3
Cabling DCE BBD BBD BBD
Power P3 PowerPort 2000, P3 PowerPort 500 IP Rental, P3 PowerPort 500 IP Install, DCE PSU 240 IP P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W
Environmental Rating IP65 IP65 IP65 IP65
Size 27 x 37 x 1000 mm 27 x 28 x 1000 mm 27 x 28 x 1000 mm 27 x 28 x 1000 mm
Weight 1.6 kg (3.5 lbs) 1.2 kg (2.6 lbs.) 1.2 kg (2.6 lbs.) 1.2 kg (2.6 lbs.)

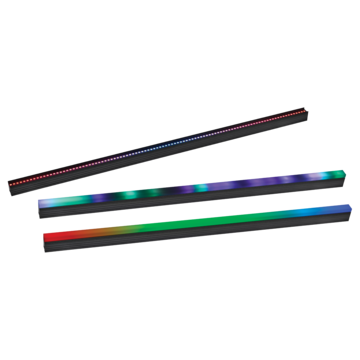

VDO Sceptron XB

고출력 픽셀 배튼

Pixel Pitch: 10 mm

Source: RGBW

Output White : 2,300 lm / m (full power mode)
1,250 lm / m (half power mode)

Output R/G/B: 640/1940/350 lm / m (full power mode)

ColorBoost: Yes

Control: Art-Net, sACN & P3

Cabling: DCE

Power: P3 PowerPort 2000, P3 PowerPort 500 IP Rental, P3 PowerPort 500 IP Install, DCE PSU 240 IP

Environmental Rating: IP65

Size: 27 x 37 x 1000 mm

Weight: 1.6 kg (3.5 lbs)

VDO Sceptron 10

10mm 픽셀 피치 선형 LED 비디오 배튼

Pixel Pitch: 10 mm

Source: RGB

Output White : 750 lm / m

Output R/G/B: 205/491/54 lm / m

ColorBoost: No

Control: DMX & P3

Cabling: BBD

Power: P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W

Environmental Rating: IP65

Size: 27 x 28 x 1000 mm

Weight: 1.2 kg (2.6 lbs.)

VDO Sceptron 20

20mm 픽셀 피치 선형 LED 비디오 배튼

Pixel Pitch: 20 mm

Source: RGB

Output White : 375 lm / m

Output R/G/B: 103/245/27 lm / m

ColorBoost: No

Control: DMX & P3

Cabling: BBD

Power: P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W

Environmental Rating: IP65

Size: 27 x 28 x 1000 mm

Weight: 1.2 kg (2.6 lbs.)

VDO Sceptron 40

40mm 픽셀 피치 선형 LED 비디오 배튼

Pixel Pitch: 40 mm

Source: RGB

Output White : 187 lm / m

Output R/G/B: 51/123/13 lm / m

ColorBoost: No

Control: DMX & P3

Cabling: BBD

Power: P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W

Environmental Rating: IP65

Size: 27 x 28 x 1000 mm

Weight: 1.2 kg (2.6 lbs.)

VDO Sceptron 제품



관련 제품: VDO Dotron, VDO Fatron, VDO Atomic

액세서리

```html

  • P3 POWERPORT

    VDO Sceptron XB 지원 통합 전원 공급 및 데이터 분배 장치

  • P3 POWERPORT LEGACY MODELS

    VDO Sceptron 10/20/40 지원 통합 전원 공급 및 데이터 분배 장치

  • DIFFUSERS & LENSES

    다양한 연출을 위한 현장 교환 가능 광학 액세서리

  • Rigging

    조명기구 설치 및 조합을 위한 다목적 제품군
```
