• Physical Length: 276 mm (10.9 in.) Width: 176 mm (7.0 in.) Height: 356 mm (14.1 in.) Weight: 7.3 kg (16.1 lbs.)

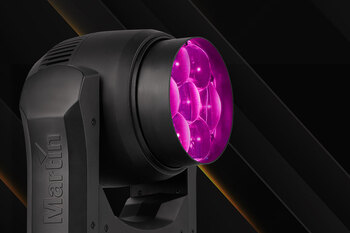

  Dynamic Effects Color mixing: RGBW Color presets: 48 color presets, virtual color wheel effects Zoom: Motorized: 4.2 - 58° Color temperature control: Variable 1,800 - 12,850 K Electronic dimming: 0 - 100%, four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout Pan: 540° Tilt: 260°

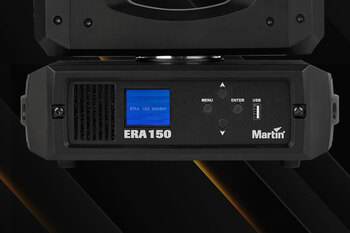

  Control and Programming Control options: DMX, RDM 16-bit fine control: Dimming, RGB, zoom, pan and tilt LED color management modes: Raw, extended and calibrated DMX address setting: Control panel with LCD display DMX channels: 18 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Fixture software update: USB memory device or over DMX link

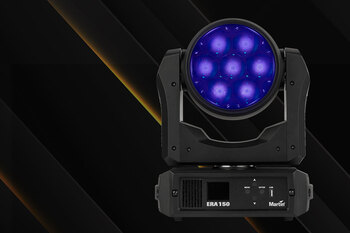

  Optics Light source: 7 x 40 W RGBW Osram LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle (half-peak): 4.2° - 38.7° Field angle (one-tenth peak): 5.1° - 58.6° Cutoff angle (3%): 5.7° - 69.6° Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration
  *Figure obtained under manufacturer's test conditions

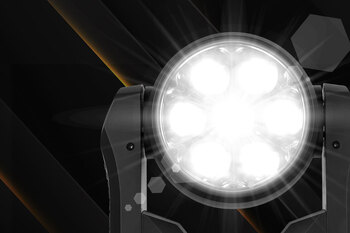

  Photometric Data Wide beam: 3900 lumens Narrow beam: 1774 lumens Fixture Center Intensity Narrow Beam: 397783 cd Fixture Center Intensity Wide beam: 10042 cd CRI (Color Rendering Index) : >70 CQS (Color Quality Scale): 83 TM-30 Rf (IES TM-30-15 Fidelity Index): 77 TM-30 Rg (IES TM-30-15 Gamut Index): 117 TLCI (Television Lighting Consistency Index): 56 CCT: 6500 Kelvin LED refresh rate - Standard Mode: 3600 Hz LED refresh rate - Theatre Mode: 19200 Hz

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP 20
  Installation Mounting points: 2 x quarter‐turn fastener receptacles, 106.5 mm Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.5 m (1.7 ft.) Minimum distance to illuminated surfaces: 1 m (3.3 ft.) Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)
  Connections AC power input/output: Neutrik PowerCON TRUE1 TOP DMX and RDM data in/out: Neutrik 5-pin locking XLR
• Electrical

  AC power: 100-240 V AC nominal, 50/60 Hz
  Power supply unit: Auto-ranging electronic switch mode
  Typical half-cycle RMS inrush current at 240 V, 50 Hz: 8.7 A
  Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 220 V / 230 V / 240 V
  Typical current draw: 3.8 A @ 100 V / 120 V , 1.5 A @ 220 V / 230 V / 240 V *
  Power Consumption
  Typical: 315 W *
  Hibernation: 5 W *
  * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  Typical: full output white, no effects moving, regulated fan speed.
  Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

  Thermal Cooling: Forced air (temperature regulated, low noise) Total heat dissipation (calculated): 1195 BTU/hr.
  *Calculated, +/- 10%, at full intensity, full white

  Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): -10° C (14° F)

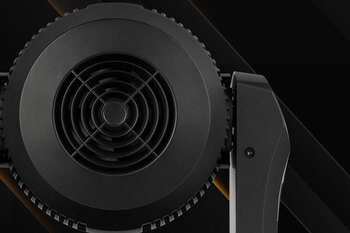

  Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.0 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 34.3 dB(A)
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 15.5 lm/W LWR*: 507 lm/kg (230 lm/lb)

  LWR = Lumen-to-Weight Ratio

  Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM United Kingdom: UKCA
  Included Items Safety and Installation Manual Martin Omega bracket for rigging clamp attachment : P/N 91602001
  Related Items Martin Companion Cable (for firmware update over DMX): P/N 91616091 Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
  Accessories

  Power Input Cables
  Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
  Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786
  Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
  Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174

  Power Linking Cables
  Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
  Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
  Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

  Power Connectors
  Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HU
  Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HU

  Installation Hardware
  G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
  Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
  Half-coupler Clamp: P/N 91602005
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

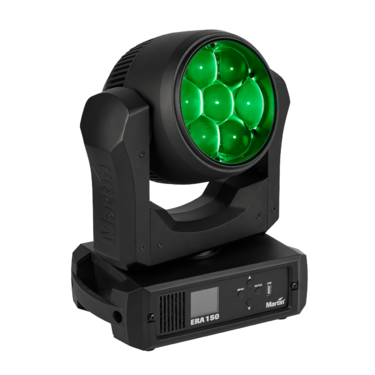

  Ordering Information ERA 150 Wash in cardboard box: P/N MAR-90290000 ERA 150 Wash - White in cardboard box: P/N MAR-90290005
