Length: 447 mm (17.6 in.)Width: 500 mm (19.7 in.)Height: 195 mm (7.7 in.)Weight: 9.3 kg (20.5 lbs.) including bracket
Motorized rotating parabolic mirror dishMotorized mirror drum: 180° pan (swivel) and 360° tilt (continuous rotation)Color / animation wheel: 7 colors plus 2 x open, twinkle animation effectGobo wheel: 13 gobos + open, wheel scrolling and continuous rotation, shake effectShutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackoutPre-programmed effects: Full range of macro effects
Control options: DMX, stand-alone, host/clientDMX channels: 10Stand-alone trigger options: Music trig, auto trigMusic trig also settable via DMXSetting and addressing: Control panel with backlit LCD displayProtocol: USITT DMX512/1990Firmware update: Serial upload via DMX link
Type: 130 W short-arc discharge with reflectorColor temperature: 8800 KAverage lifetime: 6000 hours*
Manual focus: 2 m - 20 m (6 ft. 7 in. - 65 ft. 8 in.)
Housing: High-impact flame-retardant thermoplasticColor(s): BlackProtection rating: IP20
Mounting points: Adjustable bracketOrientation: AnyLocation: Indoor use only, must be fastened to surface or structureMinimum distance to illuminated surfaces: 0.5 m (19.7 in.)Minimum distance to combustible materials: 0.3 m (11.9 in.)Minimum clearance around fan and air vents: 0.3 m (11.9 in.)
AC power in/thru: Neutrik PowerConDMX data in/out: 5-pin locking XLR
AC power: 100-240 V nominal, 50/60 HzTypical total power consumption: 200 W
110 V, 60 Hz: 1.9 A, 200 W, PF 0.99230 V, 50 Hz: 0.9 A, 196 W, PF 0.95
Cooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature: 0° C (32° F)Total heat dissipation (calculated, +/- 10%): 685 BTU/hr.
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR Part 15 Class ACanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241
Lamp (installed)Mounting bracketPower cable, 1.5 m, without mains plug
Cables, 16 A, for connection to power in chainsPower input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9.9 ft.): P/N 11541508Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 1.4 m (4.6 ft.): P/N 11541509Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 2.25 m (7.4 ft.): P/N 11541510Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3.25 m (10.7 ft.): P/N 11541511Power connectorsNeutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey:P/N 05342805DMX linkDMX termination plug, 3-pin male XLR: P/N 91613017Installation hardwareG-clamp: P/N 91602003Half-coupler clamp: P/N 91602005
RUSH™ Software Uploader 1: P/N 91611399

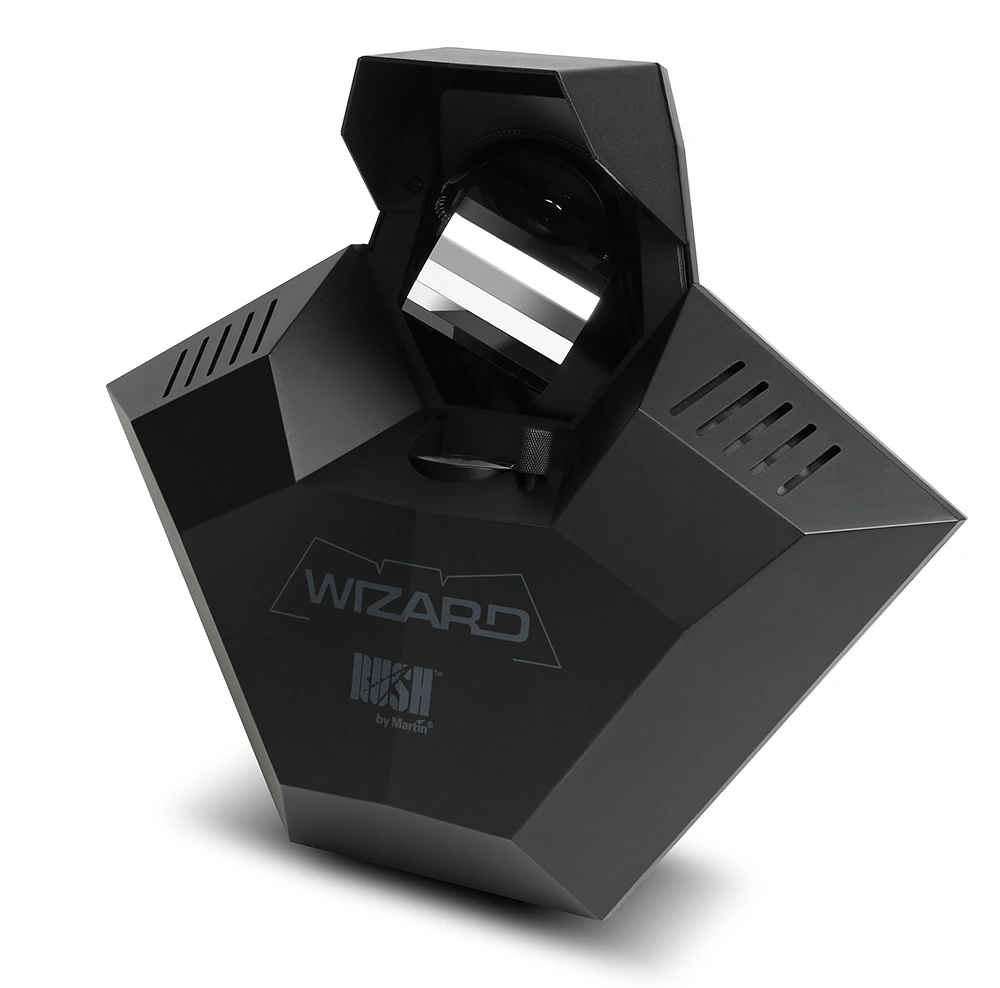

RUSH Wizard™ in cardboard box: P/N 90480070
