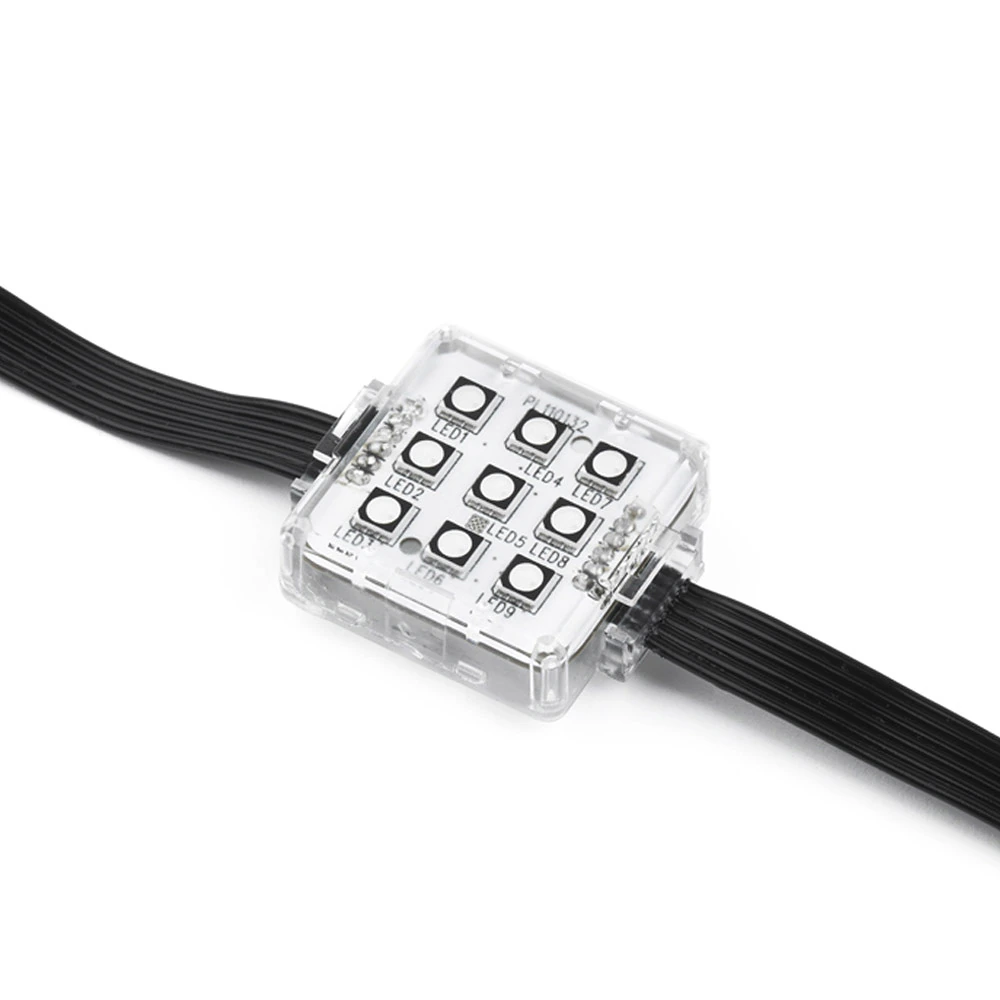

• Physical Pixel dimensions: 48 x 40 x 13 mm (1.9 x 1.6 x 0.6 in.) Pixel dimensions with dome: 48 x 40 x 31 mm (1.9 x 1.6 x 1.3 in.) Weight: 1.8 kg (4.0 lbs.) for 36 Dots, 400 mm (15.8 in.) spacing, with 2 m (6.6 ft.) lead-in cable and connector Maximum number of pixels per string: 36 Standard pixel spacing (pitch): 400 mm (15.8 in.) Minimum pixel spacing (pitch): 150 mm (5.9 in.) Maximum pixel spacing (pitch): 2000 mm (78.8 in.) Standard lead-in cable length: 2000 mm (78.8 in.) Maximum lead-in cable length: 5000 mm (196.9 in.) One pixel = one Dot
  Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Control options: Martin™ P3 System controller and/or DMX Control modes: Calibrated and raw Setting and addressing: P3 System Controller or RDM-compliant controller DMX channels: 3 per RGB Dot, string or group Color and intensity calibration: Dot-level DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20
  Optics Minimum LED lifetime: 50,000 hours (to >70% luminous output)* LED manufacturer: Cree Binning: Tight color and flux binning Calibration: Full Gamut Pixel Calibration *Figure obtained under manufacturer's test conditions
  Photometric Data Light source : Nine RGB LEDs Viewing angle: 127° x 127° Viewing angle with dome: 180° x 180° Luminous intensity, RGB, calibrated mode: 18 cd Luminous intensity, RGB, raw mode: 22.5 cd Total output, RGB, calibrated mode: 55.3 lm Red output, RGB, calibrated mode: 14.8 lm Green output, RGB, calibrated mode: 36.9 lm Blue output, RGB, calibrated mode: 3.6 lm

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Construction Dot: Clear polycarbonate, clear silicone filled Diffuser dome: White translucent polycarbonate Mounting clip: White polycarbonate Interconnecting cable: 6 x 20 AWG, black Minimum cable bend radius: 26 mm (1.1 in.) Protection rating: IP67 RoHS compliant
  Installation Orientation: Any
  Connections Power & data input to VC-Dot string from VC-Feeder™: Custom 8-pin connector, IP67-rated
• Electrical Power and data converter: Martin VC-Feeder™ Peak power consumption (at full intensity, full white): 2.75 W per Dot Typical power consumption (with typical video content): 0.92 W per Dot Operating voltage: 15 VDC Figures for typical video content are indicative only and will vary
  Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 55° C Minimum ambient temperature (Ta min.): -20° C Peak heat dissipation (calculated, at full intensity, full white): 12 BTU/hr. Typical heat dissipation (calculated, with typical video content): 4 BTU/hr. Figures for typical video content are indicative only and will vary
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
  Approvals EU safety: EN 60950-1 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 60950-1 US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. 60950-1 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241 India: BIS
  Related Items Martin VC-Feeder™ with BBD connector: P/N 90357041 Martin P3™ PowerPort 1500: P/N 90721040 Martin P3™ PowerPort 1000 IP Installation: P/N 90721080 Martin P3™ PowerPort 1000 IP Rental: P/N 90721070 Martin DMX PowerPort 375: P/N 90721094 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com
  Accessories

  VC-Dots ribbon cable extension, 10 m (32.8 ft.): P/N 90357230
  Quick splice connectors for VC-Dots ribbon cable extension, set of 15: P/N 90357240
  VC-Dots ribbon cable termination cap, set of 10: P/N 91611400
  VC-Dot 9 Diffuser Domes, set of 10: P/N 90357200
  VC-Dot 9 Diffuser Domes, Smoked, set of 10: P/N 91610108
  VC-Dot 9 Diffuser Spheres, set of 10: P/N 91611530
  VC-Dot 9 Interior Mounting Clips, 10 pcs: P/N 90357170
  VC-Dot 9 Truss Clips, set of 10: P/N 91611373
  VC-Dot 9 Mounting Bracket: P/N 91611303
  VC-Dot 9 Aluminum Mounting Profile, Black, 2 m (6.6 ft.): P/N 91611382
  VC-Dot 9 Mounting Profile Cover, Black, 2 m (6.6 ft.): P/N 91611383
  VC-Dot 9 Mounting Profile End Caps, Black, set of 10: P/N 91611384
  VC-Dot 9 Mounting Profile Cable Entry End Caps, Black, set of 10: P/N 91611385
  VC-Dot 9 Aluminum Mounting Profile, Grey, 2 m (6.6 ft.): P/N 91611394
  VC-Dot 9 Mounting Profile Cover, Grey, 2 m (6.6 ft.): P/N 91611395
  VC-Dot 9 Mounting Profile End Caps, Grey, set of 10: P/N 91611396
  VC-Dot 9 Mounting Profile Cable Entry End Caps, Grey, set of 10: P/N 91611397
  VC-Dot 9 Plastic Mounting Profile, Black, 1.2 m (4.0 ft.): P/N 91611490
  VC-Dot 9 Plastic Mounting Profile Cover, Black, 1.2 m (4.0 ft.): P/N 91611510
  VC-Dot 9 Plastic Mounting Profile, White, 1.2 m (4.0 ft.): P/N 91611500
  VC-Dot 9 Plastic Mounting Profile Cover, White, 1.2 m (4.0 ft.): P/N 91611520

  Ordering Information VC-Dot 9™ RGB, 400 mm (15.8 in.) pitch, 36 pcs., 2 m (6.6 ft.) lead-in: P/N 90357140HU Strings with custom Dot pitch and lead-in length can be manufactured to special order.

•
