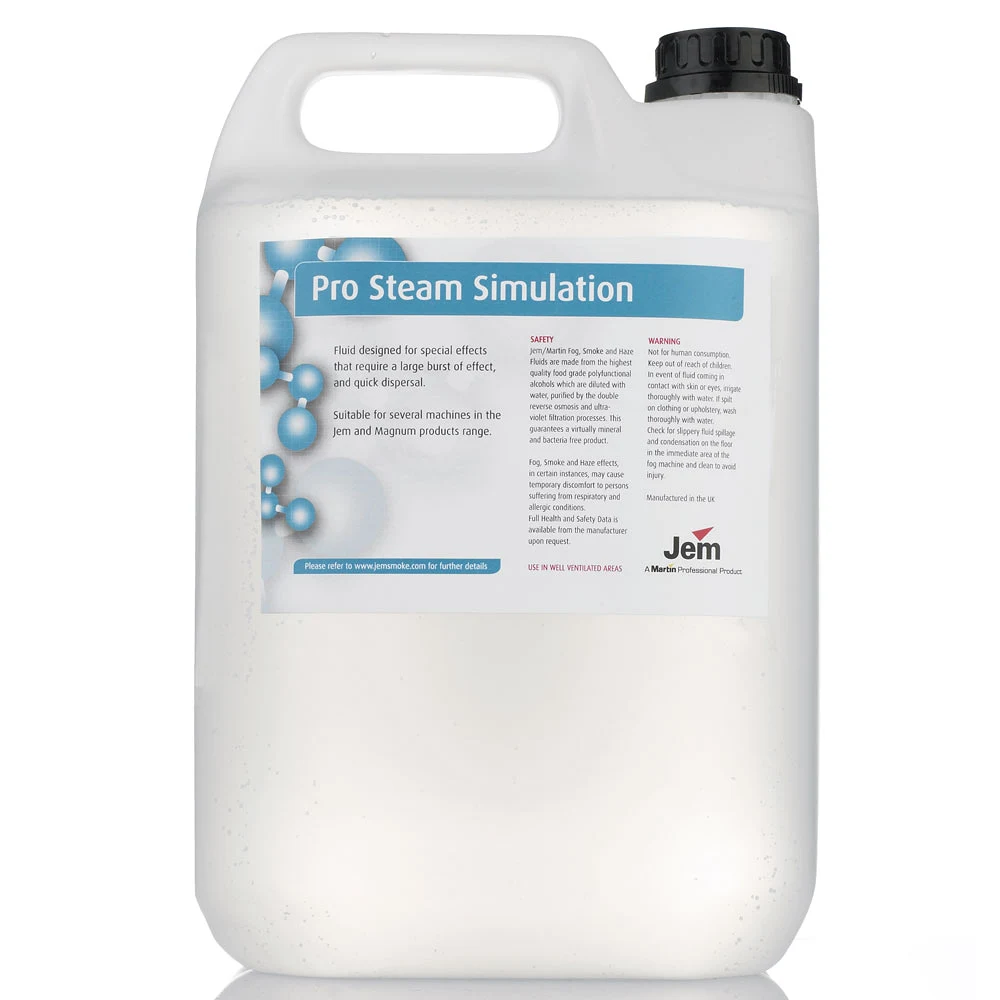

Martin Pro Steam Simulation

Imagens Grandes

JEM Pro Steam Simulation Fluid is a specially formulated water-based fog fluid for use in some JEM fog machines. JEM Pro Steam Simulation Fluid is specifically designed to simulate ‘steam’ or ‘CO²’ effects such as cyro cannons and jets. JEM Pro Steam Simulation Fluid creates a semi-translucent white burst of fog, but dissipates ultra-fast to mimic CO².

Available in 9.5, 25, and 220 l containers.

Dissipates ultra-fast to simulate CO² effects
For use in most Martin Fog Machines
Water based formula

Recursos

Water based formula
Leaves no residue
Ultra-fast dispersion time
Pure white for color
Produced with ultra-pure, de-ionized water
Available in various size containers
For use in all compatible Martin fog effect generators

Mais detalhes

Physical Pro Steam Simulation Fluid, 2.5 gal/9.5 l PN 97120434 Bottle dimensions, 9.5 l: 250 x 245 x 231 mm (9.8 x 9.6 x 9.1 in.) Packaged bottle dimensions (L x W x H): 260 x 260 x 250 mm (10.3 x 10.3 x 9.9 in.) Weight of package: 10 kg (22.1 lb.) Packages per pallet: 48 Pallet dimensions (L x W x H): 1200 x 800 x 1350 mm (47.3 x 31.5 x 53.2 in.) Pallet weight: 495 kg (1092 lb.) Pro Steam Simulation Fluid, 25 l: P/N 97120433 Container dimensions, 25 l (L x W x H): 440 x 270 x 250 mm (17.4 x 10.7 x 9.9 in.) Container weight: 26 kg (58 lb.) No outer packaging Containers per pallet: 24 Pallet dimensions (L x W x H) : 1200 x 800 x 1400 mm (47.3 x 31.5 x 47.3 in.) Pallet weight: 639 kg (1409 lb.) Pro Steam Simulation Fluid, 220 l: P/N 97120435 Container dimensions, 220 l (L x W x H): 600 x 600 x 900 mm (23.7 x 23.7 x 35.5 in.) Container weight: 230 kg (508 lb.) Containers par pallet: 2 No outer packaging Pallet dimensions (L x W x H): 1200 x 800 x 1100 mm (47.3 x 31.5 x 47.3 in.) Pallet weight: 475 kg (1048 lb.)

Thermal Minimum operating temperature (Ta min): 5° C (41° F) Maximum ambient temperature (Ta max.): 40° C (104° F)

Storage Upright only Ambient temperature: 10 - 30° C (50 - 86° F) Shelf life maximum, sealed: 5-Year Shelf life, opened: 2-Year reduction once opened from maximum See Safety Data Sheets (SDS) for comprehensive safety and storage information.

Ordering Information Pro Steam Simulation Fluid, 2.5 gal/9.5 L: P/N 97120434 Pro Steam Simulation Fluid, 25 l: P/N 97120433 Pro Steam Simulation Fluid, 220 l: P/N 97120435

Downloads

Compliances

	Versão	Idioma	Tamanho	Enviado
SIKKERHEDSDATABLAD, MARTIN EFFEKT VÆSKER versão N, atualizado: fev 2025	N		343 KB	fev 2025
Ficha de Dados de Segurança, MARTIN FLUIDOS PARA EFEITOS versão N, atualizado: fev 2025	N		362 KB	fev 2025
SIKKERHETSDATABLAD, MARTIN EFFEKTVÆSKER versão O, atualizado: fev 2025	O		346 KB	fev 2025
SCHEDA DI DATI DI SICUREZZA, Fluidi per effetti Martin versão N, atualizado: fev 2025	N		350 KB	fev 2025
FICHE DE DONNÉES DE SÉCURITÉ, LIQUIDES A EFFET MARTIN versão N, atualizado: fev 2025	N		355 KB	fev 2025
VEILIGHEIDSINFORMATIEBLAD (VIB) MARTIN‐EFFECTVLOEISTOFFEN versão N, atualizado: fev 2025	N		349 KB	fev 2025
SAFETY DATA SHEET, MARTIN EFFECT FLUIDS versão N, atualizado: fev 2025	N		293 KB	fev 2025
FICHA DE SEGURIDAD LÍQUIDOS PARA EFECTOS DE MARTIN versão N, atualizado: fev 2025	N		388 KB	fev 2025

Service Notes

	Versão	Idioma	Tamanho	Enviado
Particle Size, Fluid Density and Refractive Index Values versão B, atualizado: jun 2018	B			jun 2018
Effect Fluids Cross References versão B, atualizado: out 2020	B		92,3 KB	out 2020
Martin Effect Fluid Guidelines versão B, atualizado: jun 2018	B			jun 2018
Martin Atmospheric Effect Fluid Matrix versão C, atualizado: jun 2018	C			jun 2018
