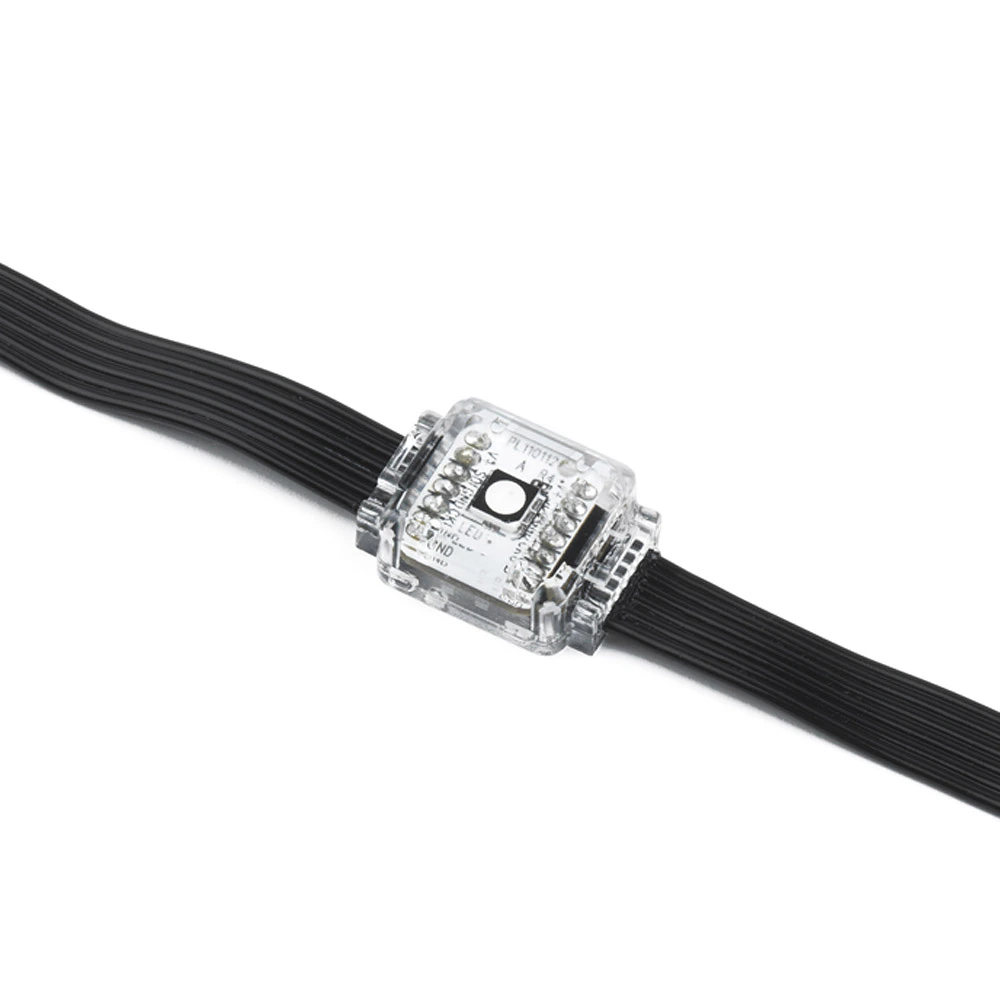

• Physical Pixel dimensions: 28 x 23 x 11 mm (1.1 x 0.9 x 0.5 in.) Pixel dimensions with dome: 28 mm x 23 mm x 20 mm (1.1 x 0.9 x 0.8 in.) Peso: 1.3 kg (2.9 lbs.) for 100 Dots, 100 mm (4.0 in.) spacing, with 2 m (6.6 ft.) lead-in cable and connector Maximum number of pixels per string: 100 Standard pixel spacing (pitch): 100 mm (4.0 in.) Minimum pixel spacing (pitch): 100 mm (4.0 in.) Maximum pixel spacing (pitch): 1000 mm (39.4 in.) Standard lead-in cable length: 2000 mm (78.8 in.) Maximum lead-in cable length: 5000 mm (196.9 in.) One pixel = one Dot
  Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Control options: Martin™ P3 System controller and/or DMX Control modes: Calibrated and raw Setting and addressing: P3 System Controller or RDM-compliant controller DMX channels: 3 per RGB Dot, string or group Color and intensity calibration: Dot-level DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20
  Optics Minimum LED lifetime: 50,000 hours (to >70% luminous output)* LED manufacturer: Cree Binning: Tight color and flux binning Calibration: Full Gamut Pixel Calibration *Figure obtained under manufacturer´s test conditions.
  Photometric Data Light source : One RGB LED Viewing angle: 127° x 127° Viewing angle with dome: 180° x 180° Luminous intensity, RGB, calibrated mode: 2 cd Luminous intensity, RGB, raw mode: 2.5 cd Total output, RGB, calibrated mode: 5.4 lm Red output, RGB, calibrated mode: 1.5 lm Green output, RGB, calibrated mode: 3.6 lm Blue output, RGB, calibrated mode: 0.4 lm

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Construction Dot: Clear polycarbonate, clear silicone filled Diffuser dome: White translucent polycarbonate Mounting clip: White polycarbonate Interconnecting cable: 6 x 20 AWG, black Minimum cable bend radius: 26 mm (1.1 in.) Protection rating: IP67 RoHS compliant
  Installation Orientation: Any
  Connections Power & data input to VC-Dot string from VC-Feeder™: Custom 8-pin connector, IP67-rated
• Electrical Power and data converter: Martin VC-Feeder™ Peak power consumption (at full intensity, full white): 0.95 W per Dot Typical power consumption (with typical video content): 0.32 W per Dot Operating voltage: 15 VDC Figures for typical video content are indicative only and will vary.
  Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 55° C Minimum operating temperature (Ta min): -20° C Peak heat dissipation (calculated, at full intensity, full white): 1.4 BTU/hr. Typical heat dissipation (calculated, with typical video content): 0.5 BTU/hr. Figures for typical video content are indicative only and will vary
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
  Approvals EU safety: EN 60950-1 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: UL 60950-1 US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. 60950-1 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241 India: BIS
  Related Items Martin VC-Feeder™ with BBD connector: P/N 90357041 Martin P3™ PowerPort 1500: P/N 90721040 Martin P3™ PowerPort 1000 IP Installation: P/N 90721080 Martin P3™ PowerPort 1000 IP Rental: P/N 90721070 Martin DMX PowerPort 375: P/N 90721094 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com
  Accessories

  VC-Dots ribbon cable extension, 10 m (32.8 ft.): P/N 90357230
  Quick splice connectors for VC-Dots ribbon cable extension, set of 15: P/N 90357240
  VC-Dots ribbon cable termination cap, set of 10: P/N 91611400
  VC-Dot 1 Diffuser Domes, set of 10: P/N 90357180
  VC-Dot 1 Diffuser Domes, Smoked, 10 pcs: P/N 91610110
  VC-Dot 1 Mounting Clips, set of 10: P/N 90357210
  VC-Dot 1 Truss Clips, set of 10: P/N 91611371
  VC-Dot 1 Mounting Bracket: P/N 91611301
  VC-Dot 1 Mounting Profile Cover, Black, 2 m (6.6 ft.): P/N 91611375
  VC-Dot 1 Mounting Profile End Caps, Black, set of 10: P/N 91611376
  VC-Dot 1 Mounting Profile Cable Entry End Caps, Black, set of 10: P/N 91611377
  VC-Dot 1 Aluminum Mounting Profile, Grey, 2 m (6.6 ft.): P/N 91611386
  VC-Dot 1 Mounting Profile Cover, Grey, 2 m (6.6 ft.): P/N 91611387
  VC-Dot 1 Mounting Profile End Caps, Grey, set of 10: P/N 91611388
  VC-Dot Mounting Profile Cable Entry End Caps, Grey, set of 10: P/N 91611389
  VC-Dot 1 Plastic Mounting Profile, Black, 1.2 m (4.0 ft.): P/N 91611410
  VC-Dot 1 Plastic Mounting Profile Cover, Black, 1.2 m (4.0 ft.): P/N 91611420
  VC-Dot 1 Plastic Mounting Profile, White, 1.2 m (4.0 ft.): P/N 91611430
  VC-Dot 1 Plastic Mounting Profile Cover, White, 1.2 m (4.0 ft.): P/N 91611440

  Ordering Information VC-Dot 1™ RGB, 100 mm (4.0 in.) pitch, 100 pcs., 2 m (6.6 ft.) lead-in: P/N 90357060HU Strings with custom Dot pitch and lead-in length can be manufactured to special order.

•
