Length: 668 mm (26.3 in.)Width: 1058 mm (41.7 in.)Height: 204 mm (8.1 in.)Weight: 37.5 kg (82.7 lbs.)Shipping weight (in flightcase): TBA
Protocol: DMX512A (RDM), Art-Net28 DMX universes, expandable to 644096 channels, expandable to 32768No limit to number of DMX channels per fixtureExtensive fixture library for all known manufacturers65000 presets for each group of functions (P/T, color, gobo, etc.)Effect generator for automated programming of complex effectsRelative or absolute programmingFan function for all channels (including timing parameters)On-the-fly global timing changesVirtual cuelistsMacrosWait, follow and link cuesHTP, LTP, chase, timecode, submaster and group master playback functionalityIndividual parameter timingsIntuitive patch featureFixture type cloningAll channels with 16-bit resolution
2 x positionable 15.6" BriteTouch™ widescreens (sunlight readable, multi-touch), 1376x7682 x external DisplayPort touchscreens, both up to 1920x10802 x FastTouch™ 3.5” touchscreens, 320x2401 x LiveBlender™ split T-bar8 x FastBlend™ RGB buttons4 x FastTracks™ linear encoders with LED feedback12 x FastDial™ rotary encoders1 x dedicated dimmer wheel10 x motorized playbacks with LCD displays and 4 x customizable buttons with LCD displays10 x PlayPairs™ buttons with LCD displays12 x sub playback buttons12 x sub playback faders12 x F-keys5 x Fastkeys™2 x independent Main GO sectionsBank navigation with digital displayNumerical keypadCommand buttonsTrackball with two selection buttons
Assign a cue, cuelist or effect to any playback fader500 playback banks, each containing 20 playbacks100 sub playback banks, each containing 24 playbacks100 pages of 100 playbacks activated by touchscreen buttonNo limit to cues per cuelistFull 16-bit fading for high-resolution fixturesIndividual fade in/fade out times for all playbacksManual override available at all timesLive 0-100% override of global cue timingsLive programmer timing (“Sneak”)Cuelists can be executed in tracking or non-tracking mode
Industrial motherboard, Intel Core i7 Quad-Core processor16 GB RAM64 GB SSD storage driveDedicated graphics processorUp to 64 DMX universes directly from the console network ports
Windows 7 embeddedOS installation by USB storage deviceShow backup on hard disk or USB storage device (not included)Support for ELO USB touchscreens
4 x DMX universe outputs: 5-pin locking XLR1 x DMX input: 5-pin locking XLR2 x external touchscreens (both up to 1920x1080):DisplayPortArt-Net (up to 64 universes): Gigabit Ethercon RJ-45MaxNet controller link: Gigabit Ethercon RJ-45Peripherals and USB memory devices: 2 x USB 3.0, 8 x USB 2.0SMPTE In/Out: 3-pin locking XLRVITC In/Out: BNCMIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): 5-pin DINStereo audio In/Out: 3-pin locking XLRMicrophone: 3-pin locking XLR2 x desk lamps (optional accessories): 3-pin locking XLRAC power input: Neutrik PowerCon
AC power: 100-240 V nominal, 50/60 HzMaximum current: 4 A at 115 V, 2 A at 230 V
Martin One-Key™ with Martin ShowDesigner 6 Pro™ one-year license and Martin™ M-PC 8 universes licenseNeutrik PowerCon NAC3FCA power input connector, cable mount: P/N 053428042 x integrated LED desk lampsUSB flash recovery driveDust cover for M6: P/N 91613111

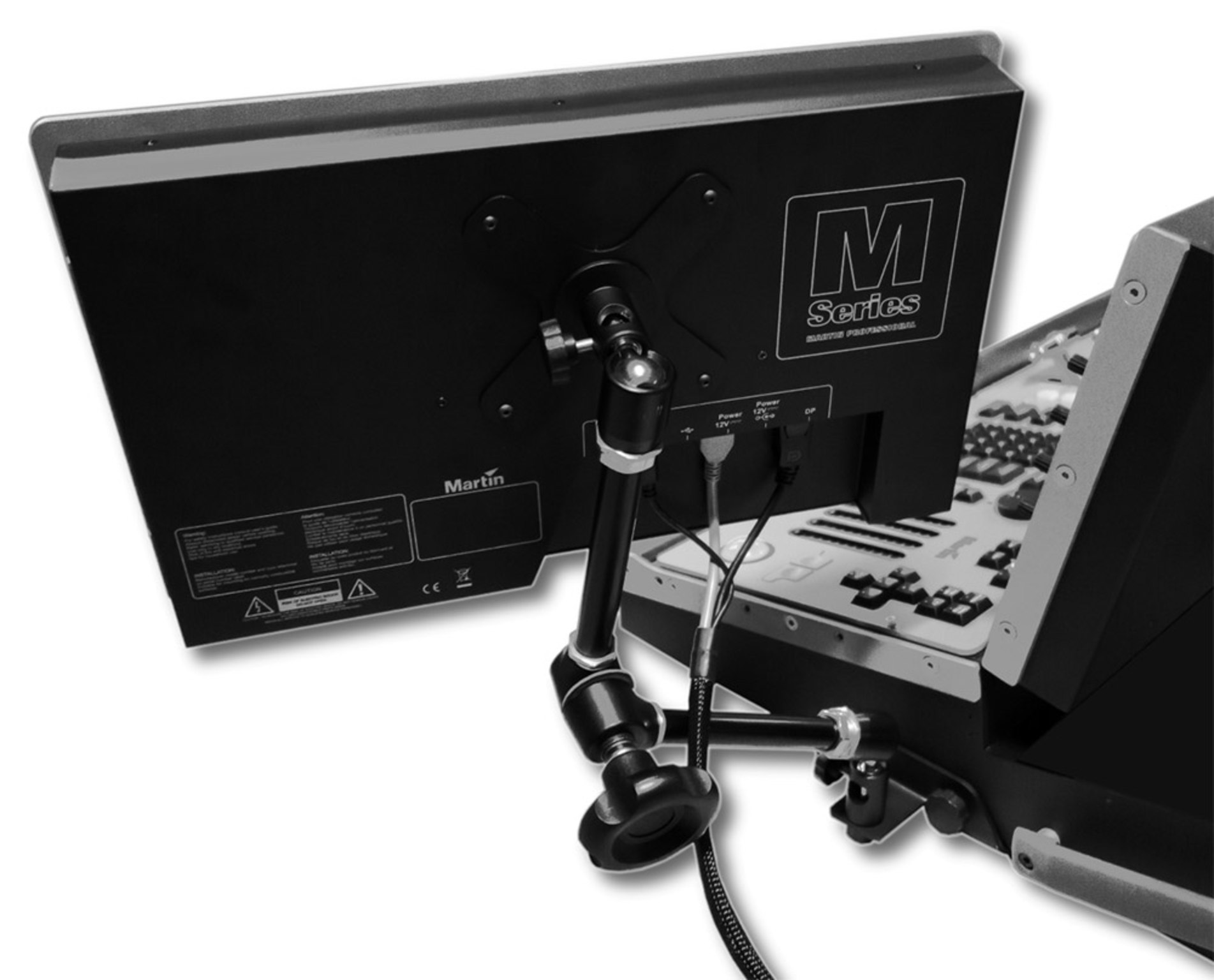

M-Series™ Top Submaster Narrow Module: P/N 91613105M-Series™ Top Transition Module: P/N 91613107M-Series™ Touchscreen 15.6" Module: P/N 91613108M-Series™ VESA Mounting Plate for Touchscreen Module: P/N 91613109LED desklight, angular XLR, 13": P/N 91613090LED desklight, angular XLR, 18.5": P/N 91613037Martin™ M6 flightcase: P/N 91535080Martin™ M-PC 2U / M-DMX: P/N 90737070
M-Series Submaster Module: P/N 90732170M-Series Playback II Module: P/N 90732190Martin™ M-Touch: P/N 90737040Martin™ M-Play: P/N 90737030
M6 Controller in flightcase with 64 universes: P/N 90737050
