MAC Viper Wash

高输出放电式洗光灯具,配备CMY色彩混合

MAC Viper Wash
较大的图像

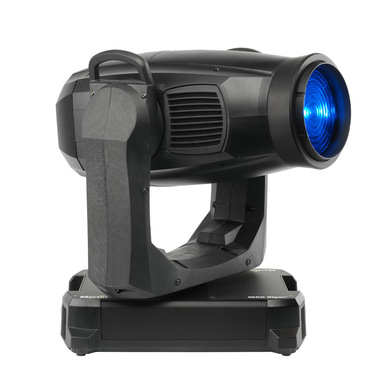

MAC Viper Wash是一款全光谱洗光灯,能够达到专业洗光灯所应具备的高性能水平。它具有出色的光质量,颜色选择无限,整个光束范围内颜色稳定性极佳。在整个变焦范围内保持接近满功率效率,从窄光束变焦到宽光束时无明显光束跳动。MAC Viper Wash采用了MAC Viper Profile享誉业界的紧凑造型、快速响应、卓越光质量和绚丽色彩,并采用相同的1000瓦灯泡。

  • 33000流明 – 卓越的光质量,均匀照度和6000K色温
  • 1:5变焦 – 连续快速变焦
  • CMY – 生动的色彩混合,提供优越的调色板,包括真红色、深琥珀色、原色绿和深蓝色

特点

  • 33000 流明 – 优秀的光质量,均匀的光场和 6000K 色温
  • 1:5 变焦 - 连续快速变焦
  • CMY – 鲜艳的色彩混合,色彩范围广泛,包括真实红色、丰富琥珀色、原色绿色和深蓝色
  • 线性 CTO – 日光至钨光色温控制和 CMY 调色板的扩展
  • 调光器和快门 - 集调光器/快门系统于一身,具有强度效果、即时全黑/全开和平滑渐变功能
  • 多种频闪效果

性能

  • 物理特性 长度: 472 mm (18.6 in.) base 566 mm (22.3 in.) head 宽: 473 mm (18.6 in.) 335 mm (13.2 in.) base 高: 732 mm (28.8 in.) head straight up 749 mm (29.5 in.) maximum 重量: 33 kg (72.8 lbs.) Minimum center-to-center distance in side-by-side installation: 650 mm (25.6 in.)
    Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Zoom: Motorized Color temperature control: CTO, variable 6000 - 3200 K Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout Dimming options: Choice of four dimming curves Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Focus: Range varies with zoom angle, from 2 m / 6 m to infinity (approx.)
    Control and Programming Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX 16-bit control: Dimmer, pan, tilt DMX channels: 18/24 Receiver: Opto-isolated RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: USB memory device or USB/DMX hardware interface over DMX link
    Optics Zoom range: 13.5° - 59° (1:5) Color temperature: 3,200 – 6,000 K

    输出

    : 33,000 lm
    Photometric Data

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Lamp Type: 1000 W short-arc discharge CRI (Color rendering index): >85 Average lifetime: 750 hours Socket: PGJX36 Ballast: Electronic Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
    Service Utilities Fixture identification: User-settable fixture ID number
    Construction Housing: UV-resistant fiber-reinforced composite 颜色: Black Reflector: Glass, cold light Protection rating: IP20
    Installation Mounting points: Eight quarter-turn locking points Orientation: Any Minimum distance to combustible materials: 0.3 m (1.0 ft.) Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
    Connections AC power input: Neutrik PowerCon 电源连接器: Power Connector PowerCON Female : P/N 91611794 DMX and RDM data in/out: 5-pin locking XLR USB memory devices: USB host socket
  • Electrical

    AC power: 120-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 16.2 A
    Power Factor: 0.99 @ 120 V /208 V / 230 V / 240 V
    Typical current draw: 10.3 A @ 120 V , 5.8 A @ 208 V , 5.2 A @ 230 V , 5.0 A @ 240 V *
    Power Consumption
    Typical: 1225 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.

    Thermal 散热: Filtered forced air (temperature-regulated, low noise) Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 28 lm/w LWR*: 1,000 lm/kg (453 lm/lb)

    LWR = Lumen-to-Weight Ratio

    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547 US safety: UL 1573 (pending) US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 (CSA E60598-1) (pending) Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items Lamp (installed): P/N 97010346 Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001 Safety and installation manual: P/N 35000258
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader):

    Free download from www.martin.com

    Accessories Power Input Cables:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Power connectors:

    Power Connector PowerCON Female : P/N 91611794

    PC Lens Kit for MAC Viper™ Wash: P/N 91614050 T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008 Half-coupler (tube) clamp: P/N 91602005 G-clamp (suspension with yoke vertically downwards only): P/N 91602003 Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007 Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007 Flightcase for 2 x MAC Viper: P/N 91510180
    Spare Parts Osram HTI 1000/PS Lok-it lamp: P/N 97010346 Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270
    Ordering Information MAC Viper™ Wash in cardboard box: P/N 90233050 MAC Viper™ Wash in double flightcase: P/N 90233060
    Shipping Information In cardboard carton:

    Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
    Shipping weight: 39 kg (86.0 lbs.)
    Quantity on pallet: 8 fixtures
    Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
    Pallet weight (incl. pallet): 334 kg (736.4 lbs.)

    In double flightcase:

    Shipping dimensions (LxWxH): 1200 x 580 x 850 mm (47.3 x 22.9 x 33.5 in.)
    Shipping weight: 70 kg (154.4 lbs.)
    Quantity on pallet: 4 fixtures
    Pallet dimensions (LxWxH): 1200 x 1220 x 1010 mm (47.3 x 48.1 x 39.8 in.)
    Pallet weight (incl. pallet): 302 kg (665.8 lbs.)

下载

Specifications
  版本 语言 大小 上传日期
en  557.8 KB 10月 2021
file type icon MAC Viper Family - Flightcase Spec Sheet
en 版本 A, 更新: 10月 2021
en  416.7 KB 10月 2021
file type icon MAC Viper Wash - Spec Sheet
en 版本 A, 更新: 10月 2021
en  416.6 KB 10月 2021
Manuals
  版本 语言 大小 上传日期
Minor error in DMX protocol, User Guide Rev. A
en 版本 A, 更新: 5月 2018
A   en    5月 2018
file type icon Sicherheits- und Installationshinweise
de 版本 B, 更新: 5月 2018
de  6.0 MB 5月 2018
file type icon Safety and Installation Manual
en 版本 B, 更新: 5月 2018
en  8.9 MB 5月 2018
file type icon Guide de l´utilisateur
fr 版本 B, 更新: 5月 2018
fr  409.3 KB 5月 2018
file type icon User Guide
en 版本 B, 更新: 5月 2018
en  1.4 MB 5月 2018
file type icon MAC Viper Profile- User Guide
en 版本 A, 更新: 5月 2018
en  9.1 MB 5月 2018
de  1.6 MB 5月 2018
file type icon Manuel d´utilisation et sécurité
fr 版本 B, 更新: 5月 2018
fr  1.5 MB 5月 2018
Photometrics
  版本 语言 大小 上传日期
file type icon MAC Viper Wash - Photometric Files
en 版本 A, 更新: 3月 2024
en  206.2 KB 3月 2024
Illustrations
  版本 语言 大小 上传日期
file type icon MAC Viper Wash Dimensions 2D (PDF)
en 版本 A, 更新: 5月 2018
en  115.2 KB 5月 2018
file type icon MAC Viper Wash Dimensions 2D (DXF)
en 版本 A, 更新: 5月 2018
en  6.6 MB 5月 2018
Symbols
  版本 语言 大小 上传日期
file type icon Vectorworks Symbols
en 版本 4.6, 更新: 1月 2026
4.6  en  248.9 MB 1月 2026
file type icon AutoCAD 3D Symbols
en 版本 2.8, 更新: 1月 2026
2.8  en  18.7 MB 1月 2026
file type icon AutoCAD 2D Symbols
en 版本 2.8, 更新: 1月 2026
2.8  en  4.4 MB 1月 2026
file type icon Martin Professional GDTF Library
en 版本 A, 更新: 10月 2023
en  203 字节 10月 2023
CAD Drawings
  版本 语言 大小 上传日期
en  3.5 MB 5月 2018
en  3.7 MB 5月 2018
file type icon MAC Viper Wash - Vertical (3D DWG)
en 版本 A, 更新: 5月 2018
en  3.0 MB 5月 2018
file type icon MAC Viper Wash - Horizontal (3D DWG)
en 版本 A, 更新: 5月 2018
en  3.2 MB 5月 2018
Compliances
  版本 语言 大小 上传日期
file type icon Safety Document (SDS) for Batteries
en 版本 D, 更新: 1月 2026
en  331.8 KB 1月 2026
en  728.8 KB 3月 2019
file type icon MAC Viper Series - ETL Listing Verification
en 版本 C, 更新: 10月 2020
en  397.5 KB 10月 2020
Software
  版本 语言 大小 上传日期
Software v. 1.1.0 and user documentation
en 版本 A, 更新: 6月 2018
A   en    6月 2018
Parts
  版本 语言 大小 上传日期
MAC Viper - New part number for yoke handle
en 版本 A, 更新: 5月 2018
A   en    5月 2018
MAC Viper Series - Alternative Lamp Approved
en 版本 A, 更新: 5月 2018
A   en    5月 2018
Service Procedures
  版本 语言 大小 上传日期
file type icon MAC Viper Wash - Maintenance Schedule (End-User)
en 版本 1.1.0, 更新: 5月 2018
1.1.0  en  106.5 KB 5月 2018
Service Notes
  版本 语言 大小 上传日期
MAC Viper Series - Correct lamp socket is PGJX36
en 版本 A, 更新: 5月 2018
A   en    5月 2018
MAC Viper Series - Air Filter Options
en 版本 A, 更新: 5月 2018
A   en    5月 2018
MAC Viper Profile - Live heat sink in base
en 版本 A, 更新: 5月 2018
A   en    5月 2018
  743.0 KB 10月 2020
en  402.6 KB 5月 2018
en  1.8 MB 10月 2020
Tech Notes
  大小 上传日期
9月 2017
9月 2017
file type icon MAC Viper Air Filter Options
更新: 9月 2017
9月 2017
file type icon MAC Viper Service Notes
更新: 9月 2017
9月 2017
file type icon MAC Viper Parts
更新: 9月 2017
9月 2017
10月 2017
Hints and Tips
  版本 语言 大小 上传日期
Discharge Lighting Shutdown Guidelines
en 版本 A, 更新: 5月 2018
A   en    5月 2018
Avoiding damage from sunlight and other light sources
en 版本 B, 更新: 5月 2018
B   en    5月 2018
Firmware
  版本 大小 上传日期
download icon for MAC Viper Wash - Firmware MAC Viper Wash - Firmware
版本 2.3.0B, 更新: 5月 2026
2.3.0B   5月 2026
