Martin PDE BreakIn Cable

较大的图像

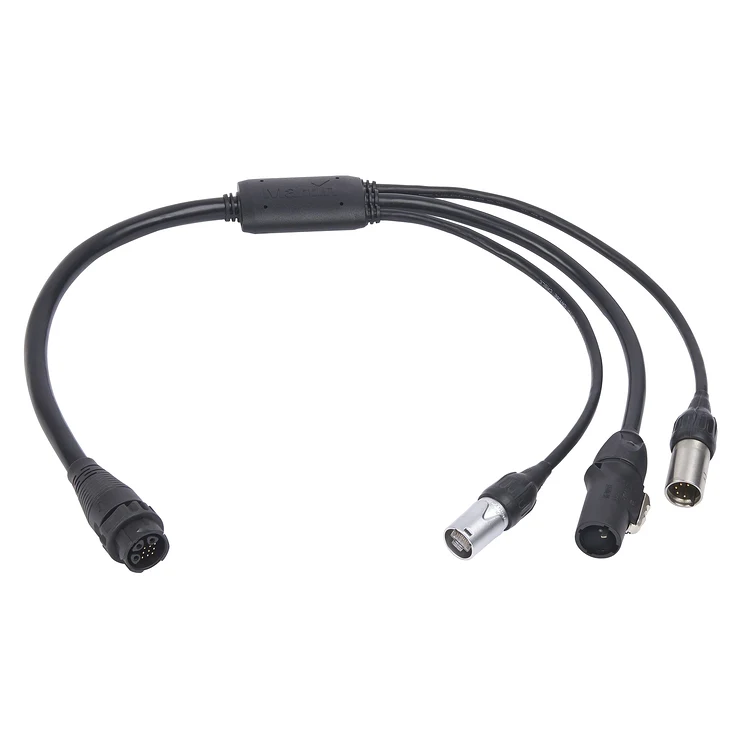

Martin PDE BreakIn 电缆将电源、DMX 和以太网信号合并为单个连接器和电缆系统,用于 Martin VDO Atomic 系列灯具。

该电缆具有完整的 IP65 防护等级,适用于户外使用,并采用坚固的连接器。

特点

powerCON TRUE1 TOP power input
XLR 5 TOP DMX input
etherCON TOP Ethernet input
Martin PDE Hybrid output
IP65 rated

性能

物理特性长度: 500 mm (19.7 in.) 重量: 325 g (0.52 lbs.)

Construction Housing: PVC 颜色: Black Protection rating: IP65 Cable Jacket: PVC

Installation Location: indoor or temporary outdoor use Orientation: Any

Connections
AC power input: Neutrik powerCON TRUE1 TOP (IP65)
Ethernet Input: Neutrik etherCON TOP (IP65)
DMX input: Neutrik XLR 5-pin Male TOP (IP65)
AC Power, DMX and Network out: PDE hybrid connector (IP65)
All connections hot plugging compatible

Electrical AC power: 100-240V AC nominal, 50/60Hz
Thermal Maximum ambient temperature (Ta max.): 75° C Minimum ambient temperature (Ta min.): -15° C

Environmental RoHS: Compliant REACH: Compliant

Related Items
Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002
Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003
VDO Atomic Dot CLD in cardboard: P/N 90357701
VDO Atomic Dot WRM in cardboard: P/N 90357702
VDO Atomic Bold in cardboard: P/N MAR-90357703

Accessories
Pre-Assembled Hybrid PDE Cables
Power+Data Cable Rental PDE-PDE 1 m: P/N 91616001
Power+Data Cable Rental PDE-PDE 2.5 m: P/N 91616002
Power+Data Cable Rental PDE-PDE 5 m: P/N 91616003
Power+Data Cable Rental PDE-PDE 10 m: P/N 91616004
Power+Data Cable Rental PDE-PDE 25 m: P/N 91616005

Bulk Hybrid PDE Cable and Connectors
Power+Data Connector PDE Male: P/N 91611701
Power+Data Connector PDE Female: P/N 91611702
Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006

Power Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91610174
Cable Connector, Neutrik PowerCON TRUE1 Female: P/N 91611789HU

Ordering Information BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
