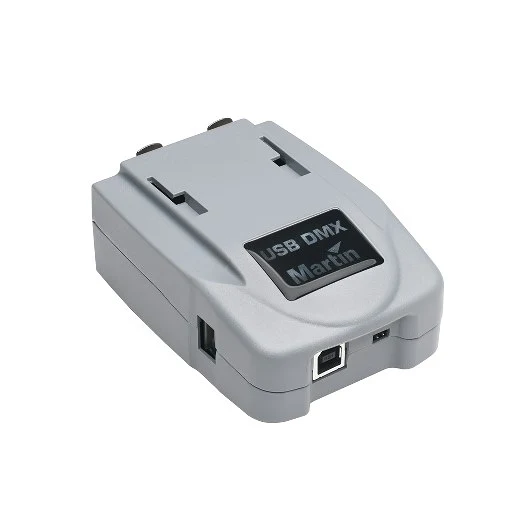

Martin Martin USB Duo DMX Interface

Større billeder

The Martin USB Duo DMX Interface features XLR 5P female connectors and provides two DMX 512 universes from any USB enabled Windows-based PC. It communicates with Martin LightJockey™ (with Martin One-Key™), the Maxxyz™ and M1™ controller series, the Maxedia™ media server series, and Martin ShowDesigner 5™ (MSD5), as well as Martin fixture software uploaders (not compatible with MUM software).

2 DMX universes - configurable for in/out
DMX 512-A (RDM compatible)
Convenient, space-saving stackable design

Funktioner

Plug and play solution: comes complete with USB cable and installation notes
2 DMX universes - configurable for in/out
Convenient, space-saving stackable design
Easily mounts to surfaces and walls
DMX 512-A (RDM ready)
Upload of fixture software files (MU3)

Flere detaljer

Physical Length: 103 mm Width: 73 mm Height: 42 mm Weight: 116 g

Control/User Interface Configuration and management: Application (e.g. LightJockey, Maxxyz PC, Maxedia) Device status: 3 x red/orange/green LEDs

Connections DMX data: 2 x 5-pin locking XLR, both configurable for DMX in/out PC/controller: USB

Electrical USB-powered:

Included Items 3 m USB cable: CD with drivers and installation/user documentation:

Ordering Information Martin USB Duo™ USB/DMX Interface Box: 90703010

Downloads

Compliances

	Version	Sprog	Størrelse	Uploadet
Martin USB Duo DMX Interface- EU Declaration of Conformity version A, opdateret: okt 2020	A		226 kB	okt 2020

Software

	Version	Sprog	Størrelse	Uploadet
Firmware Update Package version C, opdateret: okt 2020	C		369 MB	okt 2020
M-Series Software version 3.70.885, opdateret: jun 2018	3.70.885			jun 2018
Martin USB Tools version 1.2, udgivet: jul 2020	1.2		107 MB	jul 2020
