VDO Sceptron fixtures are compact, high-performance LED pixel-battens, designed for high performance lighting and creative video applications. Ideal for lighting designers, rental houses, and installation professionals, VDO Sceptron models feature best-in-class performance, unmatched versatility, and a future-proof design.

COMPARING THE VDO SCEPTRON FAMILY



  VDO Sceptron XB VDO Sceptron 10 VDO Sceptron 20 VDO Sceptron 40

VDO Sceptron XB

VDO Sceptron 10

VDO Sceptron 20

VDO Sceptron 40
Pixel Pitch 10 mm 10 mm 20 mm 40 mm
Source RGBW RGB RGB RGB
Output White 2,300 lm / m (full power mode)
1,250 lm / m (half power mode) 		750 lm / m 375 lm / m 187 lm / m
Output R/G/B 640/1940/350 lm / m (full power mode) 205/491/54 lm / m 103/245/27 lm / m 51/123/13 lm / m
ColorBoost Yes No No No
Control Art-Net, sACN & P3 DMX & P3 DMX & P3 DMX & P3
Cabling DCE BBD BBD BBD
Power P3 PowerPort 2000, P3 PowerPort 500 IP Rental, P3 PowerPort 500 IP Install, DCE PSU 240 IP P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W
Environmental Rating IP65 IP65 IP65 IP65
Size 27 x 37 x 1000 mm 27 x 28 x 1000 mm 27 x 28 x 1000 mm 27 x 28 x 1000 mm
Weight 1.6 kg (3.5 lbs) 1.2 kg (2.6 lbs.) 1.2 kg (2.6 lbs.) 1.2 kg (2.6 lbs.)

VDO Sceptron XB

HØJTOUTPUT PIXEL-BATTEN

Pixel Pitch: 10 mm

Source: RGBW

Output White : 2,300 lm / m (full power mode)
1,250 lm / m (half power mode)

Output R/G/B: 640/1940/350 lm / m (full power mode)

ColorBoost: Yes

Control: Art-Net, sACN & P3

Cabling: DCE

Power: P3 PowerPort 2000, P3 PowerPort 500 IP Rental, P3 PowerPort 500 IP Install, DCE PSU 240 IP

Environmental Rating: IP65

Size: 27 x 37 x 1000 mm

Weight: 1.6 kg (3.5 lbs)

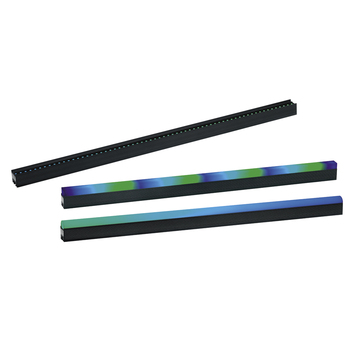

VDO Sceptron 10

Lineær LED-videobatteri med 10mm pixelpitch

Pixel Pitch: 10 mm

Source: RGB

Output White : 750 lm / m

Output R/G/B: 205/491/54 lm / m

ColorBoost: No

Control: DMX & P3

Cabling: BBD

Power: P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W

Environmental Rating: IP65

Size: 27 x 28 x 1000 mm

Weight: 1.2 kg (2.6 lbs.)

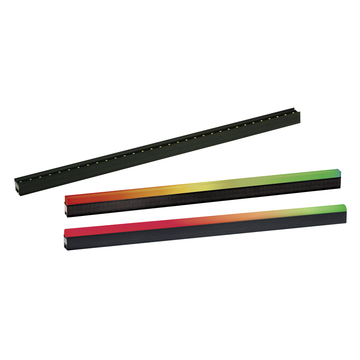

VDO Sceptron 20

Linear LED Video batten with 20mm pixel pitch

Pixel Pitch: 20 mm

Source: RGB

Output White : 375 lm / m

Output R/G/B: 103/245/27 lm / m

ColorBoost: No

Control: DMX & P3

Cabling: BBD

Power: P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W

Environmental Rating: IP65

Size: 27 x 28 x 1000 mm

Weight: 1.2 kg (2.6 lbs.)

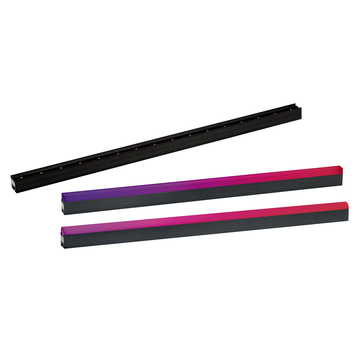

VDO Sceptron 40

Linear LED Video batten with 40mm pixel pitch

Pixel Pitch: 40 mm

Source: RGB

Output White : 187 lm / m

Output R/G/B: 51/123/13 lm / m

ColorBoost: No

Control: DMX & P3

Cabling: BBD

Power: P3 PowerPort 1500, P3 PowerPort 1000 IP Rental, P3 PowerPort 1000 IP Install, DMX PowerPort 375, Martin IP66 PSU 240W

Environmental Rating: IP65

Size: 27 x 28 x 1000 mm

Weight: 1.2 kg (2.6 lbs.)

VDO Sceptron Produkter



relaterede produkter: VDO Dotron, VDO Fatron, VDO Atomic

Tilbehør

  • P3 POWERPORT

    Intergrated power supply and data-distribution units, supporting VDO Sceptron XB

  • P3 POWERPORT LEGACY MODELS

    Intergrated power supply and data-distribution units, supporting VDO Sceptron 10/20/40

  • DIFFUSERS & LENSES

    Field-exchangeable optical accessories for a wide variety of looks

  • Rigging

    Versatile range to rig and combine fixtures
