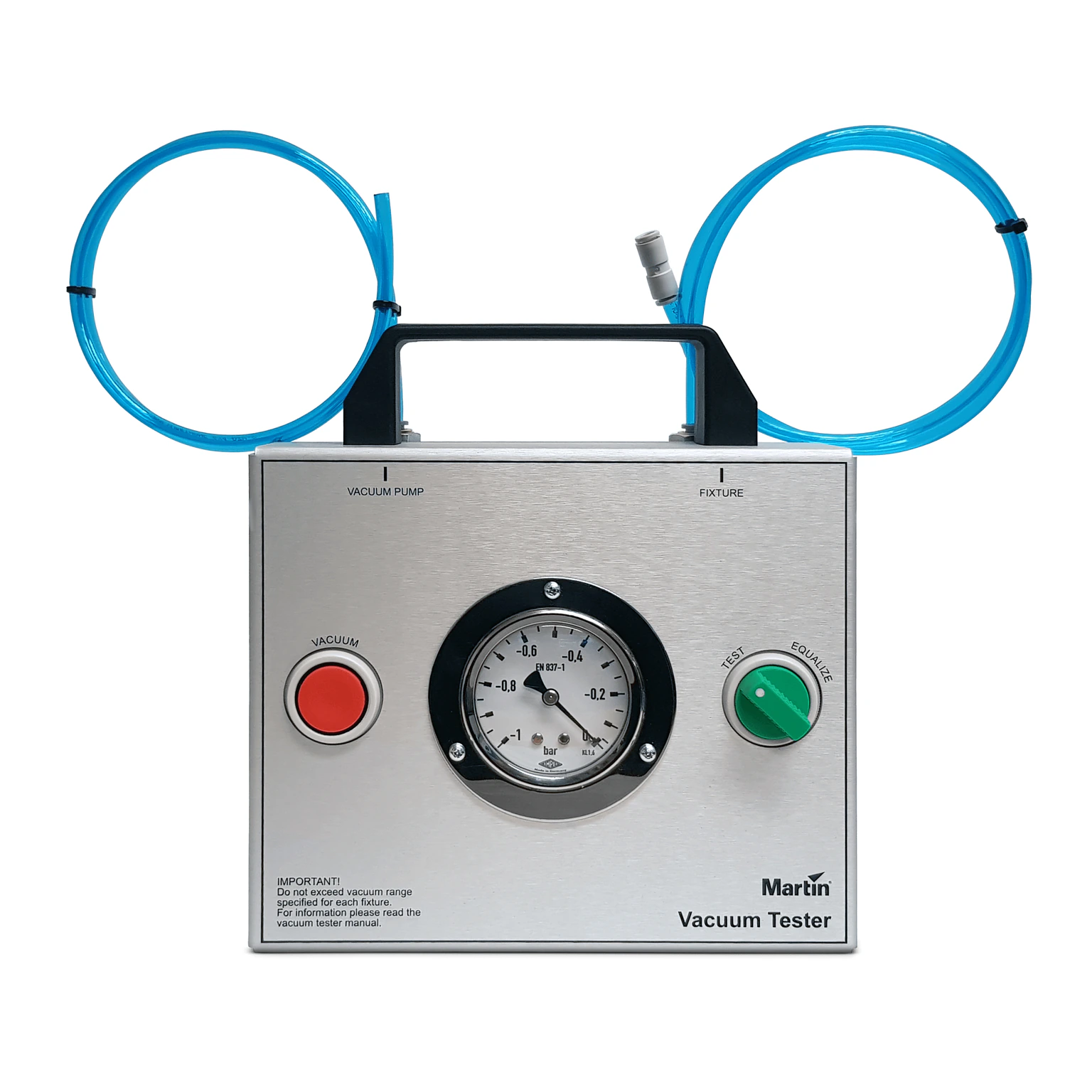

Martin Vacuum Tester

Imágenes más grandes

The Martin Vacuum Tester is designed as an easy-to-use service tool for qualified technicians, to verify correct sealing against any water or dust ingress of Martin outdoor rated products

Especificaciones

Physical Length: 210 mm (8.2 in.) Ancho: 100 mm (3.9 in.) Altura: 220 mm (8.6 in.) – including handle PESO: 1.3 kg (2.9) lbs.

Included Items Pump adaptor M12x1, very fine: P/N 50503001 Pump adaptor M12x1.5, fine: P/N 50503002
Suction cup
Vacuum hoses for connection to pump and to Exterior fixture

Ordering Information Vaccum Tester: P/N 91611580

Specifications for required vacuum pump (not included) Pumping capacity: Minimum 30 liters per minute. Vacuum capacity: Minimum 10 Pa/0.0001 bar, maximum 50 Pa/0.0005 bar

Descargas

Manuals

	Versión	Idioma	Tamaño	Subido
Performing a vacuum test versión I, actualizado: oct 2024	I		1,89 MB	oct 2024

Illustrations

	Idioma	Tamaño	Subido
Vacuum test equipment (EC) - 2D dimensions (PDF) actualizado: dic 2020		716 KB	dic 2020
