The Martin Exterior Projection Pro outdoor image projector family is designed to inspire captivating creativity and versatility across a diverse range of architectural, façade, and landscape applications. Versatile and efficient, the family supports a range of configurations, multiple layers of effects, and precise façade framing. These advanced and cost-effective solutions are ideal for architectural lighting designers, architects, system integrators, and electrical contractors to deliver unmatched performance, versatility, and user-friendly operation.
Comparing the Exterior Projection Family

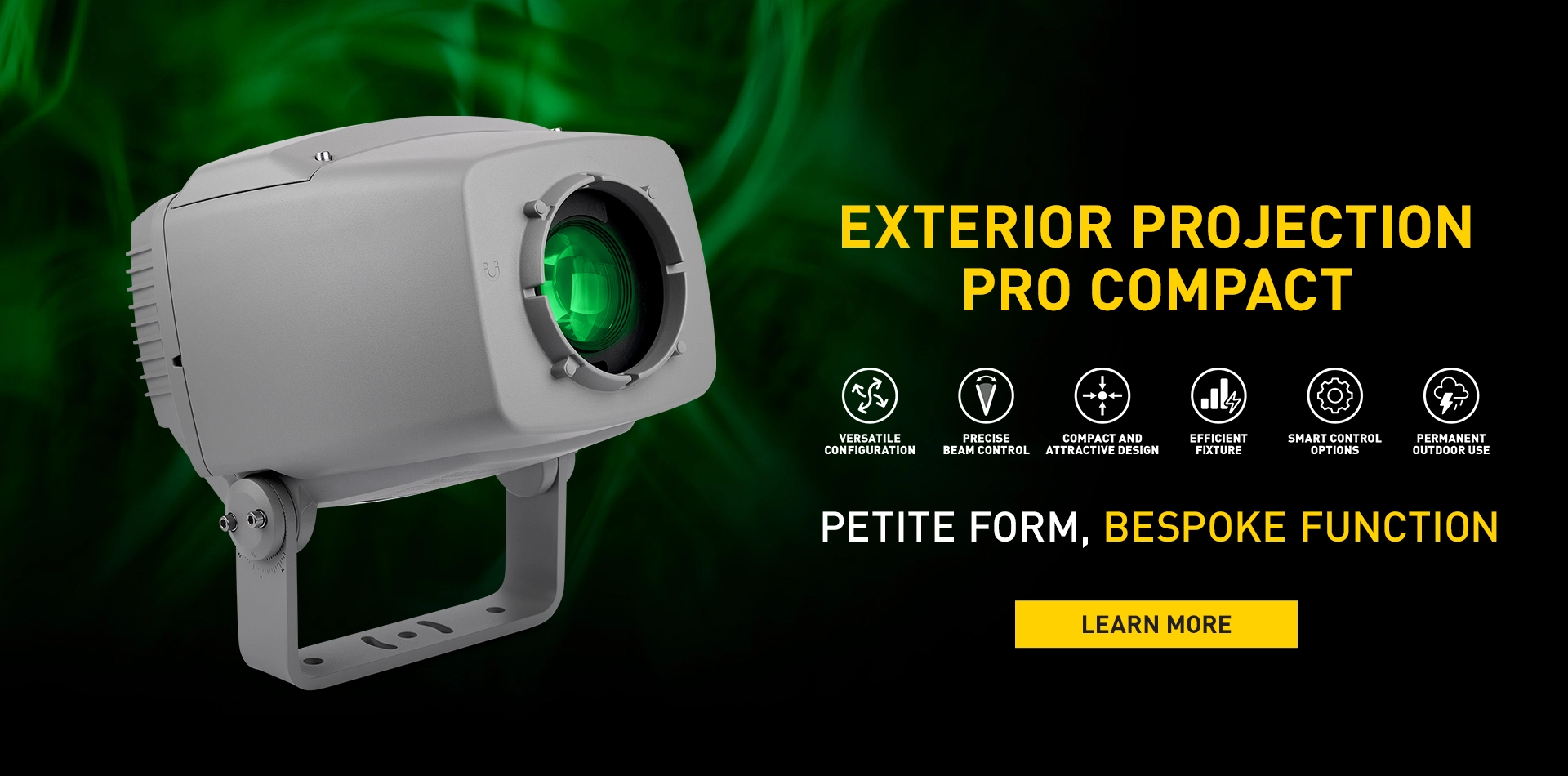

Exterior Projection Pro Compact
Proyector de imagen configurable con clasificación para exteriores
Lumen output / efficacy:
5,200 lm - 33 lm/W
(across the zoom range)
Typical power consumption: 160 W
Zoom range: Motorized 15° - 45°
Intensity: 0-100% electronic
Focus: Motorized, variable 3 m (9.8 ft.) to infinity
Gobos:
4 rotating/indexing (accessory)
1 rotating/indexing (accessory)
Gobo size :
Image diameter: 15 mm
Outer diameter: 19 mm
Colors: 5 colors + open
Framing: Manual 4-blade (accessory)
Animation: Continuous rotating effect (accessory)
Dimensions (W x H x L):
272 x 335 x 342 mm
10.7 x 13.2 x 13.5 in.
PESO:
12.5-13.9 kg (27.5–30.6 lbs)
depending on actual configuration
Exterior Projection 500
Proyector de imágenes de escala mediana clasificado para uso exterior
Lumen output / efficacy:
12° variant: 5,000 lm - 16 lm/W
22° variant: 6,100 lm - 20 lm/W
37° variant: 5,700 lm - 18 lm/W
50° variant: 3,400 lm - 11 lm/W
Typical power consumption: 310 W
Zoom range: N/A - fixed beam angle variants
Intensity: 0-100% electronic
Focus: Motorized, variable 3 m (9.8 ft.) to infinity
Gobos: 7 rotating/indexing
Gobo size :
Image diameter: 23 mm
Outer diameter: 30 mm
Colors: 8 colors + open
Framing: Manual 4-blade (replaces gobo and animation module)
Animation: Linear effect
Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing
Frost: Variable frost
Dimensions (W x H x L):
293 x 444 x 415 mm
11.6 x 17.5 x 16.4 in.
PESO: 17.5 kg (38.6 lbs.)
Exterior Projection 1000
Proyector de imágenes de gran escala con clasificación para uso exterior
Lumen output / efficacy:
At 10° zoom: 11,500 lm - 18 lm/W
At 16° zoom: 15,000 lm - 24 lm/W
At 40° zoom: 16,800 lm - 26 lm/W
Typical power consumption: 635 W
Zoom range: Motorized 10° - 44°
Intensity: 0-100% electronic
Focus: Motorized, variable 3 m (9.8 ft.) to infinity
Gobos: 7 rotating/indexing
Gobo size :
Image diameter: 26 mm
Outer diameter: 30 mm
Colors: CMY + 7 colors + open
Animation: Continuous rotating effect
Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing
Frost: Variable frost
Dimensions (W x H x L):
417 x 618 x 702 mm
16.5 x 24.4 x 27.7 in.
PESO: 50 kg (110 lbs.)
